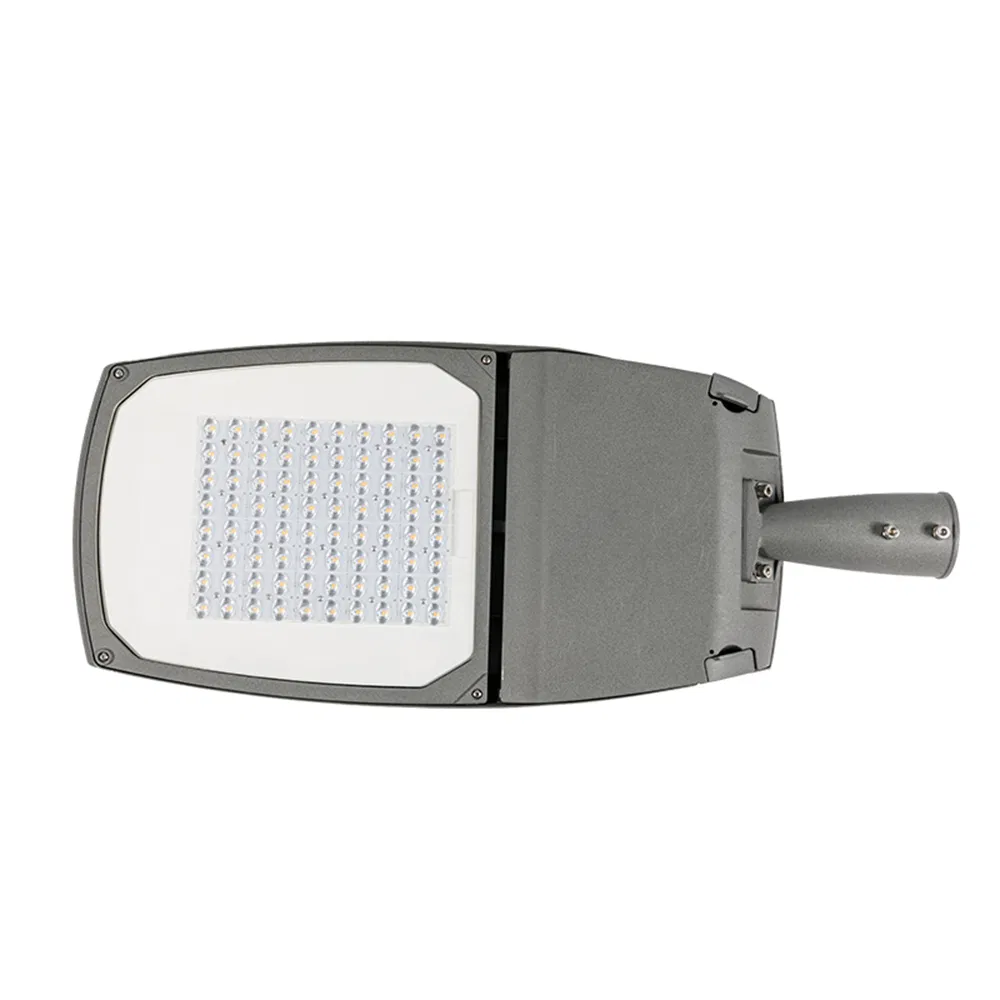

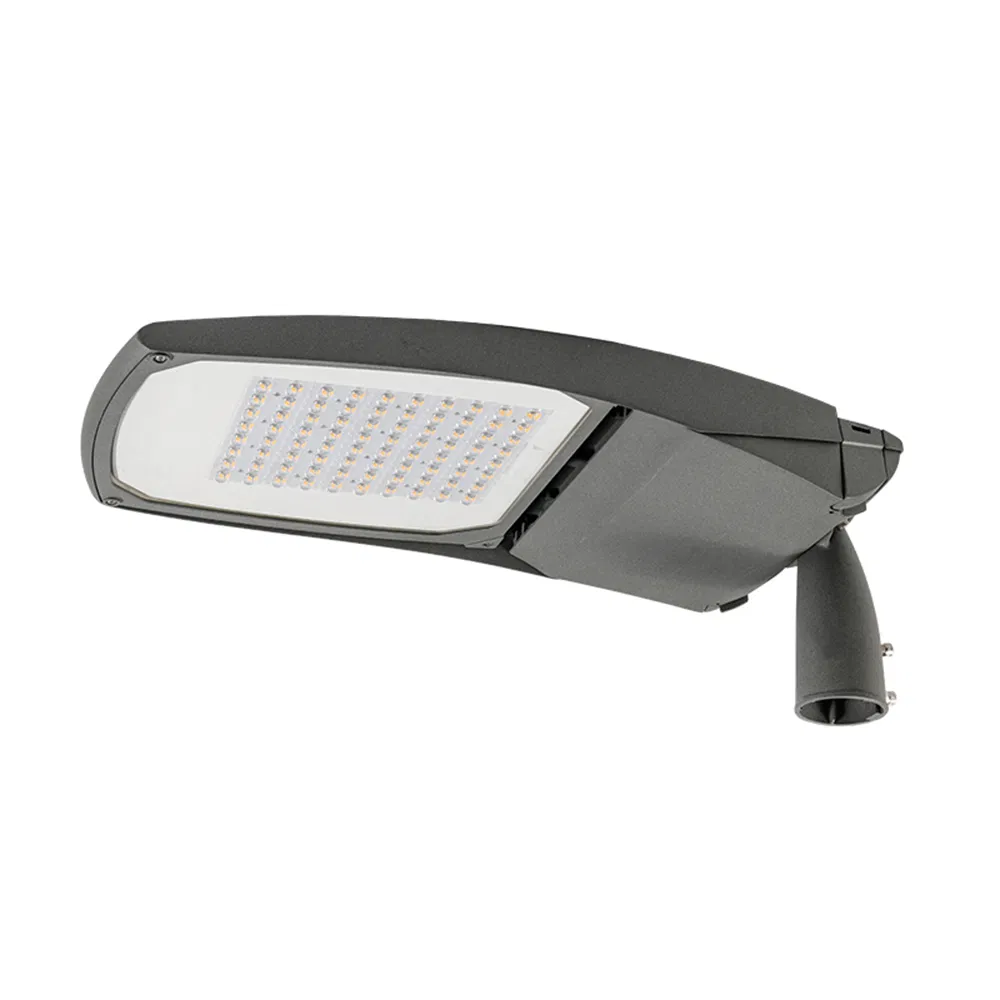

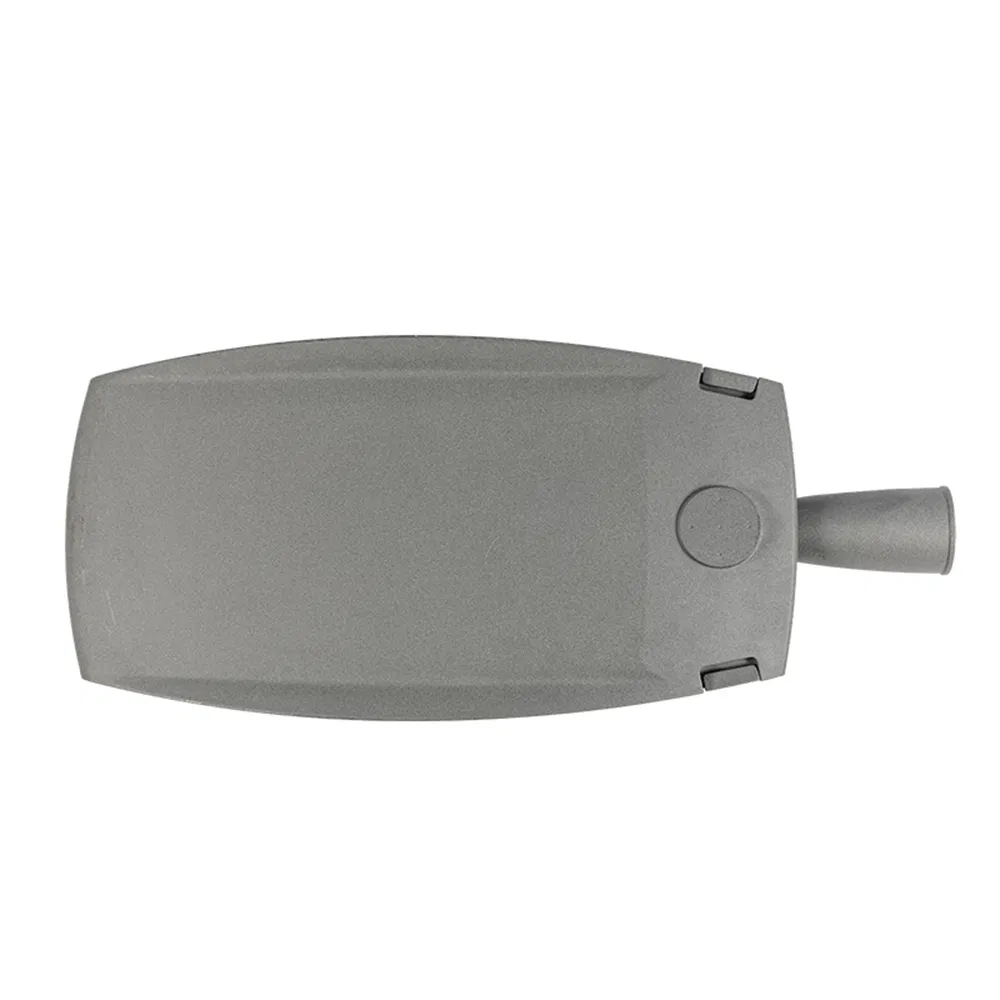

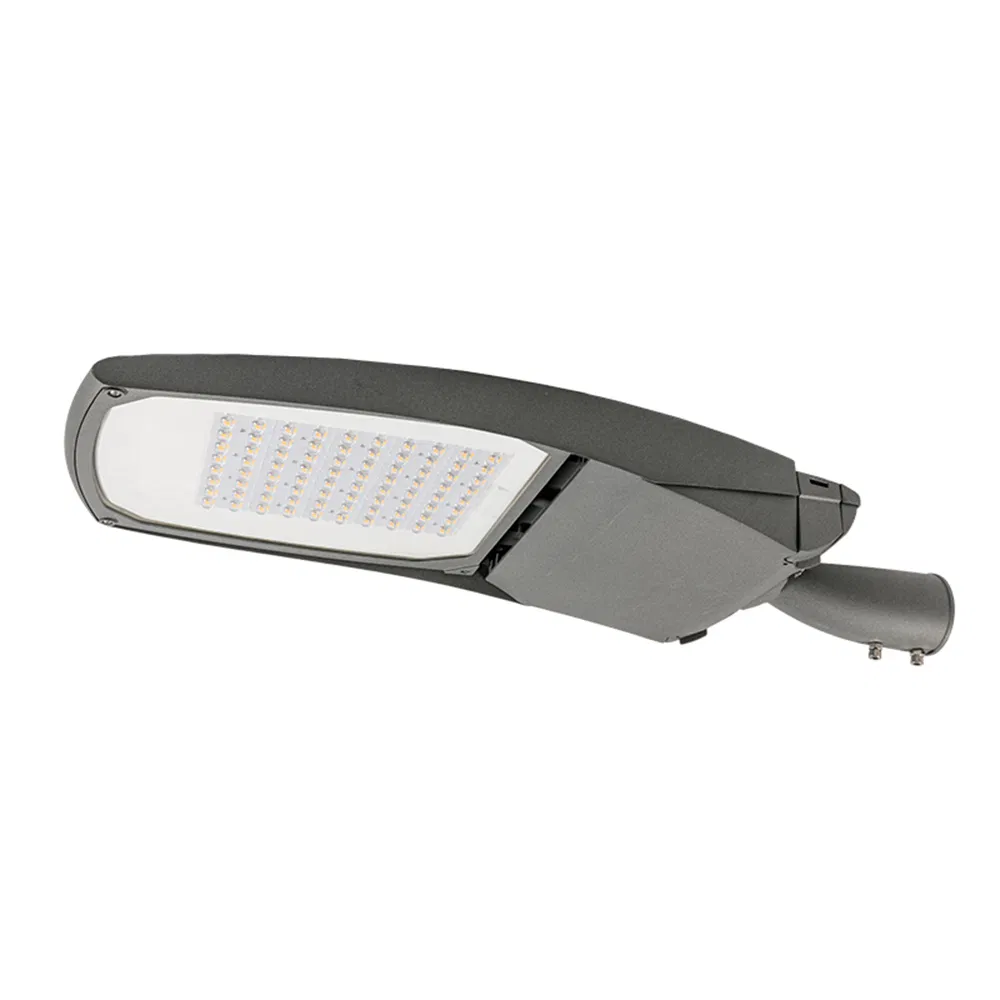

240W 320W Street Lamp LED Street Light Outdoor Public Lighting

Customization:	Available
Power Supply:	AC
Color Temperature:	3000K-5000K

📊Basic Information

Model NO.

YASL-25-240

Material

Aluminum

Power

240W

Application

Square, Highway, Parking Lot

IP Rating

IP66

Certification

CB, CE, RoHS

Input Voltage

90~305V

LED Brand

Semileds

Lifespan

50000h

Specification

555mm*210mm*143mm

💡Product Description

LED Street Light YASL-25 240M

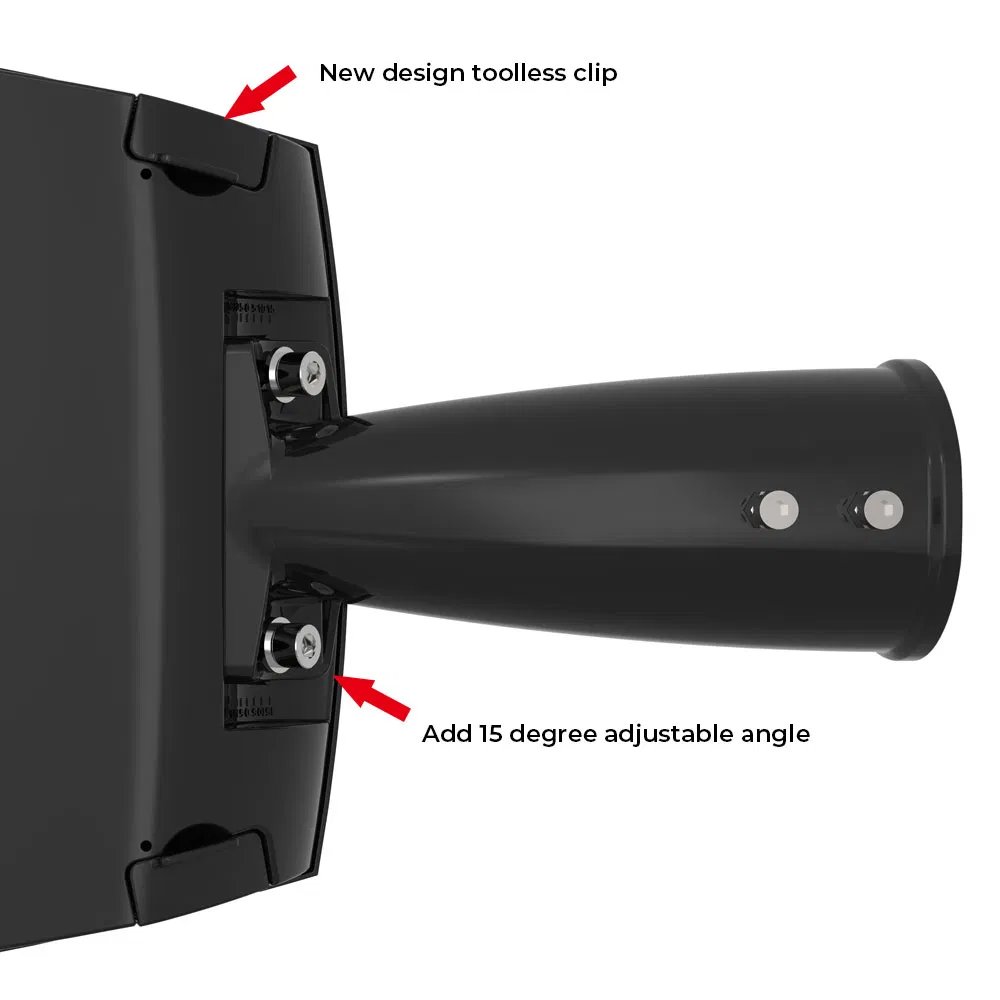

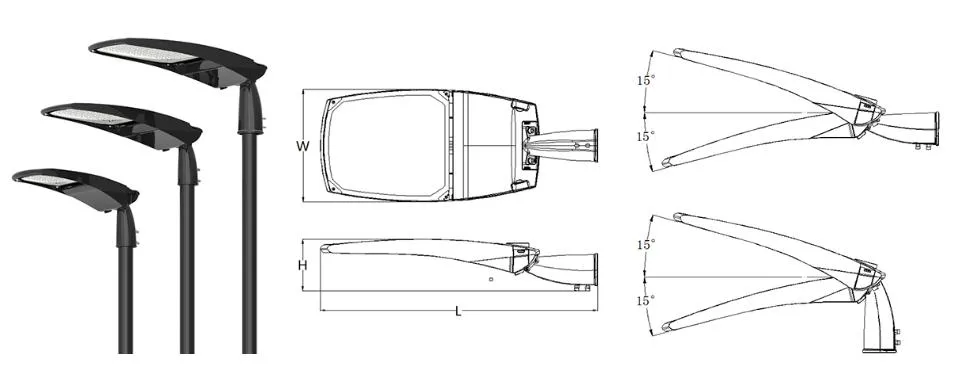

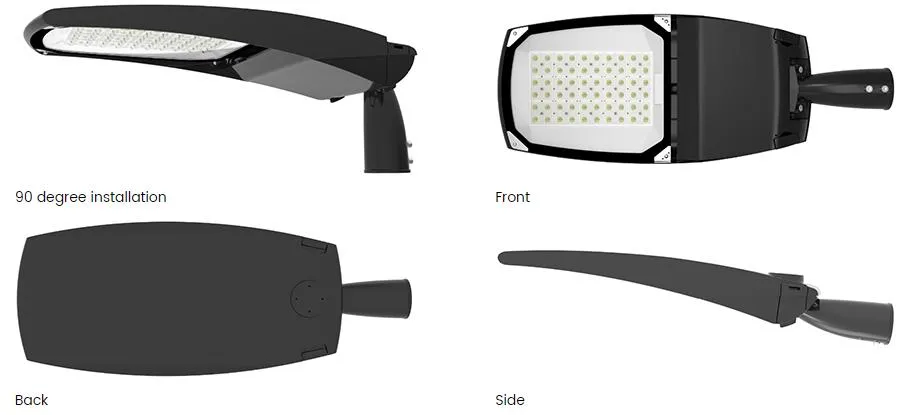

Installing Ways: Both Horizontal and Vertical available and adjustable angle -15° to +15°. This series is a high-performance street lighting manufactured from high pressure die-casting aluminum. LED efficiency up to 130 lm/w, capable of producing up to 26000 luminaire lumens at 4000K.

Technical Specifications
Product Code	YASL-25-240M
Input Wattage	200W / 240W
Pipe Diameter	φ45/60/76mm
Luminous Flux	26000-36000lm
Color Temperature	2700~6500K
Power Factor	PF≥0.95
CRI	Ra≥70
Operating Temp	-40~50ºC
Protection Grade	IP66 / IK08-10

⚙️Performance & Requirements

Category	Requirement	Standard
Housing	Heavy-duty rugged pressure die-cast aluminium alloy	ISO 3522

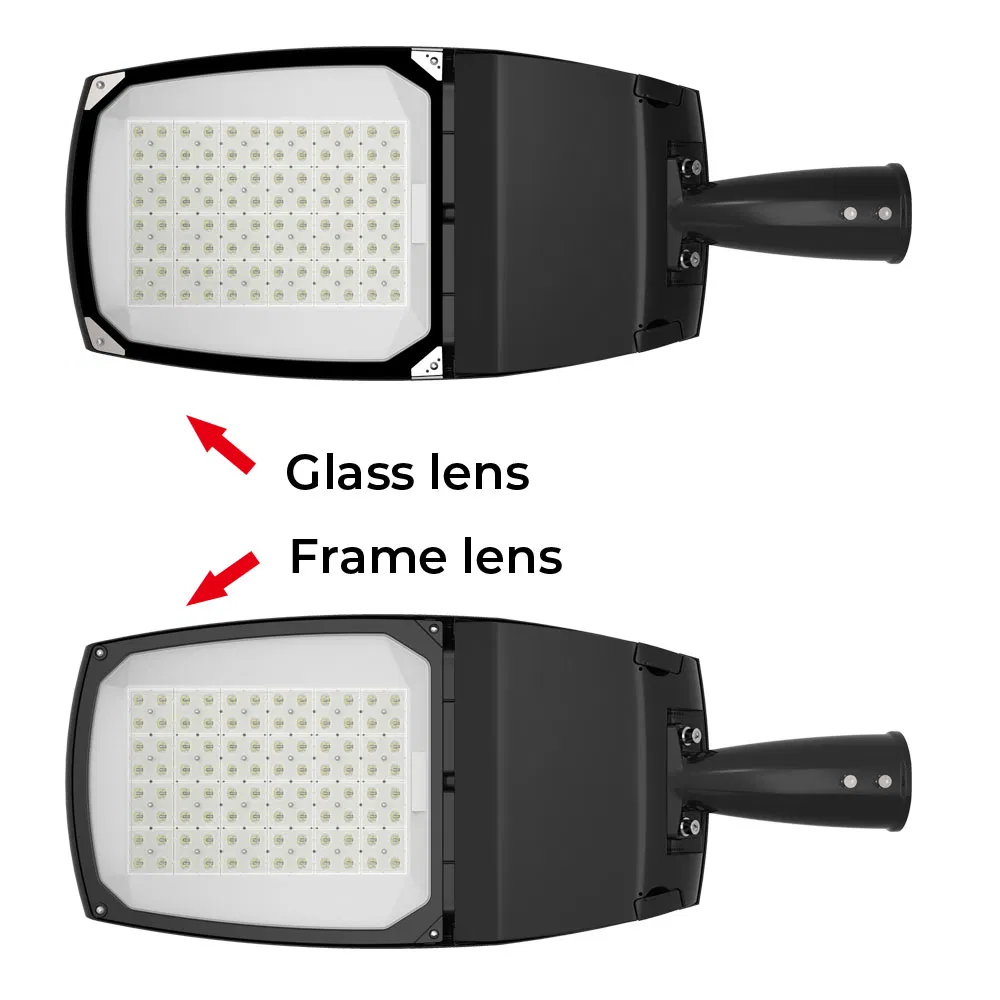

Cover	Tempered Glass	-
Corrosion Test	Salt spray tests for 1000 hours	EN/ISO 9227
LED Life	>100,000 hours @L95	LM80 / TM21
Surge Protection	10KV	-
Lumen Efficacy	≥ 160lm/W (25°C ambient)	LM-79

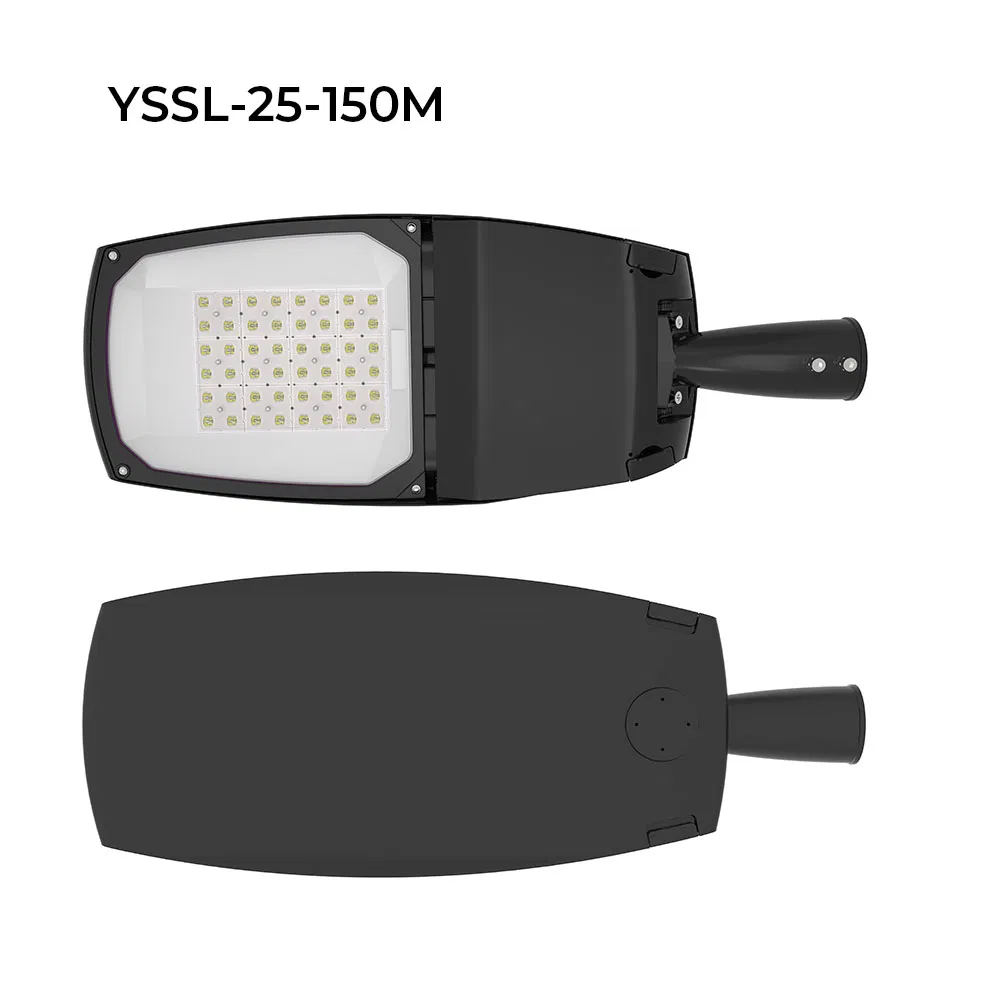

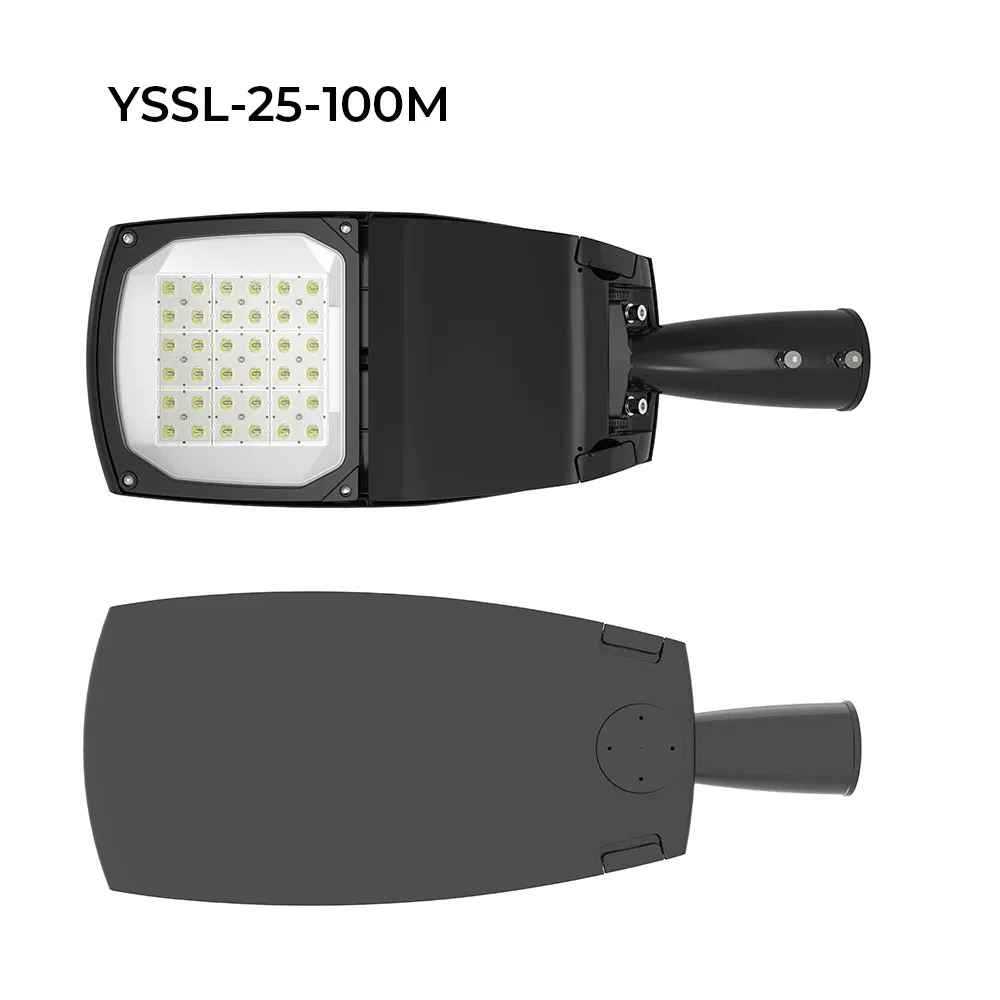

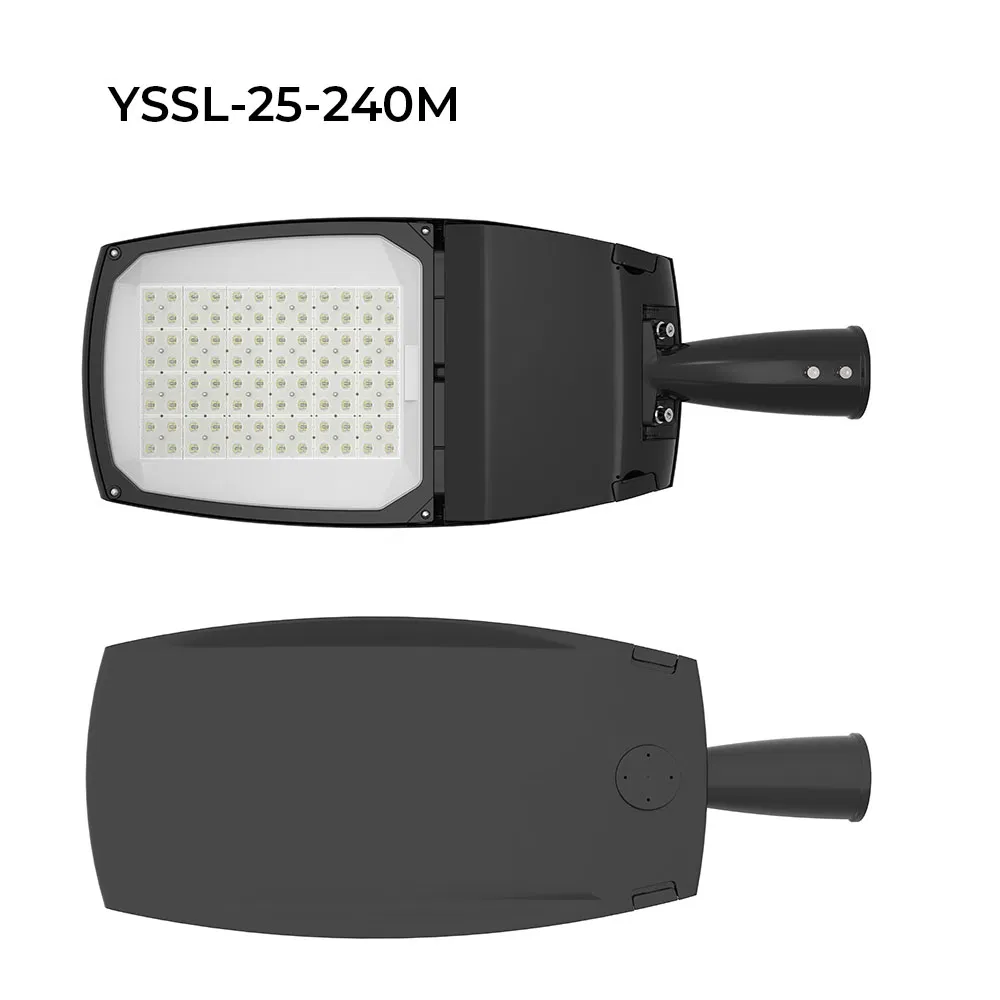

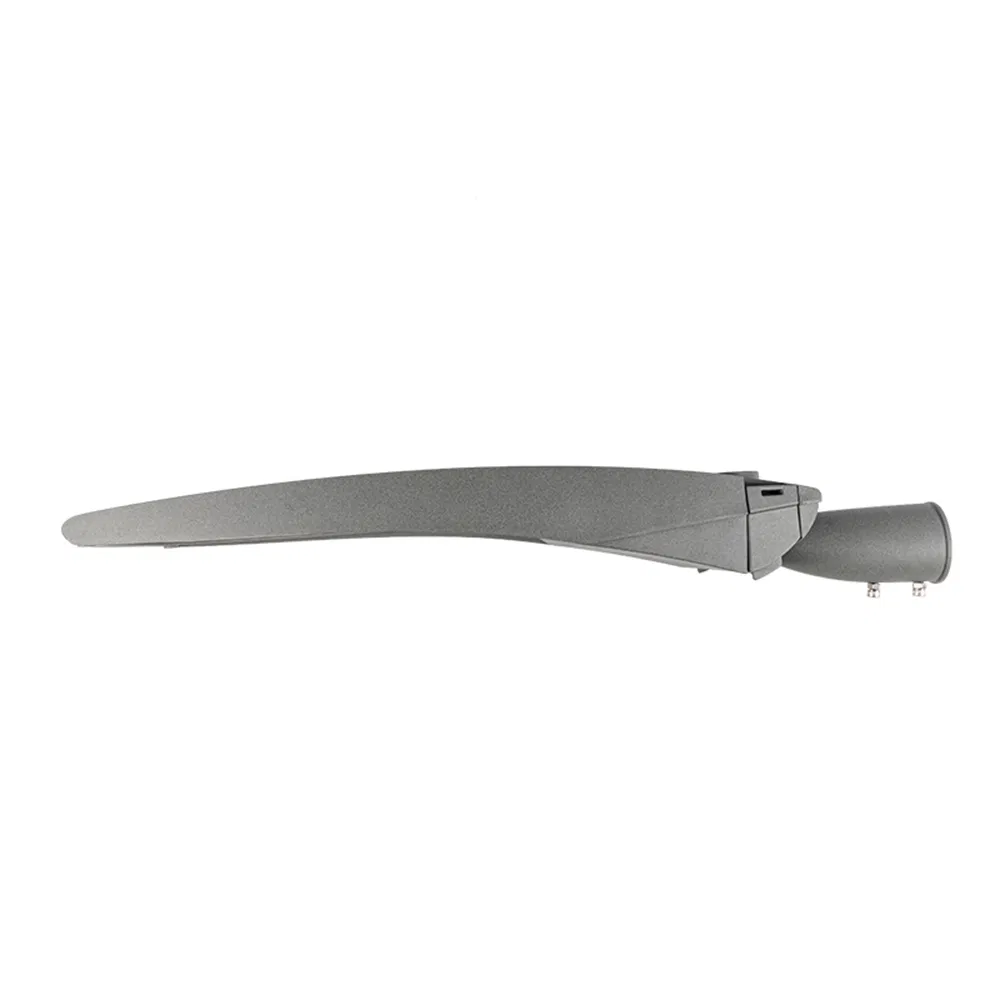

📸Detailed Photos

🏢Company Profile

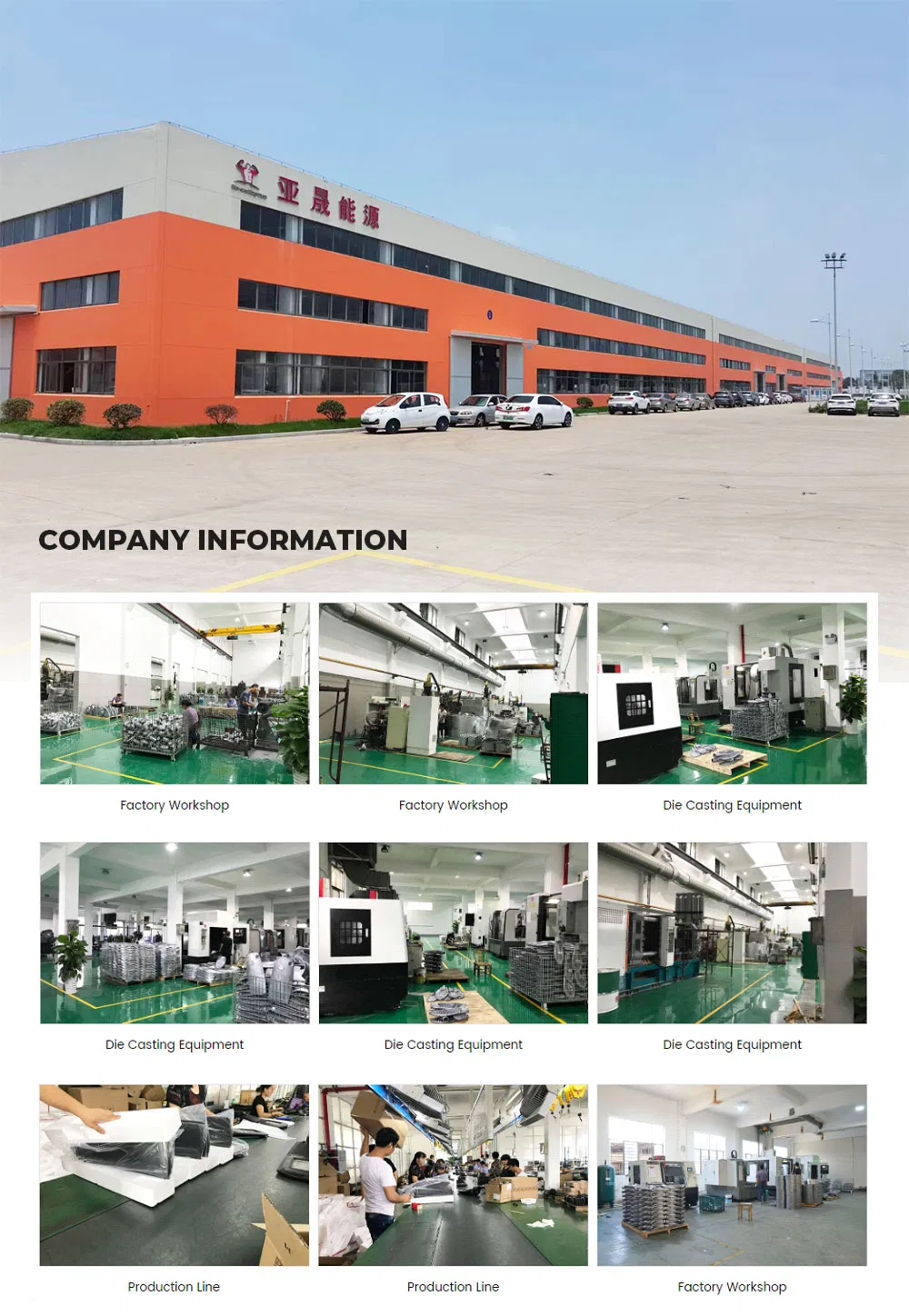

Established in 1996, our facility specializes in lighting design, development, production, and testing. We offer a superior range of street lights, high bay lights, and OEM die-casting products. We provide full service or SKD supply solutions, ensuring our technology is practical, affordable, and reliable.

❓Frequently Asked Questions

1. What are your MOQ requirements?

1-5 pieces for samples. 100 pieces for mass production. We can accept small quantities for your first order.

2. What about the LED Chips and Drivers?

We can use the specific LED chips and driver brands as required by the customer.

3. What is the guarantee for your products?

We offer a 5-year guarantee for our customers, with a rated lifespan of 50,000 hours.

4. Can I put my logo on the housing?

Yes. We offer screen printing (no MOQ) and die-casting logo options (MOQ 1000 pieces).

5. How do you guarantee product quality?

Always a pre-production sample before mass production and a final inspection before shipment.

6. What happens if I receive defective goods?

For occasional defects, we provide free replacements with the next order. If the rate exceeds 1%, we provide free components like drivers, SPD, or PCBs.
