📋 Basic Info.
Model NO.
EN-5030A-LE40W12
Luminous Efficiency
4000lm
Working Temperature
0℃- +50℃
Certification
CE, EMC, RoHS, SAA, UL
Color Temperature
3000K/4000K/6000K
Lamp Body Material
Aluminum +PC
LED Chips
Epistar SMD 2835 - 504PCS
Production Capacity
20000 Pieces/Year

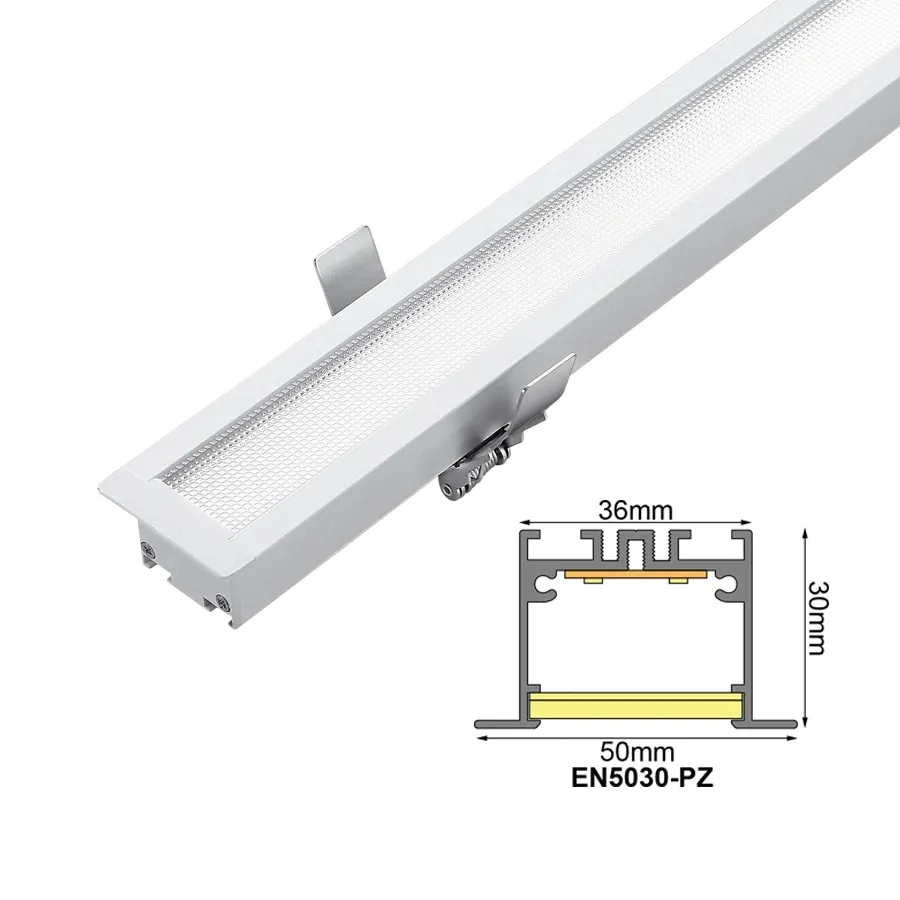

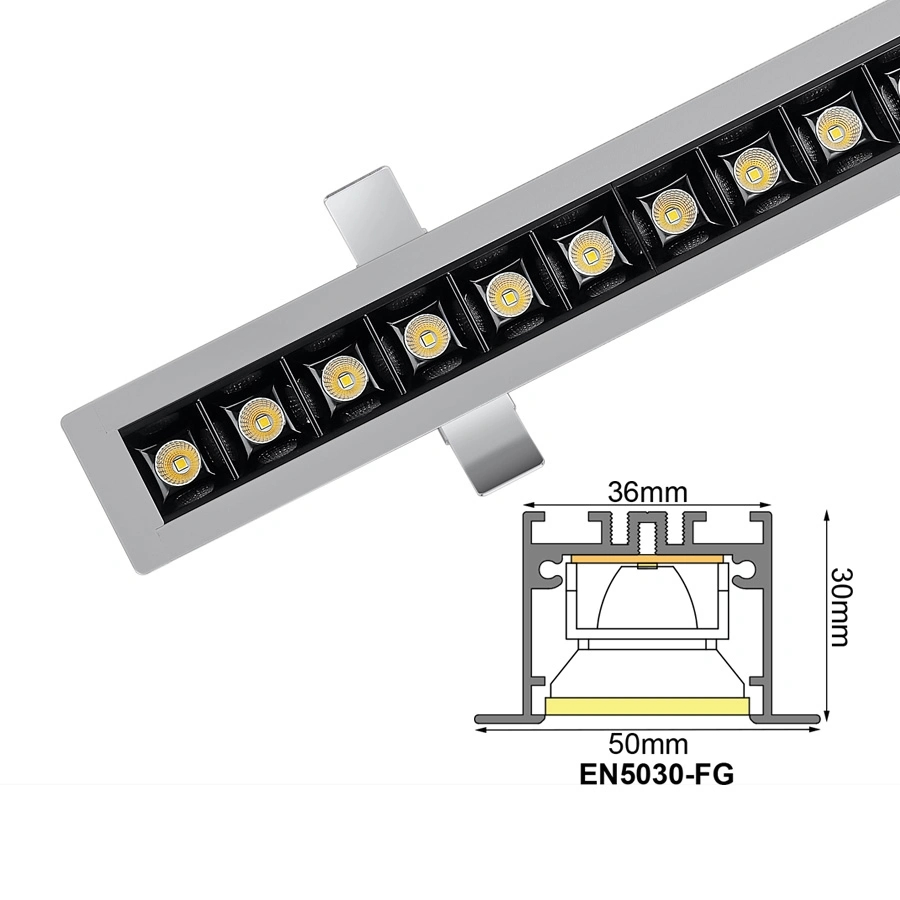

Specification
L1200*W50*H30mm
📦 Packaging & Delivery
Package Size
125.00cm * 25.00cm * 25.00cm
Transport Package
Carton Outside

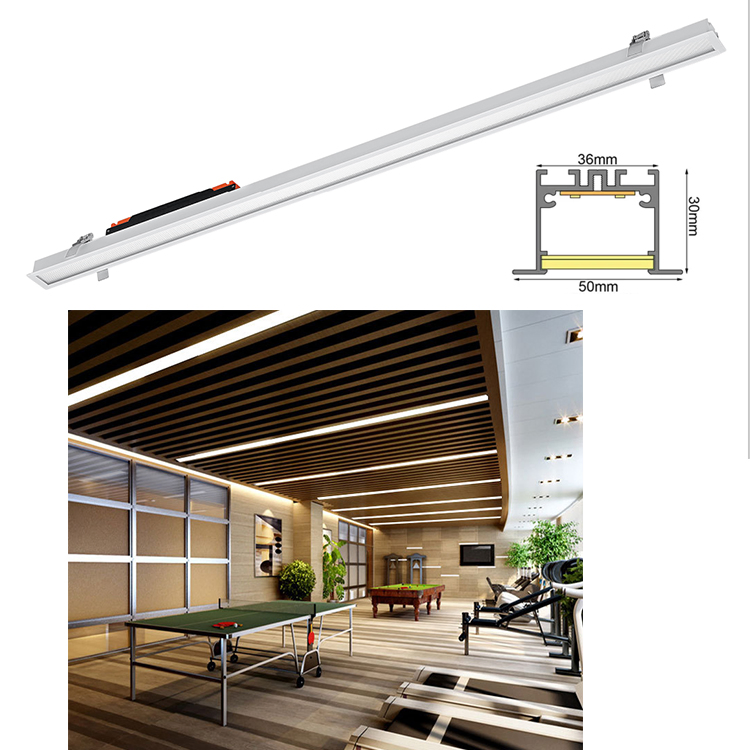

💡 Product Description
| Model number |
Dimension |
Power |
Input voltage |
CCT |
Shell color |
| EN-5030A-LE20W06 |
L615*W50*H30mm |
20W |
AC200-240/AC85-265V |
3000K/4000K/6000K |
Black/White/Silver |
| EN-5030A-LE40W12 |
L1205*W50*H30mm |
40W |
AC200-240/AC85-265V |
| EN-5030A-LE60W18 |
L1800*W50*H30mm |
60W |
AC200-240/AC85-265V |
| EN-5030A-LE80W24 |
L2395*W50*H30mm |
80W |
AC200-240/AC85-265V |
⭐ Key Features
1. Connect with seamless, form with line shape.

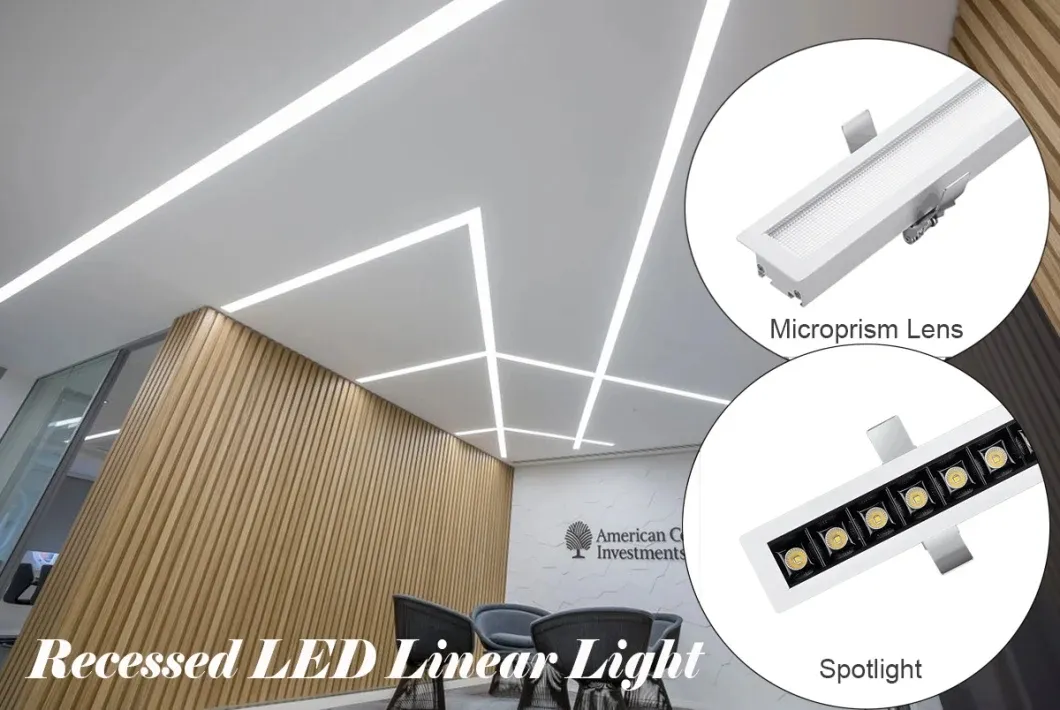

2. Product can be used hanging, surface mounted, recessed installation.

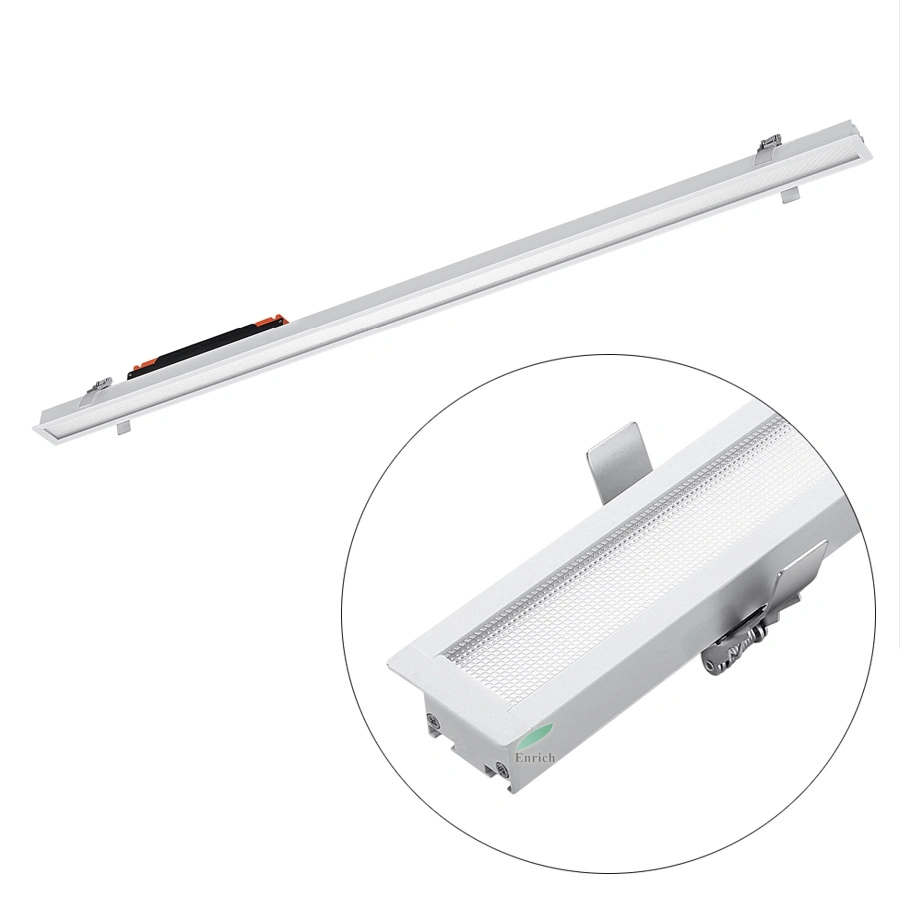

3. Cap with Microprism Cover and Reflector Cap moulding; light-tight seamless connection.

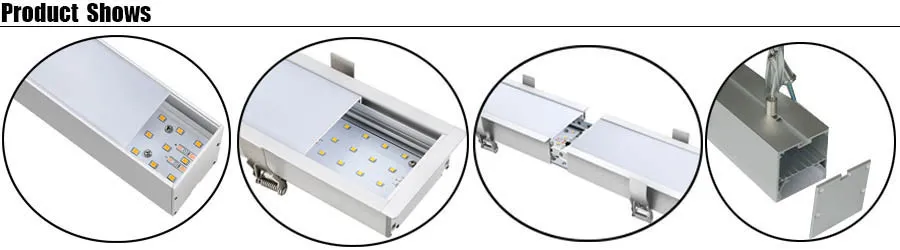

4. Aluminum PCB with no-facula design, easy rotate installation.
5. Cover transmitting rate reaches 86%, luminous reach 110lm/w.
6. IC driver. No flicker, No glaring. CRI ≥ 80, PF ≥ 0.9.
7. Passed CE RoHS certifications.

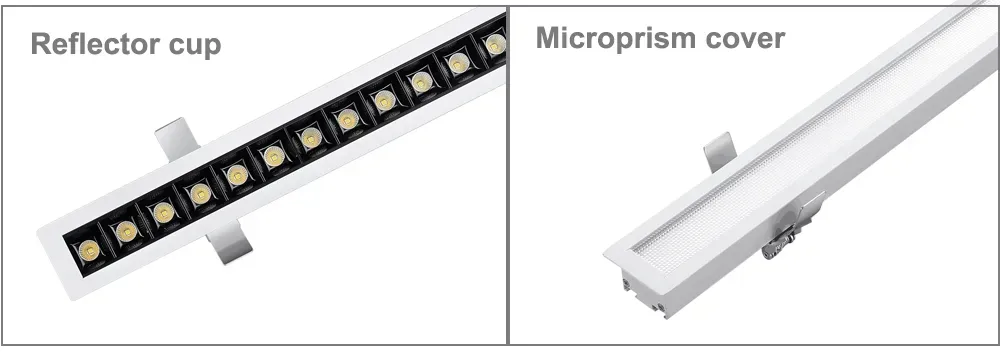

8. Dual shade options: microprism and reflector for eye protection.

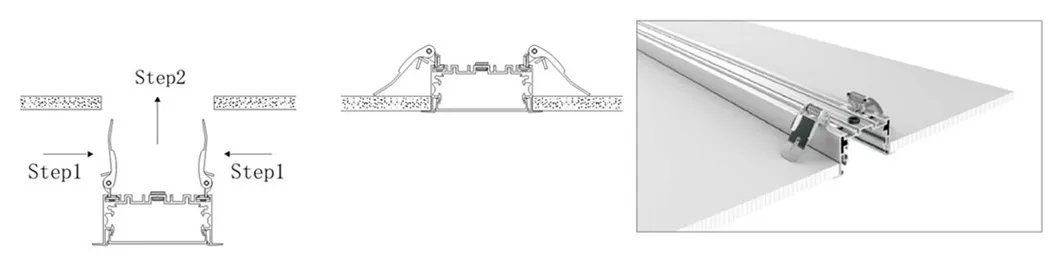

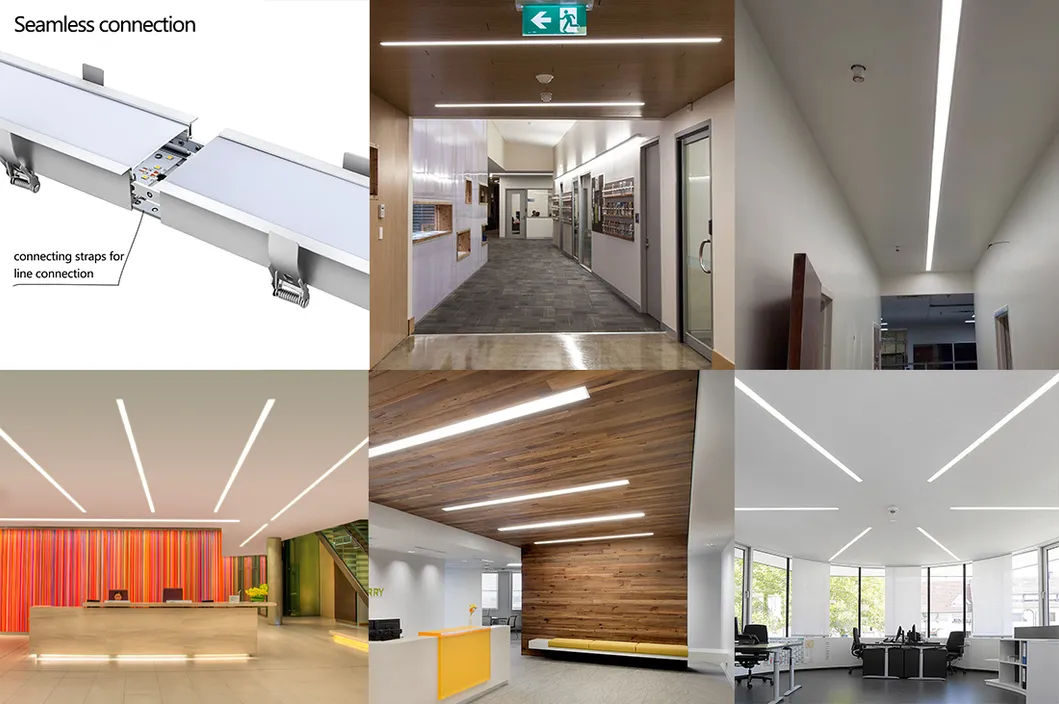

Simple straight line installation: Using 4pcs metal straps to fix tightly, no gap, and no light leakage.
🛠️ Installation & Sizes
Standard lengths: 0.6m, 1.2m, 1.8m, 2.4m (2ft, 4ft, 6ft, 8ft). All lights are seamless connectable.

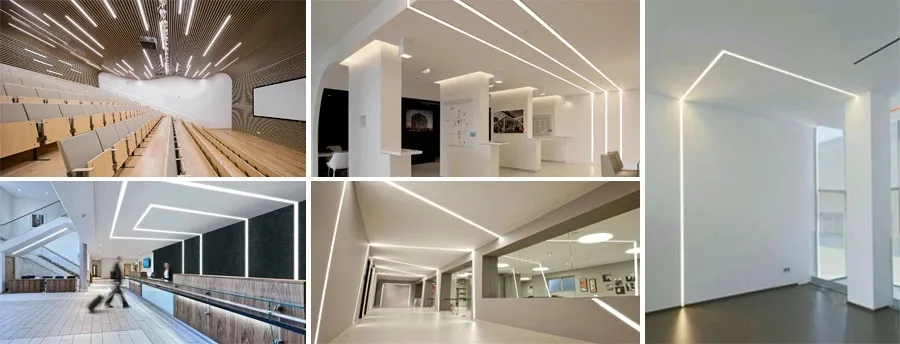

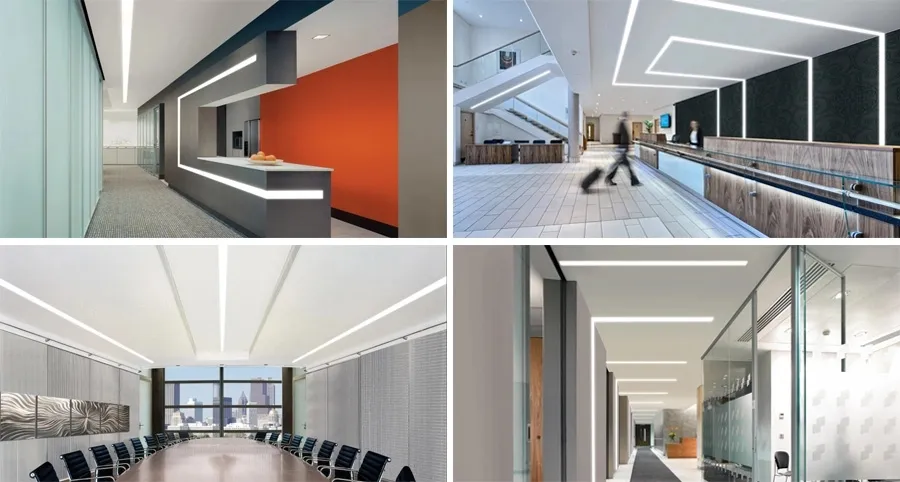

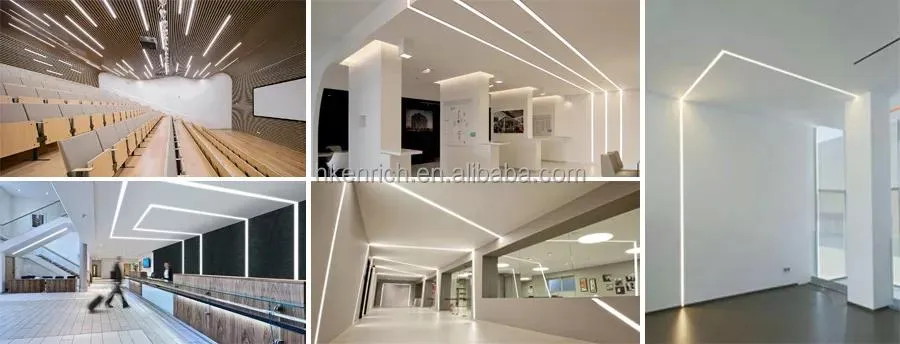

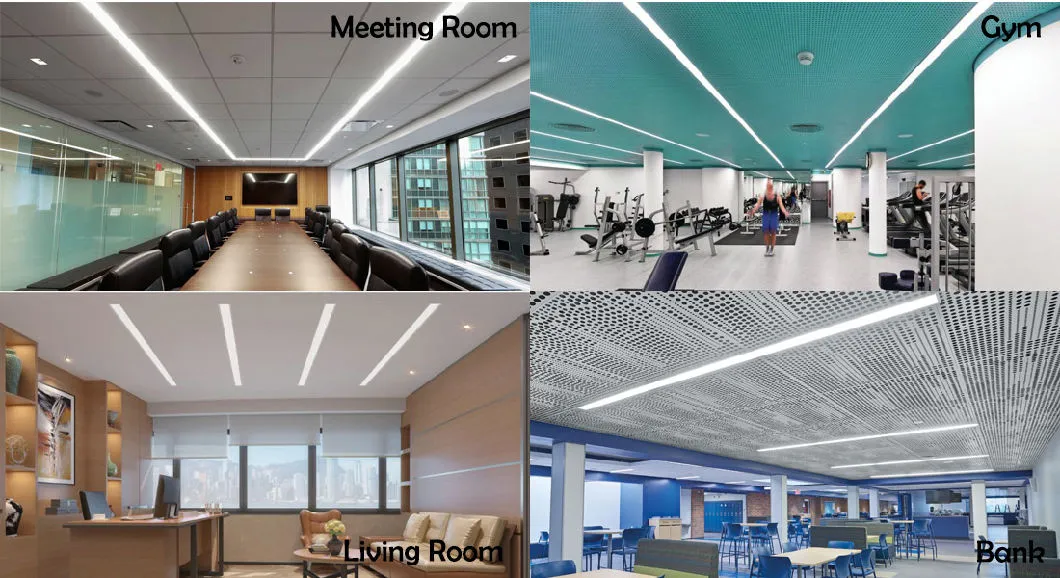

🏢 Applications
❓ Frequently Asked Questions
Q1: What installation methods are supported for the 5030 series?
A1: These linear lights are highly versatile and can be installed via hanging, surface mounting, or recessed installation to suit various architectural needs.
Q2: Can multiple units be connected for a continuous lighting line?
A2: Yes, the products are designed for seamless connection. Using metal straps, units can be fixed tightly with no visible gaps or light leakage between fixtures.
Q3: Is the lighting flicker-free and eye-friendly?
A3: Absolutely. The light uses a high-quality IC driver that ensures no flicker. Additionally, the anti-glare reflector and microprism cover options provide excellent eye protection.
Q4: What color temperatures and shell colors are available?
A4: We offer three color temperatures (3000K, 4000K, and 6000K) and three standard shell finishes: Black, White, and Silver.
Q5: What are the standard lengths available for these linear lights?
A5: The lights come in four standard lengths: 0.6 meters (2ft), 1.2 meters (4ft), 1.8 meters (6ft), and 2.4 meters (8ft).
Q6: What is the luminous efficiency and energy consumption?
A6: The luminous reach is 110lm/w with a cover transmitting rate of 86%. The 40W model provides approximately 4000lm of output.
