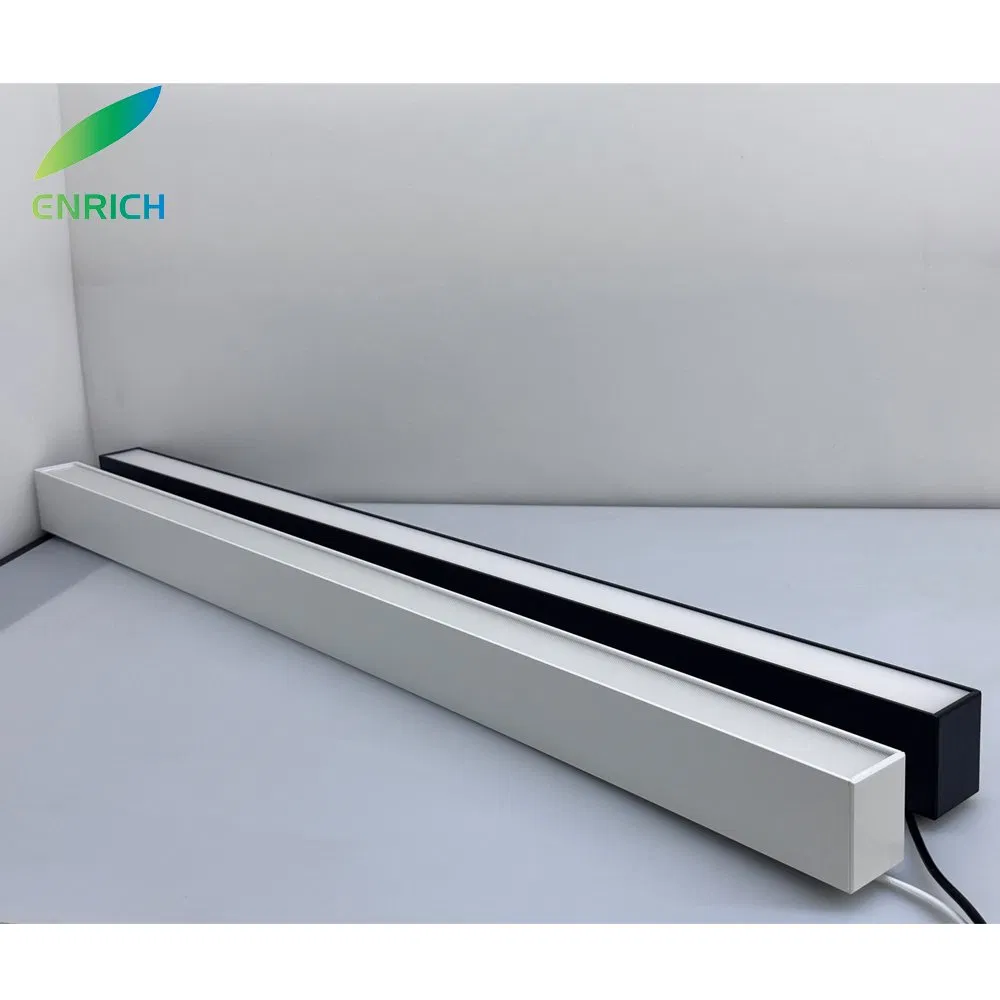

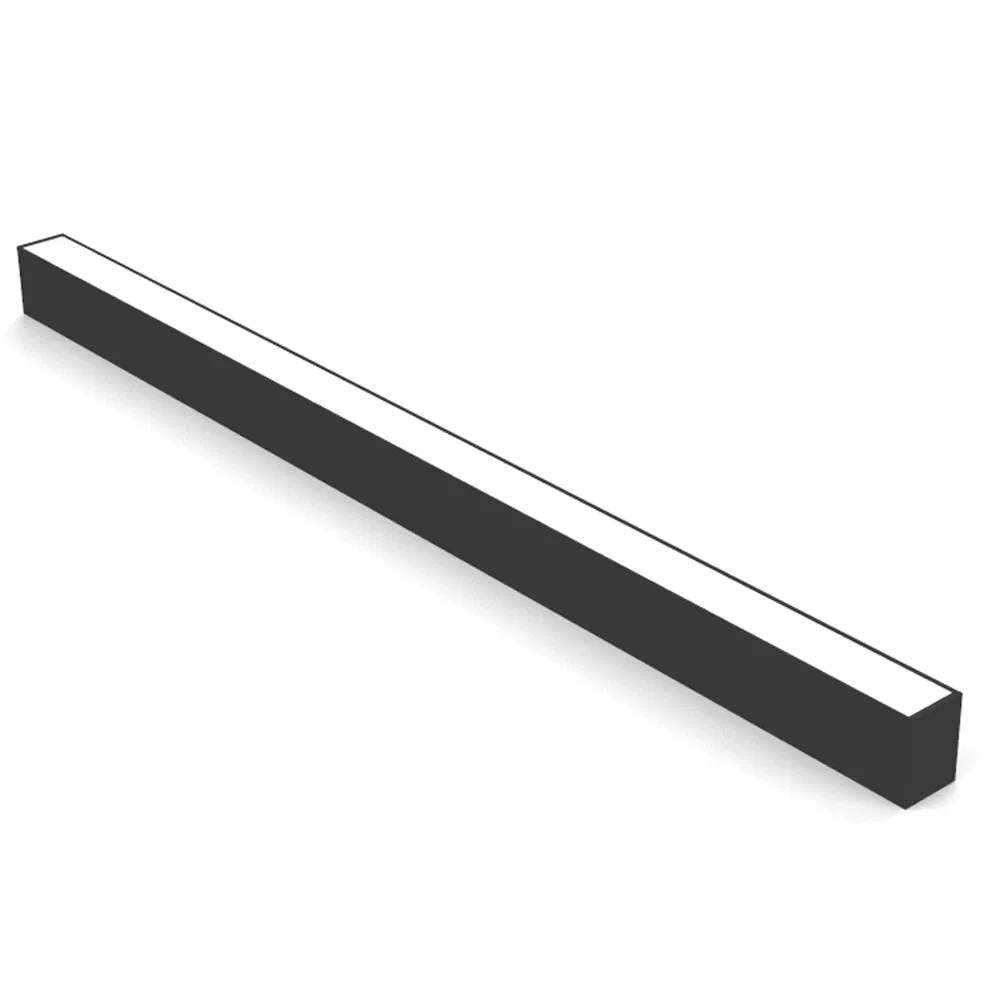

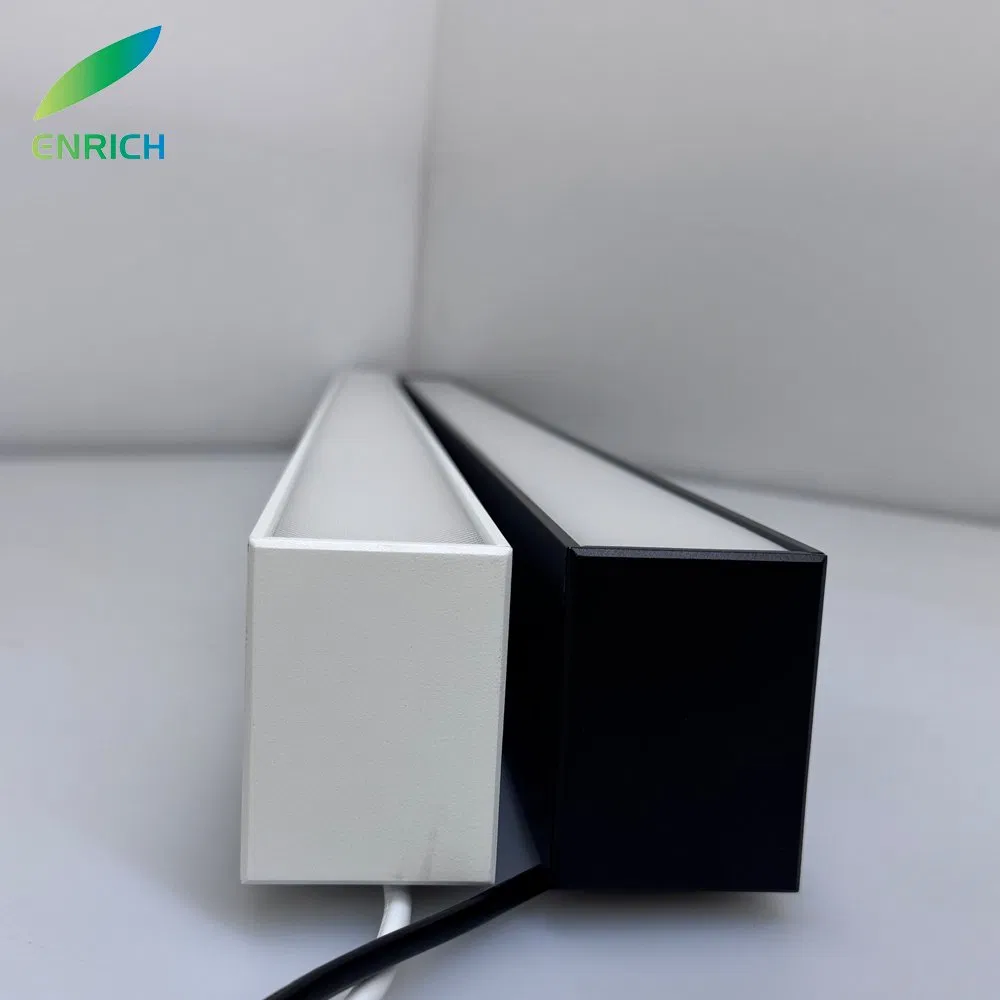

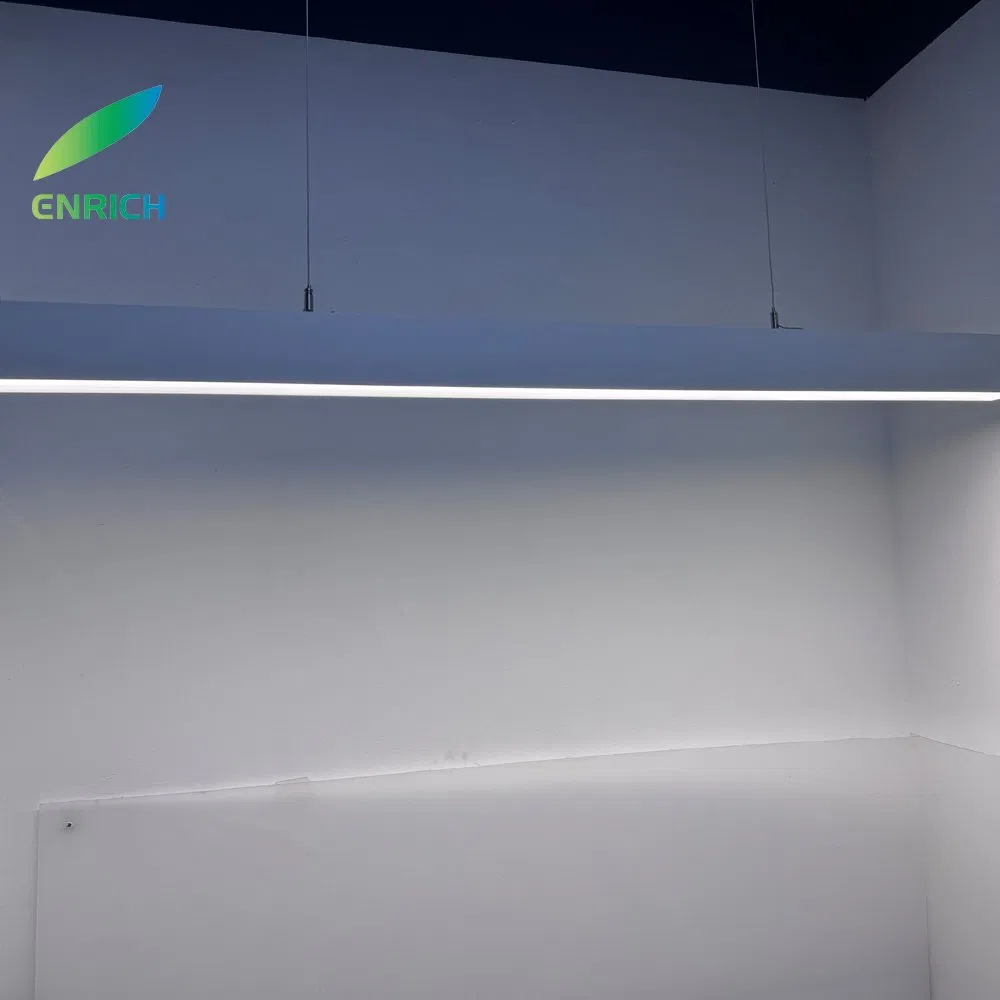

Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
1 / 5
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light
Aluminum Profile LED Linear Light Suspended Linear Profile Light

Aluminum Profile LED Linear Light Suspended Linear Profile Light

Customization: Available
Color Temperature: 3000-6000K
Lamp Body Material: Aluminum+PC
Send Inquiry

Product Description

Basic Specifications

Model NO.
EN-5575
Style
Modern
Base Type
Suspended
Irradiated Area
15-30m²
IP Rating
IP20
Certification
CE, FCC, RoHS, SAA
Voltage
AC220-240V, AC120-277V
Beaming Angle
120°
LED Chips
San'an
Wattage
20/40/60/80W
Luminous Efficiency
130lm/W
Dimmable
0-10V, Dali, Triac

Suspended LED Linear Lights

Designed for commercial buildings, these fixtures can be connected with limitless pieces, ensuring almost no gap and no dark space. They are widely suitable for supermarkets, offices, and retail stores.

Suspended LED Linear Light

Attractive Features

  • ● Strong Aluminum end caps, no screws visible.
  • ● Anti-glare with PMMA microprism lens for eye-protecting.
  • ● Optimized profile structure, easier for seamless connection, saves 80% time on installation.

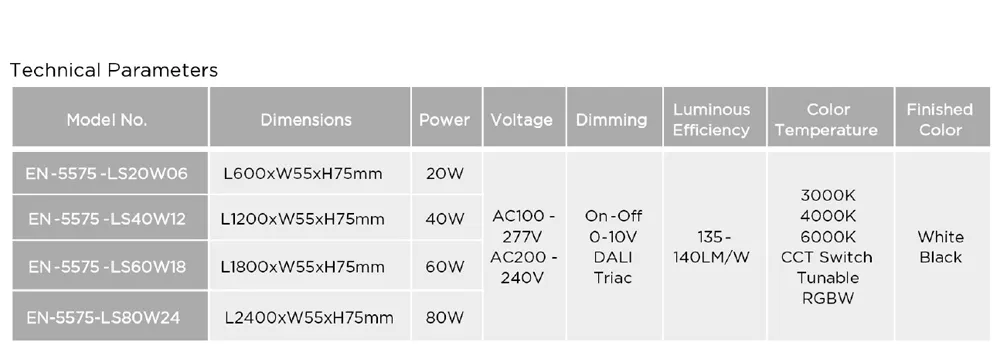

Feature Details

Installation & Packing

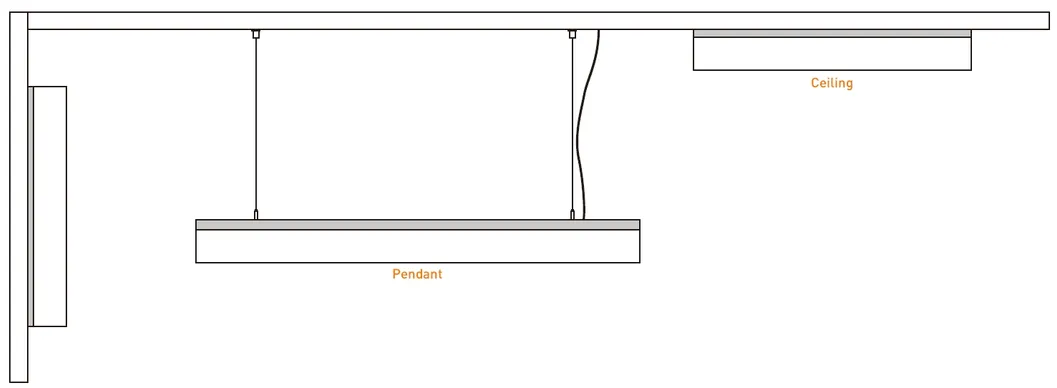

Installation Instructions

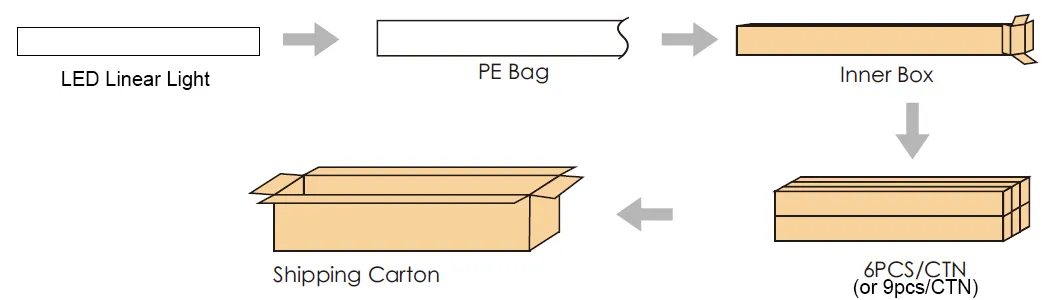

Packing Details

Application Scenarios

Ideal for office, hotel, lobby, restaurant, school, hospital, bank, gym, shopping mall and more.

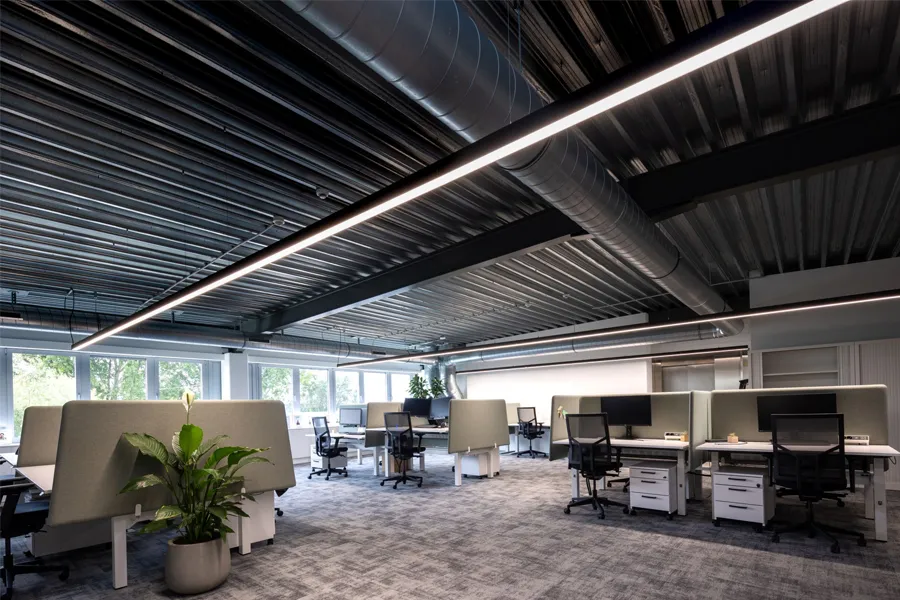

Office Application

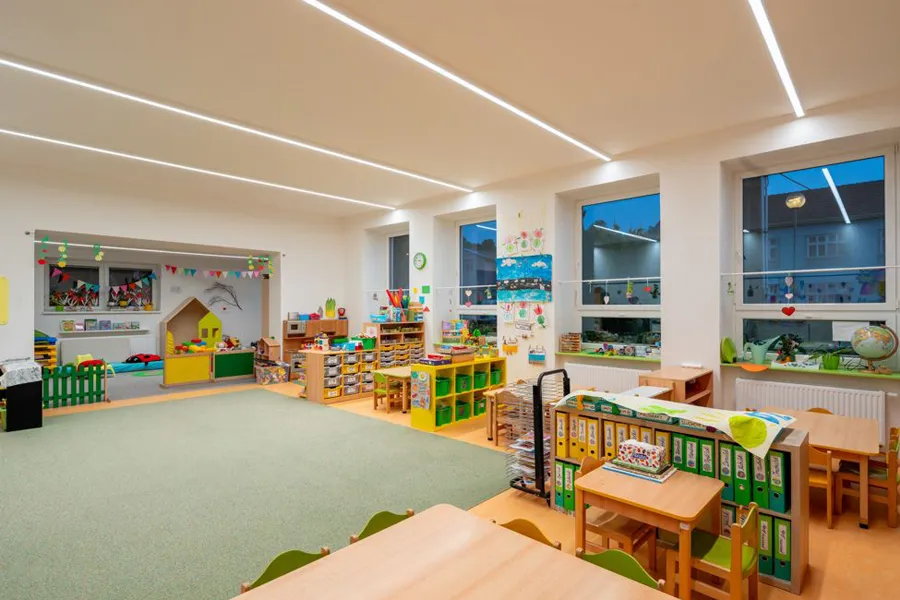

Lobby Application

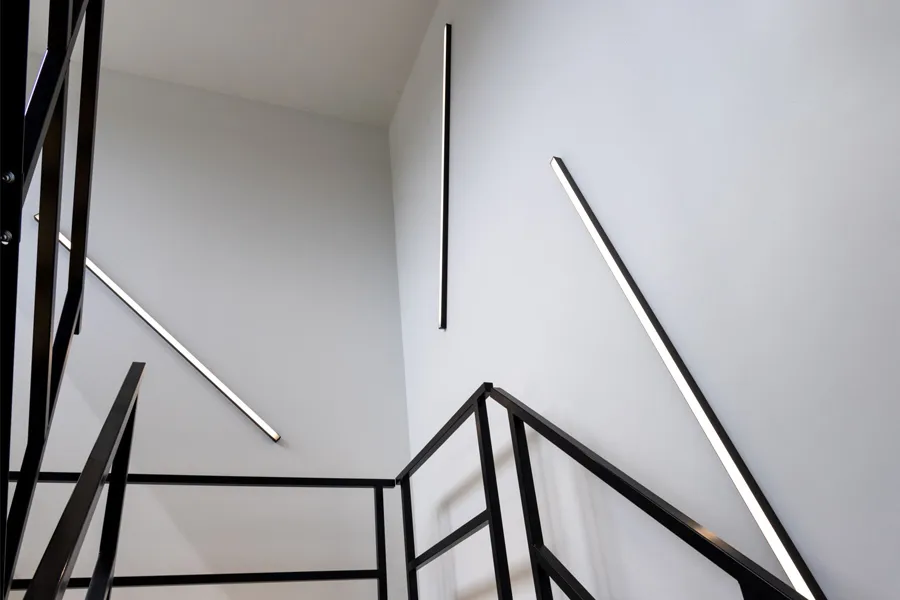

Gym Application
Restaurant Application

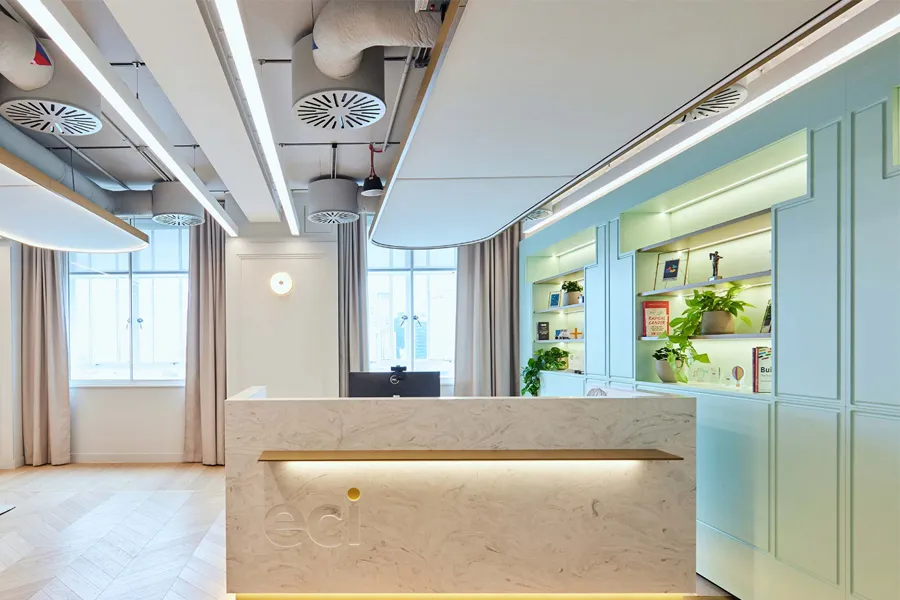

Bank Application

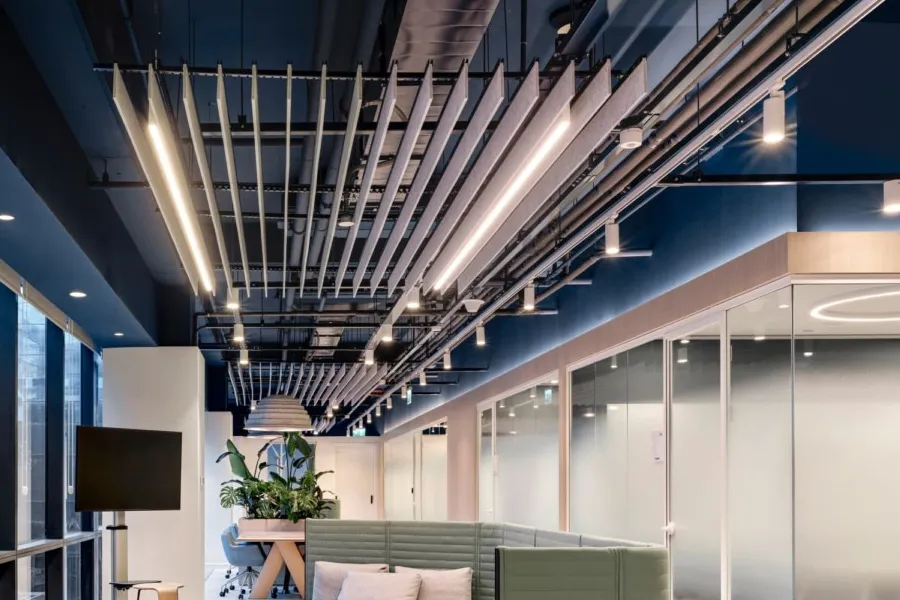

Mall Application

Detailed Photos

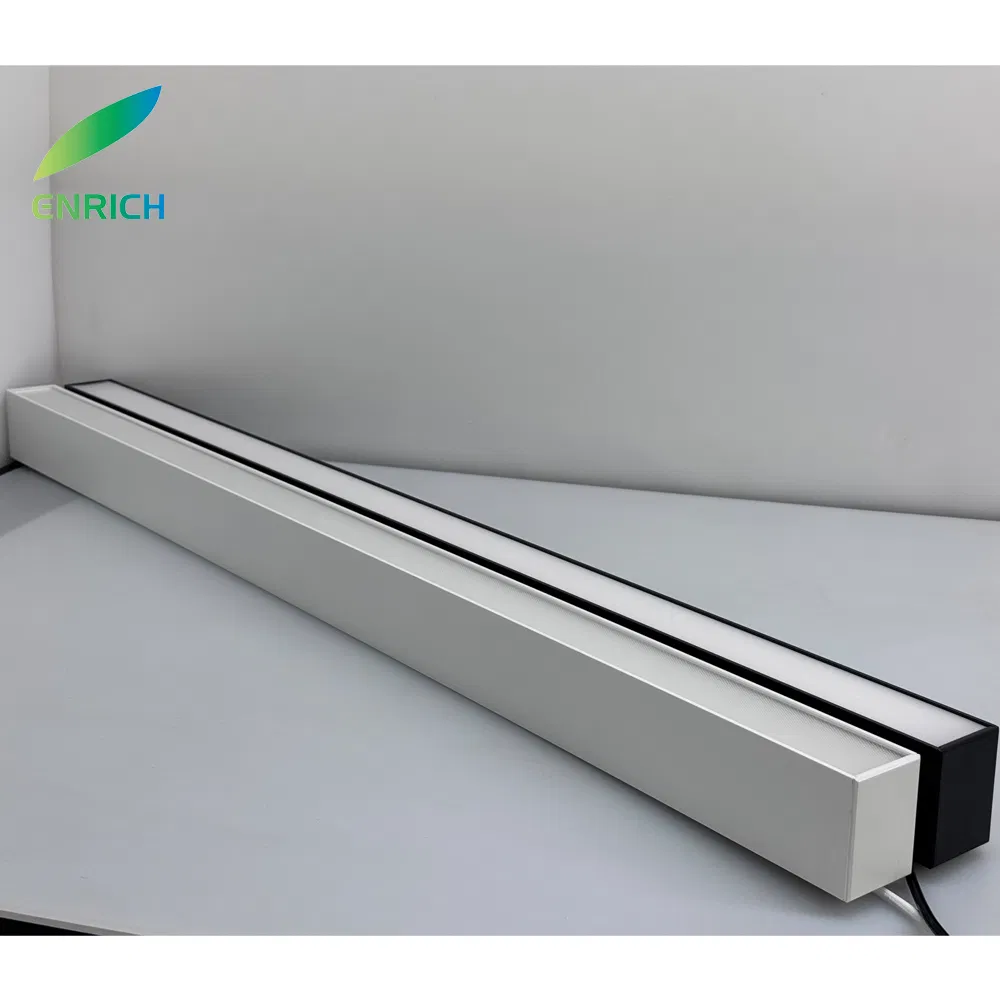

Detail 1

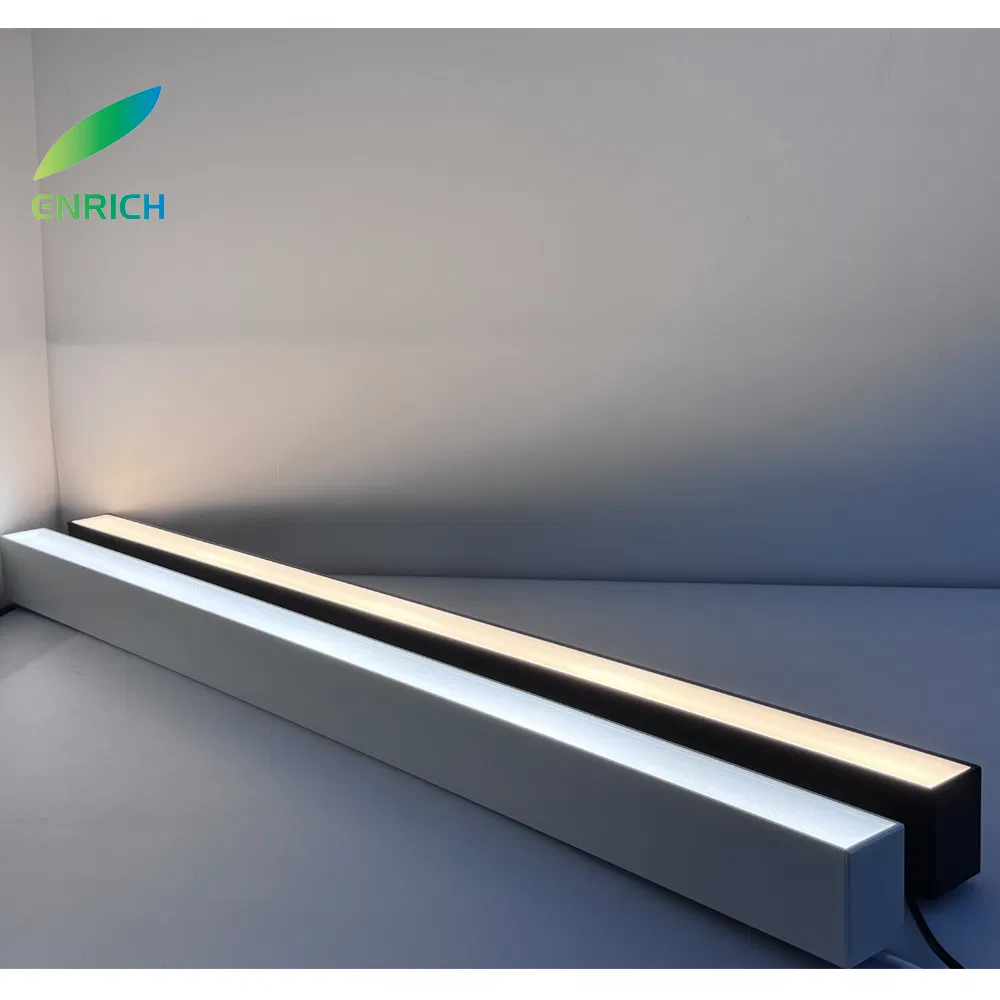

Detail 2

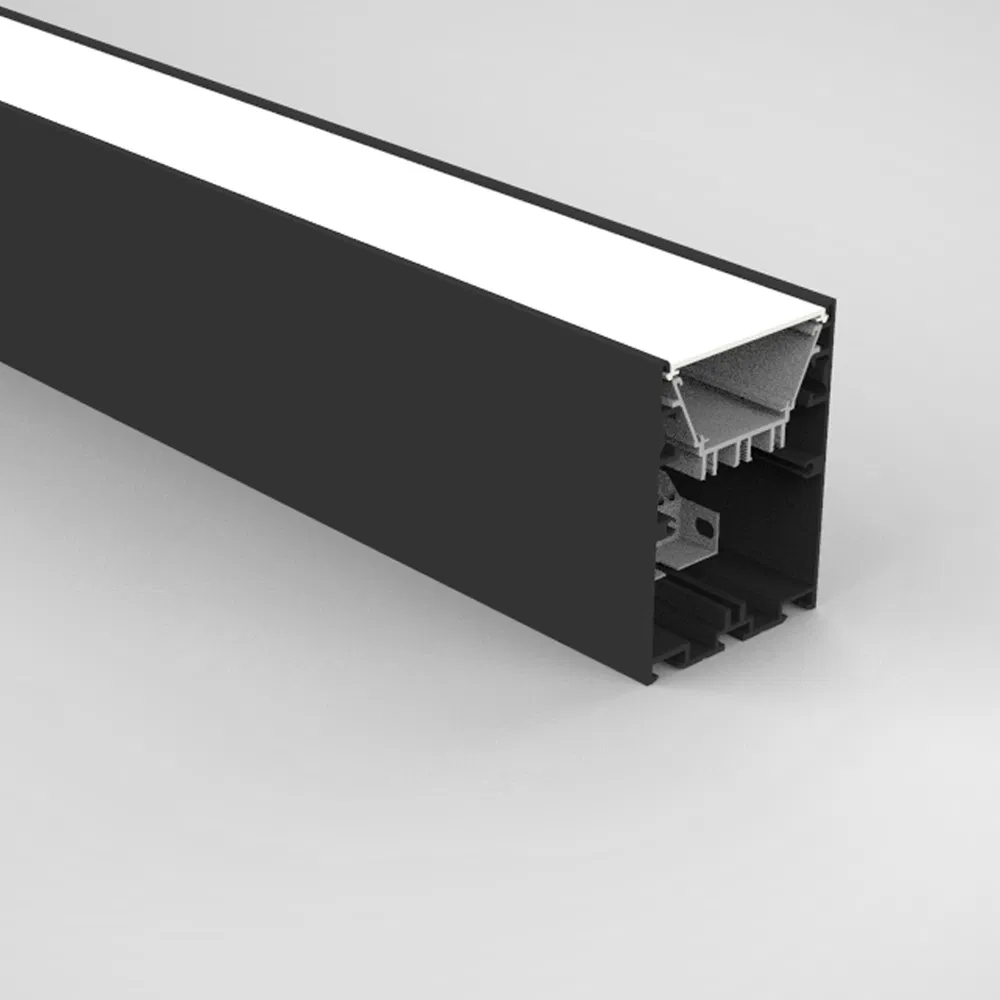

Detail 3

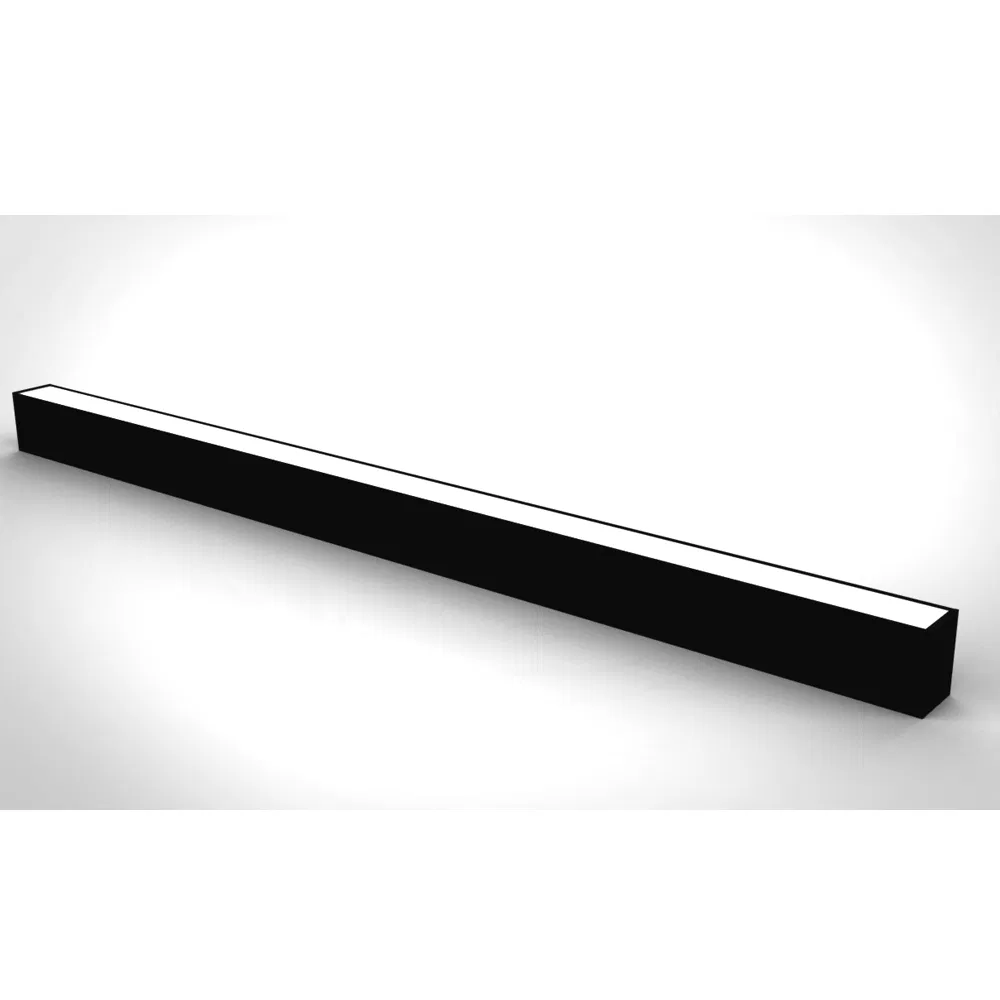

Detail 4

Our Team

Professional Team

Frequently Asked Questions

What is the advantage of the seamless connection?
The seamless connection allows for limitless pieces to be joined with almost no gap and no dark space, creating a continuous line of light perfect for large commercial spaces.
Is this LED linear light eye-friendly?
Yes, it features an anti-glare PMMA microprism lens specifically designed for eye protection in office and school environments.
What dimming systems are supported?
This model supports multiple dimming options including 0-10V, Dali, and Triac to suit various lighting control requirements.
How difficult is the installation process?
Thanks to the optimized profile structure, the installation is simplified, saving approximately 80% of the time compared to standard fixtures.
What are the available shell colors?
The aluminum profile is available in standard Black, White, and Silver finishes to match different interior designs.
What certifications does this product hold?
The light is fully certified with CE, FCC, RoHS, and SAA, ensuring high quality and safety standards.
