Good Quality Aluminum Waterproof IP66 Outdoor 30W-240W LED Street Light 120W

Customization: Available
Power Supply: Inventronics/Meanwell Driver
Color Temperature: 2700-6500K

Product Description

📋 Basic Information
Model NO.
PL-LD-061
Lamp Body Material
Aluminium + Tempered Glass
Power
60W
IP Rating
IP66
Input Voltage
AC100-305V
LED Chips
Lumileds 3030SMD
Light Source
With Light Source
Origin
China
💡 Product Highlights

Good Quality Aluminum Waterproof IP66 Outdoor 60W LED Street Light

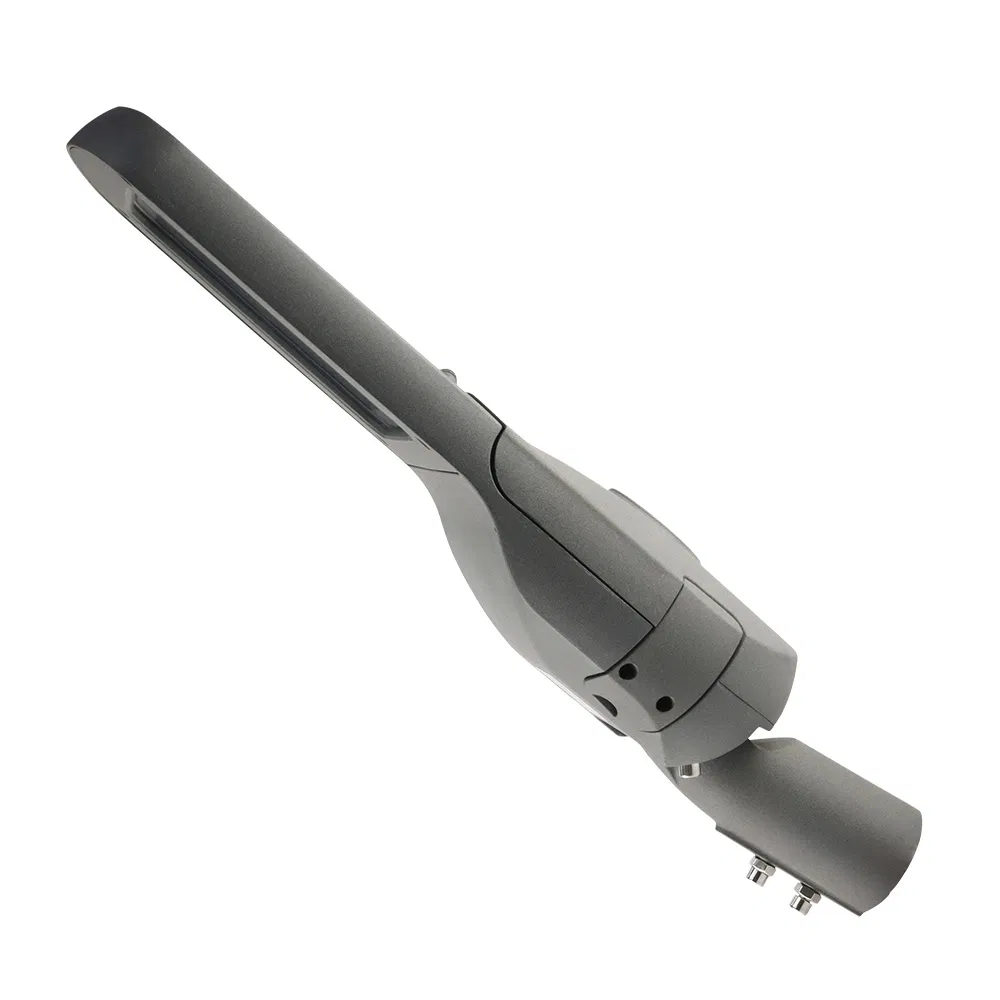

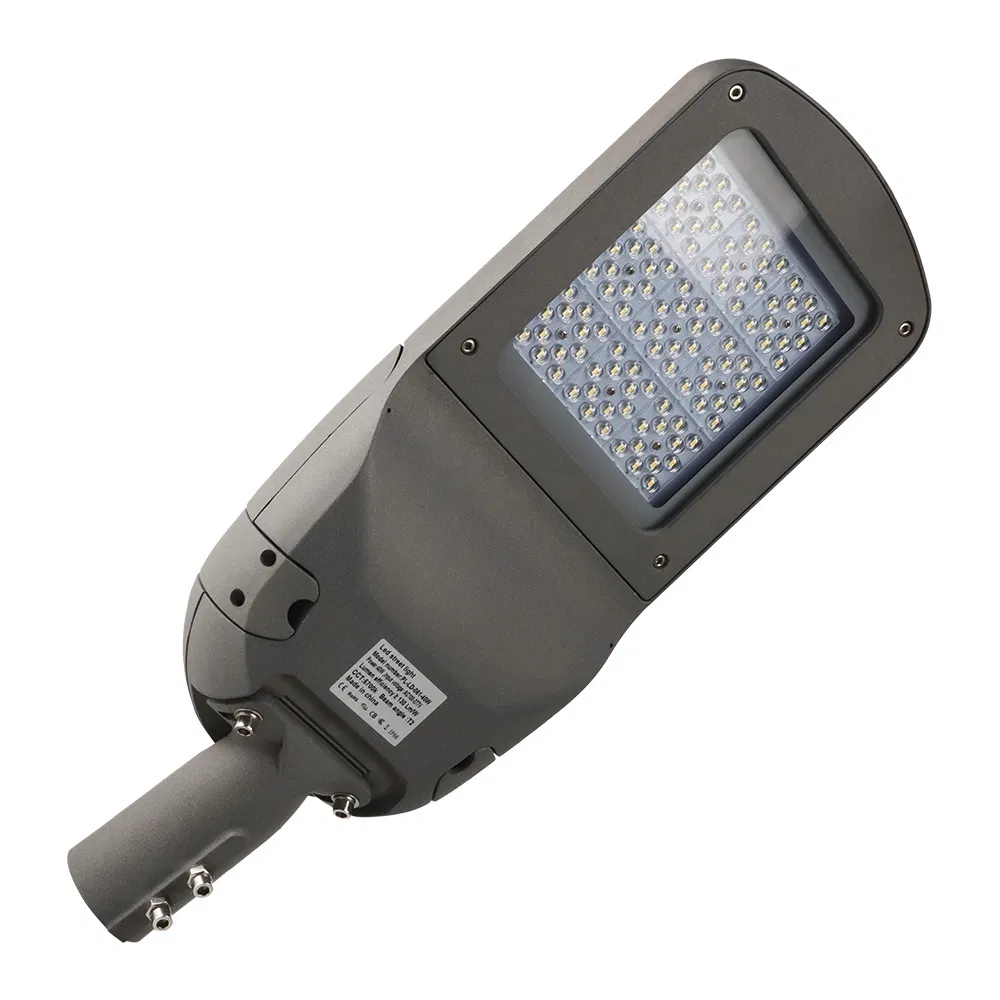

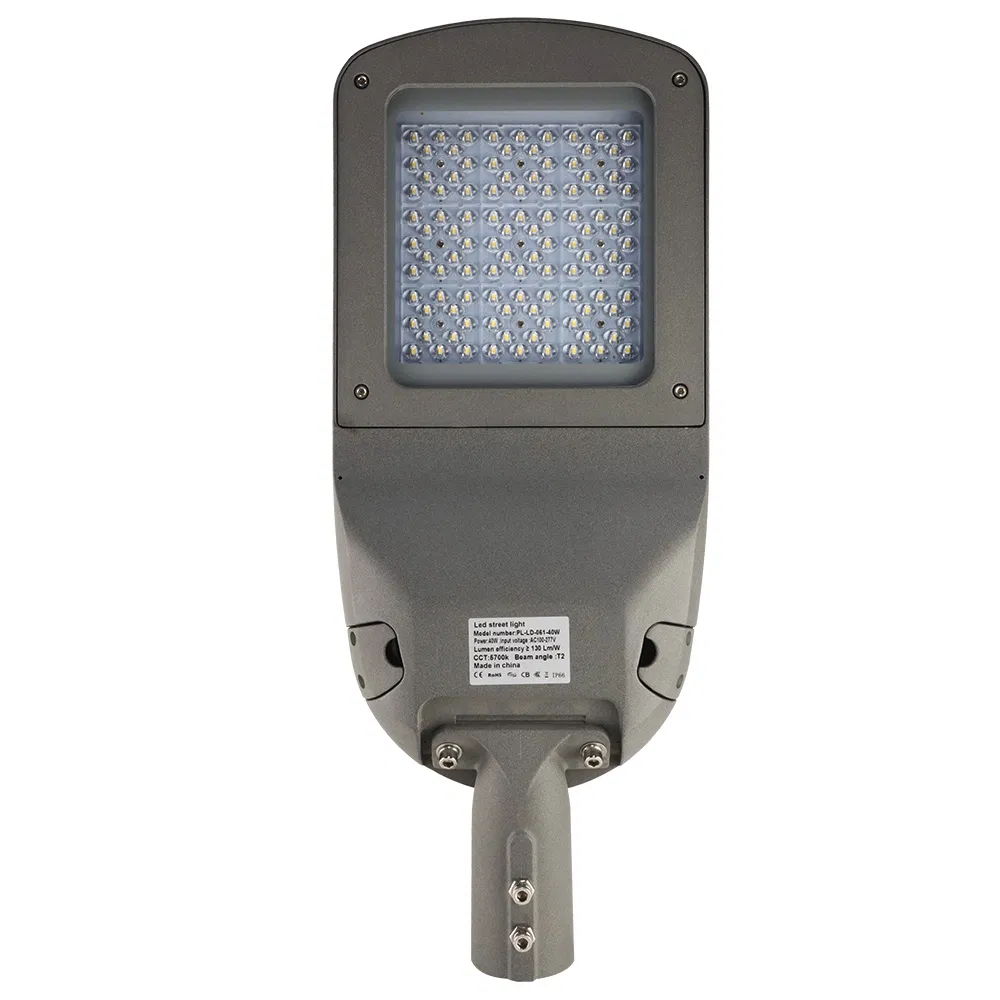

LED Street Light Main View
  • Premium Light Source: Adopting imported Lumileds chips 3030SMD. Energy-saving, environment protecting, and long life.
  • Durable Glass: 5mm toughened transparent glass, high temperature resisting, light transmittance as high as 92%.
  • Advanced Heat Dissipation: Radiator adopts Aluminium alloy with high thermal coefficient; oxidation technology ensures corrosion resistance.
  • High Stability: Constant current supply provides excellent stabilization and high security.
  • Energy Efficient: Saves up to 80% energy compared to traditional lighting.
  • Versatile Application: Ideal for expressways, downtown roads, bridges, ports, and factories.
  • Robust Construction: Die-cast aluminum housing with toughened safety glass and professional paint coating.
⚙️ Technical Parameters
Specifications Detail Values
Input Voltage DC12V/24V, 100-305V AC
Power Range 30W-60W 70W-100W 120W-150W 180W-200W
Dimensions (mm) 558*200*115 612*233*115 675*260*115 775*320*120
LED Chip Lumileds 3030 SMD
Light Efficiency 150LM/W ± 5%
CRI Ra > 70/80
Power Factor > 0.95
Protection Rating IP66 & IK09
Lifespan Up to 100,000 hours (L80B10)
Certificates CE, ROHS, SAA, CB, ENEC, LM80, TM21

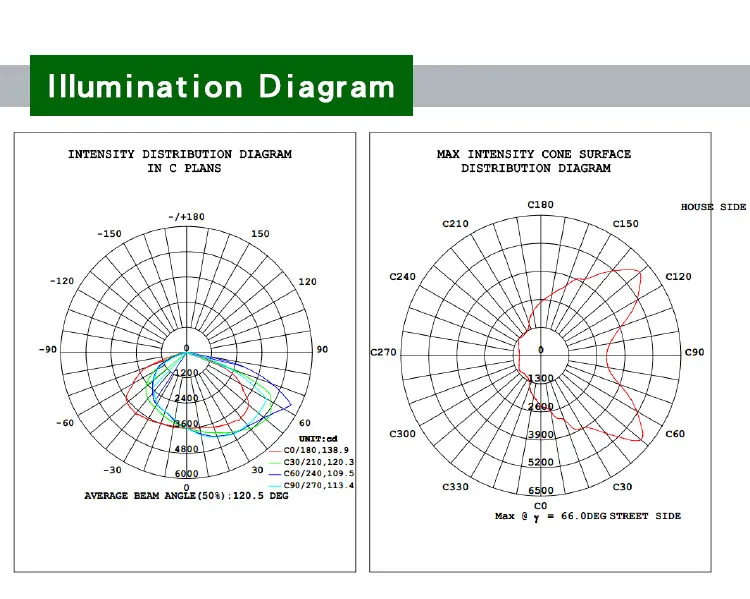

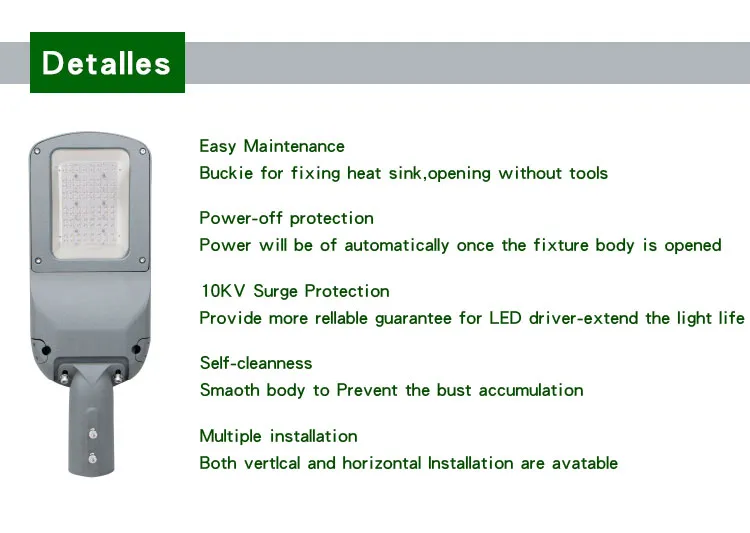

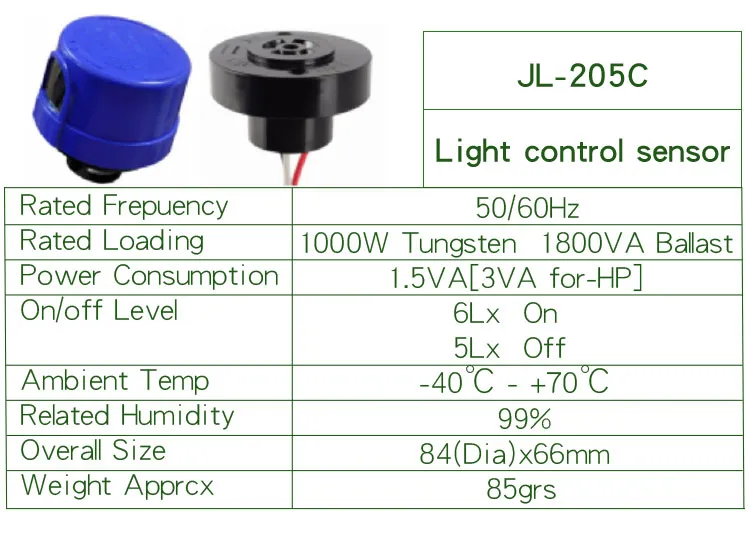

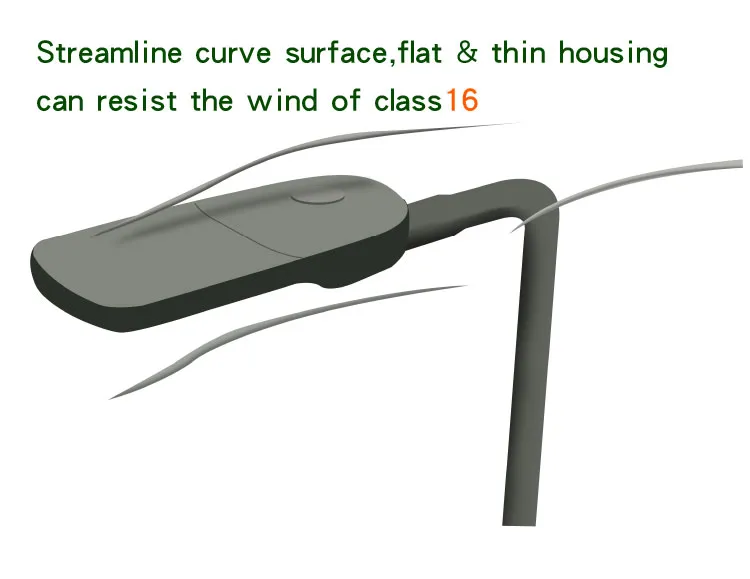

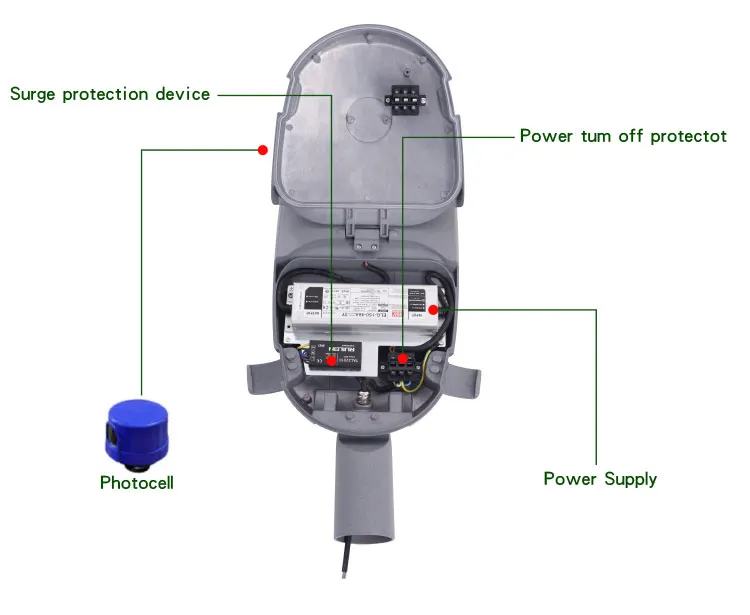

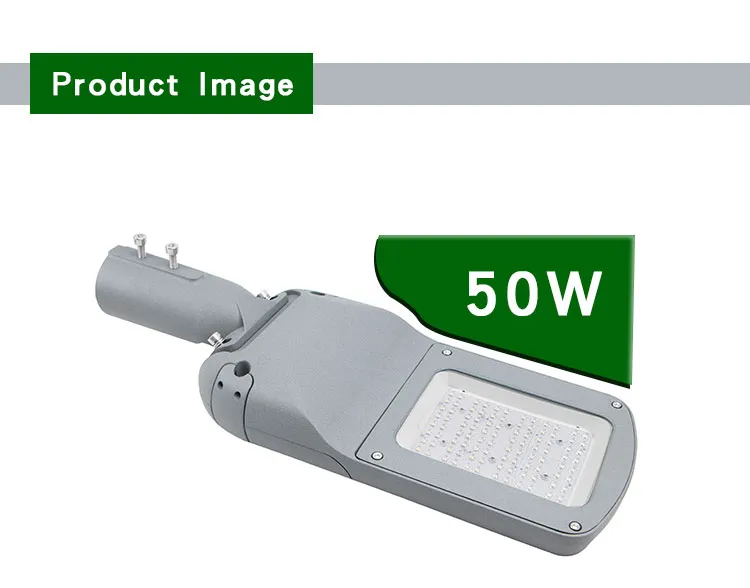

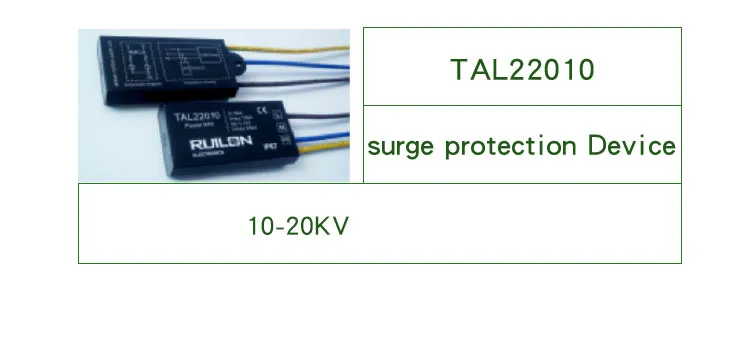

🖼️ Product Gallery
❓ Frequently Asked Questions
Do LED street lights really have a 50,000-hour lifespan?
A 50,000-hour or longer lifespan is a theoretical value from lab tests. Actual lifespan in varied working environments is typically around 30,000 hours, though it can reach 50,000 hours with high-quality materials.
Why do different suppliers offer different brightness for the same power?
Brightness depends on the quality and version of the chips used. Even with the same chip, different brightness grades exist. It's also important to distinguish between the raw brightness of the LEDs and the actual output of the lamp fixture.
What is color temperature (CCT)?
Color temperature is measured in Kelvin (K). Lower temperatures produce a warmer light (yellowish) for relaxation in public areas, while higher temperatures produce cooler light (bluish) to enhance concentration in work environments.
What does CRI signify?
CRI (Color Rendering Index) measures how accurately a light source reveals the true colors of objects. A higher CRI indicates better color accuracy but generally comes with a higher cost.
What are PF and efficiency?
PF (Power Factor) and efficiency measure the electrical performance of the LED driver. Higher PF and efficiency ratings signify better energy utilization and higher quality components.
Is this street light suitable for harsh weather?
Yes, with an IP66 waterproof rating and a robust die-cast aluminum housing, this light is designed to withstand heavy rain, dust, and outdoor temperature fluctuations from -40ºC to 50ºC.
