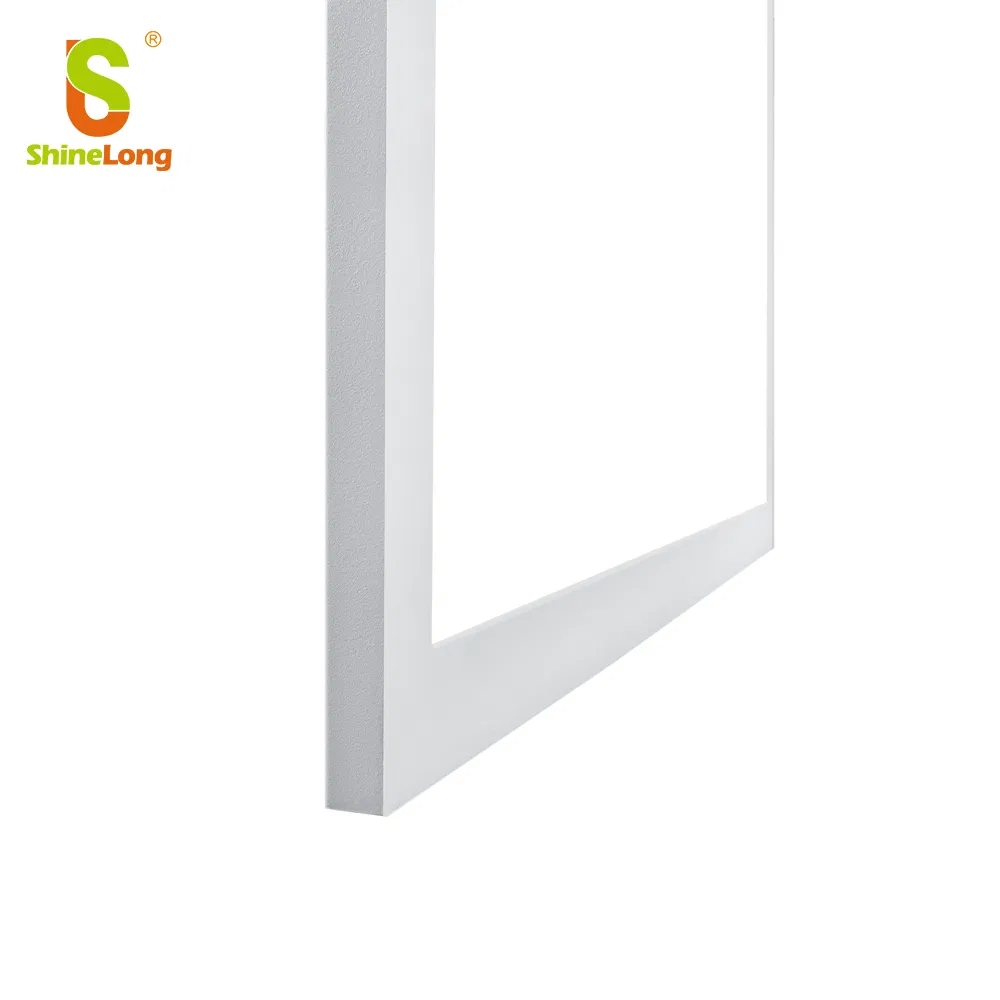

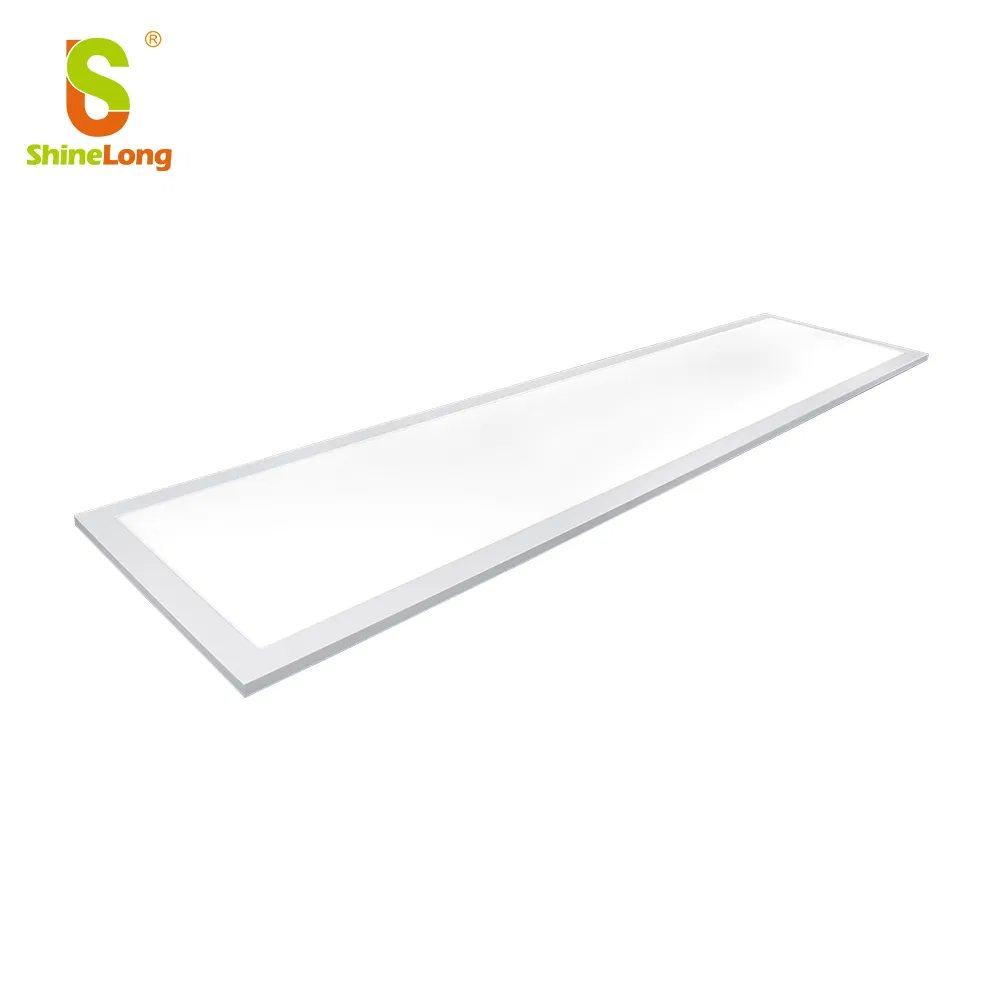

Energy-Efficient IP65 Panel Light 120lm/W, Ugr<19 5-Year Warranty

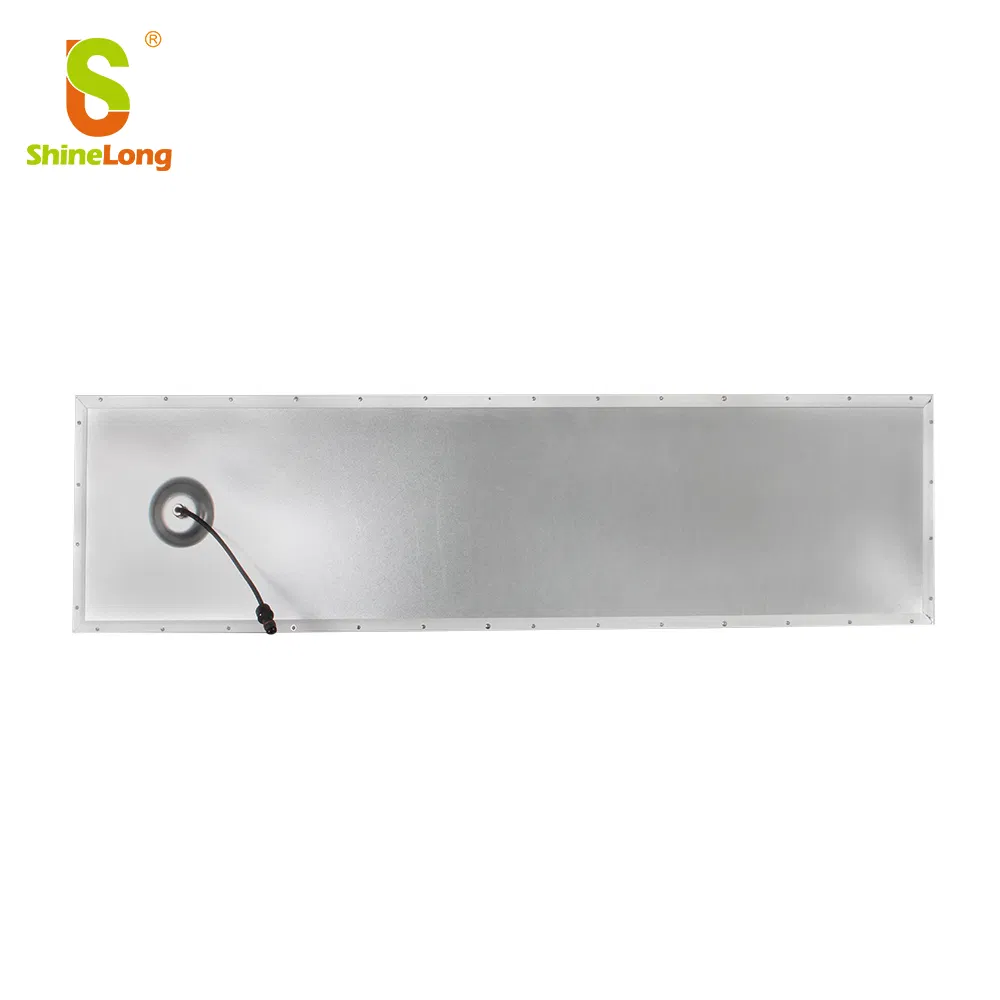

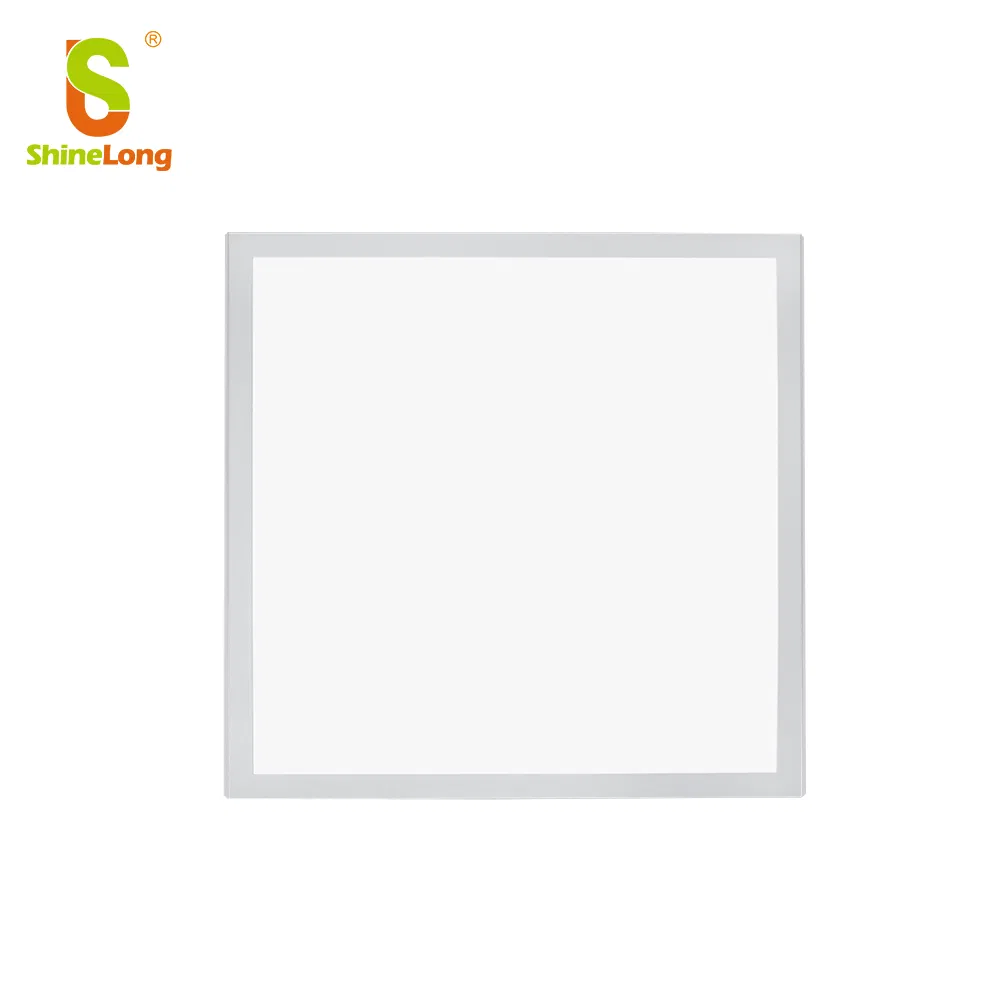

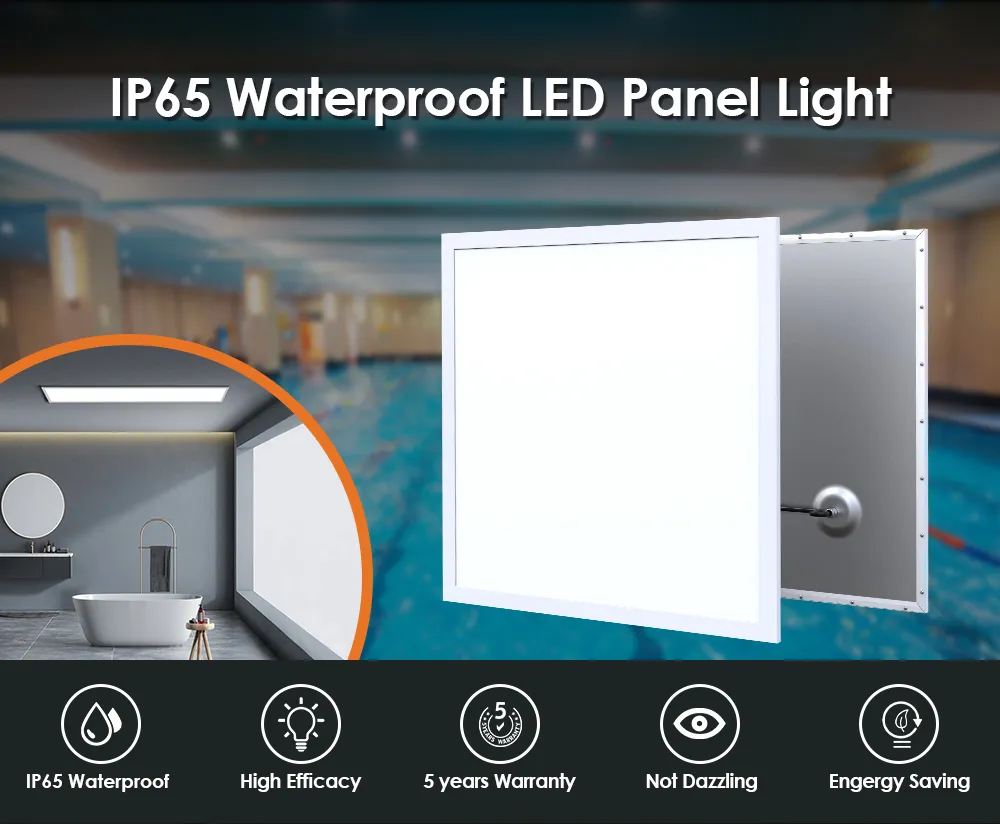

IP65 Waterproof Panel Light

i

Basic Information

Model NO.

SL-P1120/SL-P2240/SL-P1440

Emitting Color

White

Dimmable

With Dimmable

Appearance

Square

Type

Ceiling

Base Material

Metal

Certification

CE, RoHS, ISO9001

Voltage

200-240V

Beam Angle

120°

Wattage

20W, 40W

CRI

>80

CCT

3000K/4000K/5000K/6000K

Waterproof

IP65

Warranty

5 Years

Efficacy

100lm/W - 120lm/W

Power Factor

>0.90

★

Product Features

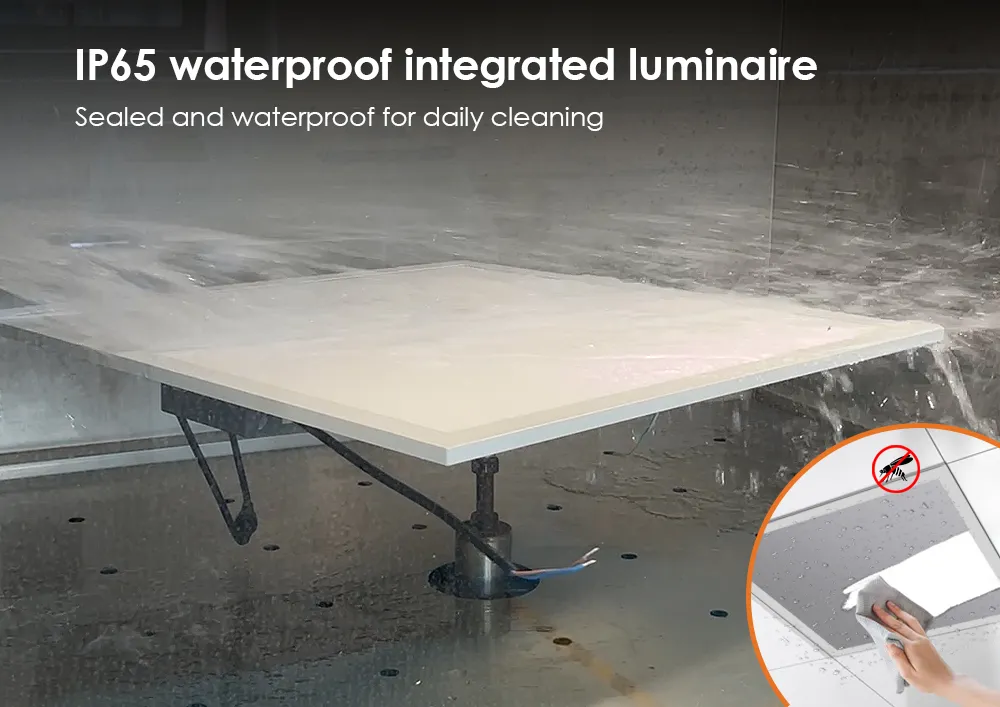

IP65 Waterproof - Perfectly designed for moisture and humidity.
One-time stretching process - Seamless finish and enhanced durability.
High CRI: Ra>80, SDCM<4 - Excellent color consistency.

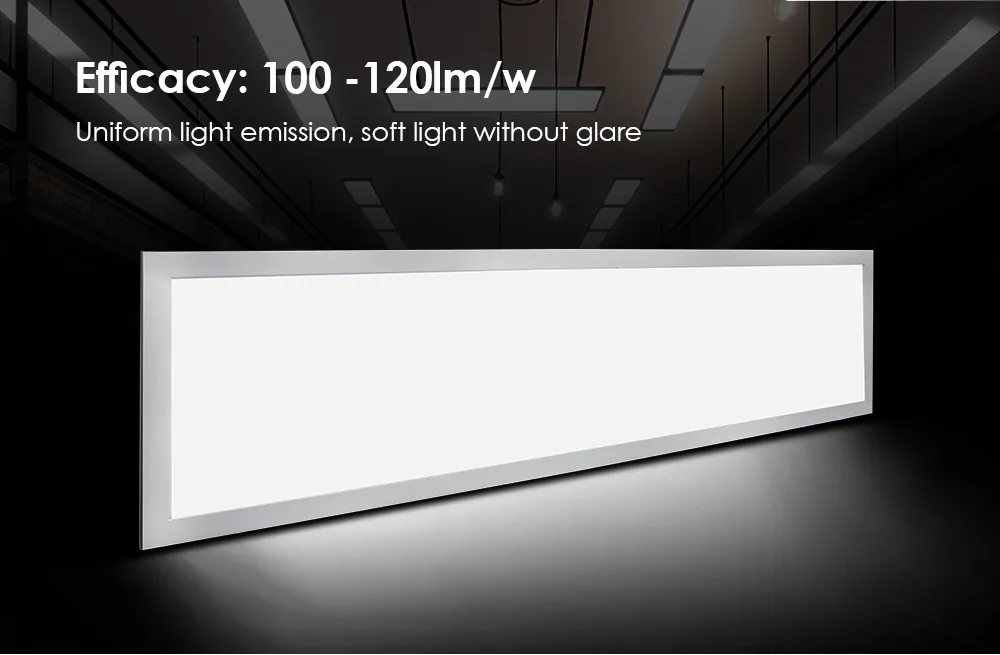

High Efficacy: 100lm/w to 120lm/w - Maximizes brightness, conserves energy.
High Power factor: >0.90 - Optimal electrical efficiency.
Flicker-free driver - Eye-friendly, steady illumination.

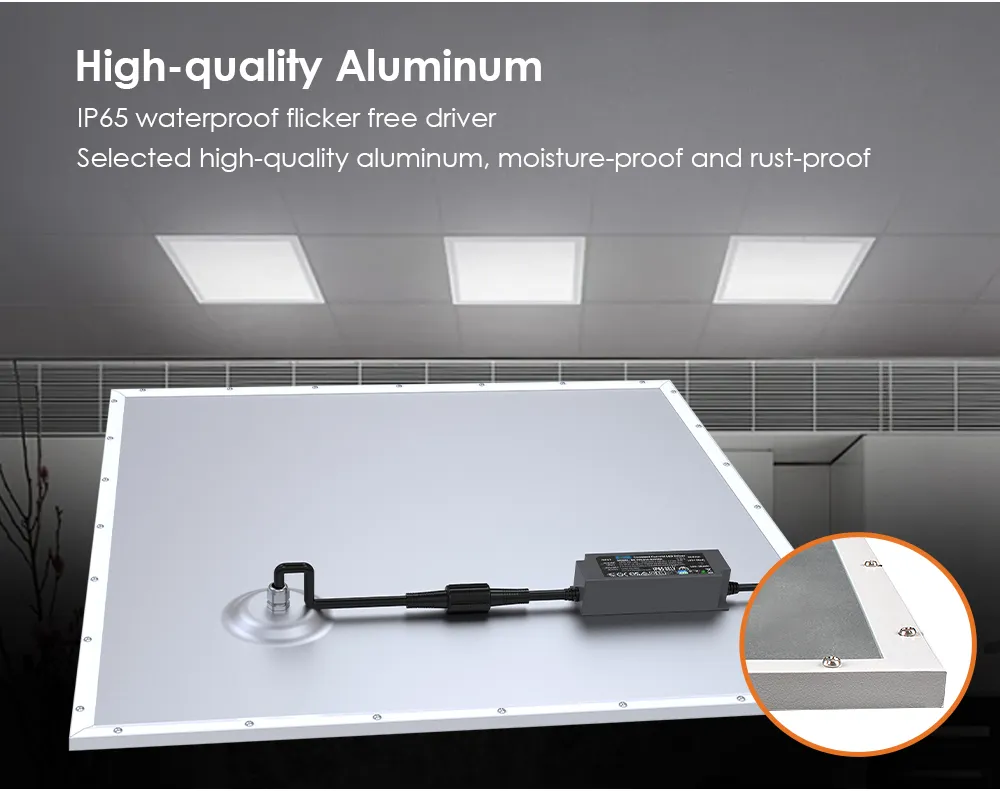

Material: Premium Aluminum - Superior heat dissipation.

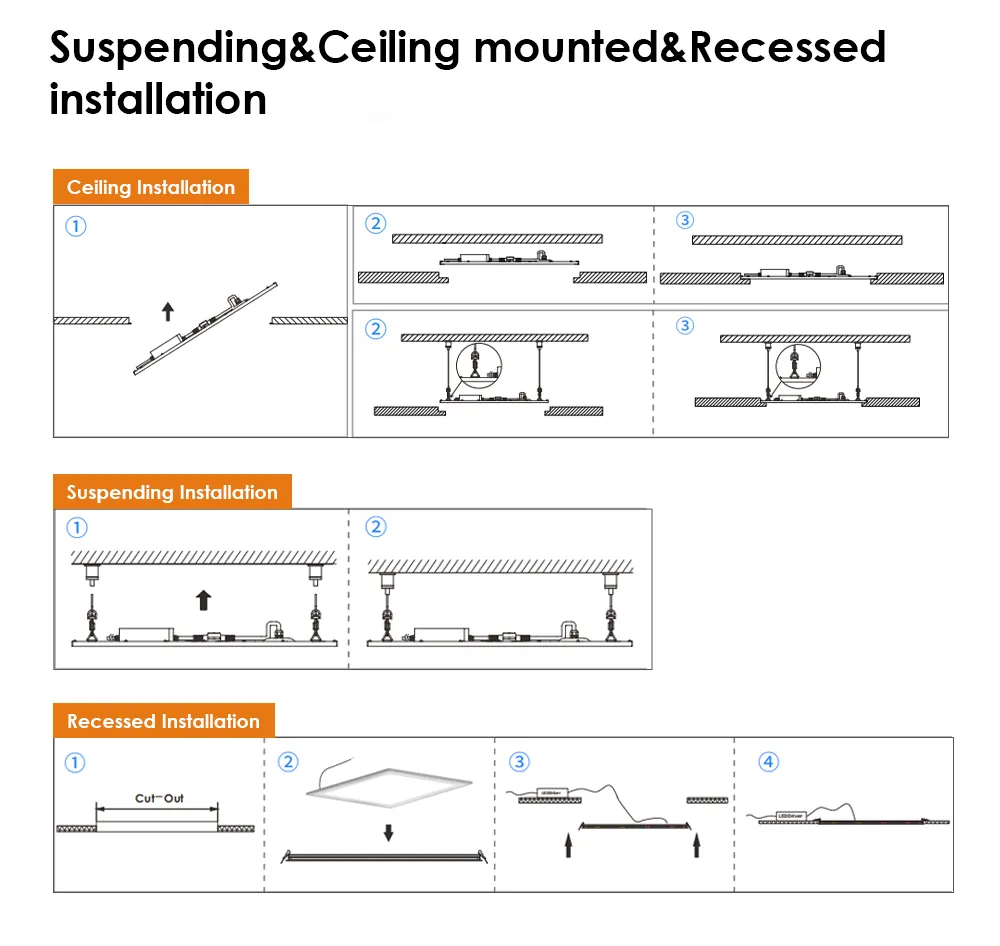

Installation: Suspending, Ceiling mounted, and Recessed.

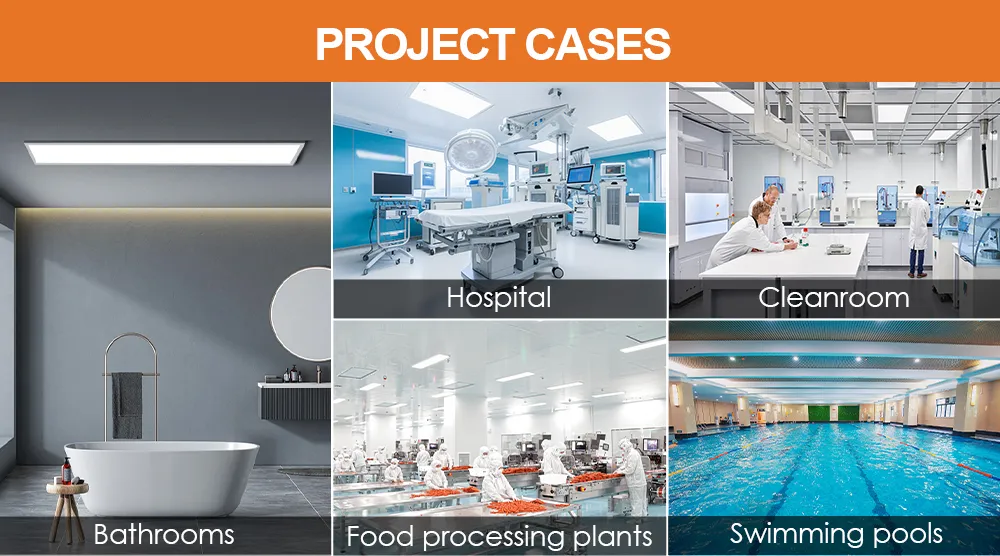

Application: Pools, bathrooms, kitchens, food plants, hospitals.

T

Data Sheet

Item Number	Dimension (mm)	Power (W)	Lumen (lm)
SL-P1120-X-FS	29529511	20	2000lm
SL-P2240-X-FS	59559511	40	4000lm
SL-P2240-X-FS-2	62062011	40	4000lm
SL-P1440-X-FS	119529511	40	4000lm

*X represents CCT: W(3000K/4000K), P(5000K), C(6000K). Efficacy version: Standard 100lm/W, Premium 120lm/W.

D

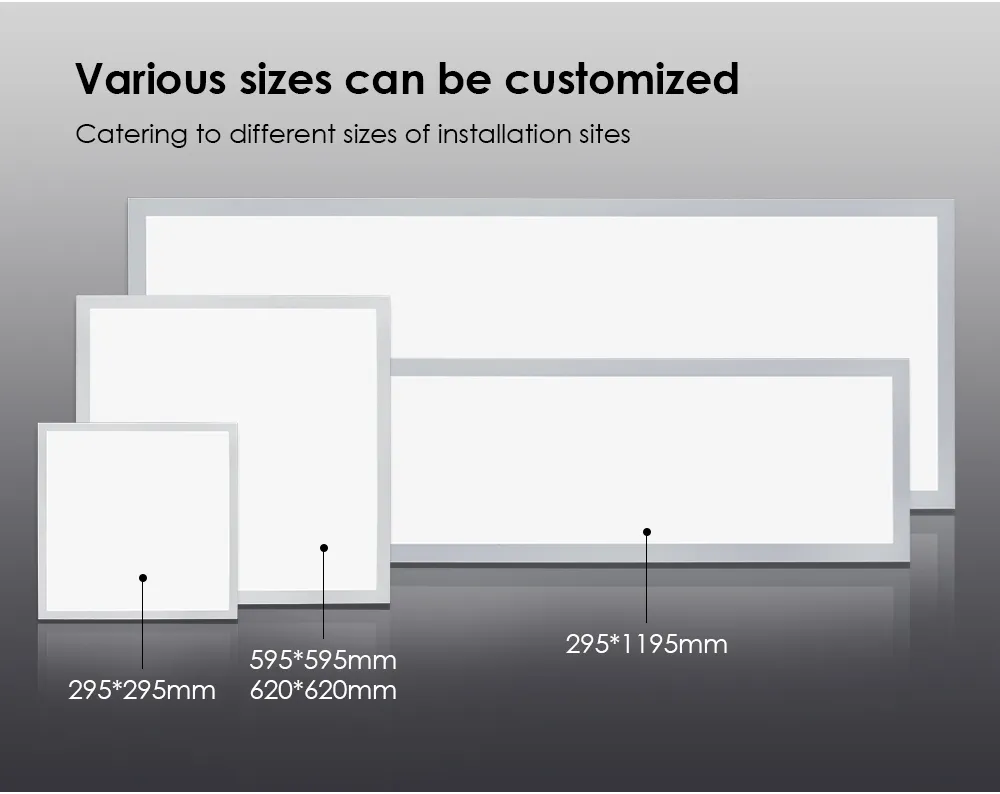

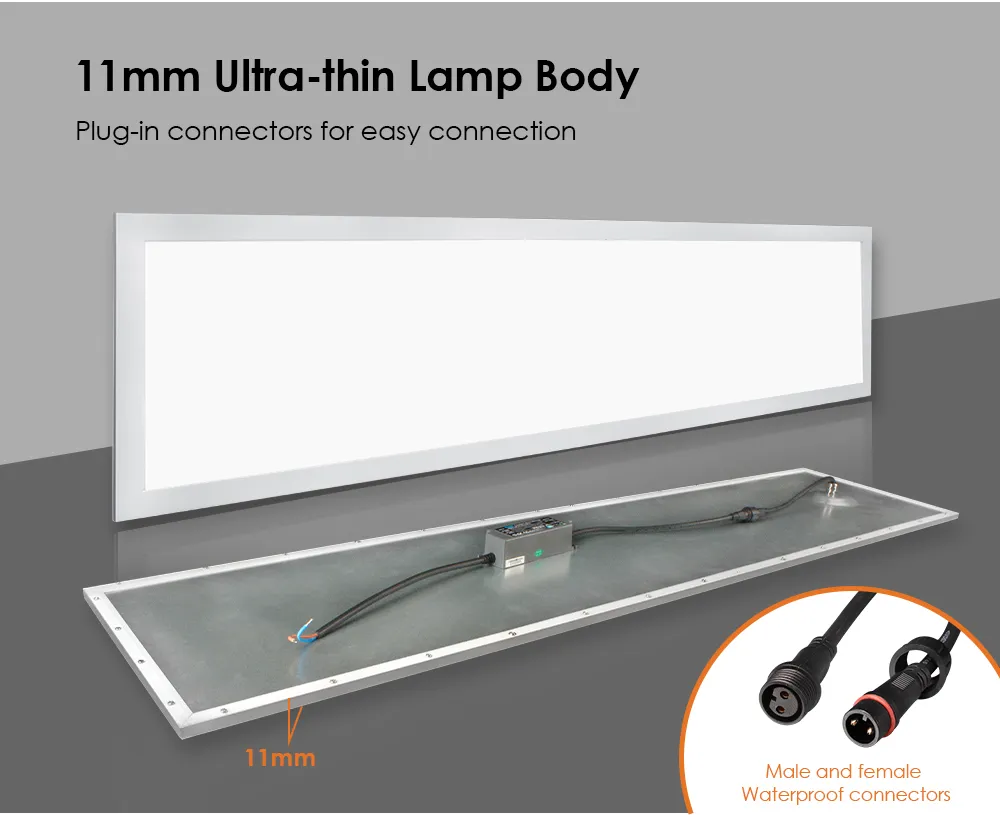

Dimensions & Details

S

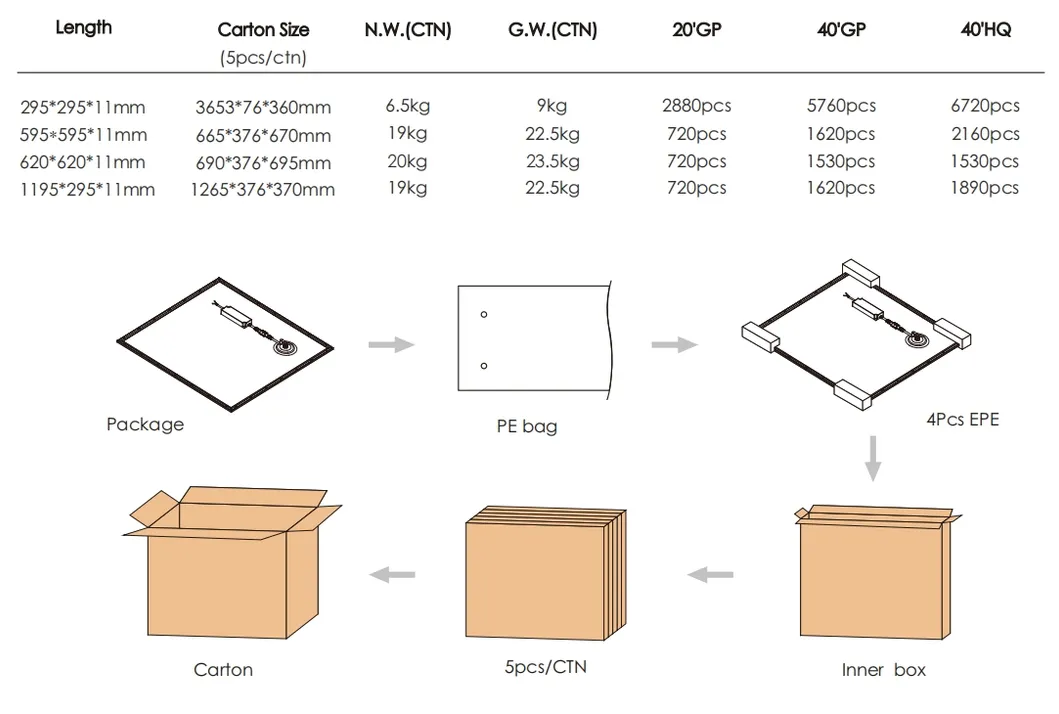

Installation & Shipping

C

Company Profile

The company was founded in 2010 with a registered capital of RMB 21.04 million and covers an area of more than 20,000 square meters. We specialize in the research, development, and manufacturing of high-performance LED lighting products. Our expertise includes LED tri-proof lamps, explosion-proof lamps, panel lights, etc., across industrial, commercial, and public sectors. Products have reached over 80 countries, receiving widespread acclaim from customers worldwide.

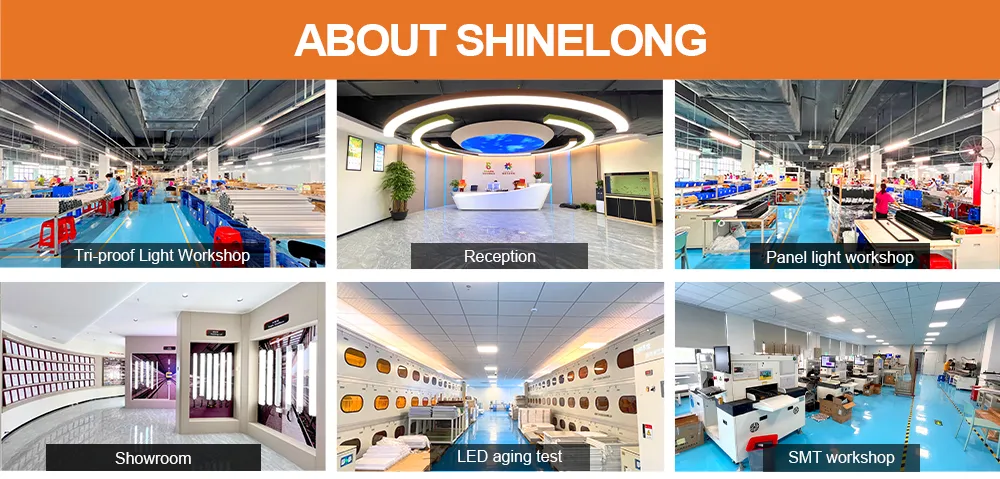

We have established a highly efficient supply chain comprising SMT, injection molding, and mold development, with a monthly production capacity exceeding one million pieces. All products are certified by TUV, VDE, UL, ETL, SAA, UKCA, DLC, CE, and other international standards.

?

FAQ

1. What does the IP65 rating mean for this panel light?

The IP65 rating means the light is 100% dust-tight and protected against powerful water jets. It's ideal for wet environments like swimming pool edges, bathrooms, and kitchens.

2. Does this panel light meet international safety standards?

Yes. It complies with CE and RoHS standards. For specific regions, we can also provide additional certifications such as UL or SAA upon request.

3. Can I customize the specifications?

Absolutely. We offer customization for size (600x600mm, 1200x300mm), color temperature (3000K-6000K), and optional dimming functions like DALI or 1-10V.

4. What is the difference between 100lm/W and 120lm/W versions?

100lm/W is cost-effective for general use, while 120lm/W is brighter and more energy-efficient, ideal for large commercial spaces to reduce electricity costs.

5. How is the panel light installed?

It supports recessed mounting (common for hospitals) and surface or suspended mounting. A detailed manual with photos is included in every package.

6. What is the warranty period for these lights?

All our IP65 waterproof panel lights come with a comprehensive 5-year warranty, ensuring your investment is protected and reliable for long-term use.
