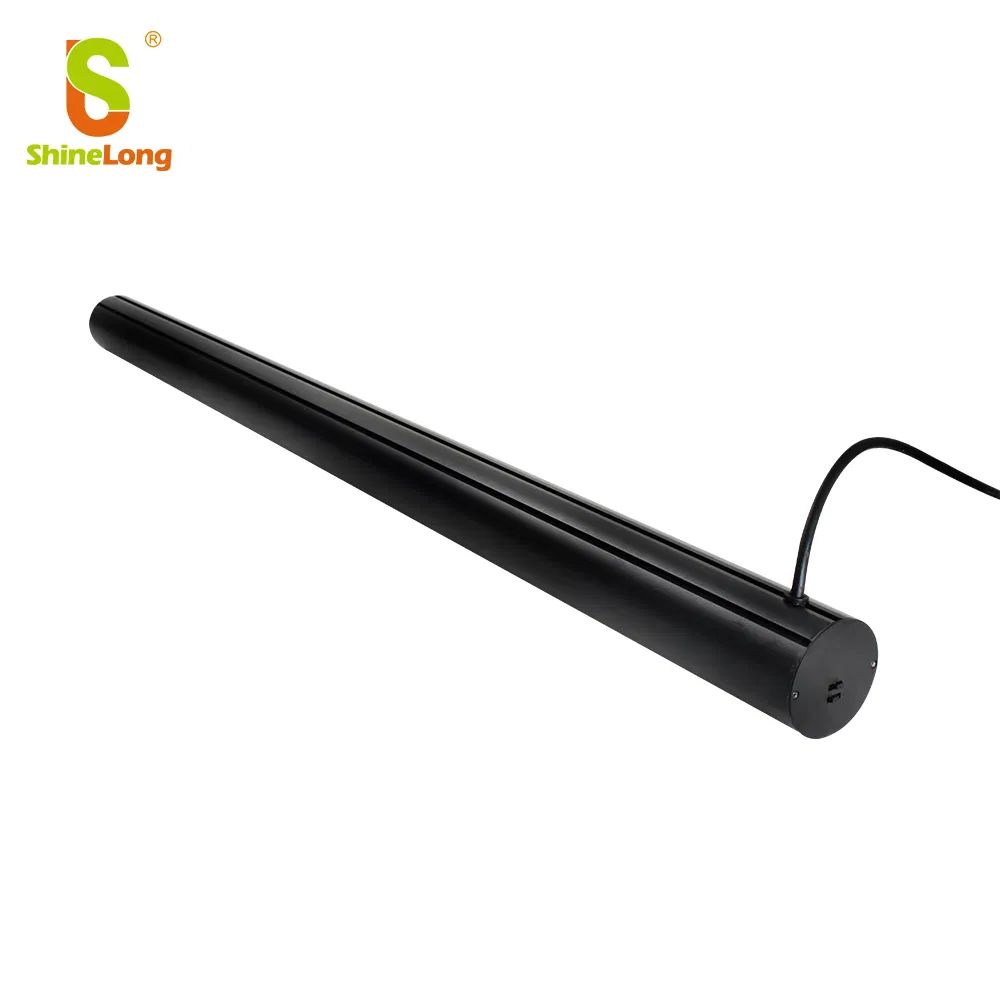

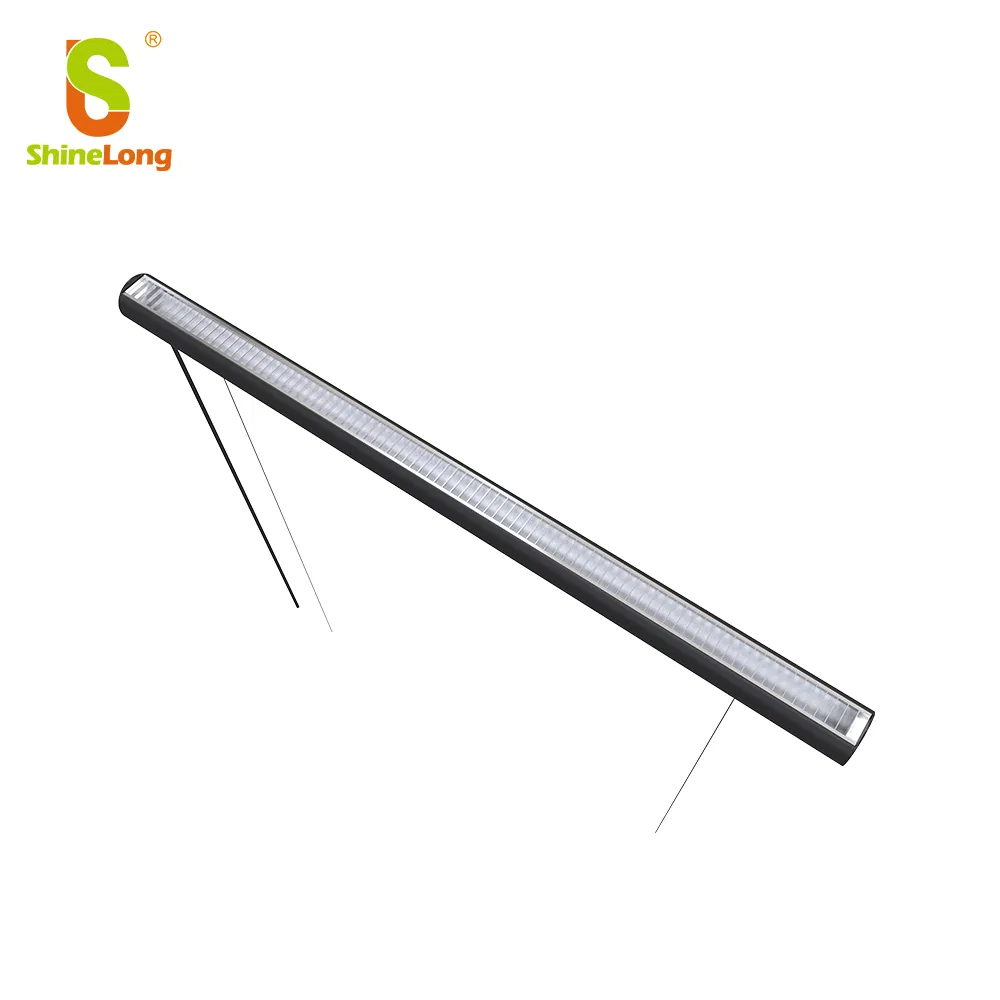

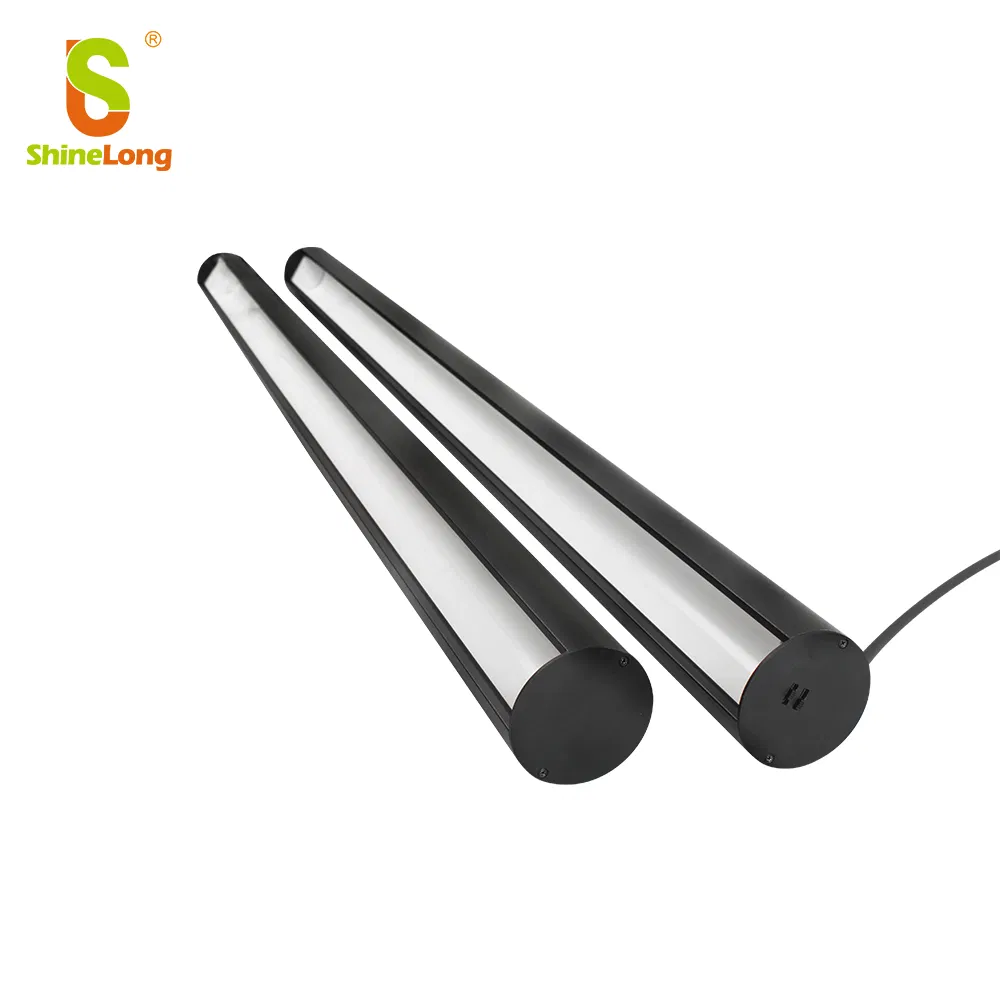

High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
1 / 5
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light
High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light

High Lumen LED Architectural Indirect Linear Light Ugr Less 19 CCT &Wattage Tunable Aluminum LED Linear Light

Customization: Available
Light Body Material: Aluminum Alloy
Emitting Color: White
Send Inquiry

Product Description

Overview Features Dimension Description Projects FAQ
Basic Information
Introducing our state-of-the-art Commercial LED Linear Light that offers unparalleled versatility with adjustable wattage and CCT. Featuring a high efficacy of 100 lumens per watt, this linkable suspended LED linear light is CE certified, ensuring top-notch quality and safety.
Model NO.
SL-LD70
IP Rating
IP20
Wattage
20W 36W 45W
Light Efficacy
100lm/W
CRI
More Than 80
Light Source
SMD2835
Beam Angle
120 Degree
AC Input
200-240V 50/60Hz
Power Factor
More Than 0.95
Warranty
5 Years
Production Capacity
50000PCS/Month

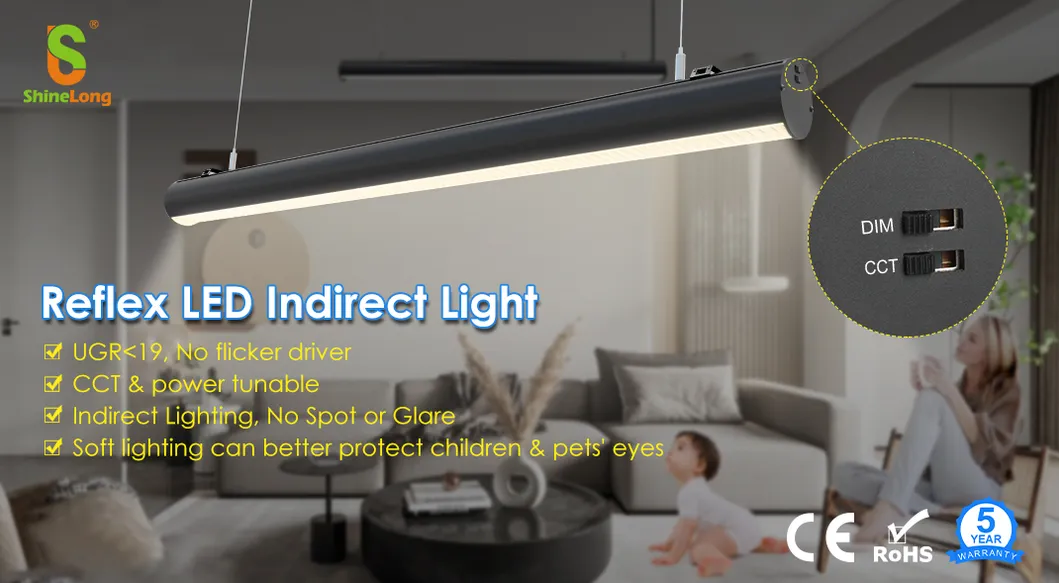

LED Linear Light Overview
Product Features
  • ✔ Indirect Lighting, No Spot or Glare

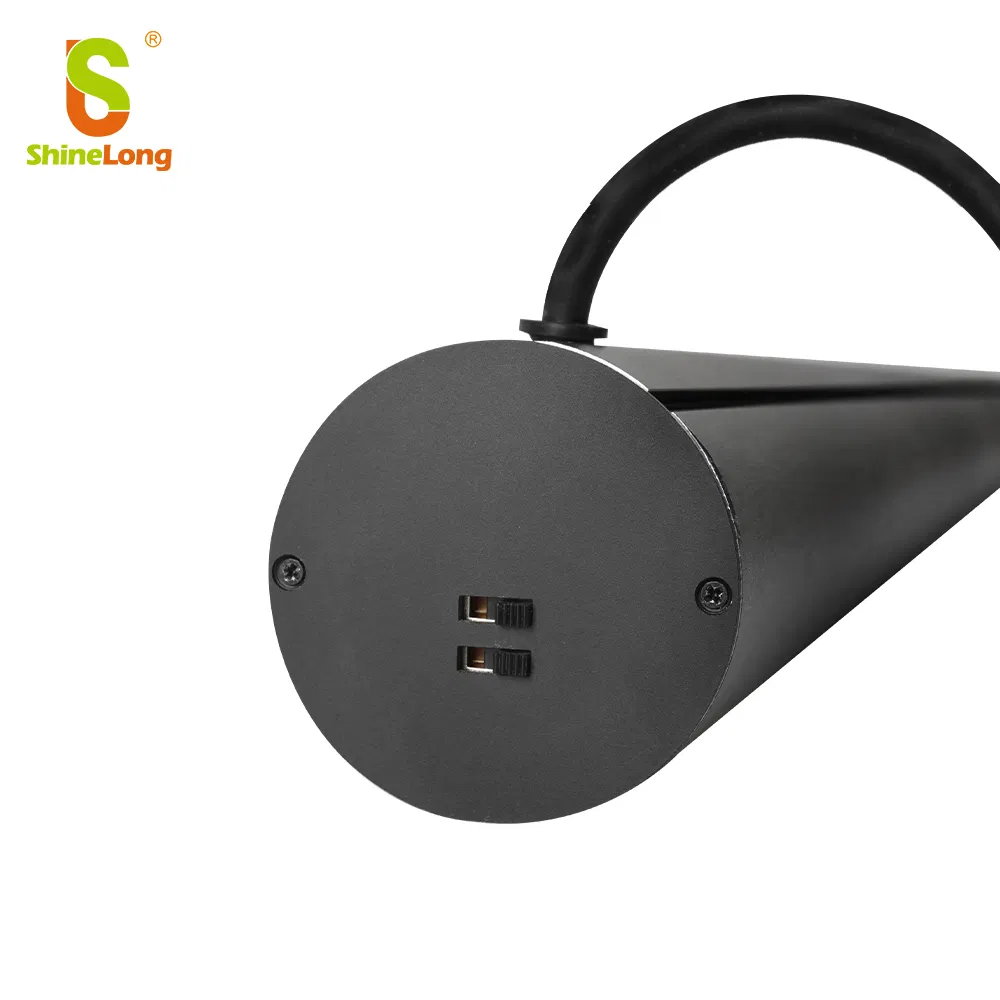

  • ✔ DIP Switch Power: 0.6m (10-20W), 1.2m (25-36W), 1.5m (35-45W)

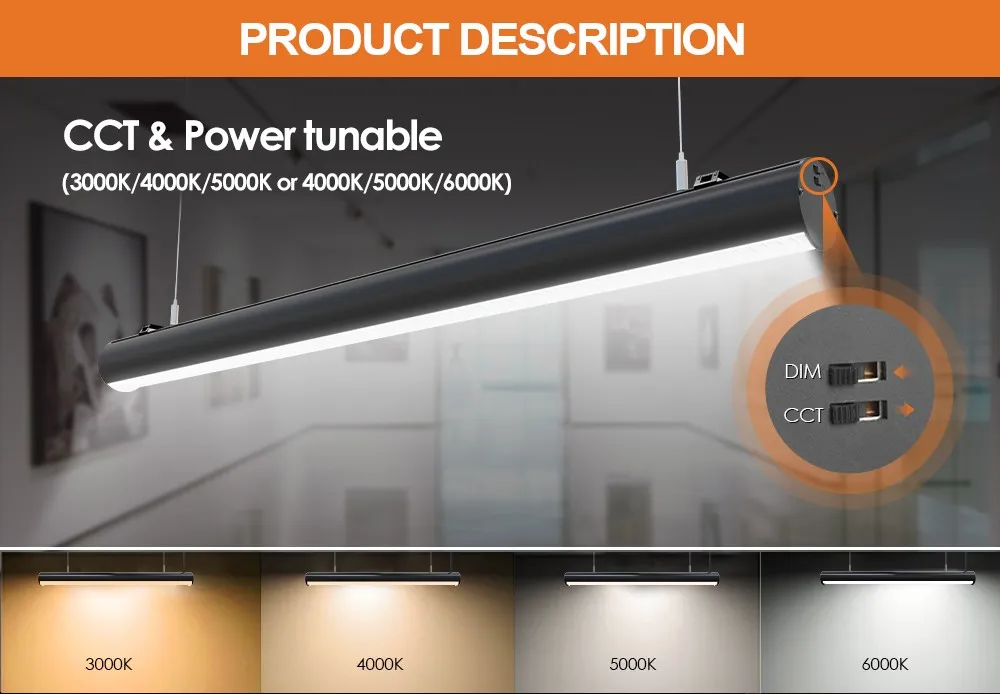

  • ✔ DIP Switch CCT Options: 3000K/4000K/5000K/6000K
  • ✔ Multi Dimming Support: 0/1-10V, DALI Available
  • ✔ UGR <19 Available for Enhanced Visual Comfort
  • ✔ Premium Integrated Aluminum Housing
  • ✔ Superior Light Efficacy: 100lm/w ±10%

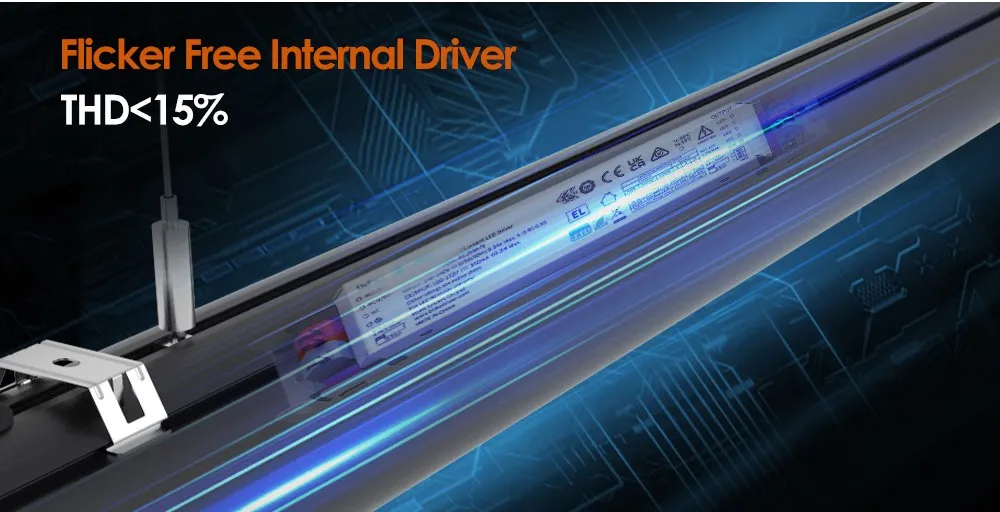

  • ✔ Flicker-Free Internal Driver (THD <15%)
  • ✔ High Durability: L80B10 >50,000hrs

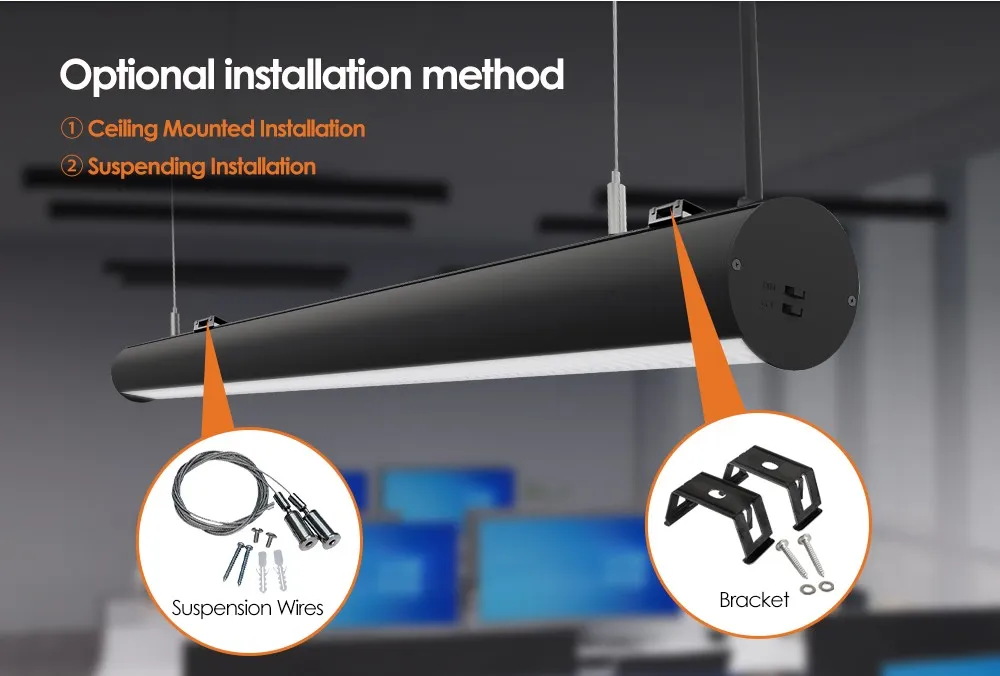

  • ✔ Versatile Installation: Suspending & Ceiling Mounted
Product Dimensions & Data Sheet

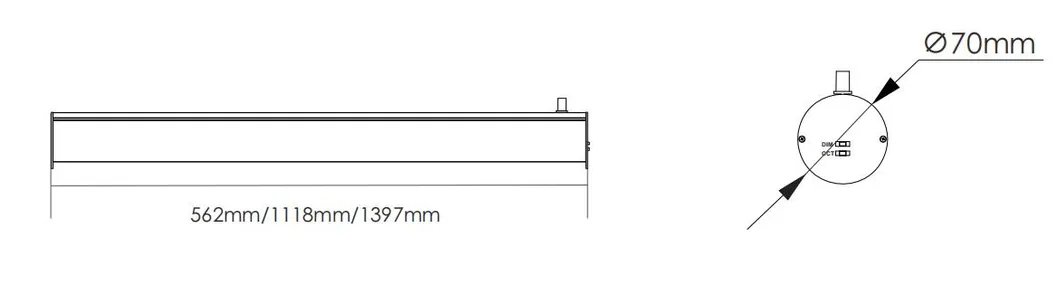

Product Dimension
Article Number Power(W) Lumen(lm)
SL-LD70X2-20-X 20W 2000lm
SL-LD70X4-36-X 36W 3600lm
SL-LD70X5-45-X 45W 4500lm
Product Details

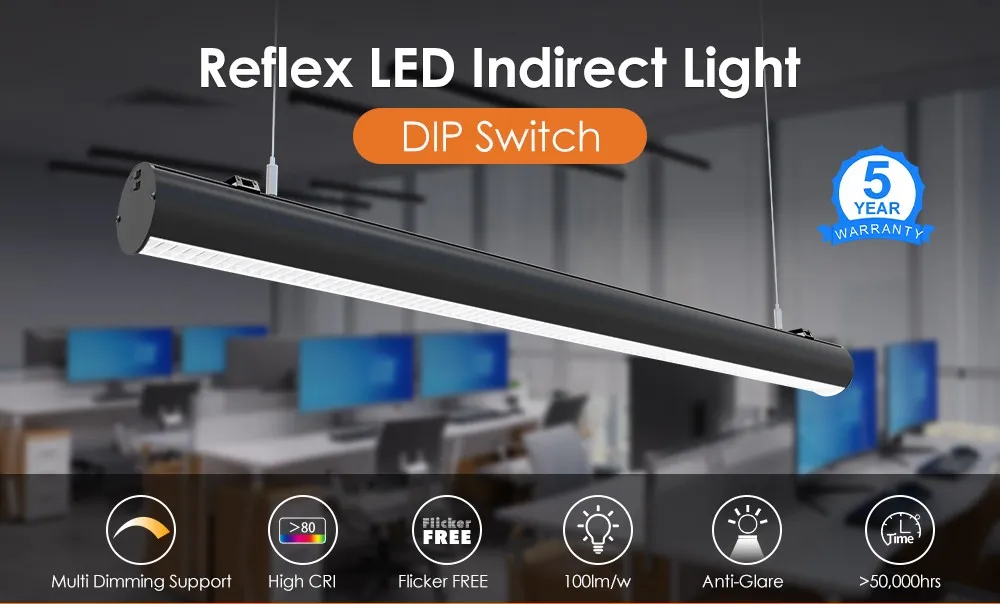

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5

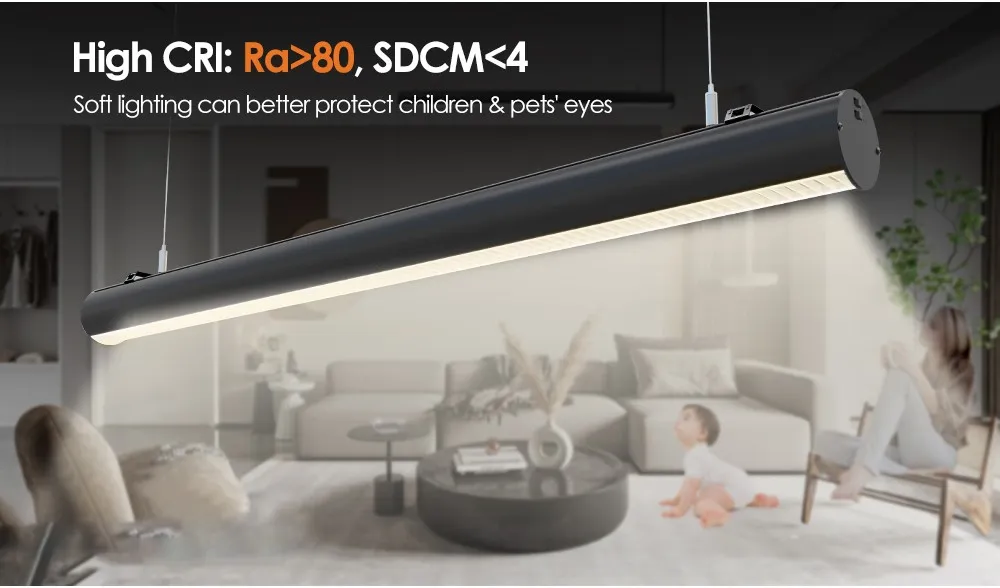

Detail 6

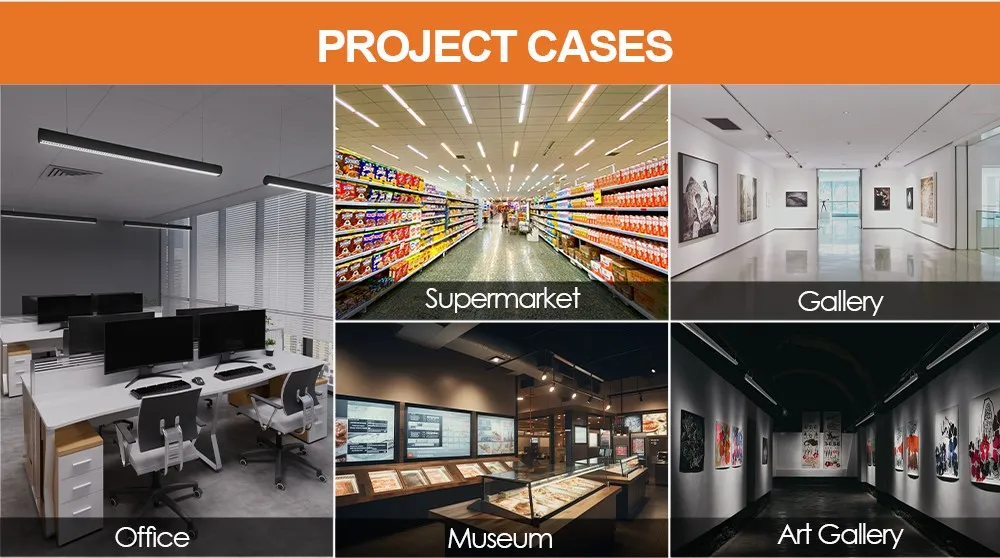

Application Projects

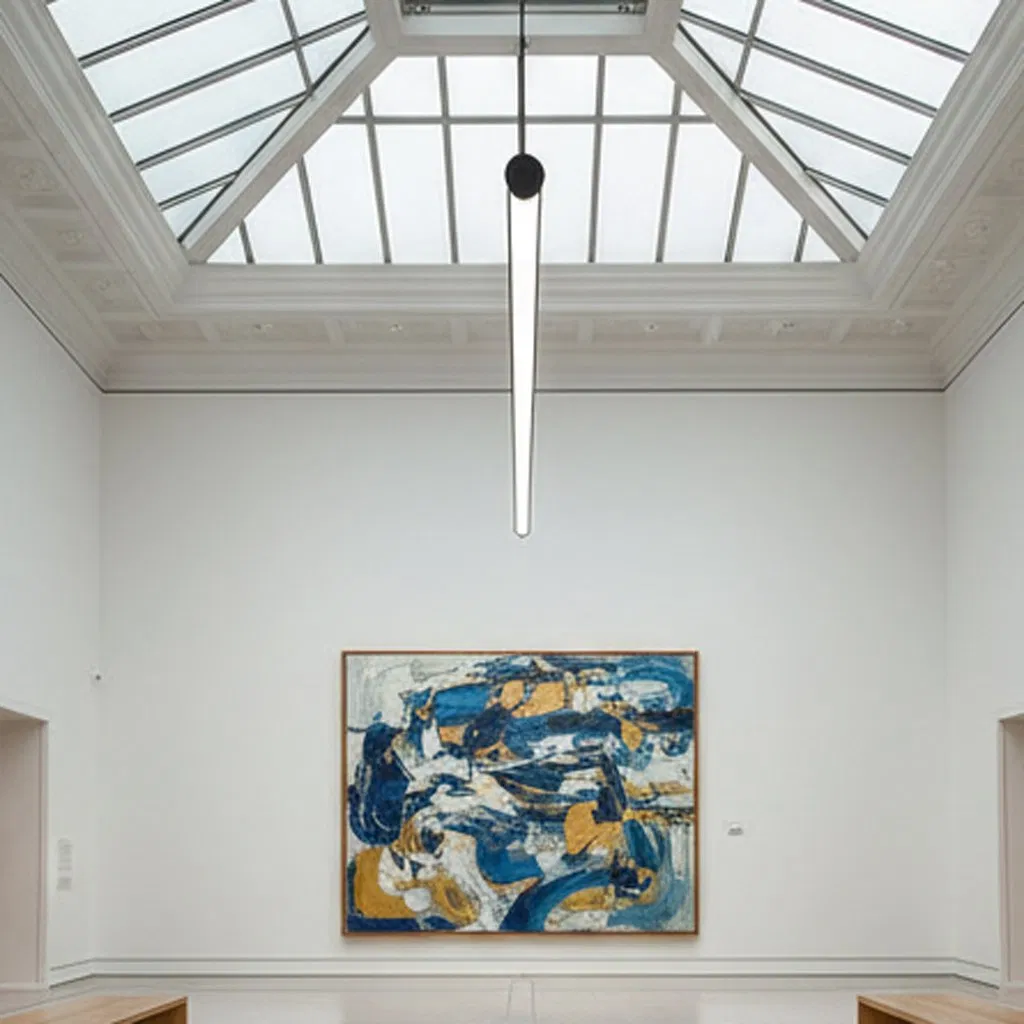

Ideal for Shopping Malls, Supermarkets, Offices, Museums, Art Galleries, and Exhibition Halls.

Application Project
Our Profile

We are a dedicated innovator in commercial and industrial lighting since 2010, specializing in LED tubes, panels, and tri-proof lights. As a professional LED manufacturer, we operate complete production lines including SMD packaging, SMT, power supply manufacturing, and custom moulding. This vertical integration ensures the highest quality and competitive solutions for our customers. All our products are approved by TUV, UL, CE, and ROHS, backed by a professional R&D and production team.

Factory 1
Factory 2
Factory 3
Frequently Asked Questions
What is the warranty for these LED linear lights?
We provide a 5-year warranty on our LED linear lights, ensuring long-term reliability and performance with a lifespan of over 50,000 hours (L80B10).
Can the wattage and color temperature be adjusted?
Yes, the fixtures feature a built-in DIP switch that allows you to adjust both the wattage and the CCT (3000K to 6000K options) on-site to match your specific requirements.
Are these lights flicker-free?
Absolutely. We use high-quality flicker-free internal drivers with a Total Harmonic Distortion (THD) of less than 15%, providing a stable and comfortable lighting environment.
Do you support dimming options like DALI or 1-10V?
Yes, our linear lights support multiple dimming protocols, including 0/1-10V and DALI, for seamless integration into smart building systems.
What kind of installation methods are available?
The product is designed for versatility and can be installed via suspending cables or ceiling-mounted brackets, depending on the architectural needs.
What certifications do your products hold?
Our products are fully certified by TUV, UL, CE, and ROHS, meeting international safety and performance standards.
