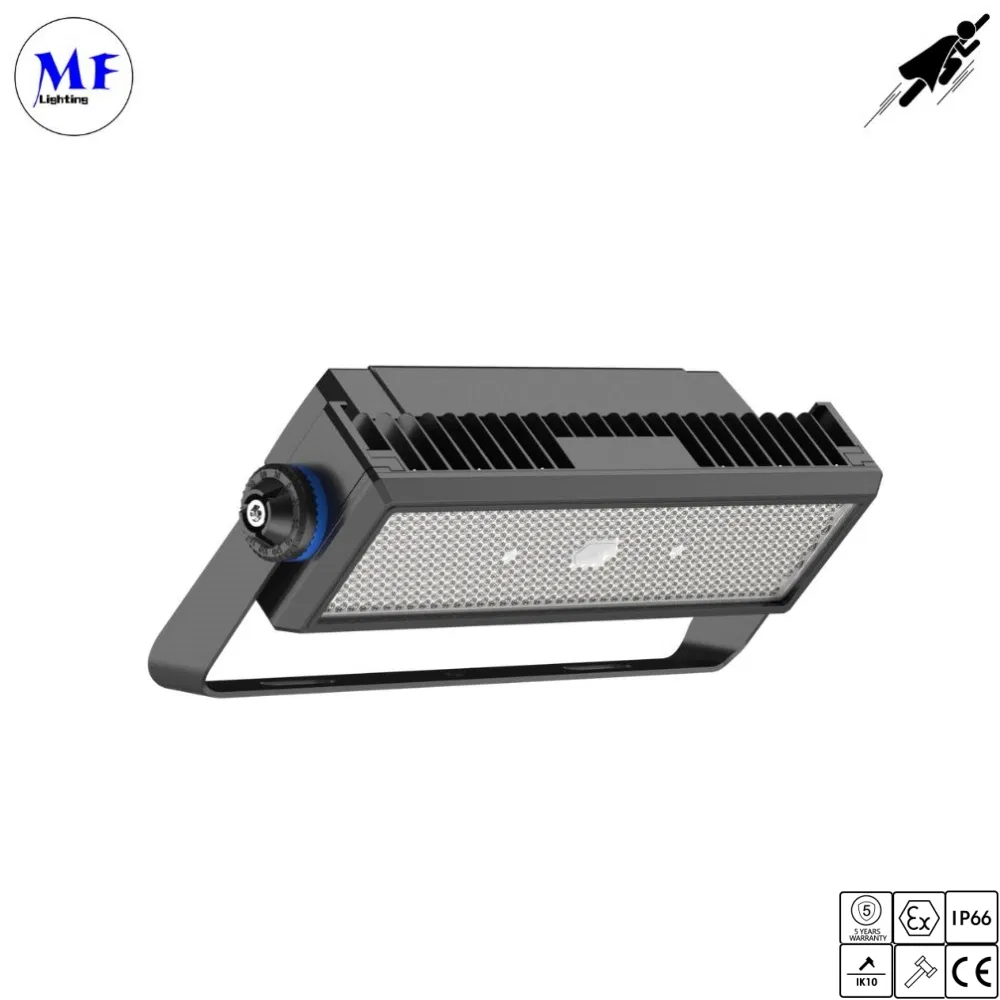

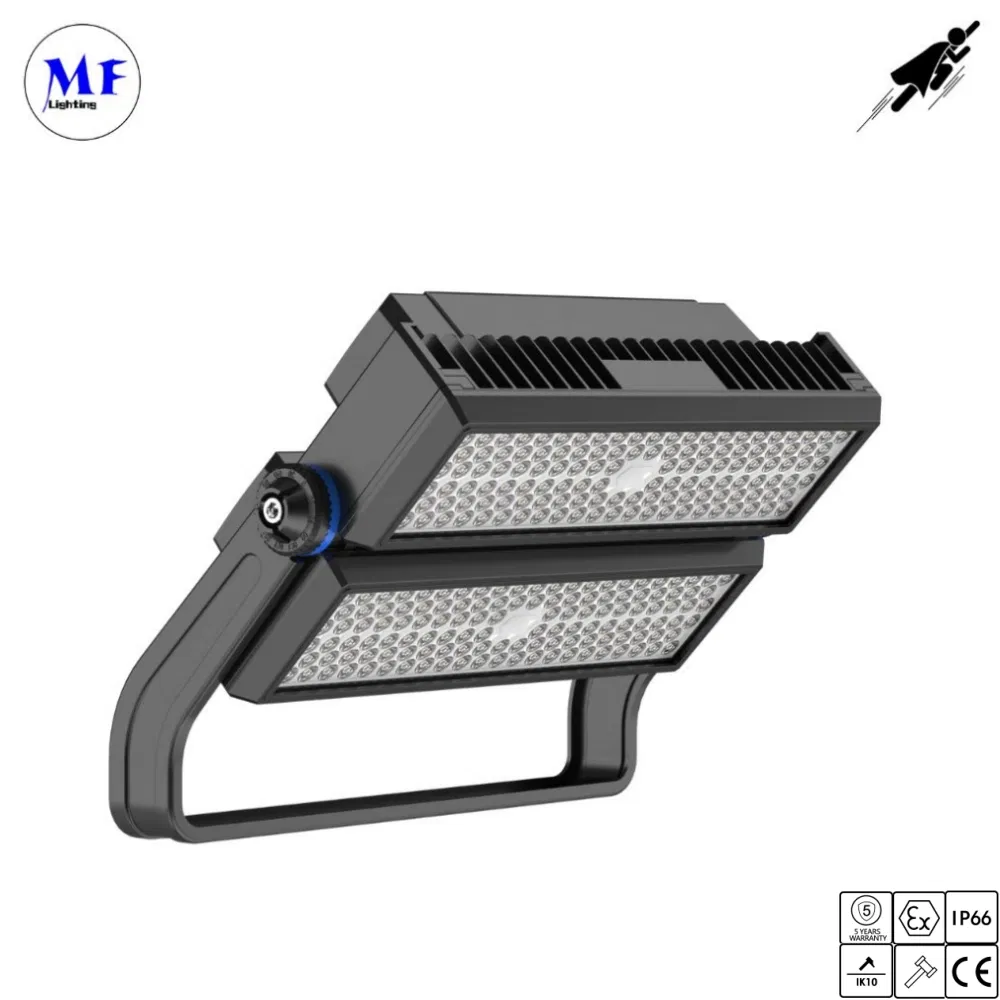

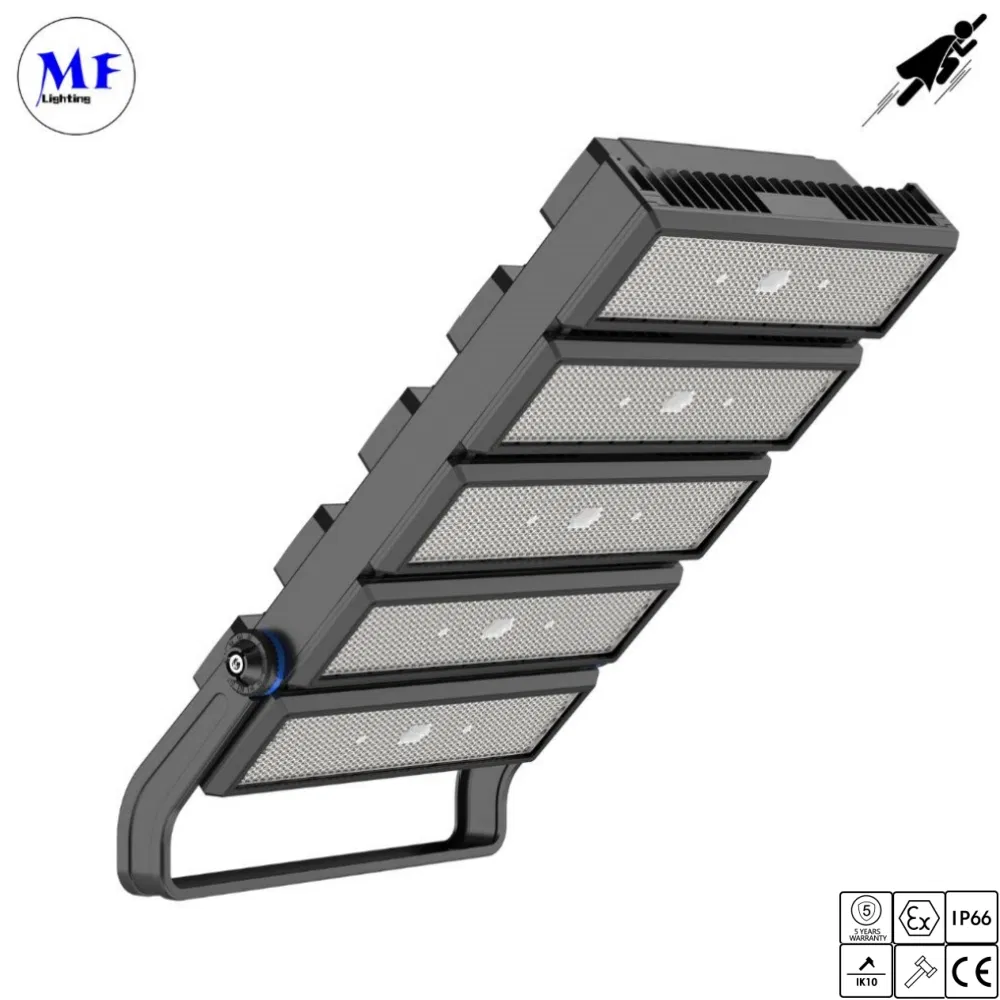

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.MF Superman II Power250W - 1500W
IP RatingIP66 CertificationCE, RoHS, VDE
Operating VoltageAC85-277V / 100-305VAC LED BrandLumi1eds/Osram
Driver BrandMeanwell/Sosen CRI (Ra)>70 / >80 / >90
IK ClassIK08 / IK10 Beam Angle10/25/45/60/90/65°*25°

Core Features

1
All-In-One Design: Combination of world-class performance, energy saving, and cutting-edge optical technology in one sleek package.
2
Flicker-Free Technology: Perfect for 4K high-definition cameras and slow-motion replay (up to 2000fps) in sports venues.
3

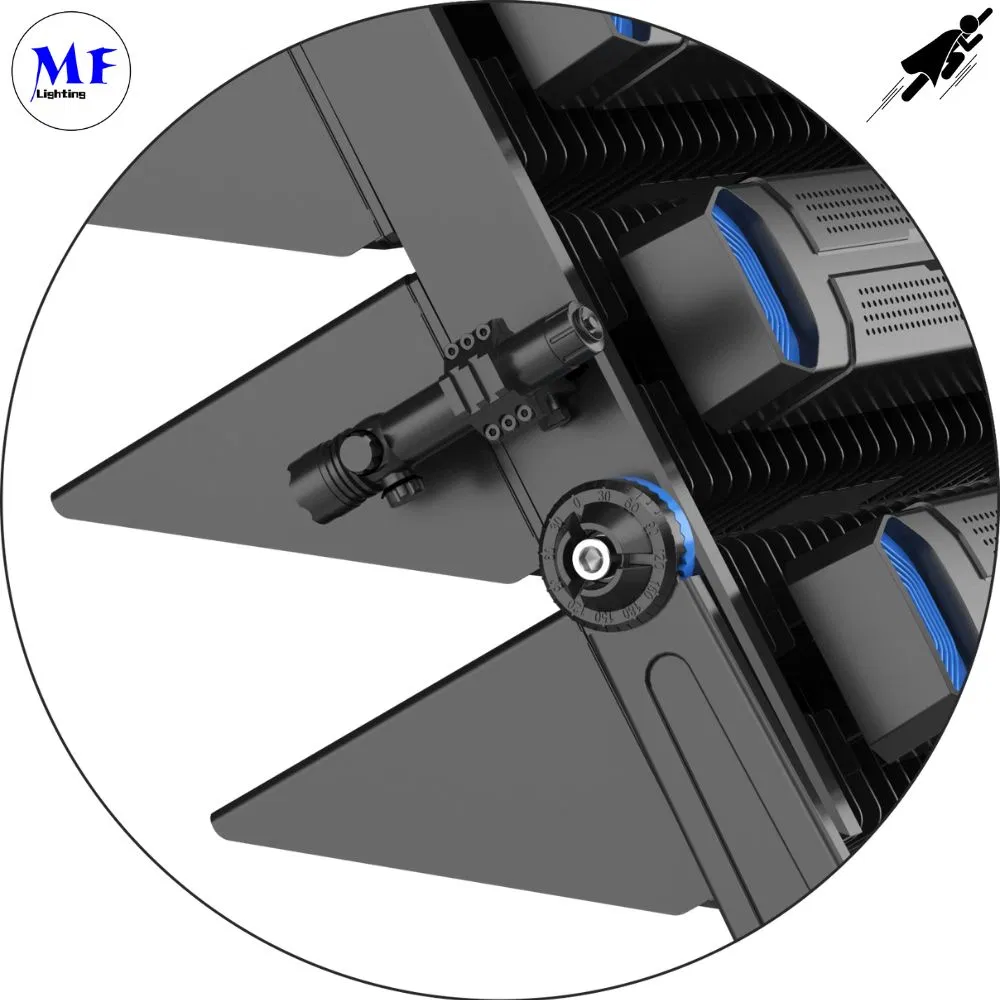

Modular Concept: Scalable design from 250W to 1500W. Modules can be adjusted flexibly with laser aimer precision.
4
High Protection: IP66 and IK10 rated. Includes wire guards for ball-proofing and built-in 10KV/20KV surge protection.
5
Spill Light & Glare Control: Asymmetrical optical lenses focus light on the field, preventing spill into residential areas and ensuring a glare-free experience.
LED Flood Light Stadium Feature

Technical Specifications (Plan A 150lm/w)

Model No. H250W H500W H750W H1000W H1250W
Rated Power240W480W720W960W1200W
Luminous Flux36,000 lm72,000 lm108,000 lm144,000 lm180,000 lm
Input Voltage100-305Vac 50/60Hz
Carton Size(mm)630*330*230630*520*230630*680*230630*840*230630*1000*230

Technical Specifications (Plan B 170lm/w)

Model No. H250W H500W H750W H1000W H1200W
Luminous Flux40,800 lm81,600 lm122,400 lm163,200 lm204,000 lm
High Power Module Plan

Dimensions & Design

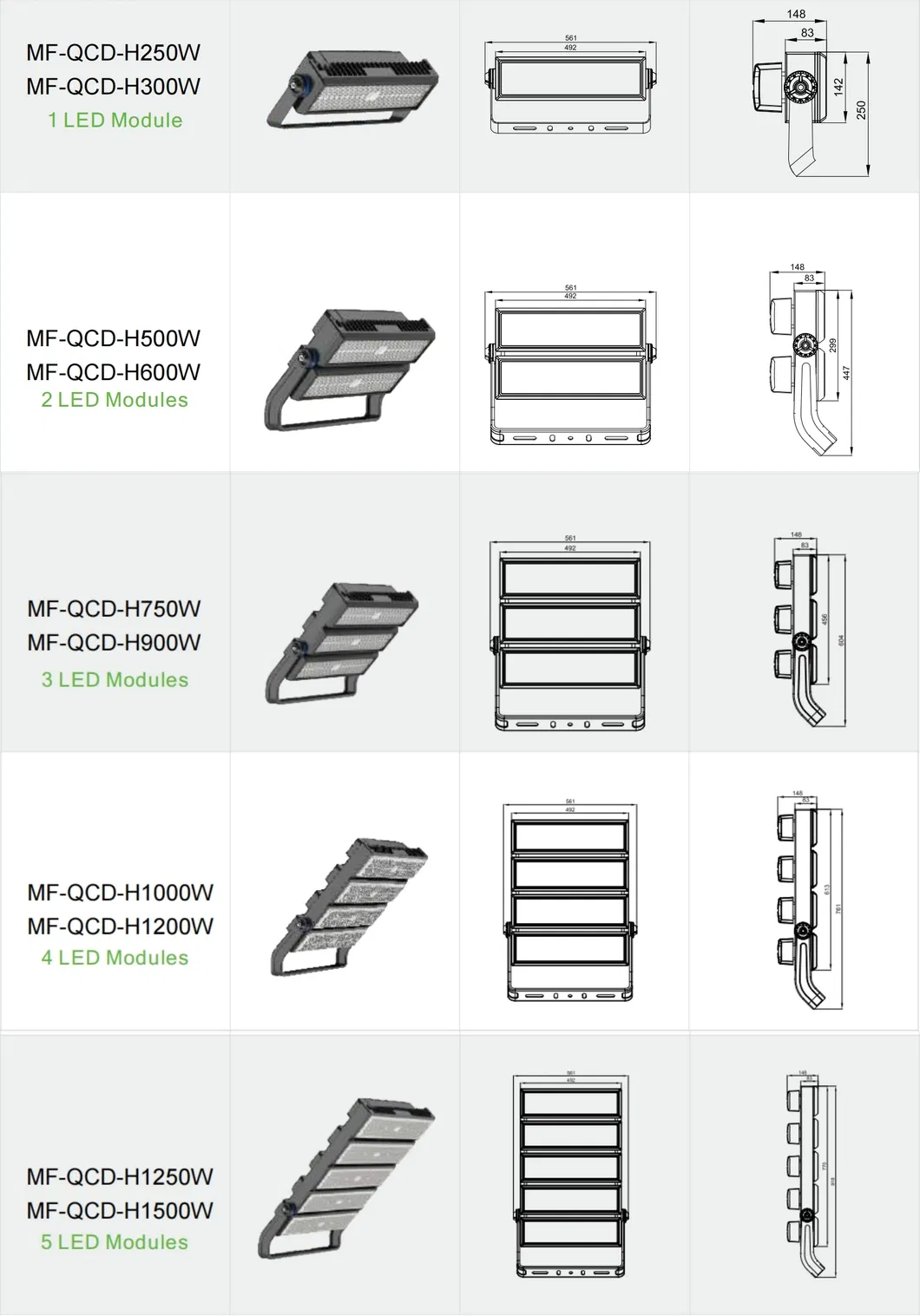

LED Flood Light Dimensions

Accessory Options

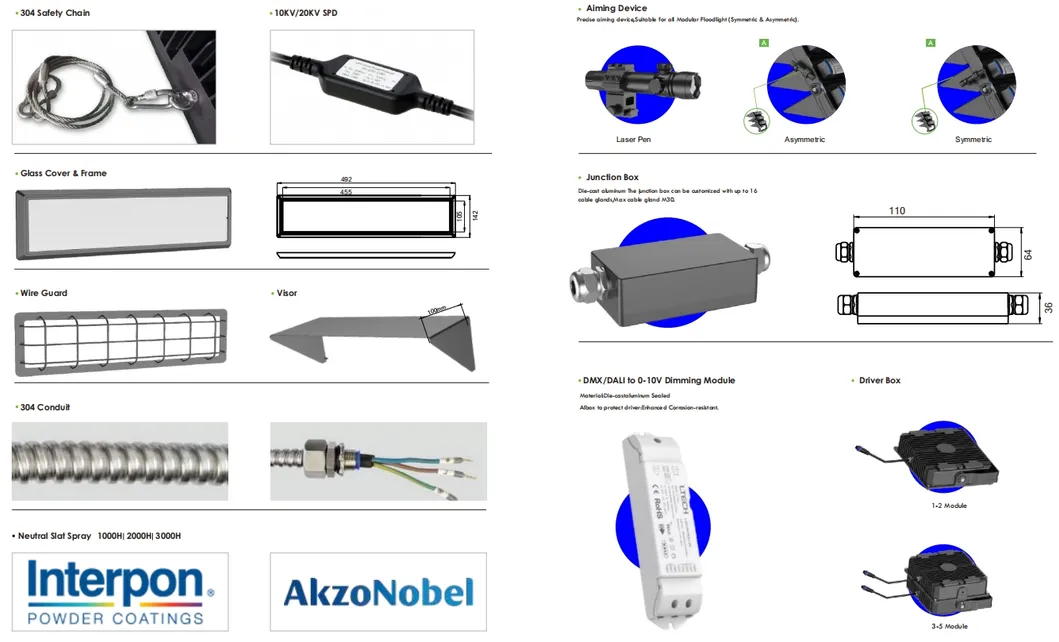

LED Flood Light Accessories

Wide Application Scenarios

LED High Mast Flood Lights are designed for large-scale outdoor environments requiring high-intensity lighting. They provide bright, uniform illumination for safety and performance.

Application Stadium Application Airport Application Port
Ideal for: Sports Stadiums, Soccer Fields, Airports, Seaports, Construction Sites, Golf Courses, and Large Distribution Centers.

Installation Guide & Cautions

  • 1. Installation must be handled by a certified electrician according to local regulations.
  • 2. Check local voltage requirements before proceeding with installation.
  • 3. Ensure power is completely off and the lamp has cooled before maintenance.
  • 4. Use a soft cloth and PH neutral detergent for cleaning; avoid flammable materials.
  • 5. Regular maintenance of the stainless steel structure is recommended for longevity.
Installation Cautions

Frequently Asked Questions

Q1: What is the maximum power available for the Superman II series? A1: The Superman II series offers a modular design that can scale up to 1500W, starting from 250W.
Q2: Can these lights be used for professional televised sports events? A2: Yes, they are flicker-free and compatible with 4K high-definition cameras, reaching up to 2000fps for clear slow-motion replay.
Q3: How does the light handle extreme outdoor weather and coastal environments? A3: The fixtures are IP66 waterproof and IK10 impact-resistant. They also undergo high anti-corrosion treatments like electrophoresis and triple powder coating.
Q4: Does the light cause light pollution for nearby residents? A4: No, the series features asymmetrical optical lenses that focus light strictly on the field, eliminating spill light to surrounding residential areas.
Q5: What is the luminous efficiency of these flood lights? A5: Depending on the chosen plan (A, B, or C), the efficiency ranges from 150lm/w to as high as 170lm/w.
Q6: Are there built-in protections against electrical surges? A6: Yes, the lights include a built-in 10KV surge protection device, with an option for 20KV for high-risk areas.
