📋 Basic Info.
Model NO.
EN50100DFZ20W1194
Emitting Color
3000K/4000K/6000K
Voltage
AC220-240V/AC100-277V
Dimming
0-10V/Dali/Triac Dimmable
LED Chip
Epistar SMD 2835 - 240PCS
Luminous Efficiency
220-240V, UL120V
Transport Package
Carton Outside
Production Capacity
50000 Pieces/Month

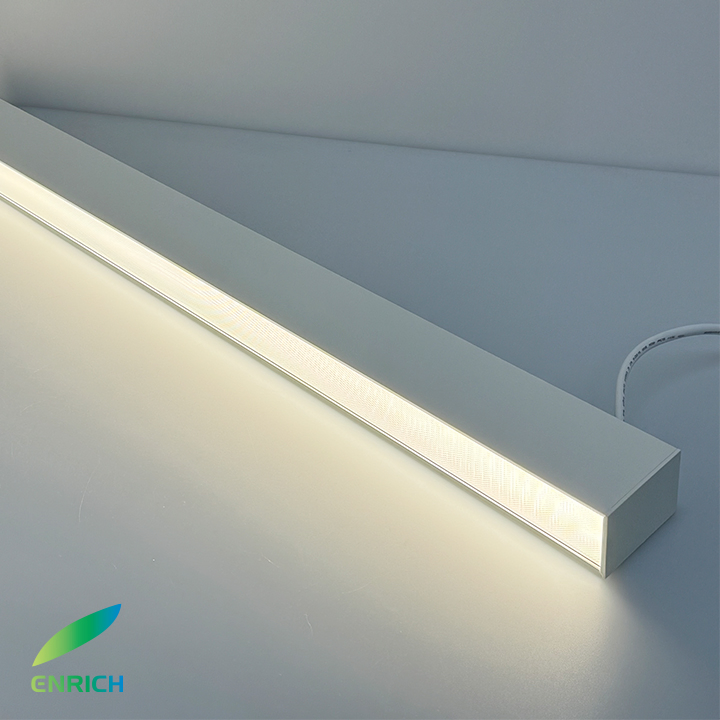

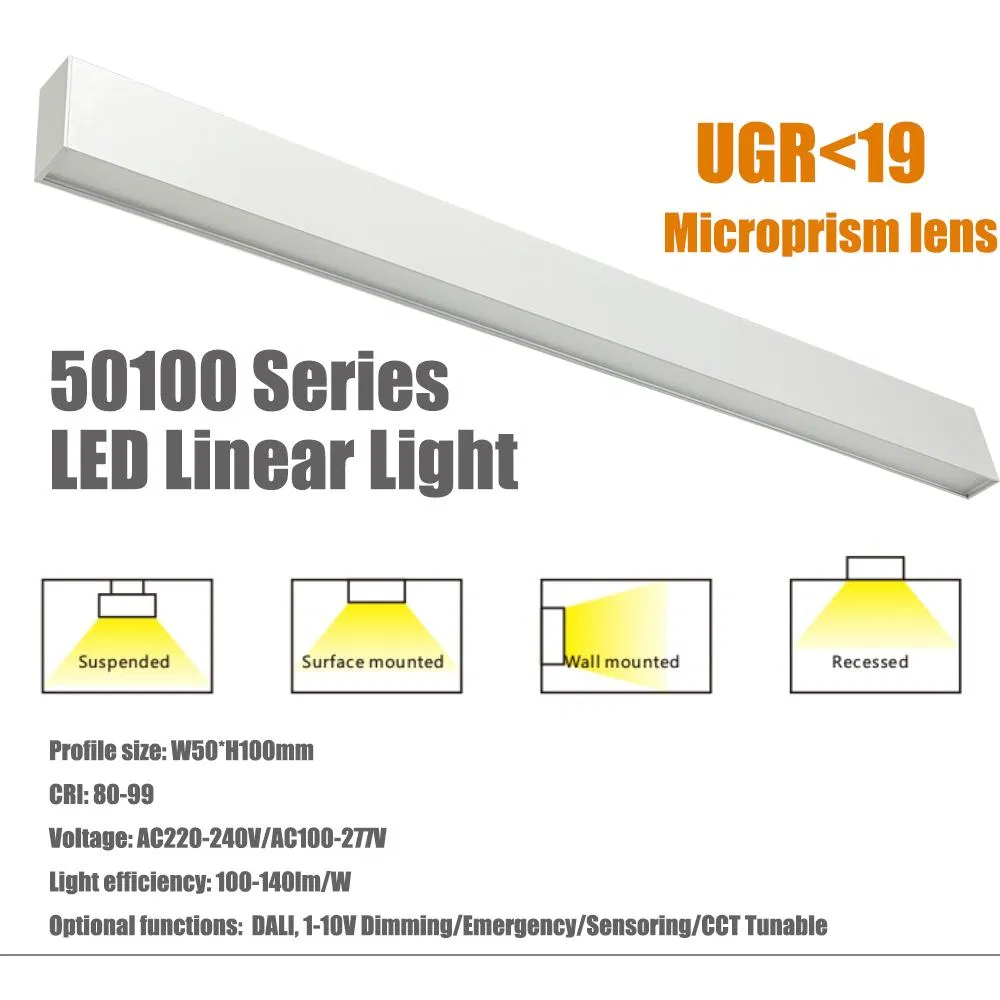

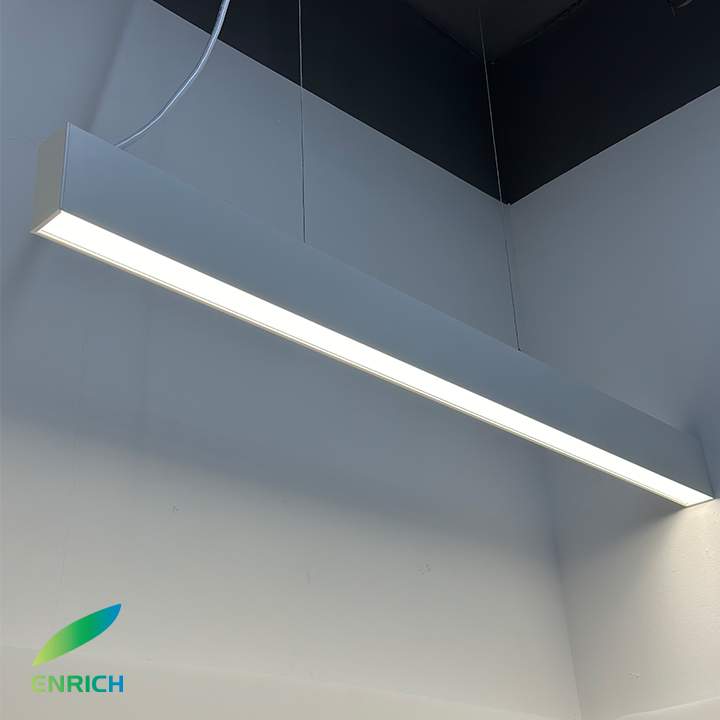

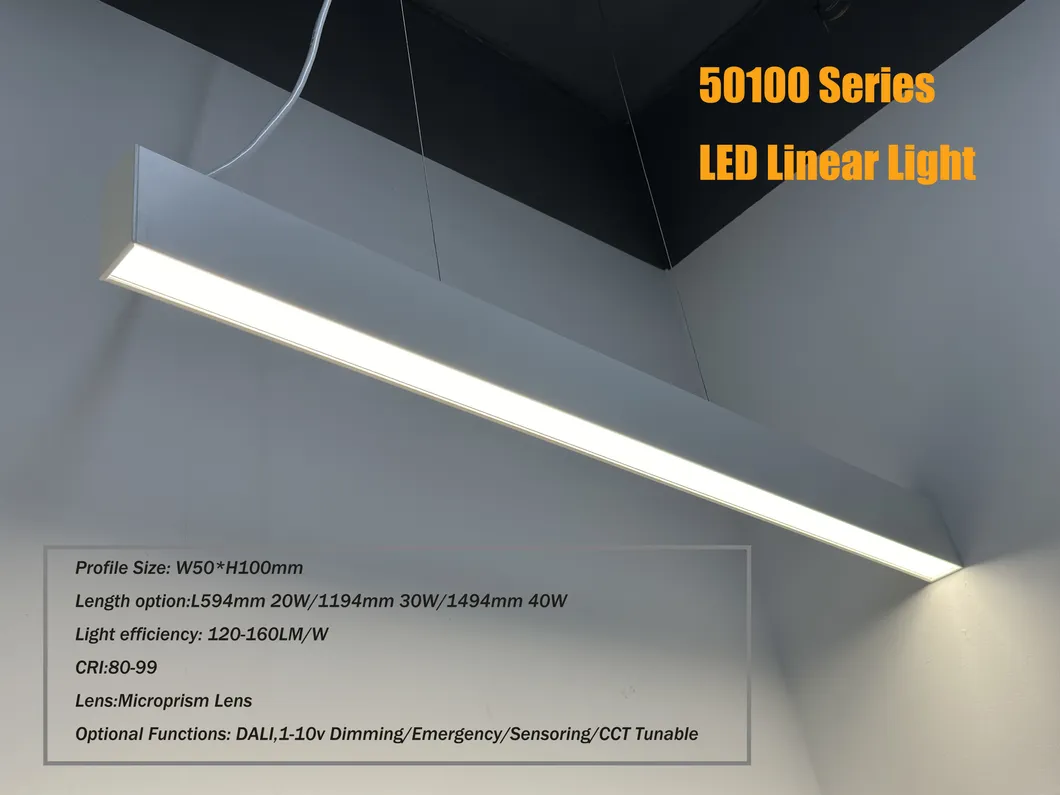

💡 Product Description - 50100 series LED Linear Light
Key Features:

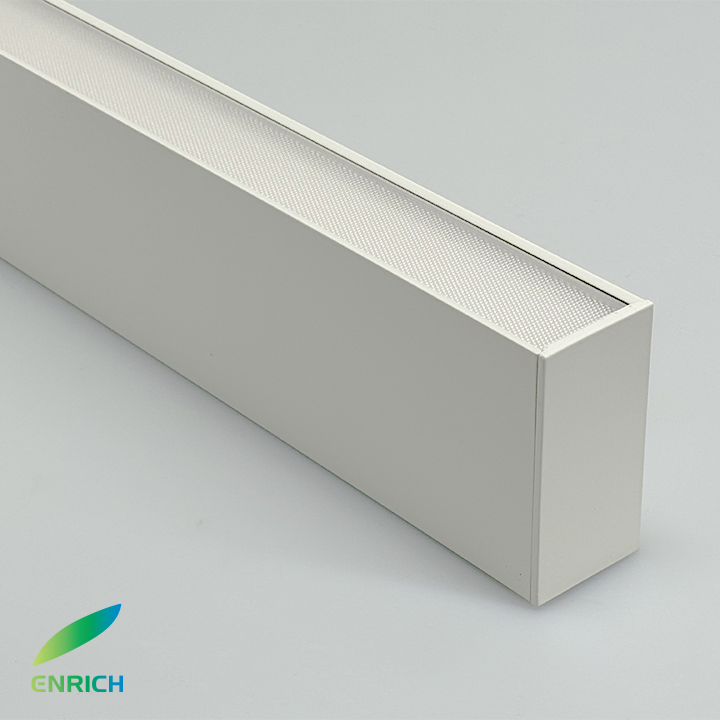

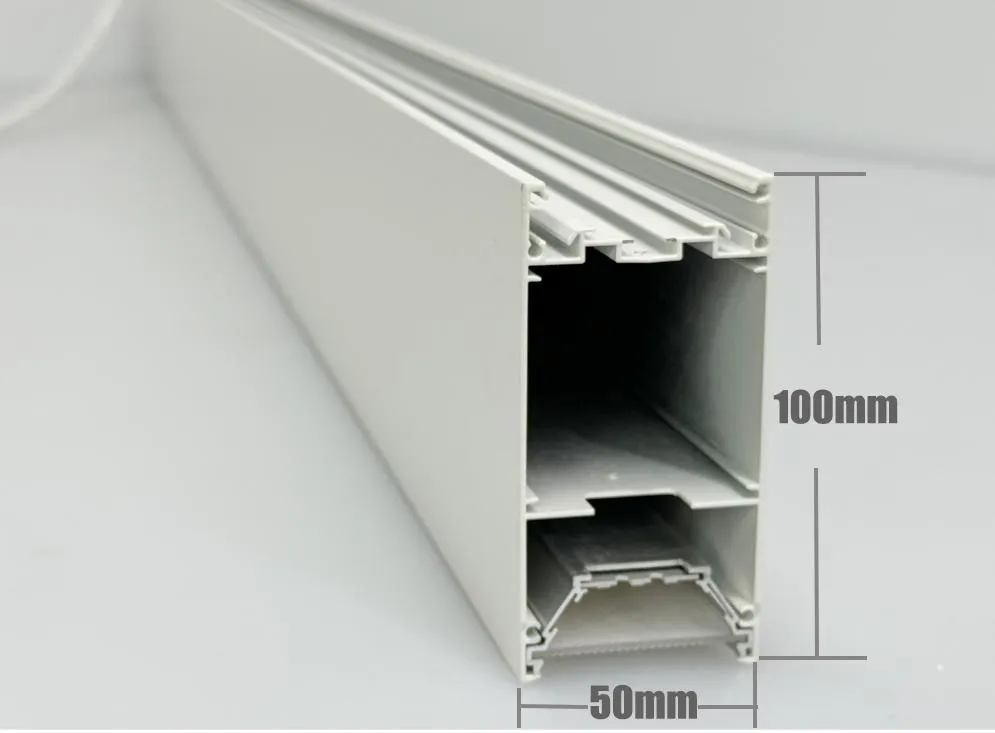

The aluminum profile size is W50mm x H100mm, currently the most popular choice in the European market.

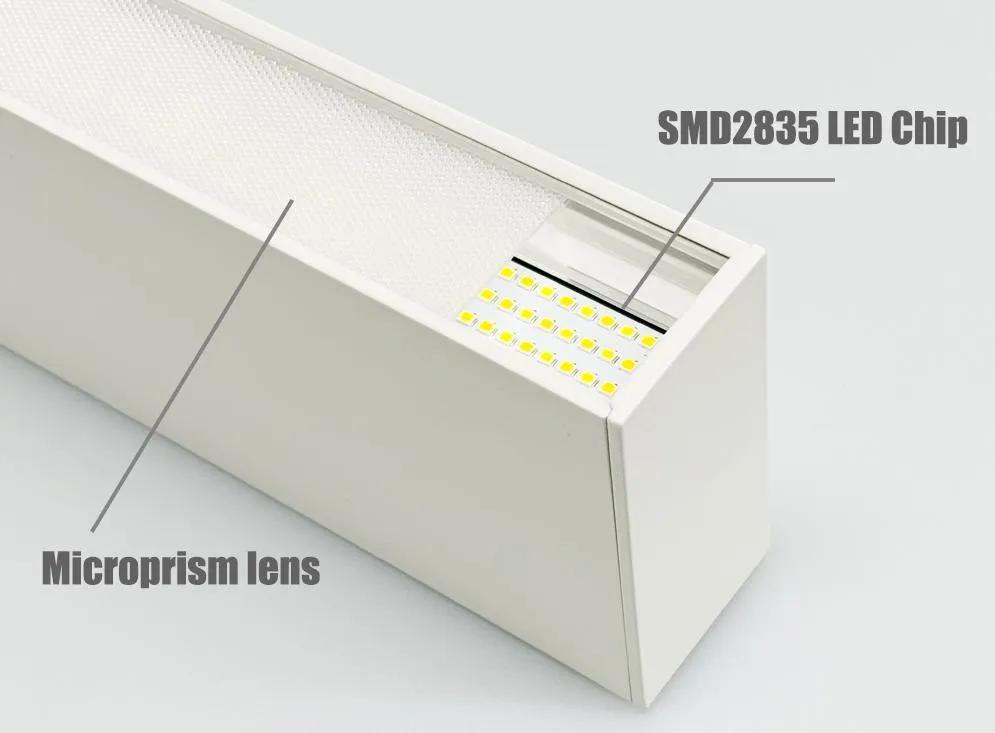

High-quality construction with 1.5mm thickness aluminum and microprism lens for anti-glare performance.
📏 Length Options
• L594MM = 20W (2400 lumens)
• L1194MM = 30W (3600 lumens)
• L1494MM = 40W (4800 lumens)
• OEM custom lengths accepted
✨ Optical Quality
• 120-160lm/W ultra-high efficiency
• Anti-glare microprism lens
• No dark area, flicker-free performance
• Beam Angle: 120°
🛠️ Technical Specs
• High CRI >80 (CRI >90 available)
• Power factor >0.95
• 50,000hrs lifespan (L80B10)
• 5 years warranty
🔗 Seamless Connection & Wiring

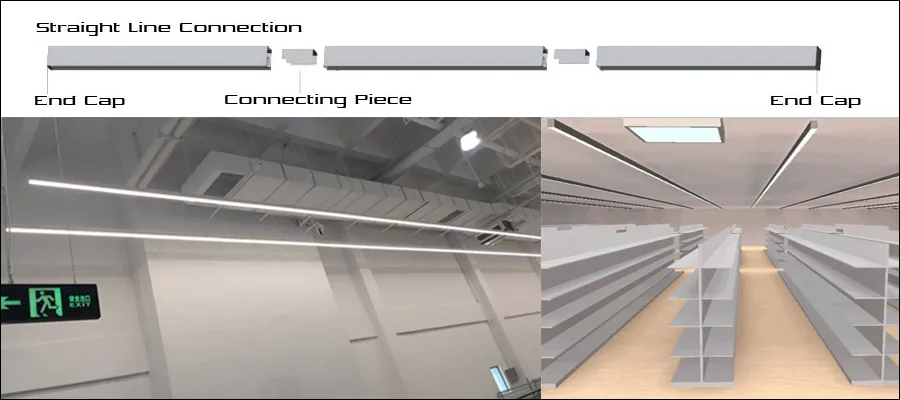

• Seamless Connection: Uses 4pcs metal pillars to connect the aluminum body tightly.
• Fast Wiring: Plug-in connectors on both ends; only the first lamp requires main electricity connection.
📊 Datasheet
| Model number |
Dimension |
Power |
Input voltage |
CCT |
Shell color |
| EN50100DFZ20W1194 |
L1194*W50*H100mm |
20W, 120LM/W |
AC100-277V |
3000K
4000K
6000K |
Black
White |
| EN50100DFZ36W1494 |
L1494*W50*H100mm |
36W, 120LM/W |
AC100-277V |
| EN50100DFZ40W2388 |
L2388*W50*H100mm |
40W, 120LM/W |
AC100-277V |

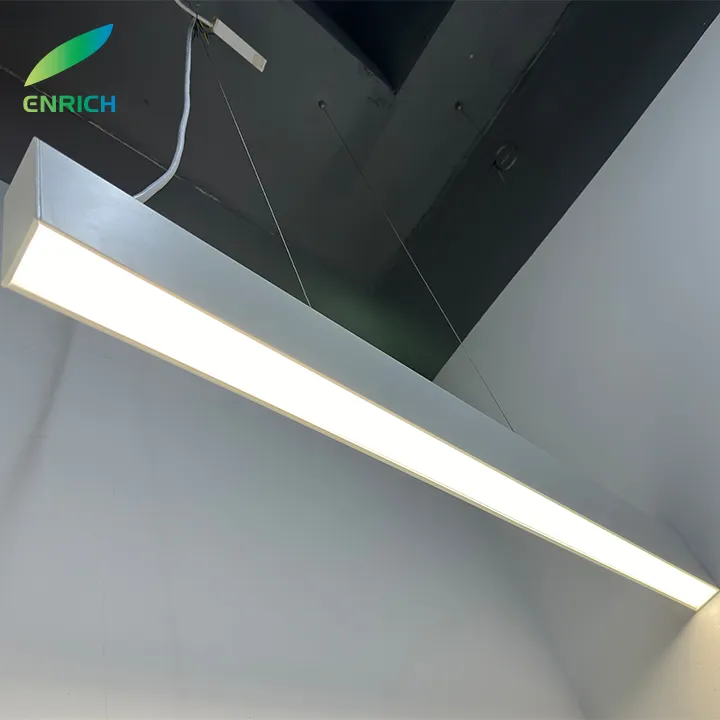

🏗️ Installation & Application

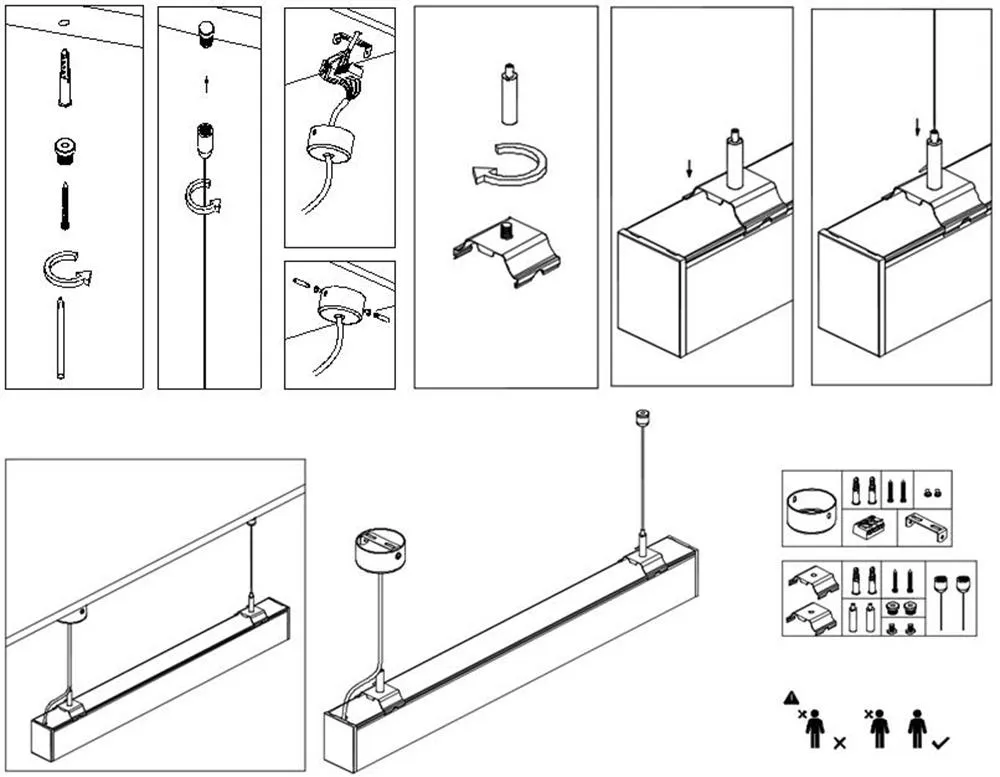

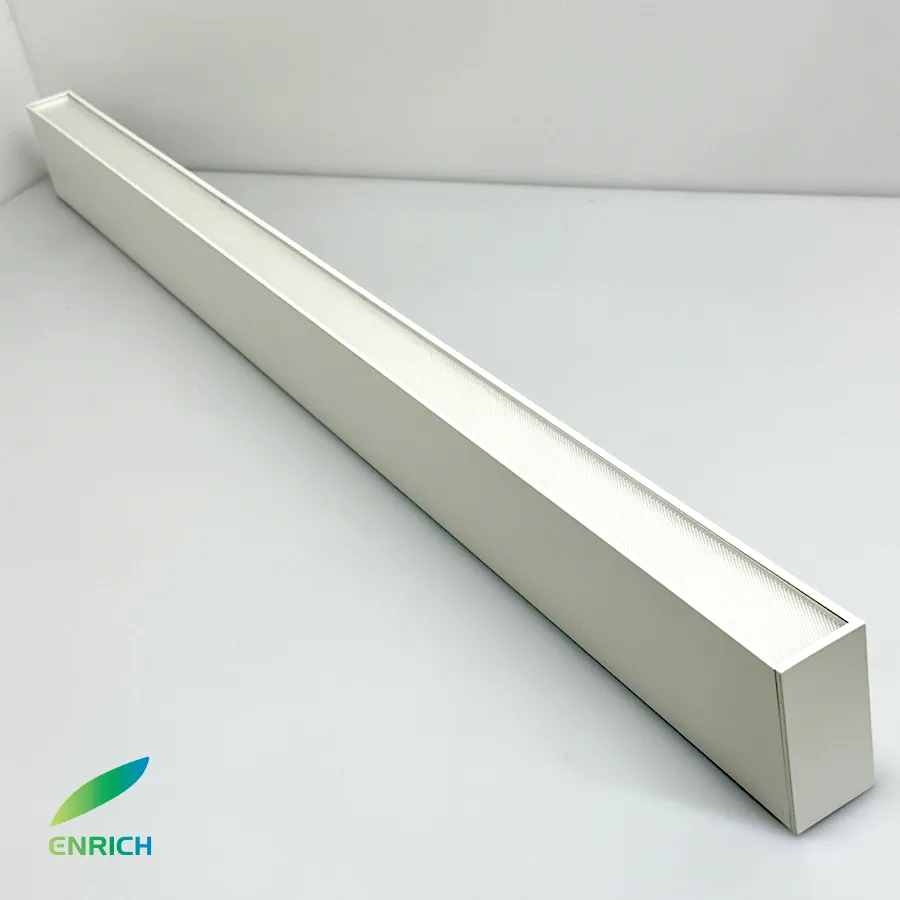

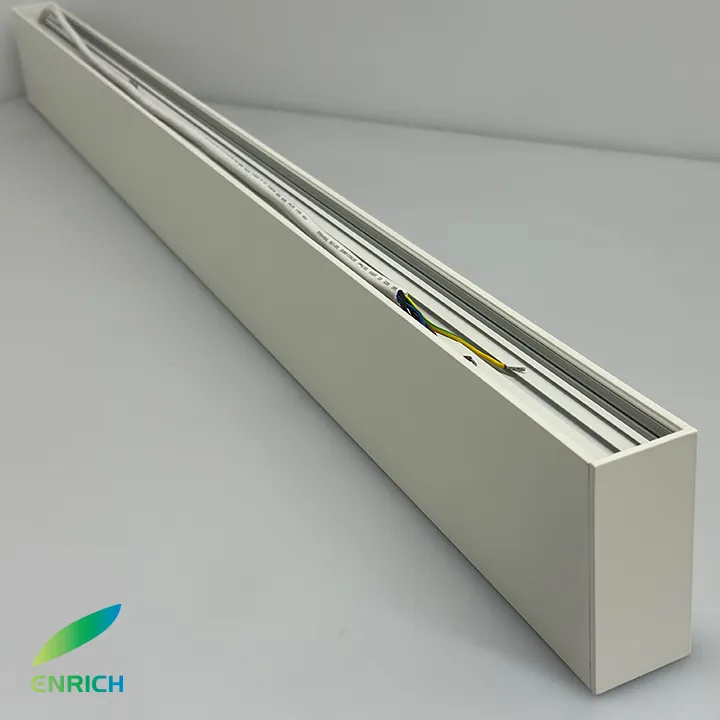

📐 Mounting Methods
📦 Packaging

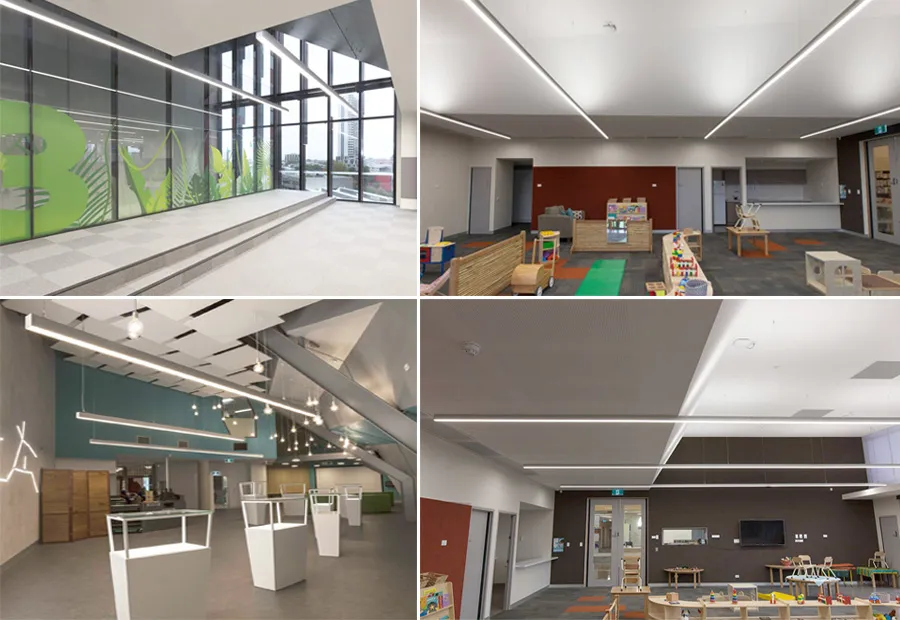

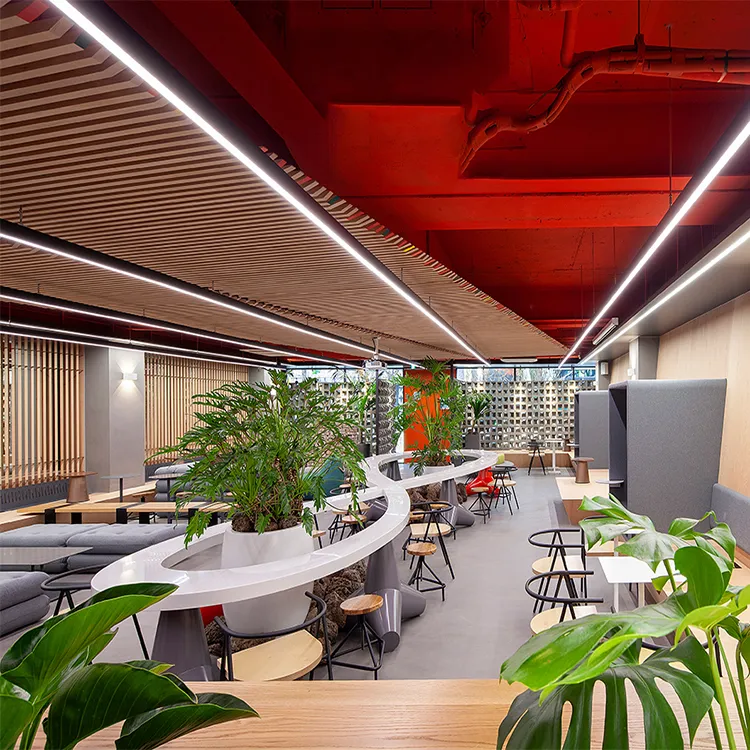

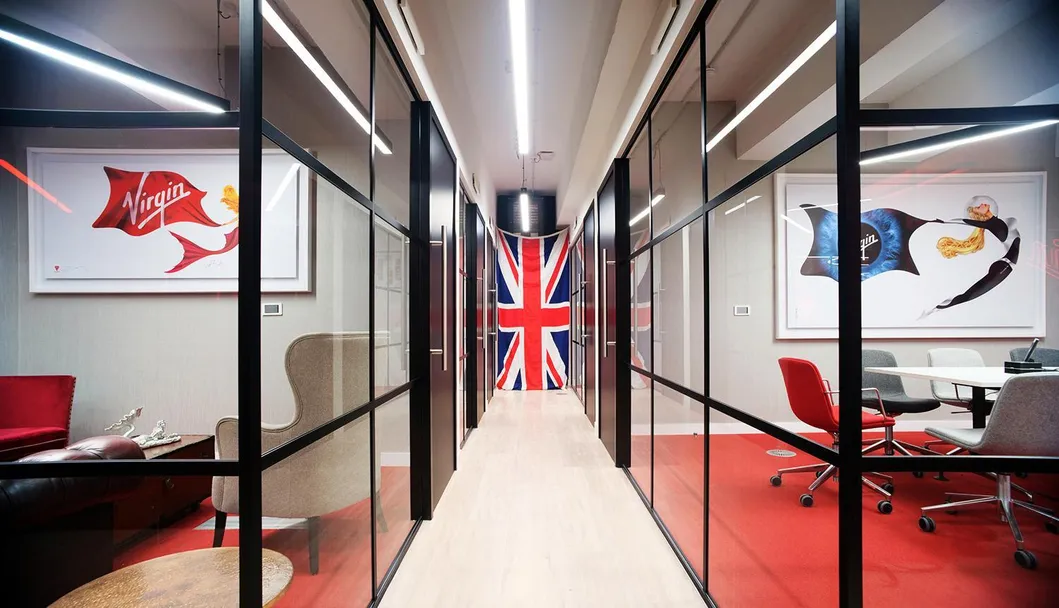

🏢 Application Scenarios

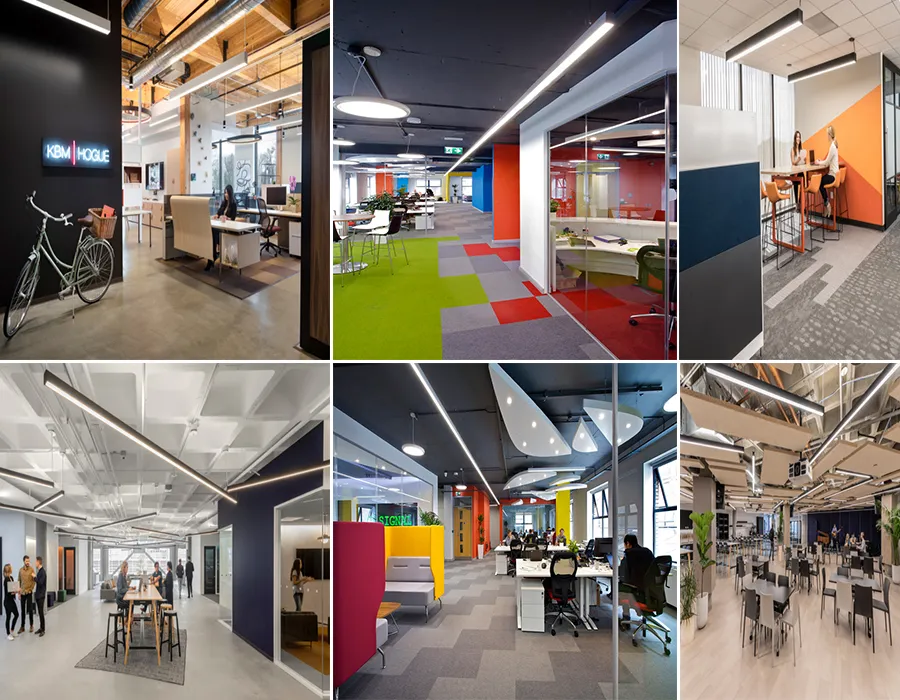

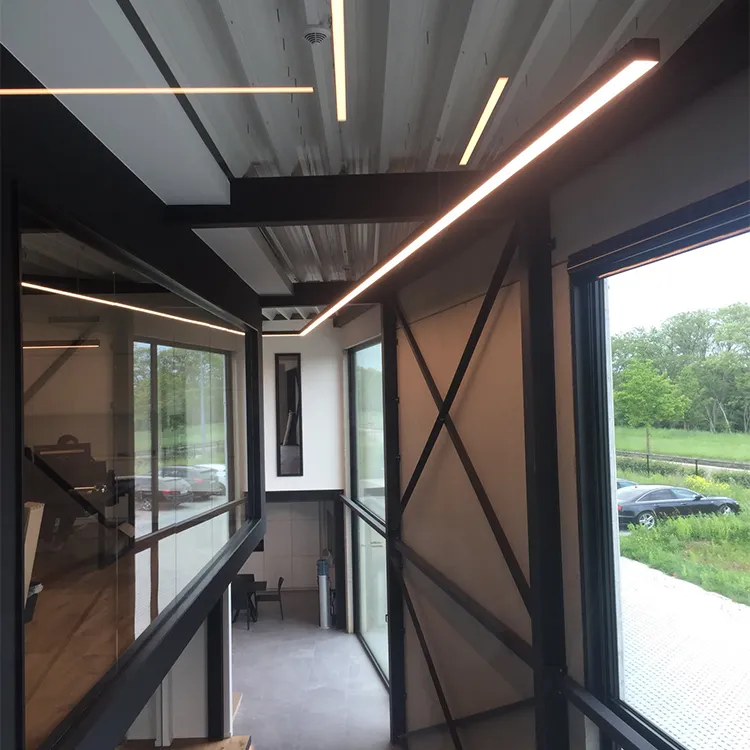

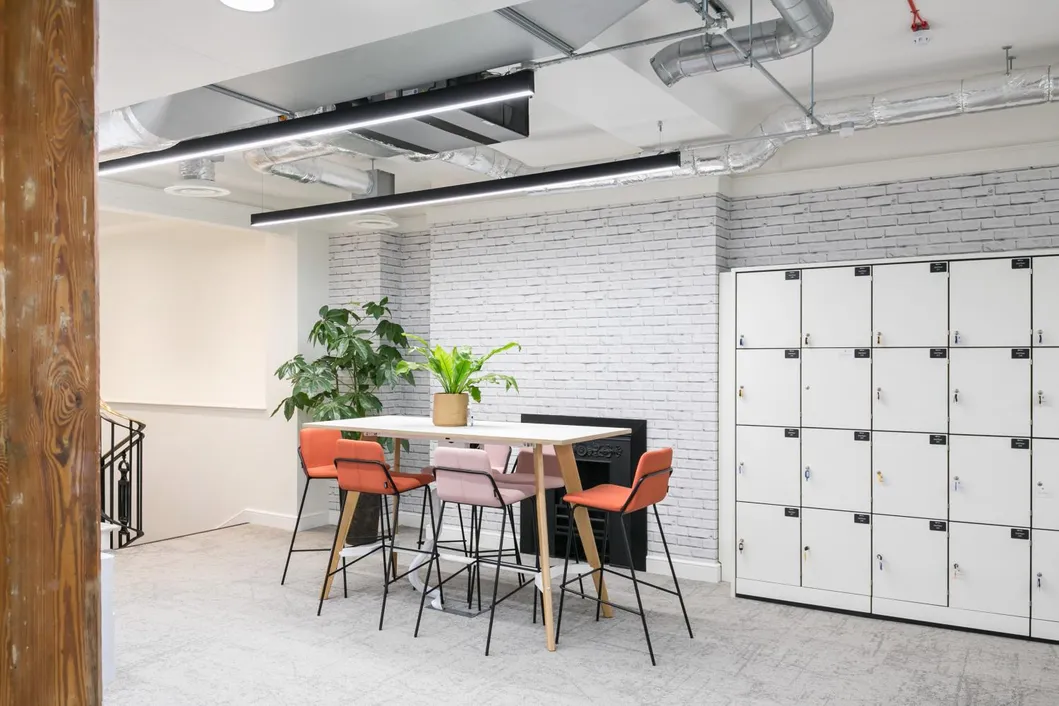

Excellent choice for offices, restaurants, studios, stores, schools, hotels, and banks.

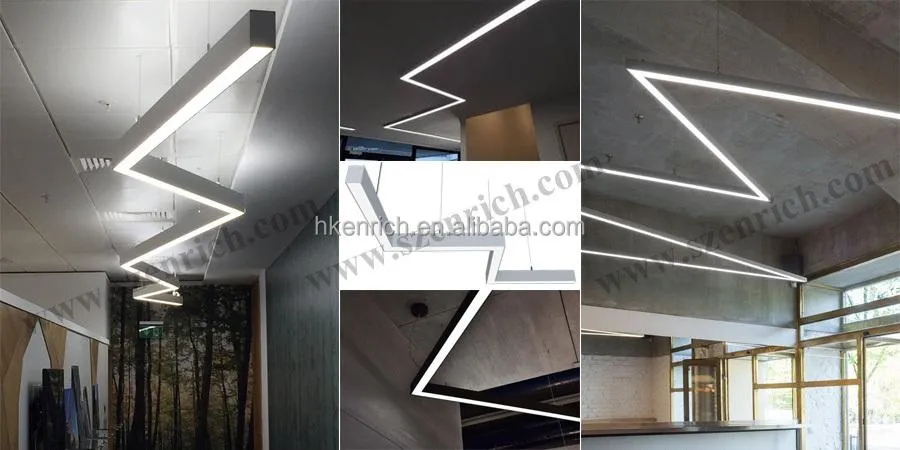

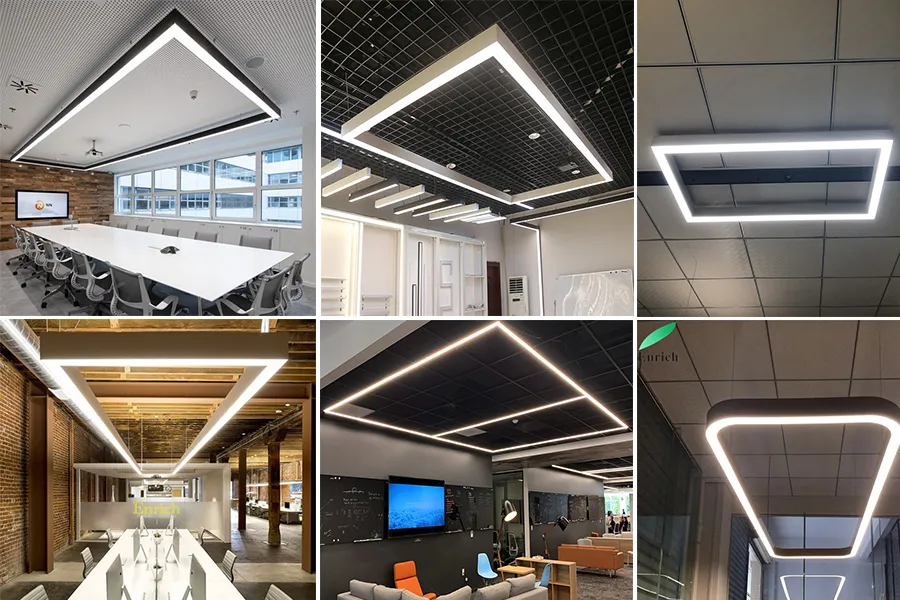

⭐ Creative Layouts
🌍 International Presence
❓ Frequently Asked Questions
🔹 What dimming options are available for the LED Linear Light?
The 50100 series supports multiple dimming protocols including 0-10V, DALI, and Triac dimmable options to suit various control systems.
🔹 Can these lights be connected for a continuous run?
Yes, they are designed for seamless connection using 4 metal pillars for a tight structural bond and plug-in fast wiring connectors for easy electrical series connection.
🔹 What is the warranty period for this lighting series?
All products in the 50100 LED Linear series come with a standard 5-year warranty, ensuring long-term reliability and performance.
🔹 What color temperatures (CCT) can I choose from?
The standard color temperatures are 3000K (Warm White), 4000K (Natural White), and 6000K (Cool White). CCT color tunable options are also available.
🔹 What are the mounting options for these fixtures?
These linear lights support both suspended mounting (using 2.0-meter steel wires) and recessed mounting configurations to fit different architectural needs.
🔹 Is the driver flicker-free?
Yes, the fixtures utilize ENEC certified flicker-free drivers, providing a stable and comfortable lighting environment for offices and shops.
