Product Description

Basic Specifications

Model NO.	FT-BLS66-W40	Emitting Color	2700-6500K
Dimmable	Without Dimmable	Appearance	Square

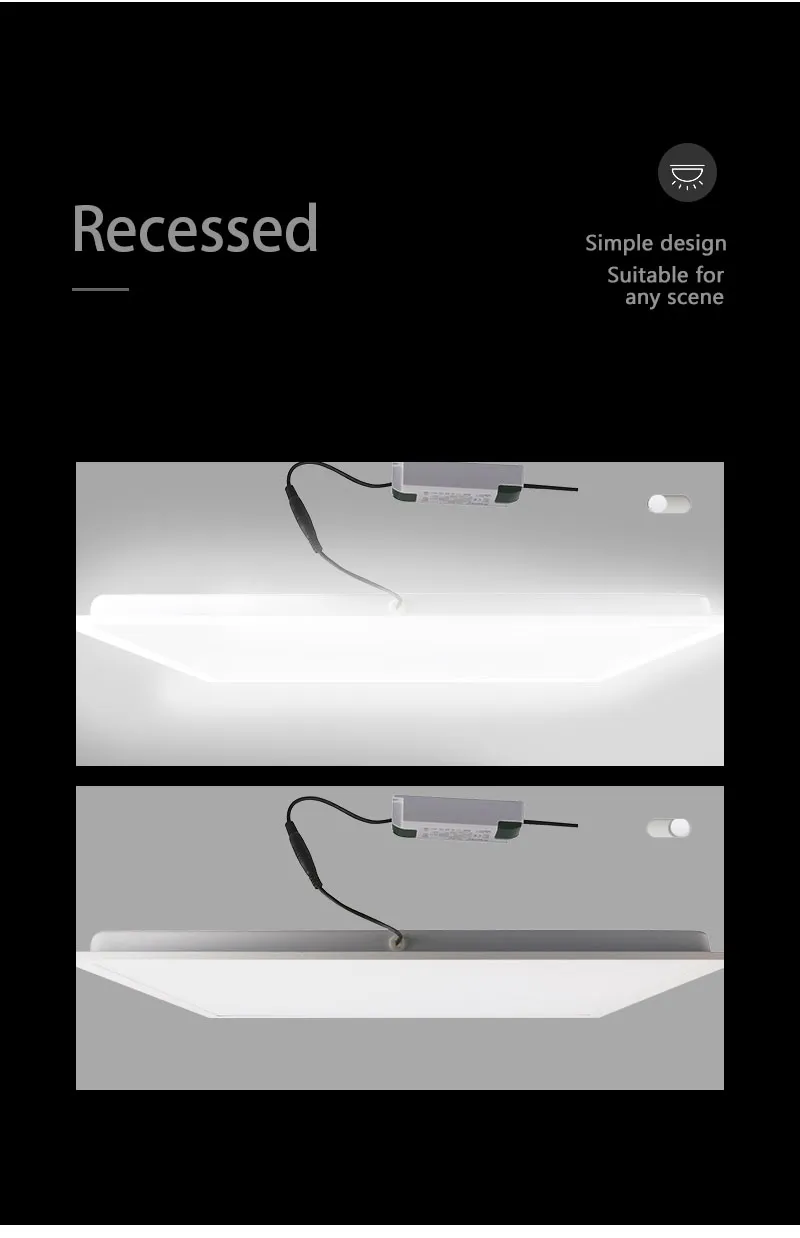

Type	Recessed	Certification	CE, RoHS, SAA, CB
Voltage	100-240V	Beam Angle	120°
Power Factor	>0.9	CRI	>80
Warranty	5 Years	Flicker Free	Yes
Specification	595*595mm	Origin	China

★

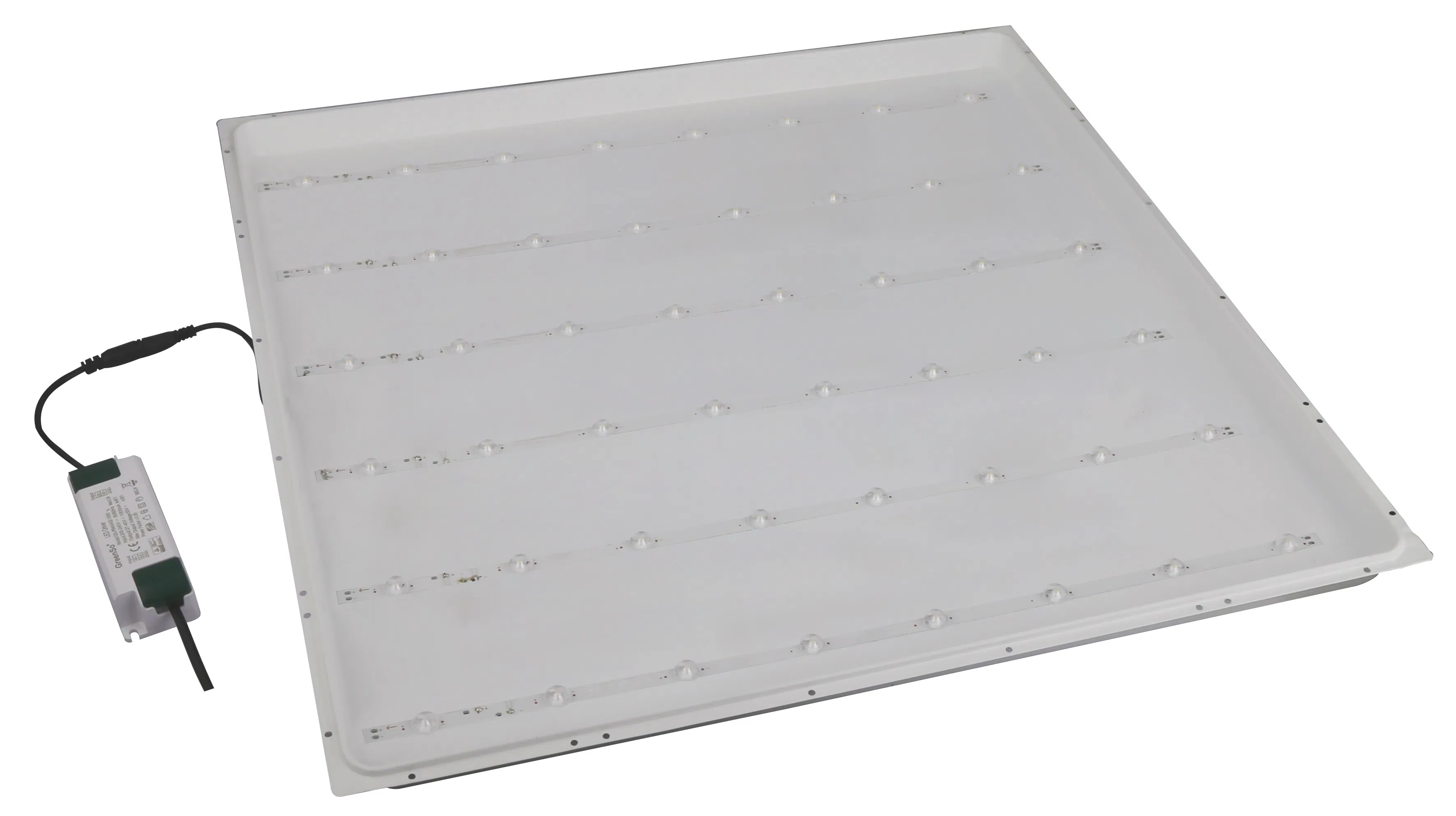

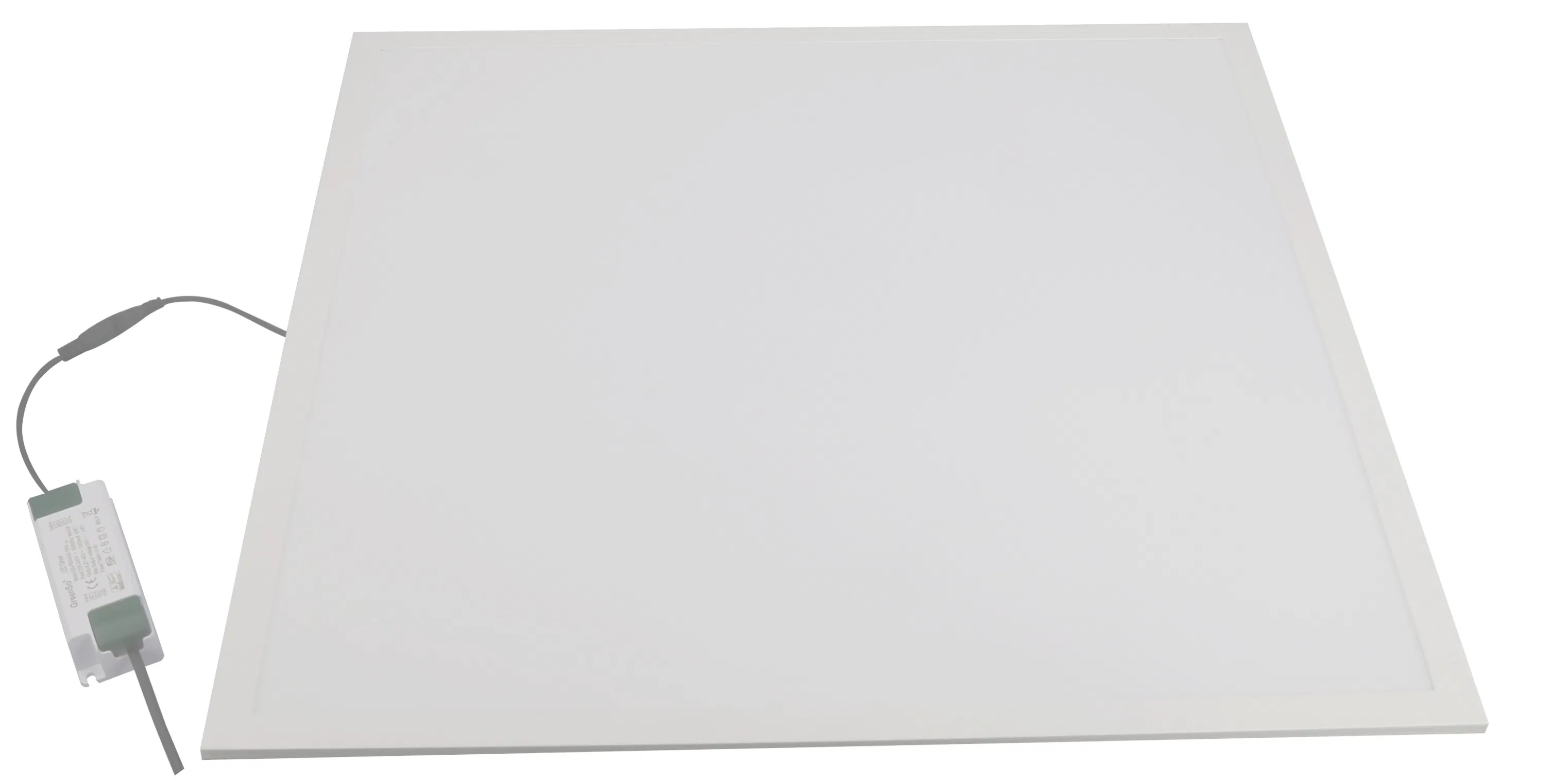

Professional LED Backlit Panel Light

High-efficiency and energy-saving solution, TUV/CE/CB/SAA approved, designed for modern commercial and office environments.

Product Name	Backlight LED Panel light

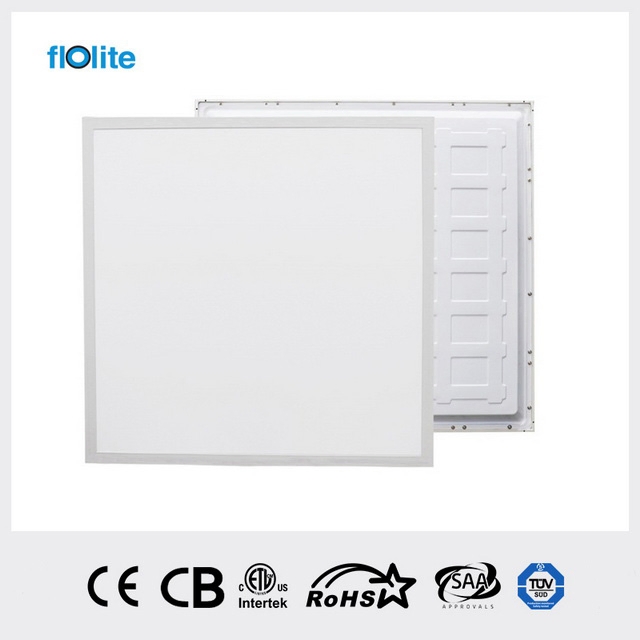

Certificate	TUV, CE, CB, RoHs, ERP, LM80, LM79, TM21, ISTMT

✔

Key Features

High efficiency & energy saving: Saves more than 67% energy compared with traditional lamps.
Wide input voltage (200-240V) and flicker-free performance.
Long life span: Over 50,000 hours using premium semiconductor chips.
Eco-friendly: No UV, IR, Hg, or Xe; recyclable materials with no EMI generation.

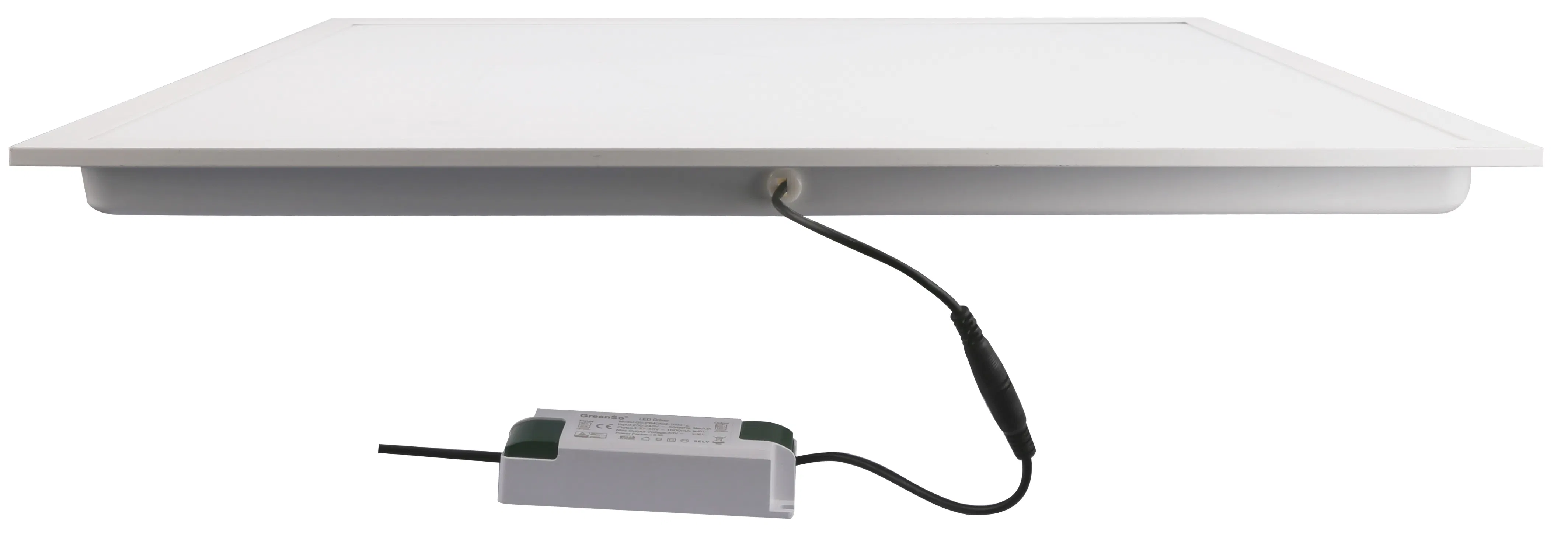

High-performance external constant current driver with a clean, easy-to-maintain frame.

🖼

Product Gallery

🏠

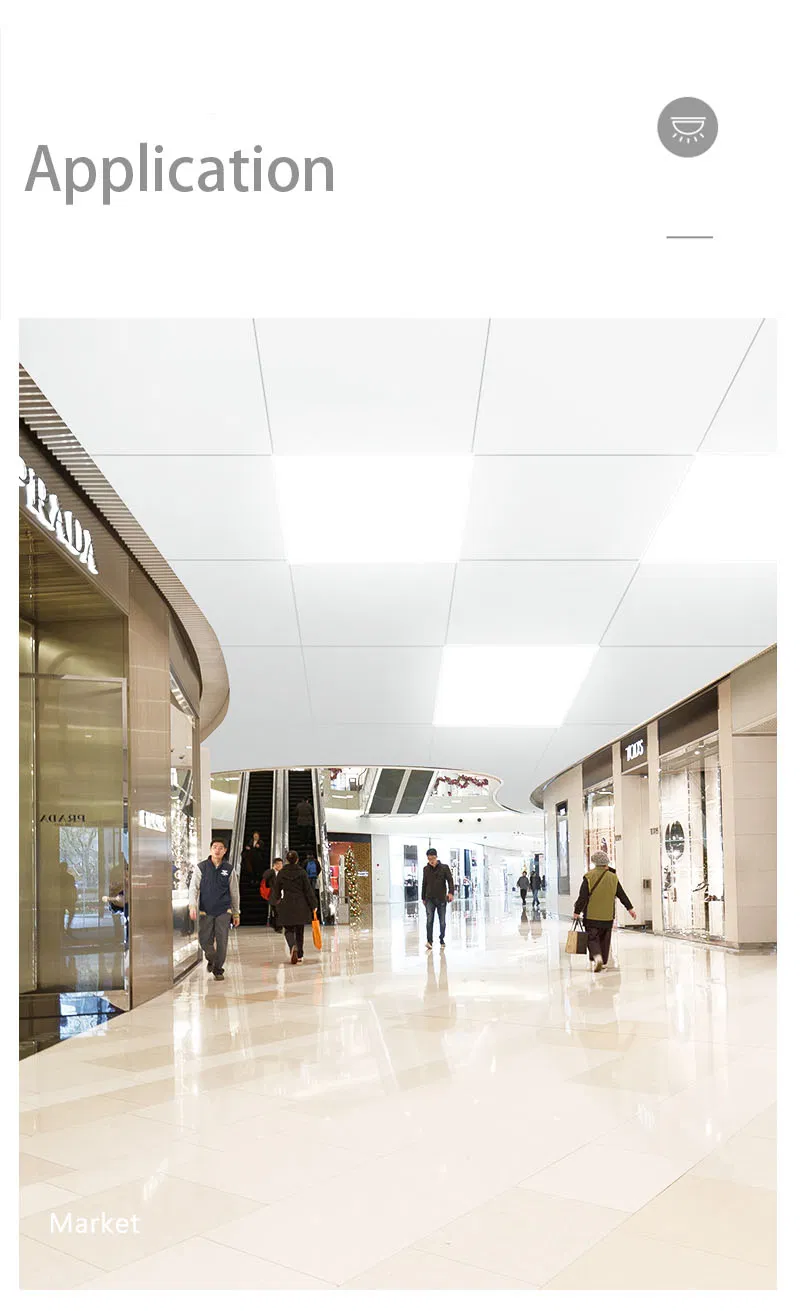

Applications

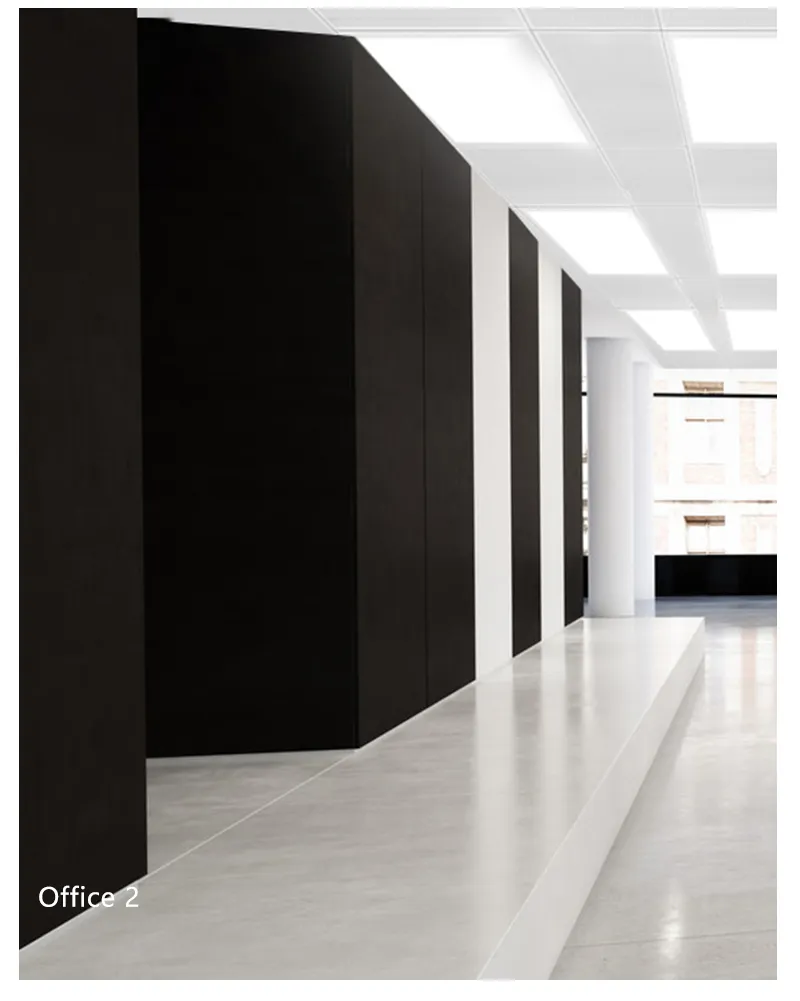

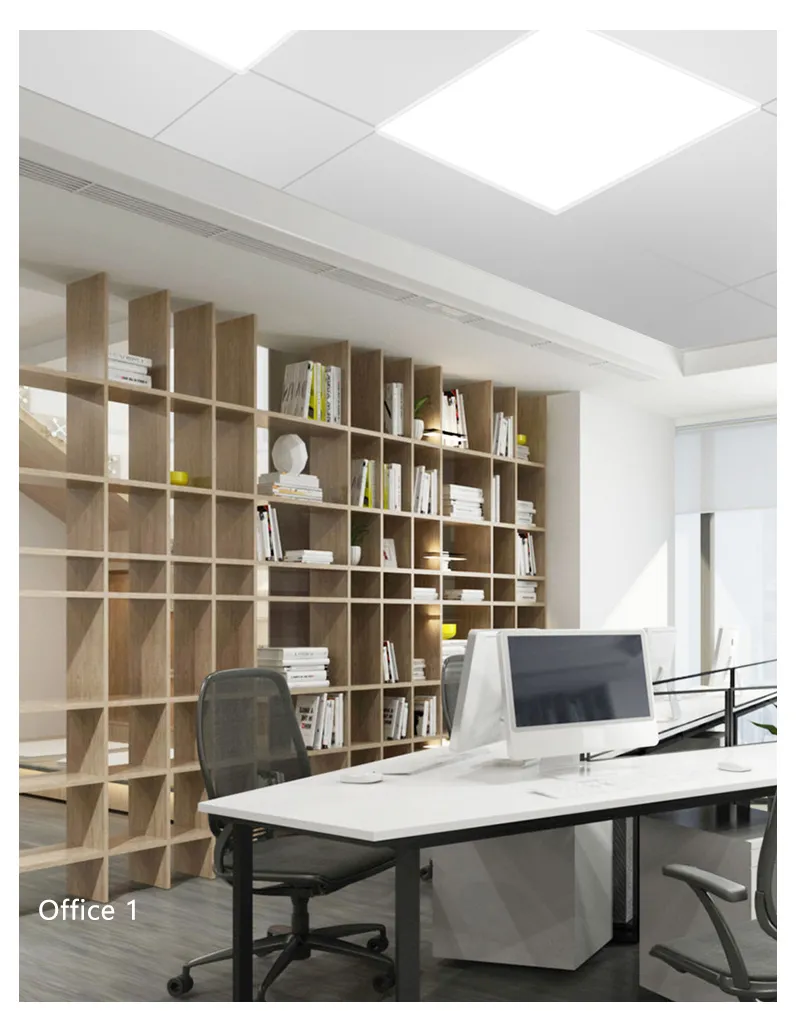

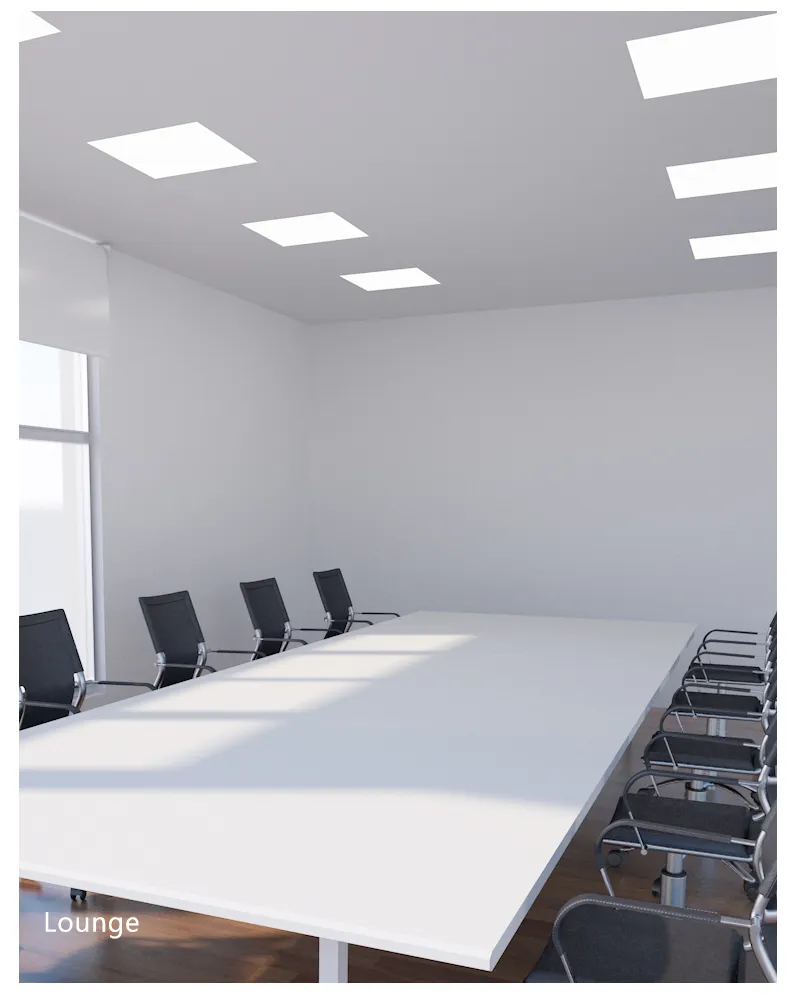

Office & Conference Rooms

Corridors & Foyers

Reception Areas & Elevators

Grid Ceiling Systems (595x595 / 600x600 mm)

⚙

Technical Parameters

Power & Lighting Parameters
Power	40W
Input Voltage	AC200-240V 50/60Hz
Lumen Output	>4000LM
LED Type	SMD 2835 (San'an Chips)

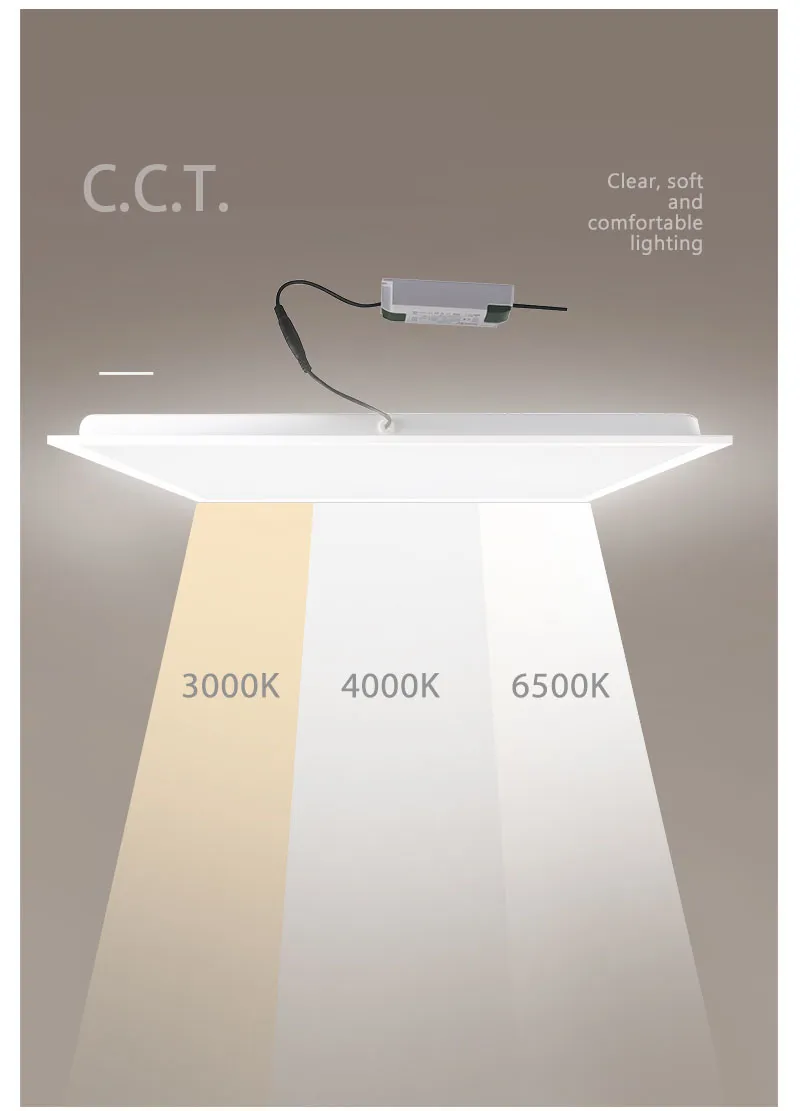

Color Temperature	3000/4000/6000K
IP Grade	IP40

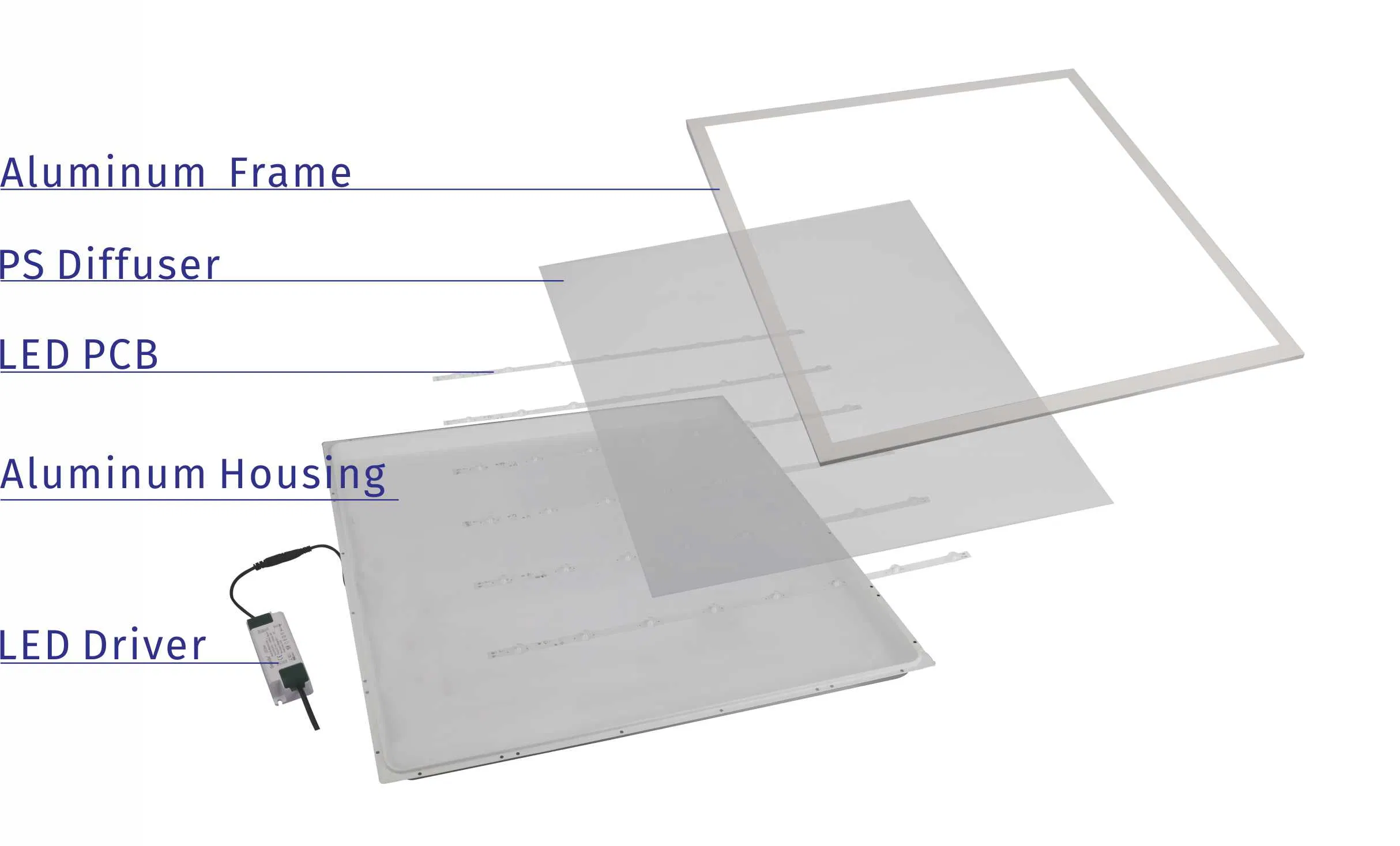

Frame Materials	PS + Aluminum
Lifespan	>50,000 Hours

📐

Dimensions & Installation

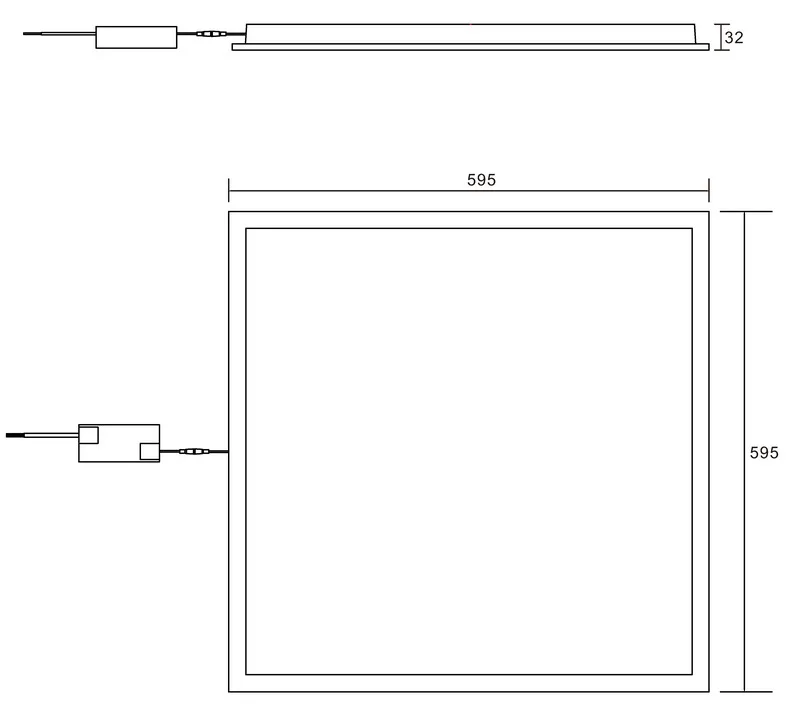

Dimensions (mm)

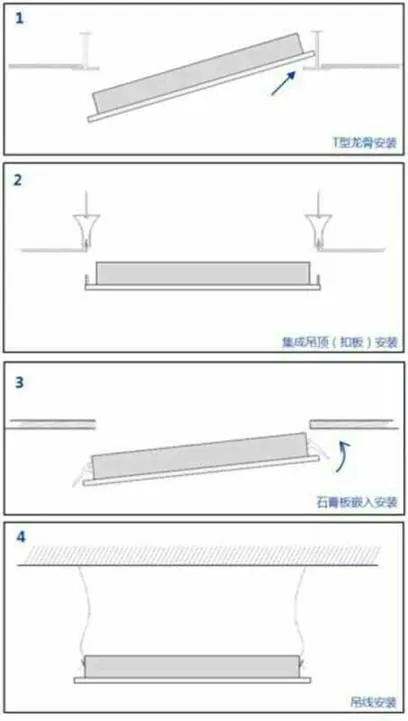

Installation Guide

Installation Precautions:
Δ Please consult a professional electrician for installation.
Δ Connection: Brown (Firing line), Blue (Neutral line), Yellow (Earth line).
Δ Ensure power is OFF before installation to prevent electric shock.

📦

Testing & Packing

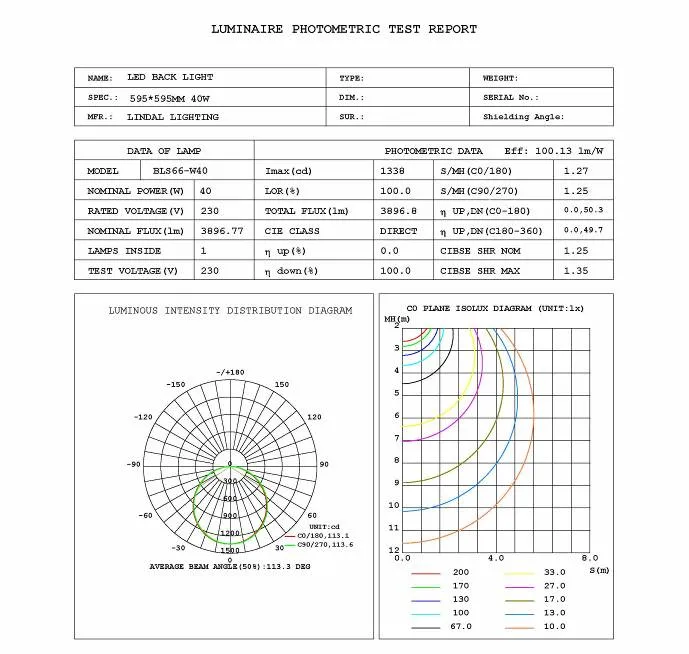

Integrating Sphere Testing

Item No.	Net Weight	QTY/Carton	Carton Size	Gross Weight
BLS66-W40	1.75kg	6 PCS	645225670mm	10.5kg

🛡

Warranty Policy

5 years warranty provided based on proper storage, installation, usage, and maintenance. We offer repair or replacement services during the warranty period for any defects covered under our terms.

Frequently Asked Questions

Q1: What are the main advantages of this LED Backlit Panel Light? A: It offers high efficiency, energy savings of up to 67% compared to traditional lamps, and is completely flicker-free, making it ideal for eye comfort in office settings.

Q2: Is this light suitable for use in damp environments? A: This product has an IP40 rating and is designed for indoor use only. It should not be used in areas with extremely high temperatures or moisture.

Q3: How long can I expect this panel light to last? A: Utilizing high-quality San'an semiconductor chips, the light has a rated lifespan of over 50,000 hours.

Q4: Does the light require a specific voltage? A: It supports a wide input voltage range from 100V to 240V AC, though optimal performance is typically noted between 200-240V.

Q5: What are the installation requirements? A: It is designed for recessed ceiling systems with a grid size of 595x595mm or 600x600mm. We strongly recommend installation by a professional electrician.

Q6: What certifications does this product hold? A: Our LED panel lights are fully certified with TUV, CE, CB, RoHS, SAA, and have passed LM80 and TM21 testing protocols.
