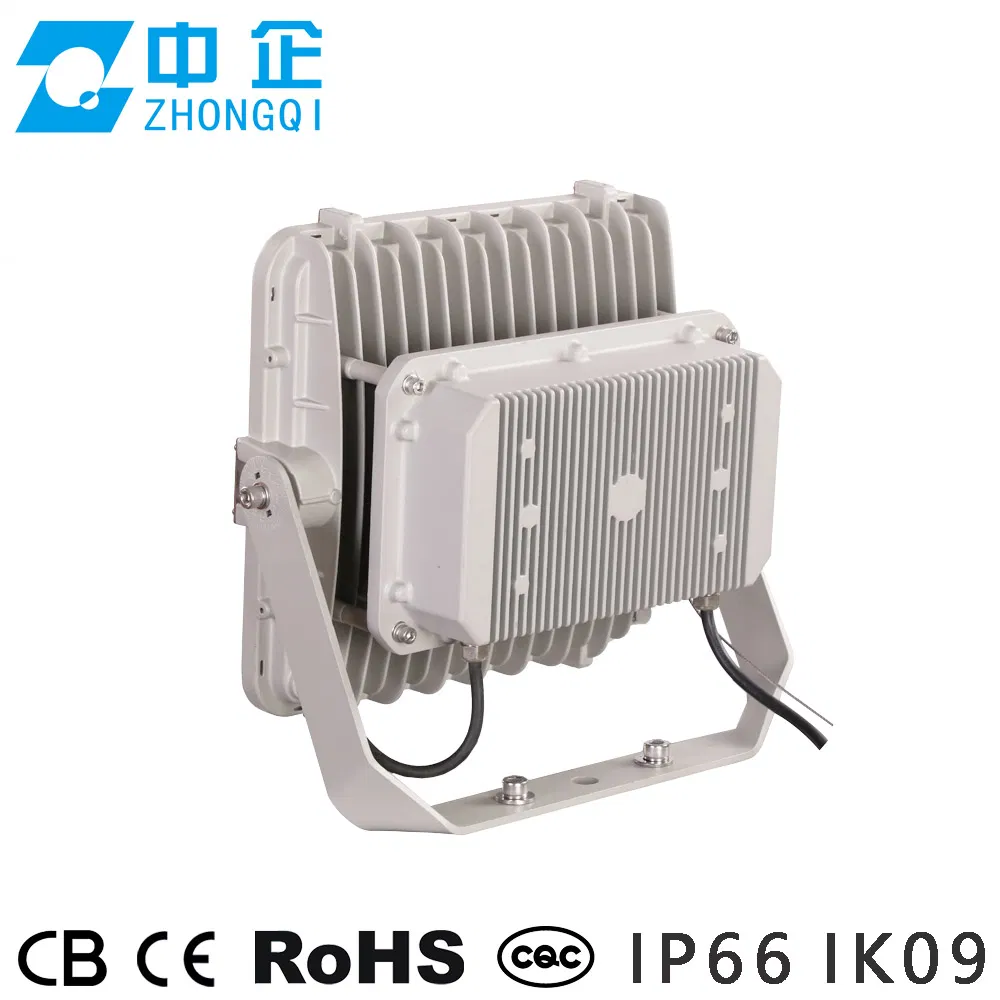

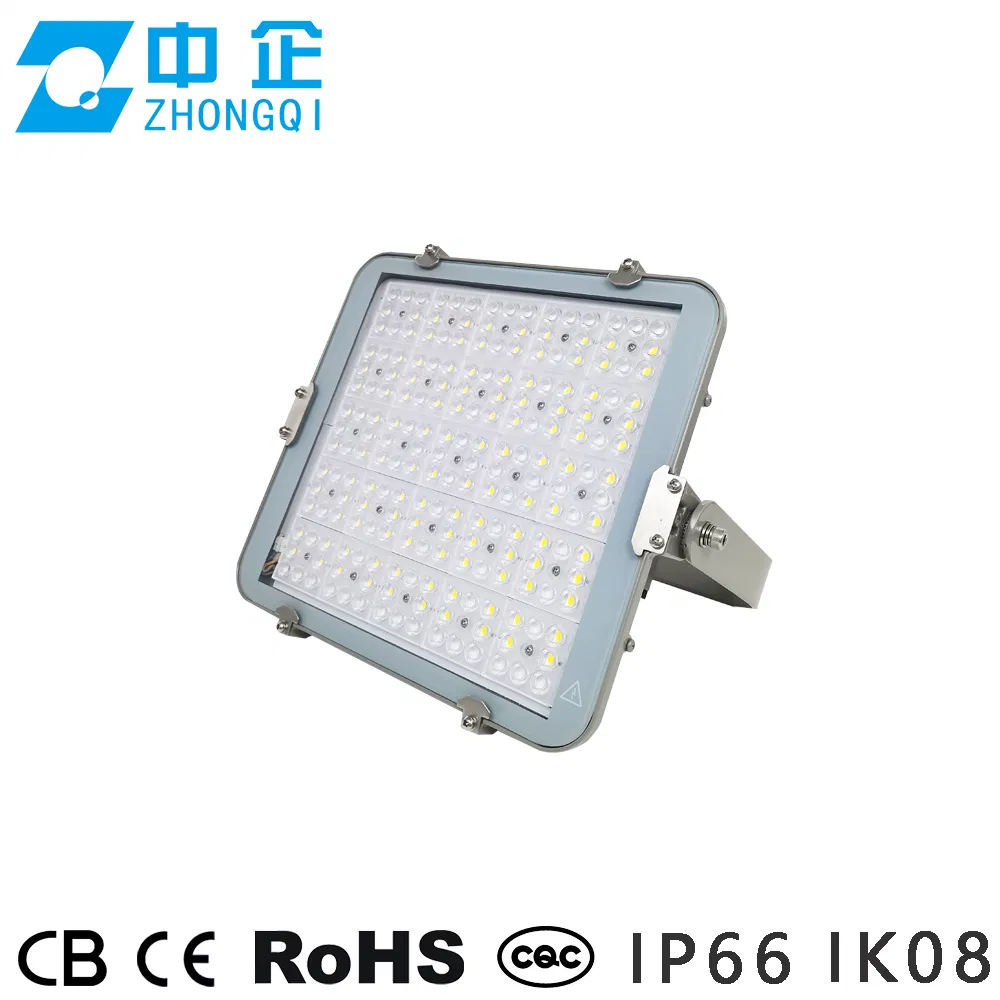

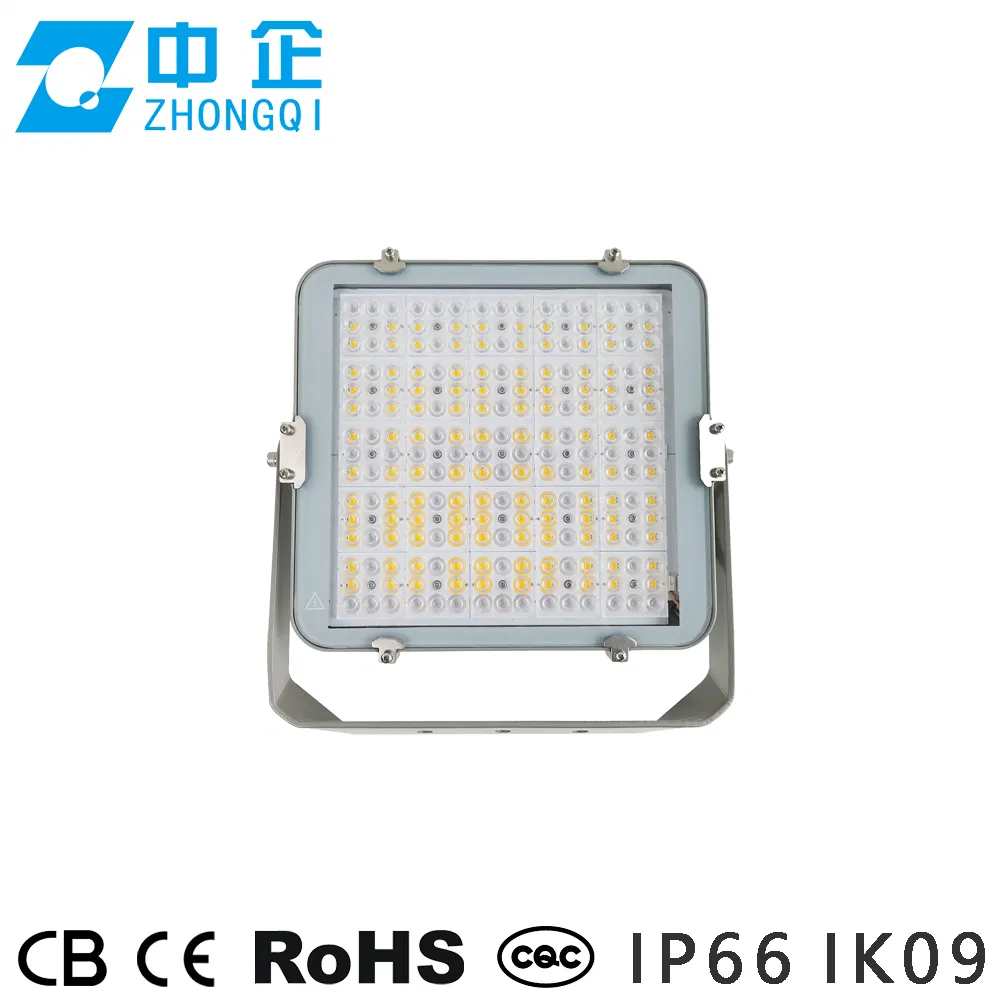

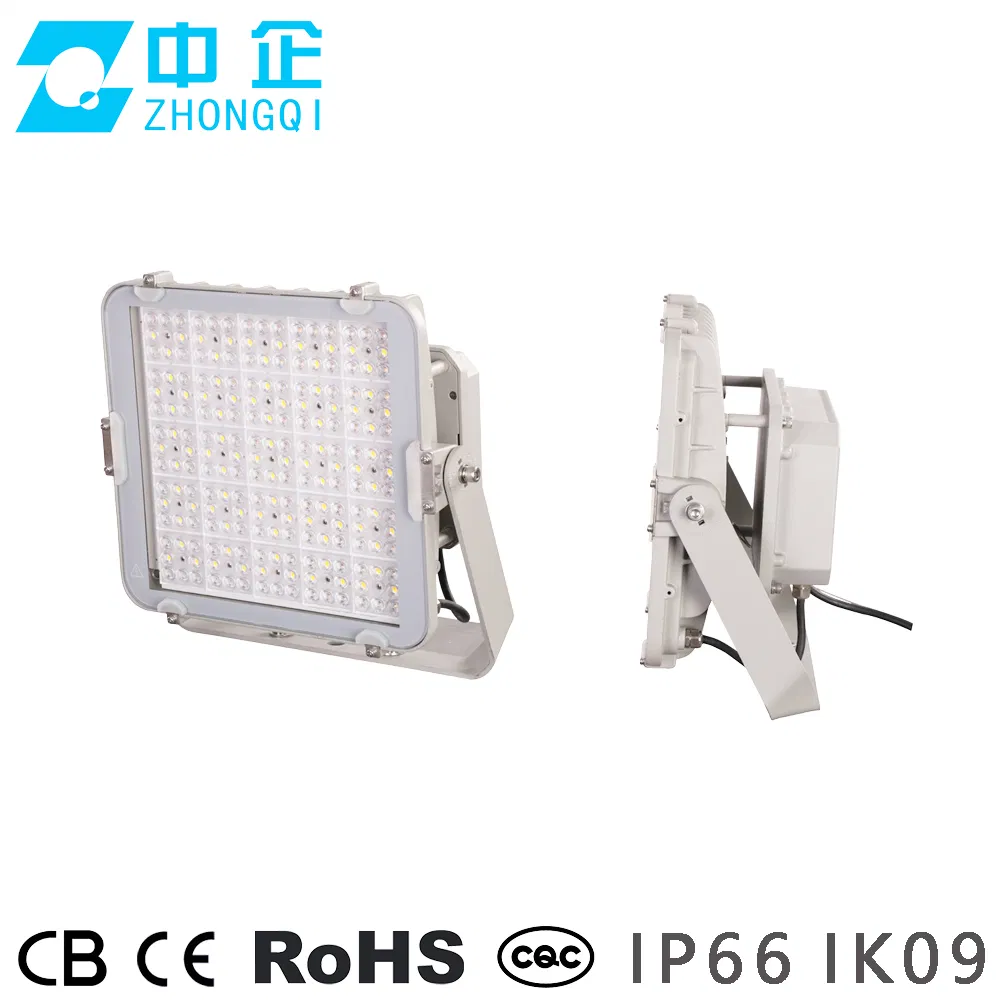

Hot Sale LED Flood Light with Smart LED Driver Motion Sensor IP66 Waterproof Projector OEM 220W 240W 300W 360W CE CB RoHS Factory Pirce Outdoor Lighting

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.:TYZQ-FD019-M
Power:50-400W
Projection Distance:>35m
Application:Park, Square, Factory, Garden, Stadium Sport Airport Crane
IP Rating:IP66
Certification:CCC, CE, CQC, EMC, RoHS, SAA, VDE
Operating Voltage:100-240V
LED Chips Brand:Osram
Lpw:120lm/W - 200lm/W
Beam Angle:8 15 25 30 40 60 90 120 Degree
Material:Tempered Glass, PC Lens, Aluminum
Anti-Vibration:3G / 5G Vibration Rating
Product Description
  • FD019 series floodlight born for harsh environment which has high vibration and salt fog especially crane, harbor and seaport applications.

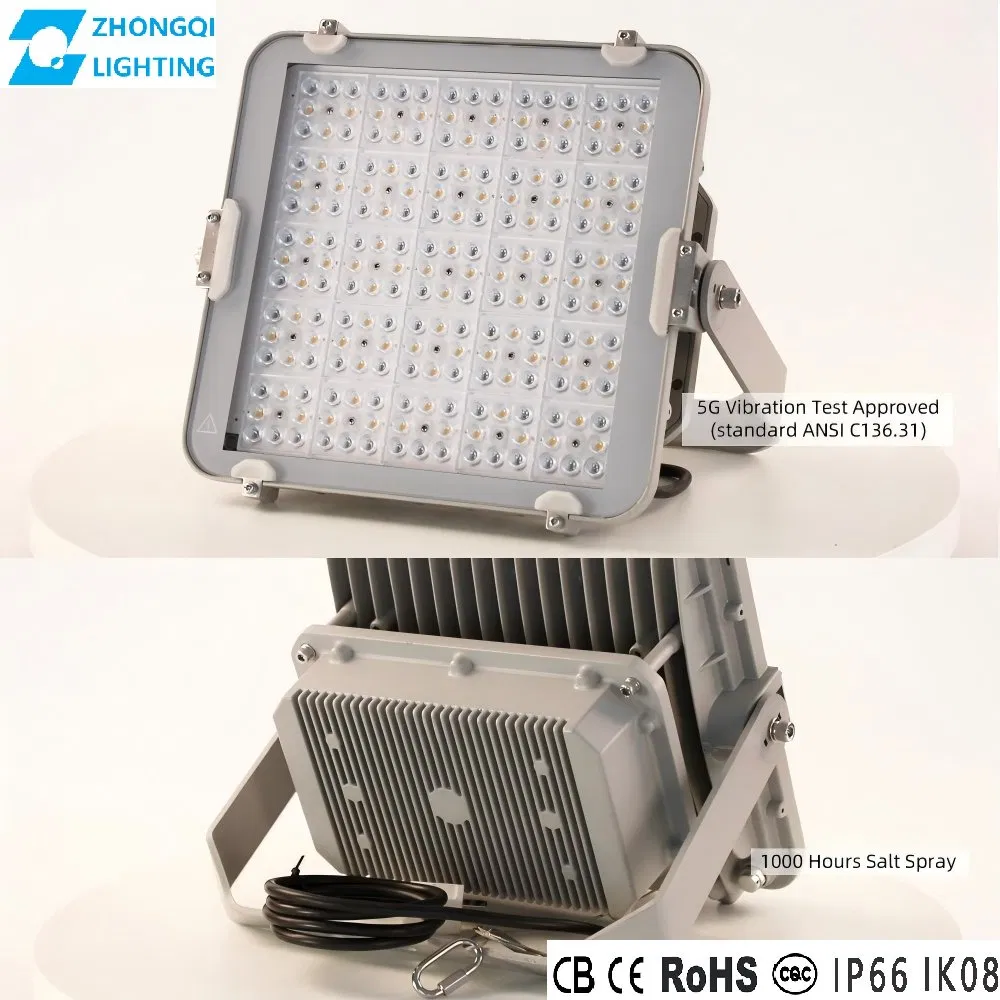

  • 5G vibration test approved under American standard ANSI C136.31 and Japanese standard JIS C 60068-2-64.
  • 1000 hours salt spray, IP66, IK09 CE CB RoHs certificated.
  • Die-casting housing, power range from 100W to 1200W.
  • Multiple Optic lens options: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric beam angles.
  • Tempered glass protecting PC lens from UV, moisture, dust, and salt fog.
  • Separate IP66 driver chamber for better heat dissipation and longer lifetime.
  • Standard 1-10V dimming; PWM and DALI available on request.
Technical Parameters
Input Voltage Frequency Power Factor CRI CCT Lifetime IP / IK Grade
AC90-305V 50/60Hz 0.95 >70 2200-6500K >50,000H IP66 / IK09
Power(W) Premium LPW N.W.(kg) Product Size(mm) Packaging Size(mm)
100W150 lm/W7.10346*370*152430*400*220
200W150 lm/W7.30346*370*152430*400*220
300W150 lm/W17.30605*408*204650*525*235
400W150 lm/W17.40605*408*204650*525*275
600W150 lm/W14.3/7.2605*408*204650*540*240
Product Applications & Details
Application 1

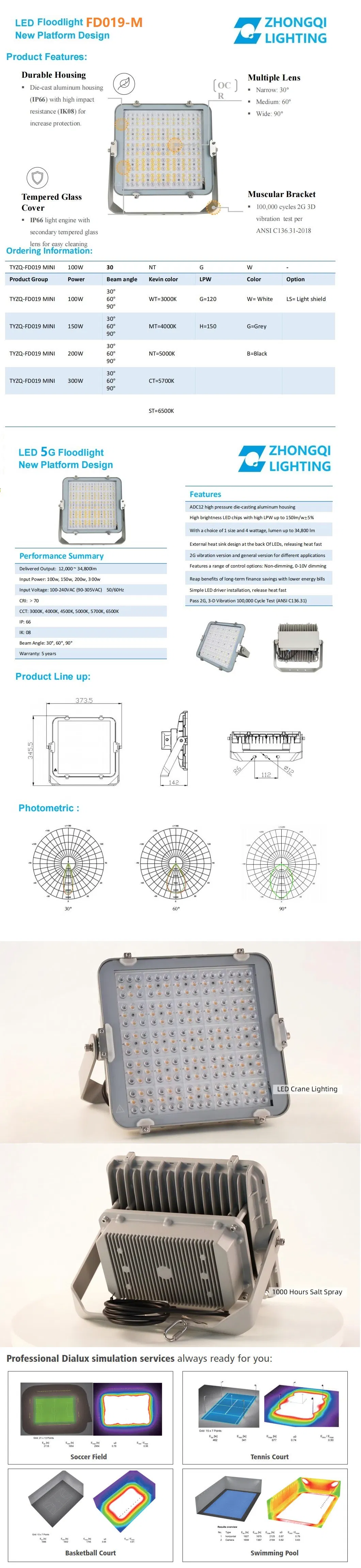

Application 2

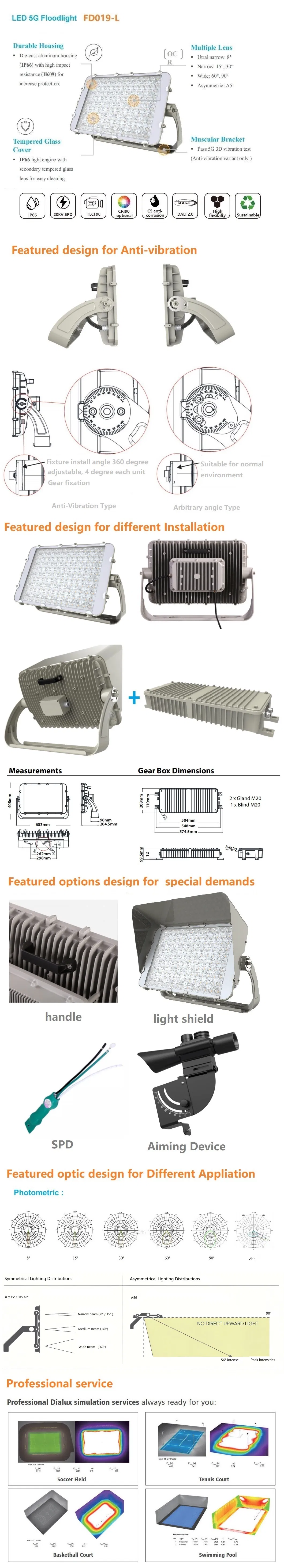

Technical Details

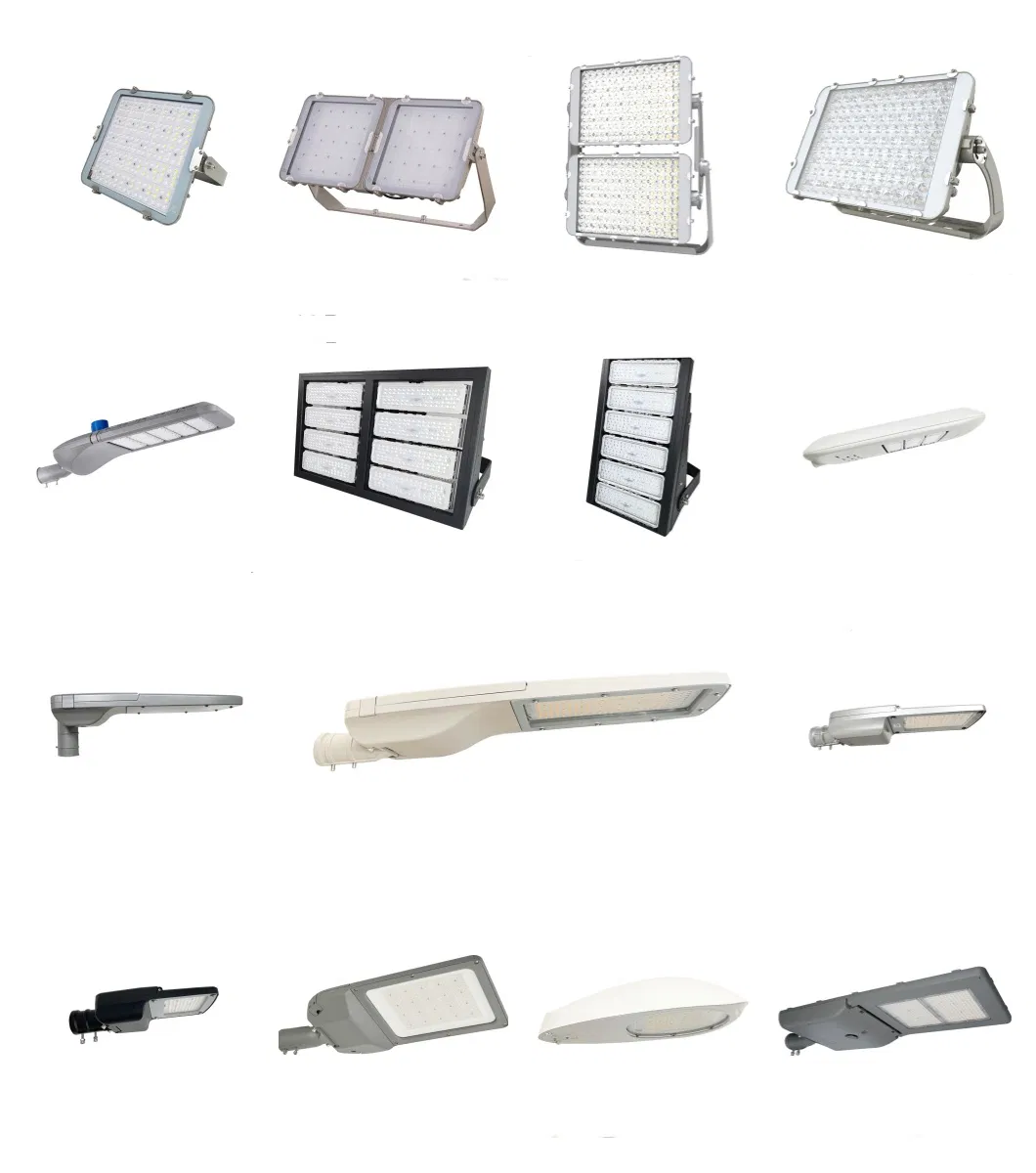

Product Display

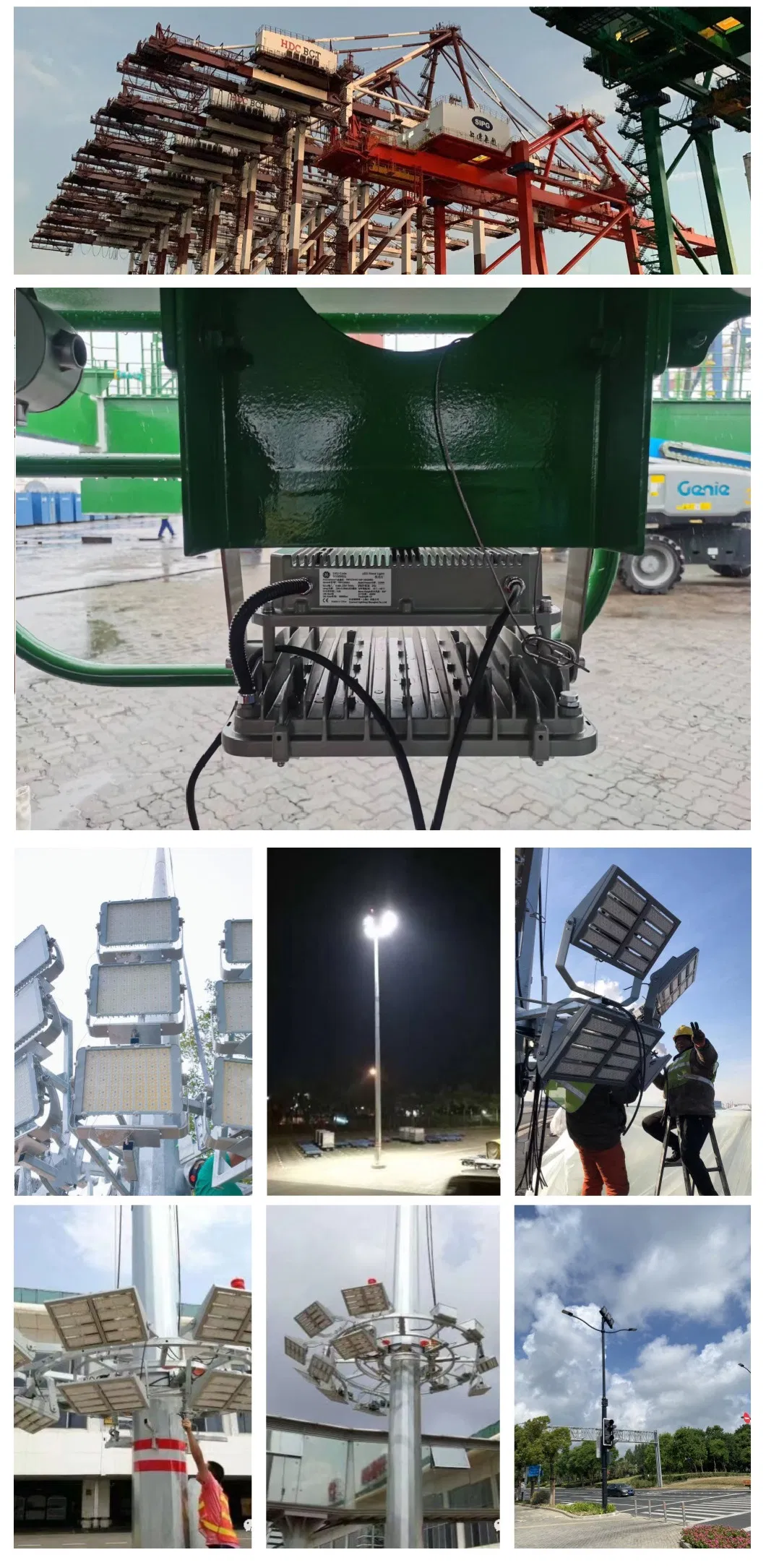

Inner Structure

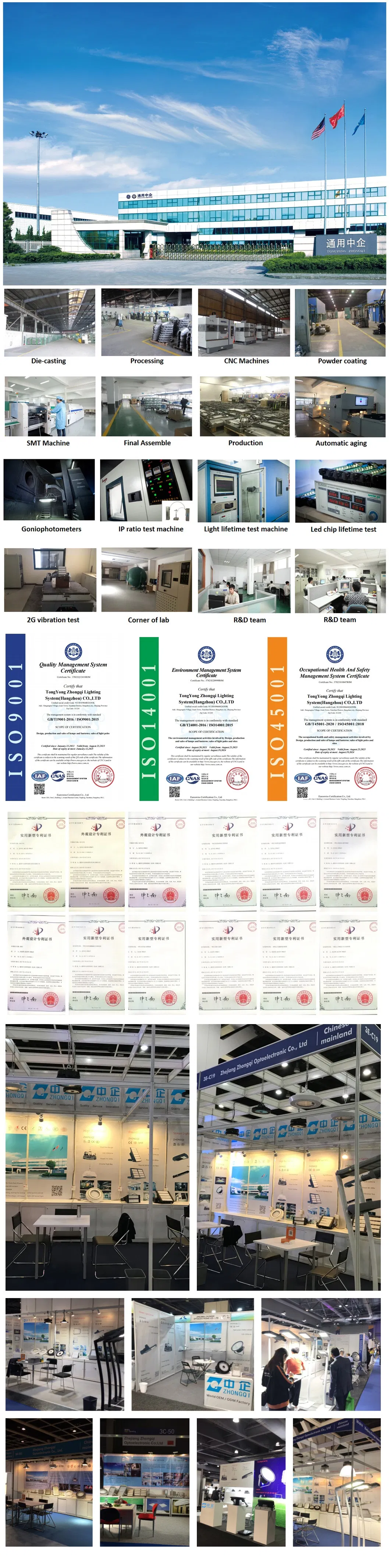

Production Process
Packaging & Shipping
Packaging
Frequently Asked Questions
Q1: Can I have a sample before quantity orders? Yes, we welcome sample orders for your approval and testing.
Q2: What about the lead time? Samples take 3-5 days, while quantity orders typically take 25-30 days.
Q3: Is ODM or OEM accepted? Yes, we offer professional ODM & OEM services tailored to your requirements.
Q4: How long is the warranty for your products? We offer a 2-5 year warranty on our products depending on the specific model and configuration.
Q5: What are the payment terms? Our standard terms are 30% TT deposit and 70% balance before shipment.
Q6: Are these lights suitable for high-vibration environments? Yes, these fixtures are specifically designed for harsh environments and have passed 5G vibration testing.
