All in One LED Solar Street Light for Government Road Lighting Project

1 / 5

All in One LED Solar Street Light for Government Road Lighting Project

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

AiO-211/Helios

Lamp Body Material

Aluminum Alloy

Light Type

Solar

Color Temperature

2700K-6500K

Power

80W

Technics

Electroplating

Illumination Time

>12h

Cell Type

LiFePO4 Lithium Battery

Charging Time (H)

Usage

Garden, Street

IP Rating

IP66

Certification

CE, RoHS

Voltage

12V

Solar Panel

High Efficiency Monocrystalline

Charge Controller

MPPT

Mounting Height

10m-12m

Origin

China

HS Code

9405409000

Product Description

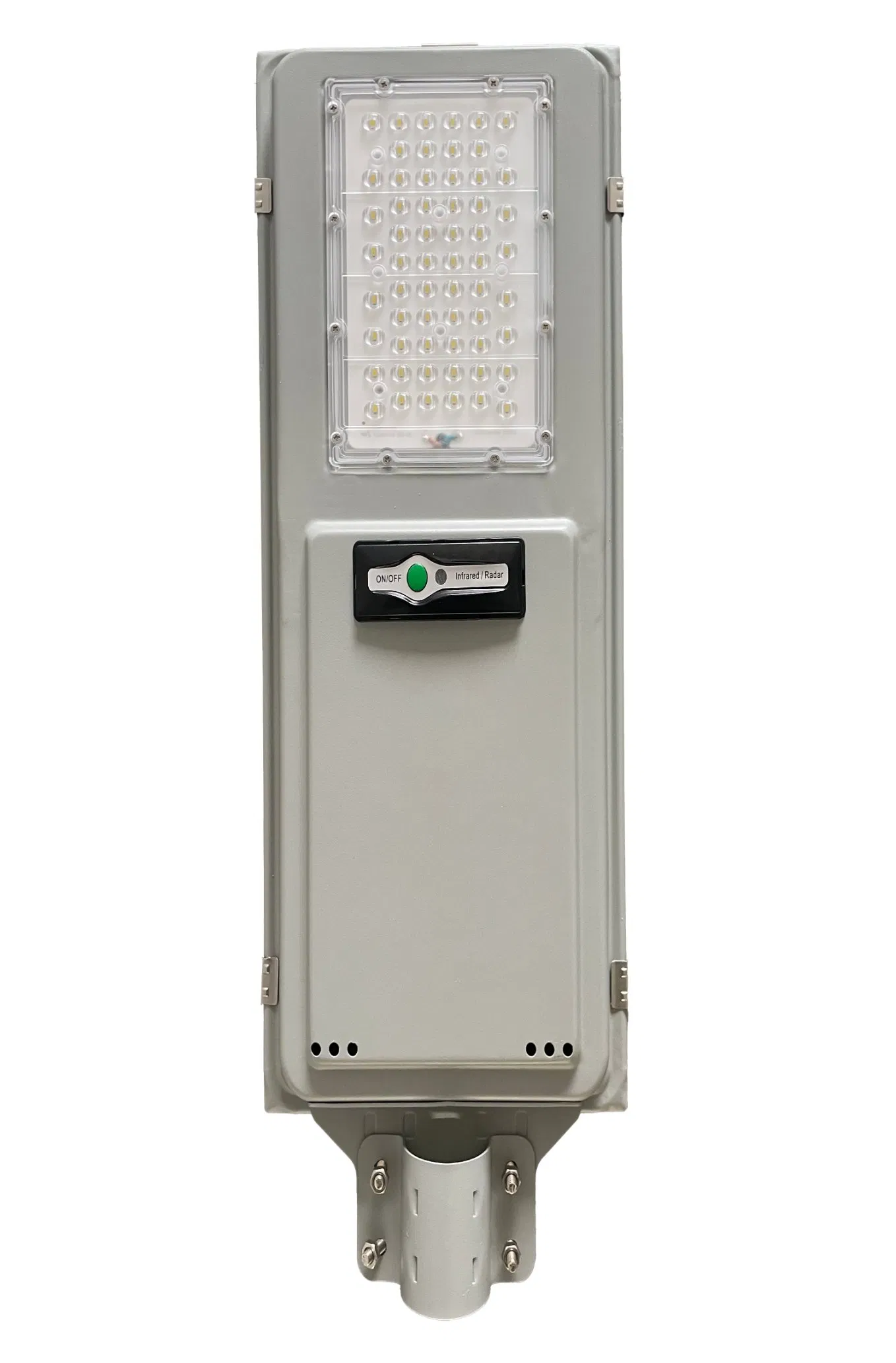

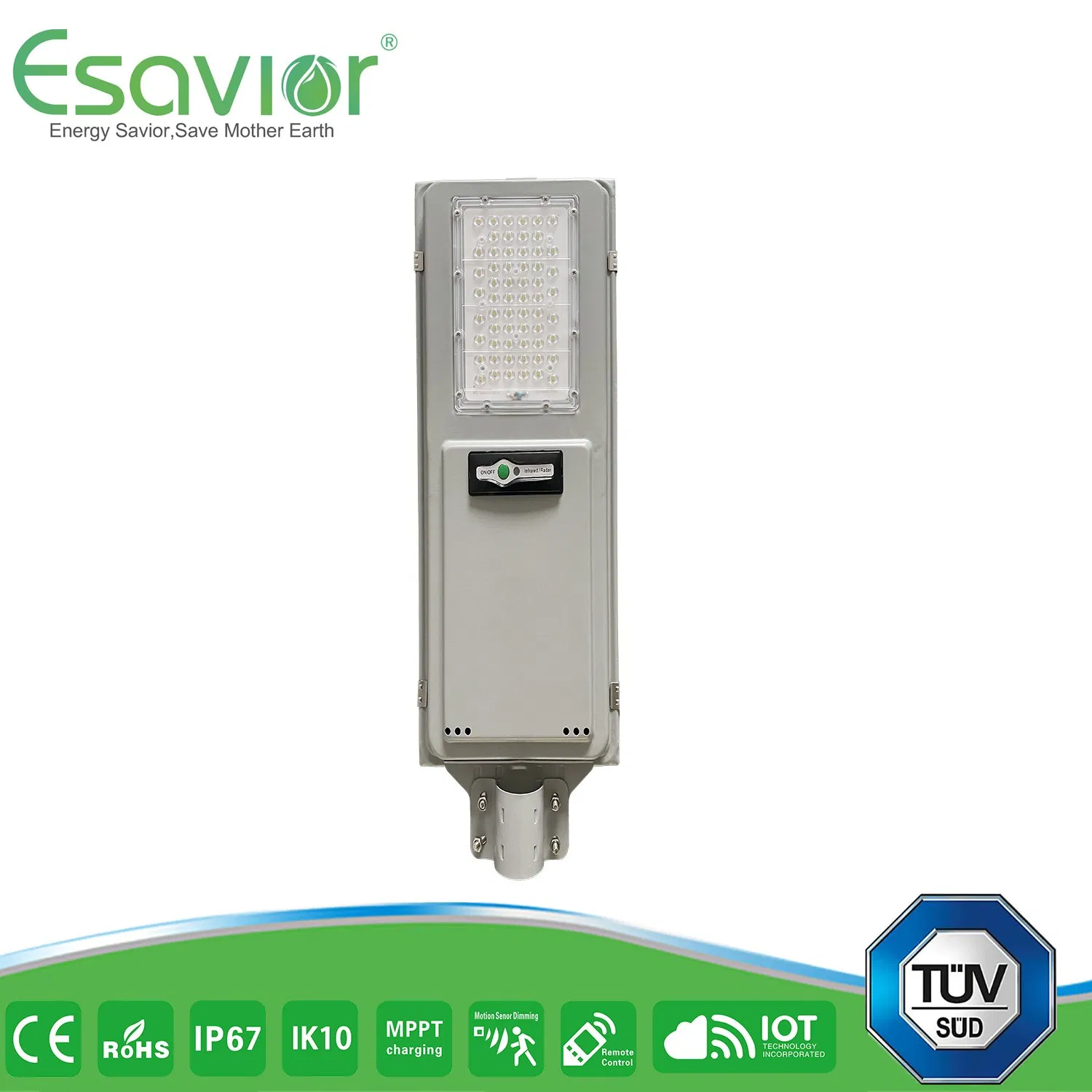

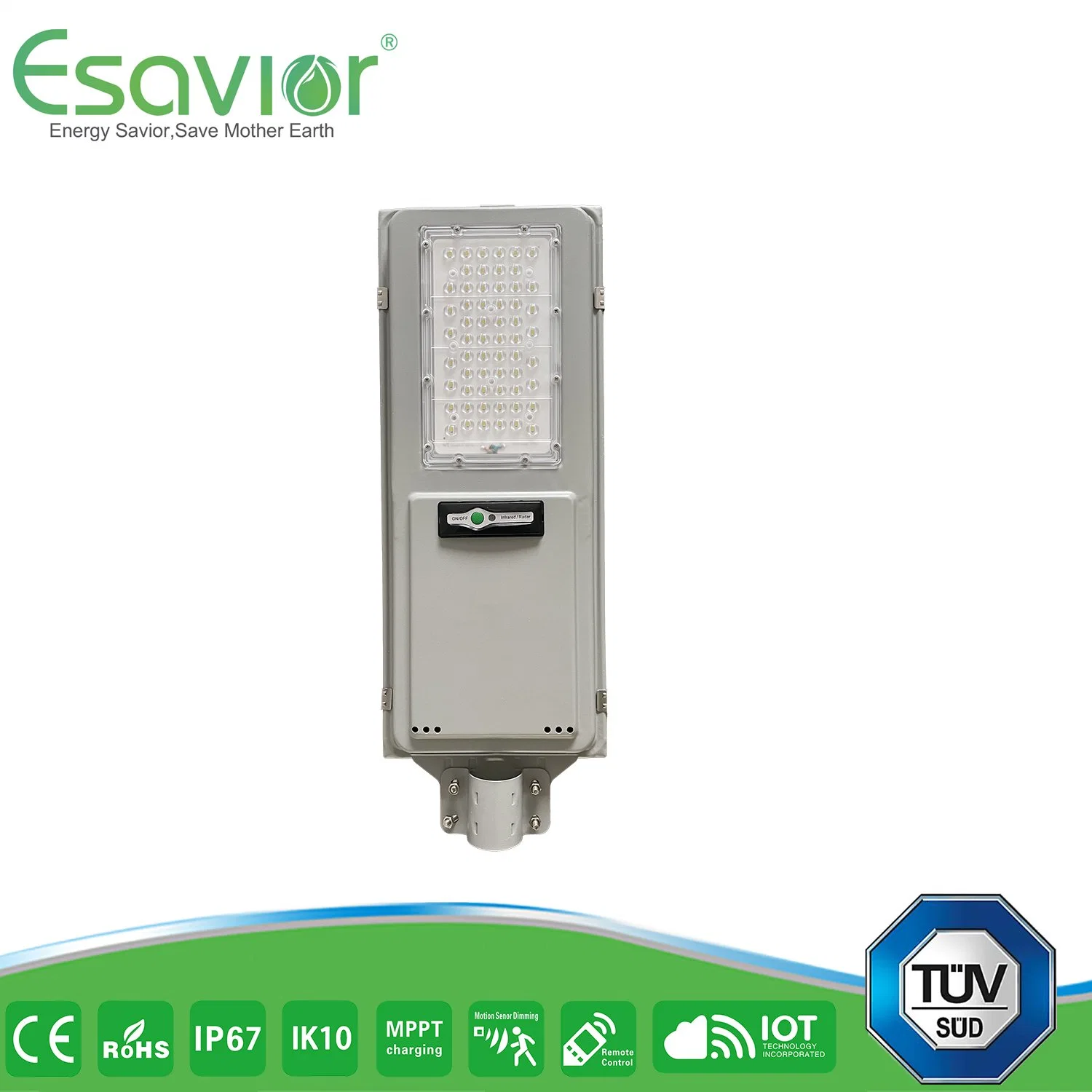

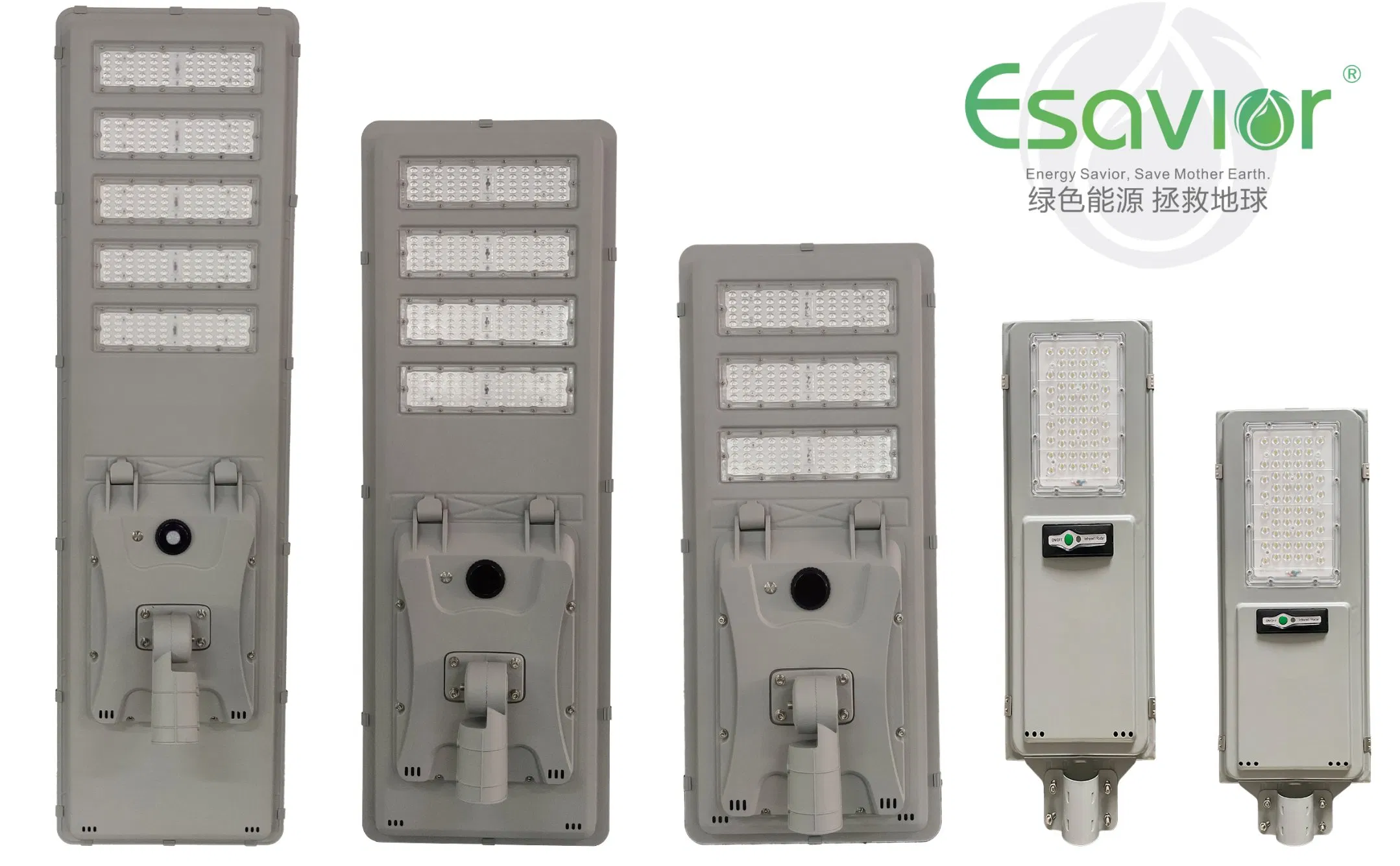

All in One / Integrated LED Solar Street Light

New Design Energy Saving All In One LED Solar Street Lights for Government Road Lighting Project

FEATURES & ADVANTAGES

1,500 LM max lamp lumen high brightness

100,000+ Hours long LED lifespan with professional heat dissipation

25 Years long product lifespan design

3,000+ Cycles LiFePO4 batteries with inbuilt Micro-BMS

99.9% MPPT solar charge efficiency

IP68 Controller with IP66 rated electrical compartment

5+ Days cloudy/rainy days autonomy

IES Type 1~5 professional optical designs available

Flexible Modes Timer and motion sensor programming

APPLICATIONS

Highway lighting
Expressway lighting
Street lighting
Roadway lighting
Public Areas (squares, theme parks, parking lots)

TECHNICAL SPECIFICATIONS

ITEMS		SPECIFICATIONS
LED Source	Lamp Lumen(Max)	1500LM
	Nominal Power	15W LED (=150W incandescent)
	LED Chips	60LEDs LUXEON 2835
Solar Panel	Power	5V/20Wp (High Efficiency Mono)
Solar Panel	Life-span	25 years
Battery	Capacity/Type	96WH / LiFePO4 Lithium
Battery	Life-span	8+ years (3,000 cycles)
Controller	Type	MPPT with Intelligent Power Management
Working Temp.	-30ºC~+80ºC
Materials	Aluminum alloy

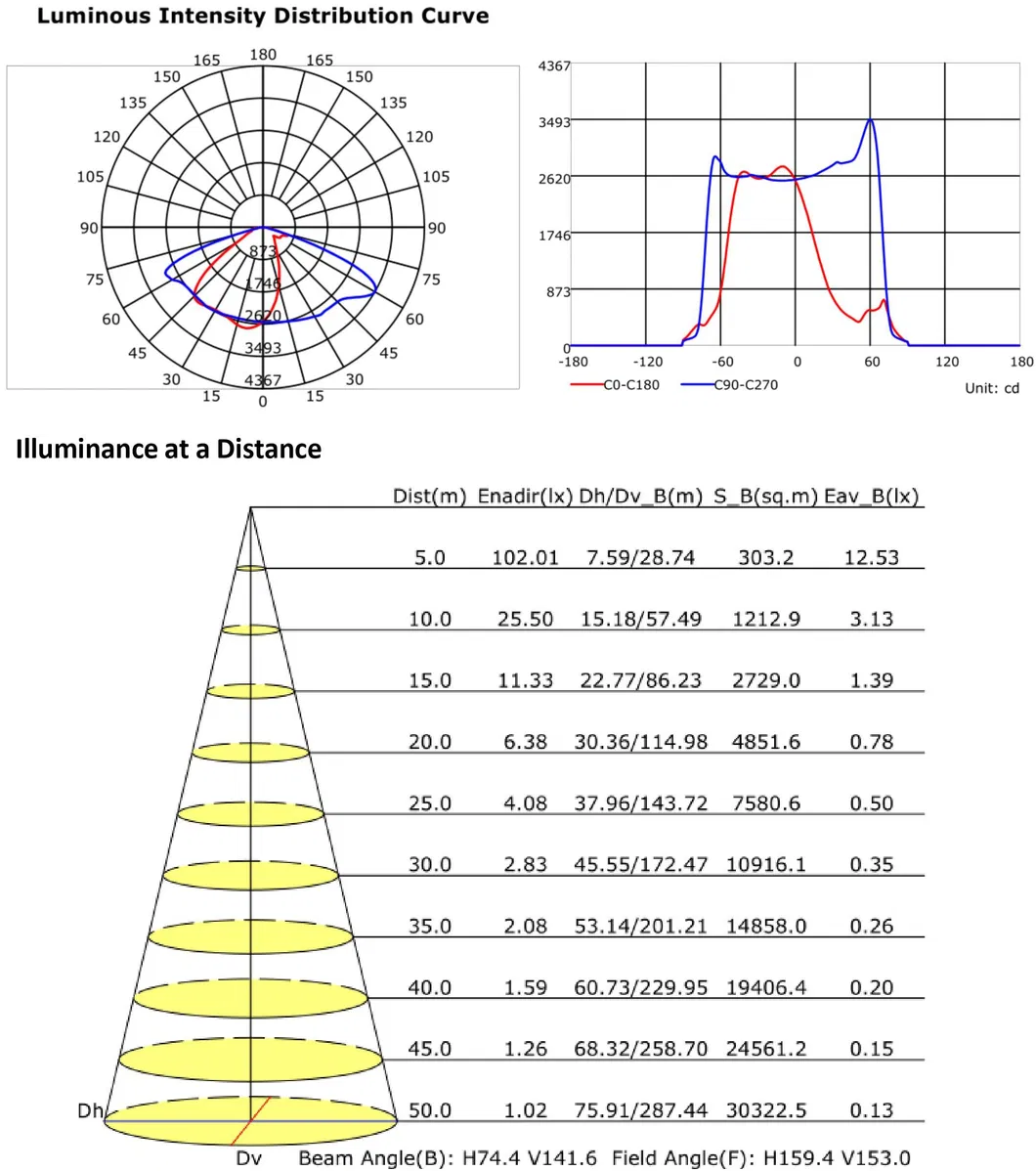

DISTRIBUTIONS & IES TYPE

IES Type II as regular distribution, customized IES Types available upon requirements.

DIALUX SIMULATION REPORT

Pole Height: 10m; Distance: 35m; Road Width: 14m; Lanes: 4;

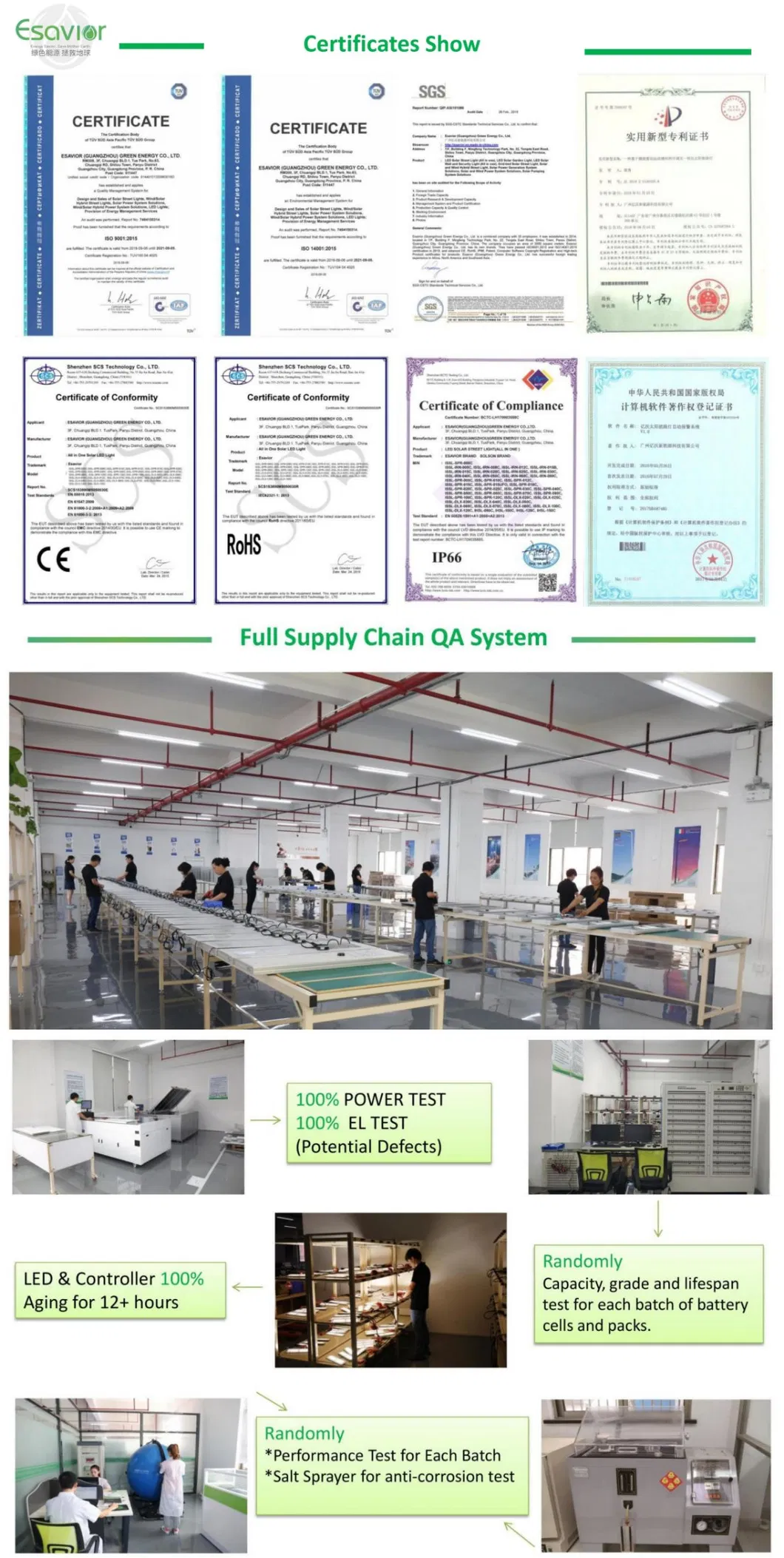

CERTIFICATES & QUALITY

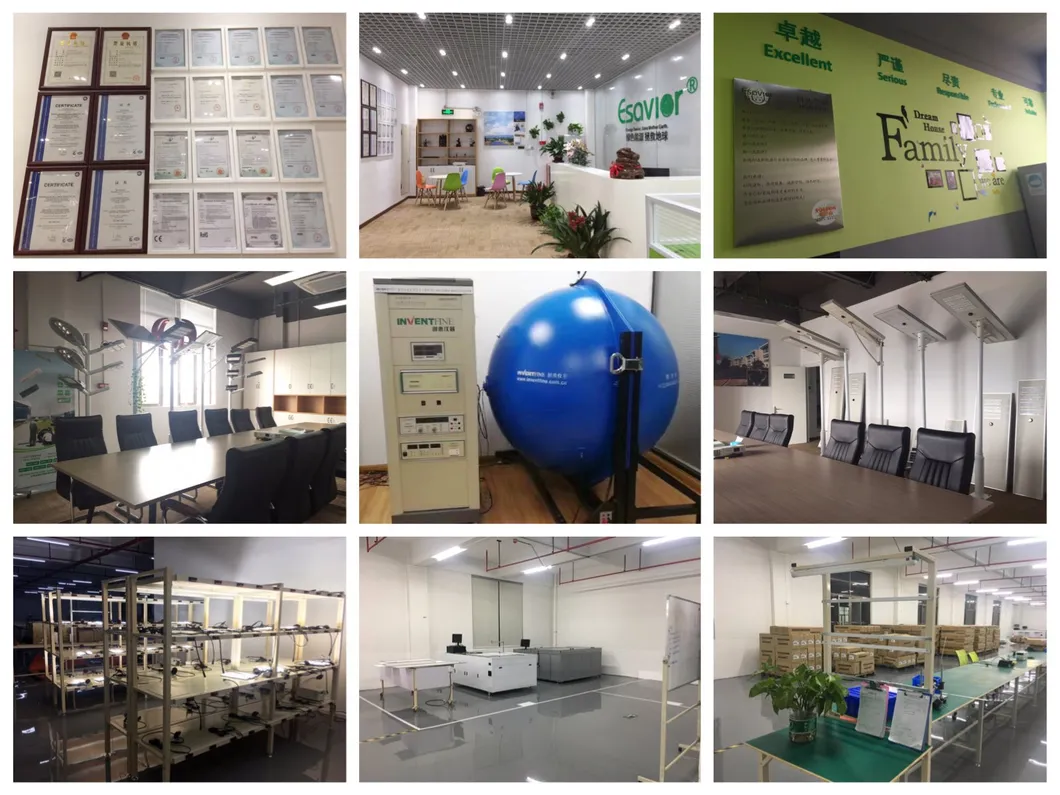

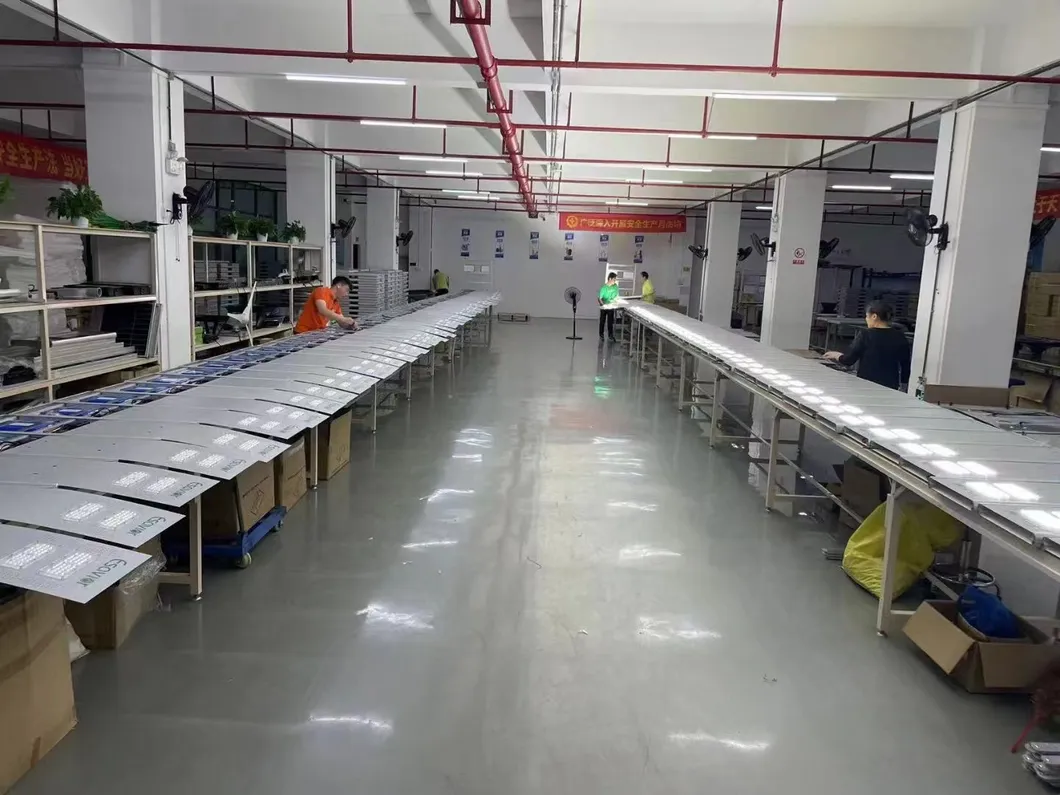

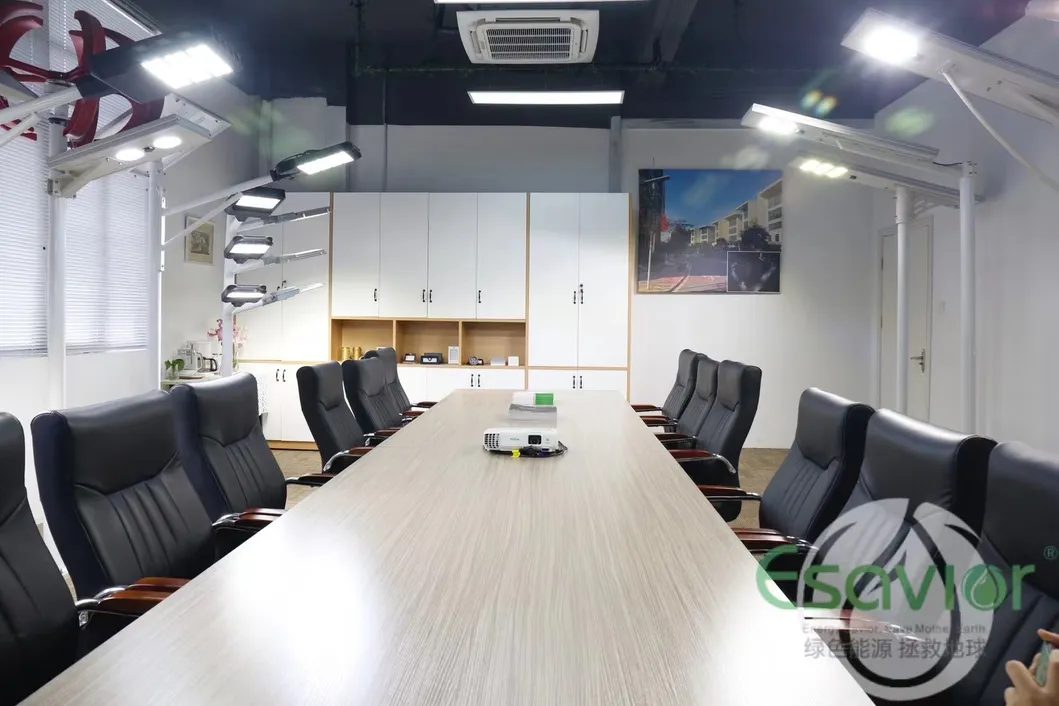

WORKSHOP & PRODUCTION

Why Choose Our Solar Solutions?

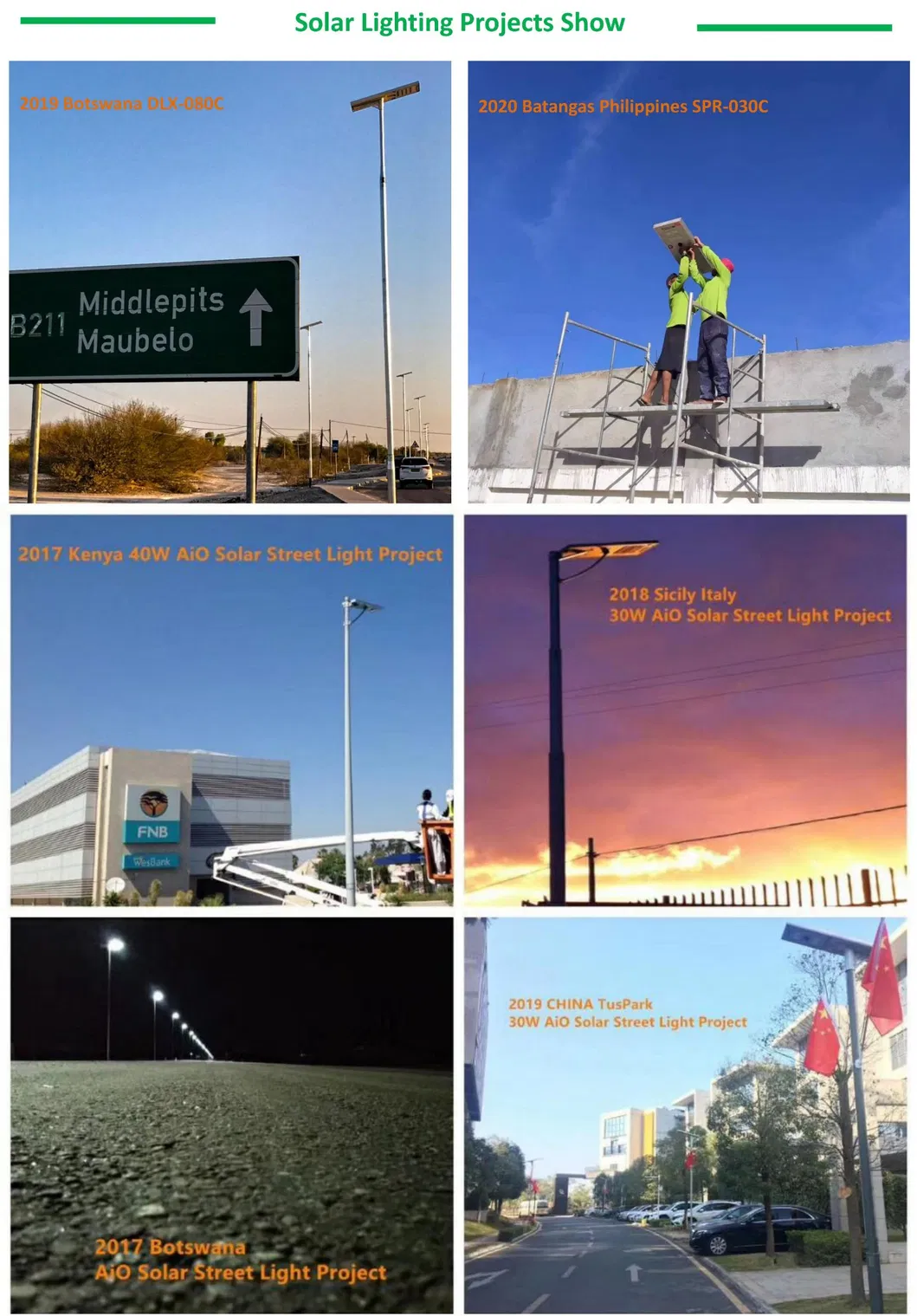

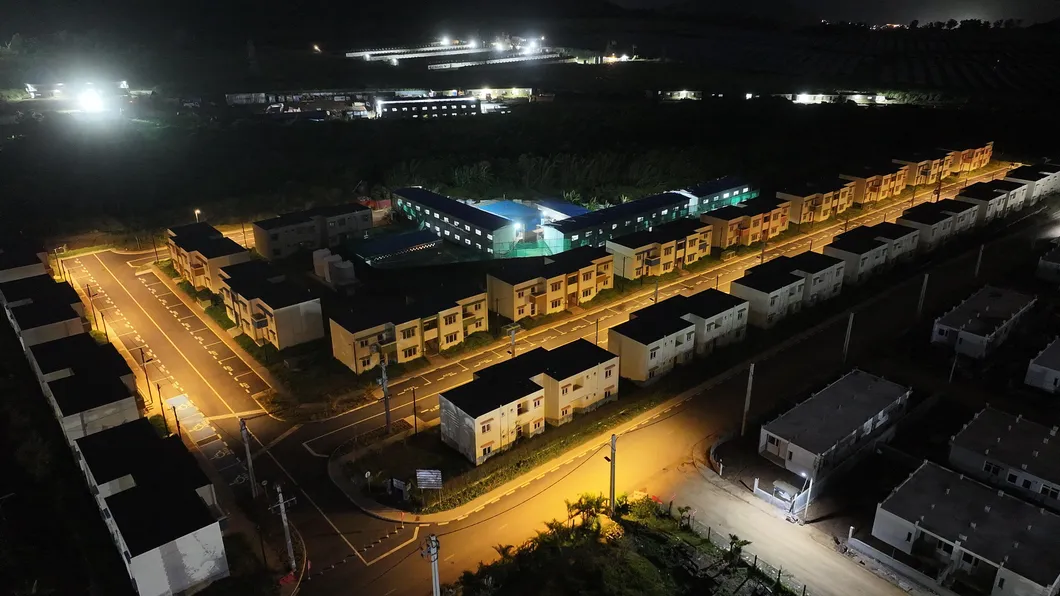

12 years' experience with global successful project references.
13 patents core technologies in Solar Street Lighting and IoT Systems.
ISO 9001/14001, IEC 60598, TUV-SUD verified reports.
Clients in more than 100 countries including UNDP, UNHCR, and The World Bank.
Modern manufacturing base with international RD & Inspection Center.

Frequently Asked Questions

Does the lamp light on automatically?

Yes, it will light on automatically at darkness in any mode except "OFF".

What is the lead time for orders?

Typically 3 workdays for samples and 7-15 workdays for batch orders (over 100pcs).

Do you offer a guarantee for the products?

Yes, we provide a 3-5 year warranty on our solar street lighting products.

Can the lamp withstand strong wind environments?

Yes, the units feature an Aluminum-alloy holder that is solid, firm, and zinc-plated for anti-rust corrosion resistance.

What's the difference between Motion sensor and PIR sensor?

Motion (radar) sensors emit high-frequency waves and can detect movement up to 10 meters away accurately. PIR sensors detect temperature changes and typically have a 3-5 meter range.

How is product quality controlled?

Products are produced under a strict quality control system with a defective rate of less than 0.5%. Faulty units within the guarantee period are replaced.
