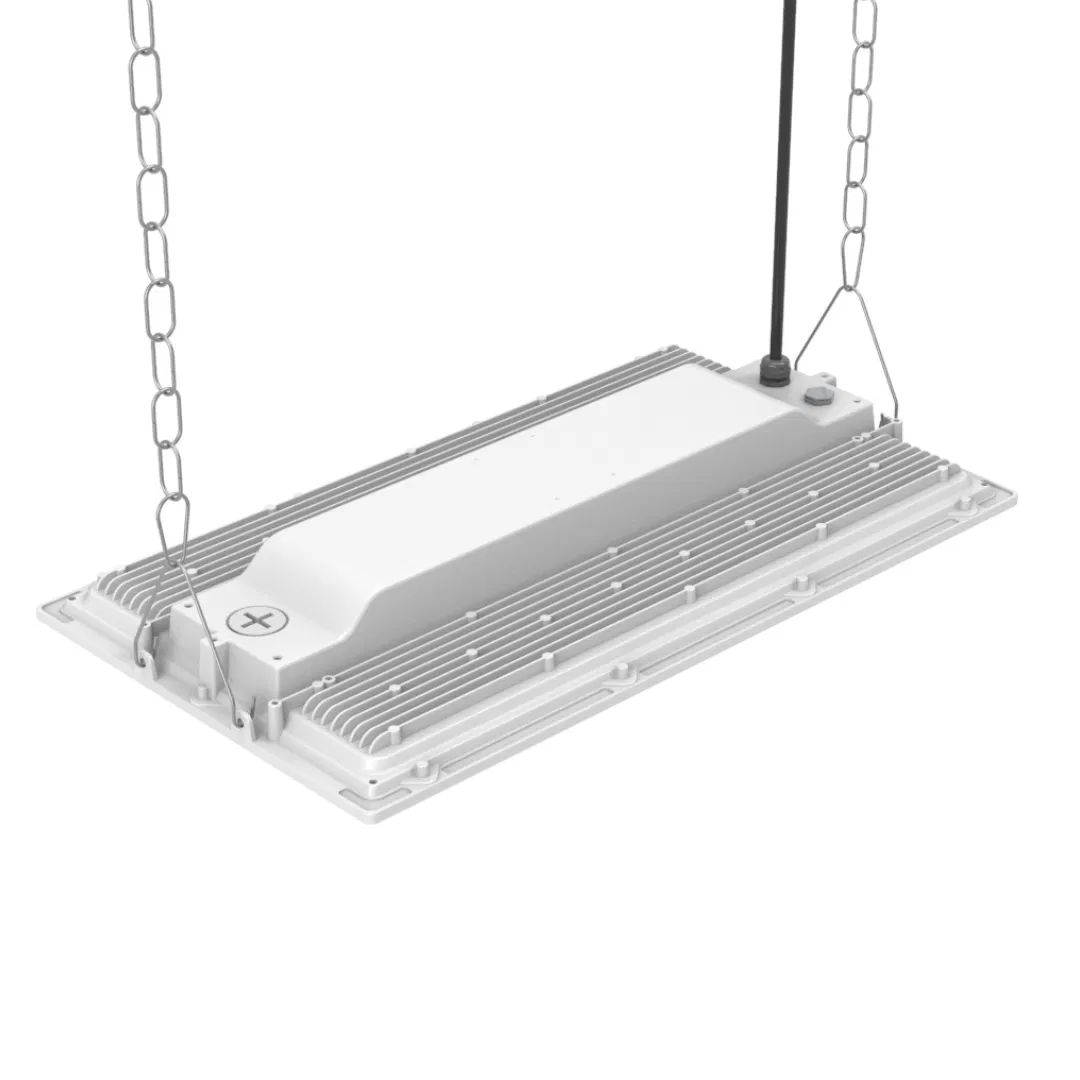

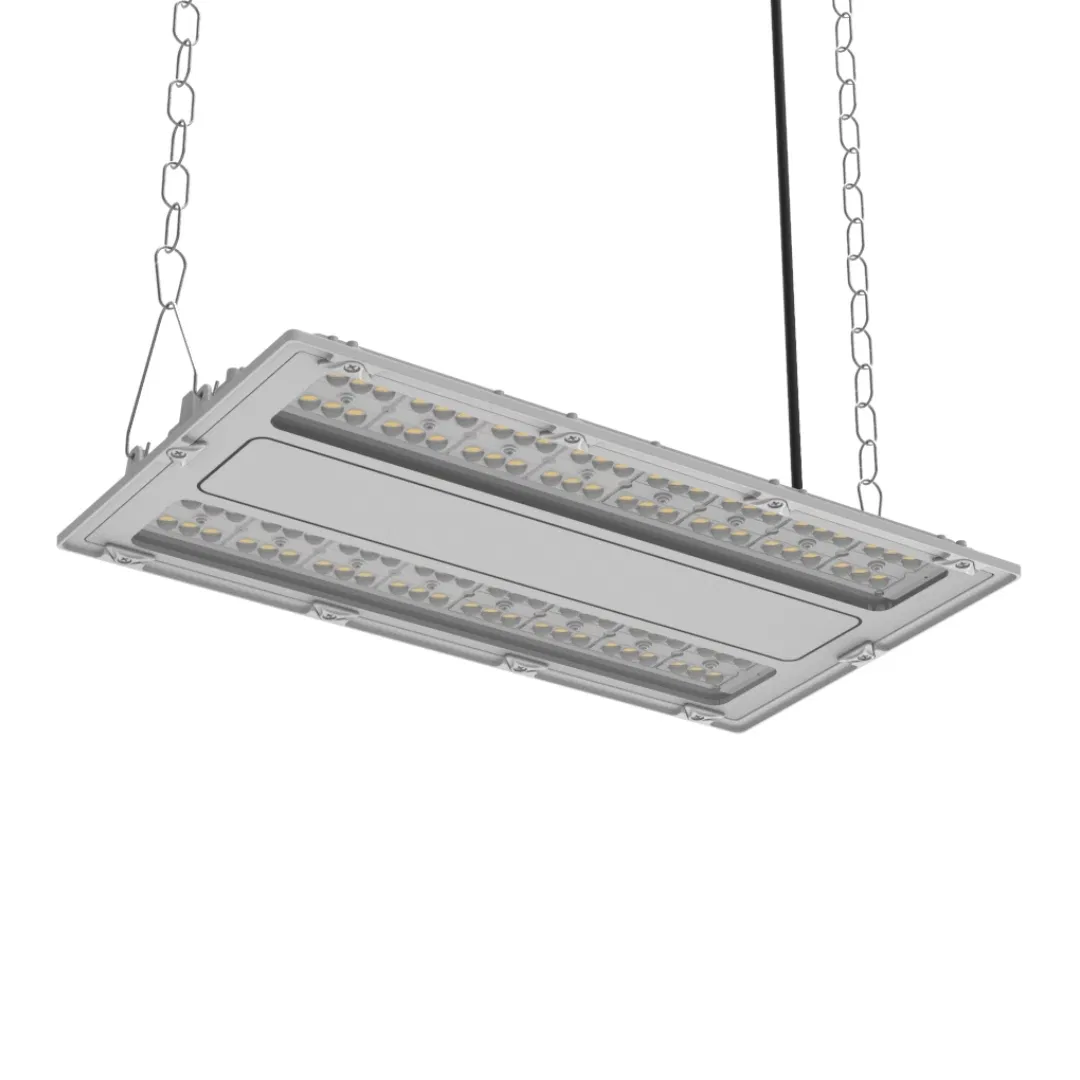

In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions. This product is particularly suitable for environments such as parking lots, gymnasiums, workshops, clothing stores, supermarkets, and warehouse lighting.
Technical Specifications
Input Voltage
AC100-277V 50/60Hz
Power Factor
PF > 0.9
Input Power
100W (Optional 200W/260W)
Efficiency
160-170lm/w
Color Index
Ra > 83
Lifespan
50,000 hours
Lumen Maintenance @6000h
> 80%
Operation Temperature
-40°C ~ +50°C
IP Rating
IP65
CCT (Single color)
3000K - 4000K - 5000K - 6000K
Material
Aluminum + PC
Key Features
The JR-ZKHB03A series offers a range of power options (100W, 200W, 260W) with lumens efficacy reaching up to 170 lm/w. Standard features include 0-10V dimming and beam angles of 30°, 60°, and 90°.

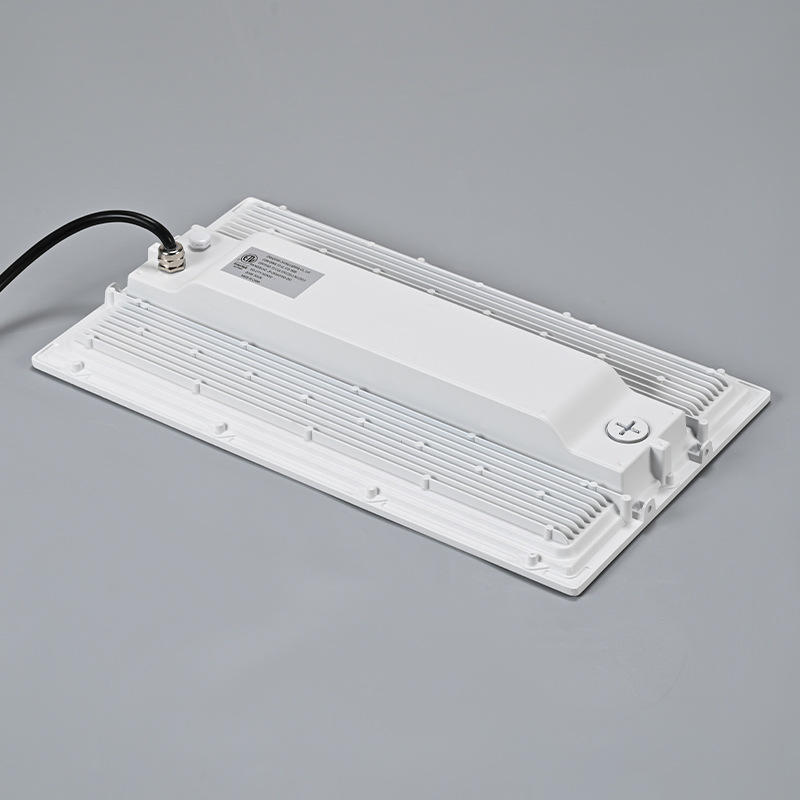

✦ Durable one-piece die-cast aluminum housing for heat dissipation.
✦ Surface painting process to resist fading and cracking.
✦ High-quality SMD3030 LED light sources.

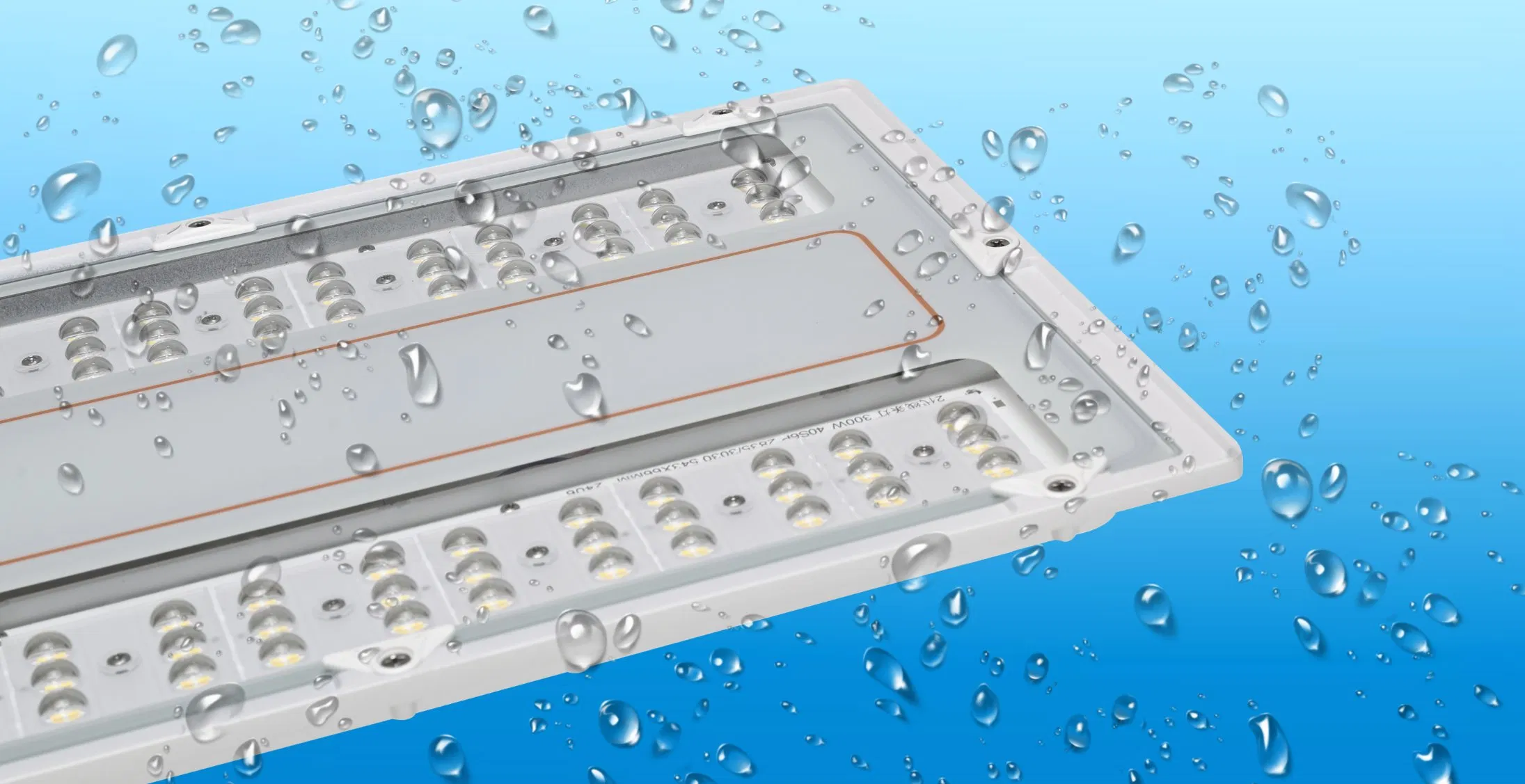

✦ IP65 rated for protection in various environments.
✦ Versatile installation: Pendant or Surface mounting.
✦ 5-year warranty with ETL, CETL, CE, RoHS, and FCC approvals.
Product Variations
Model
Length
Power
LED Type
Lumens (lm)
Package (2pcs/ctn)
JR-ZKHB03A038-100D
1.0 FT
100W
SMD3030
16000
43*34*17 (cm)
JR-ZKHB03A048-200D
1.5 FT
200W
SMD3030
32000
53*34*17 (cm)
JR-ZKHB03A059-260D
2.0 FT
260W
SMD3030
41600
63.5*35*18 (cm)

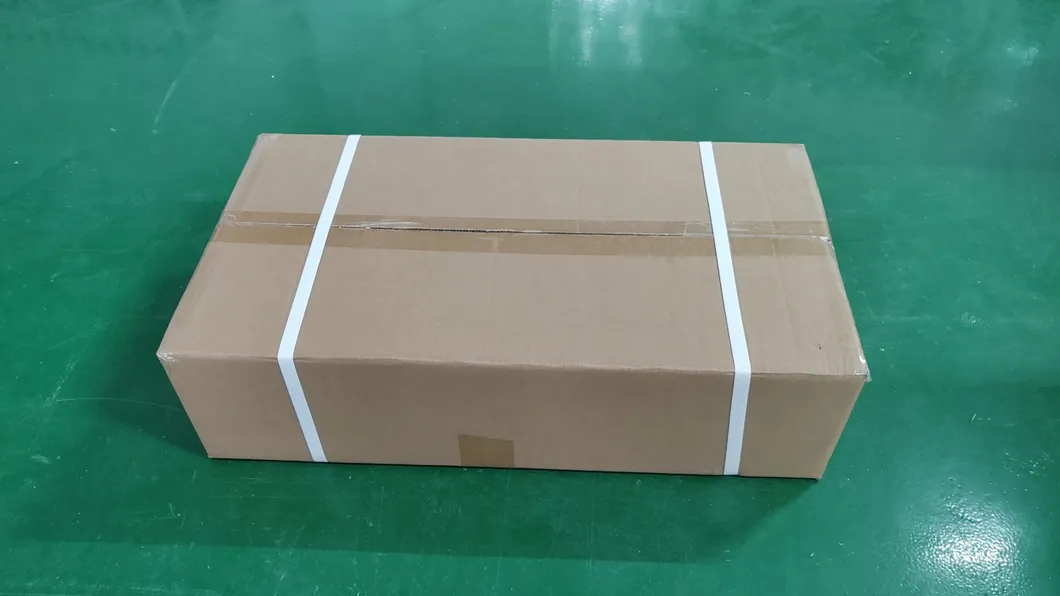

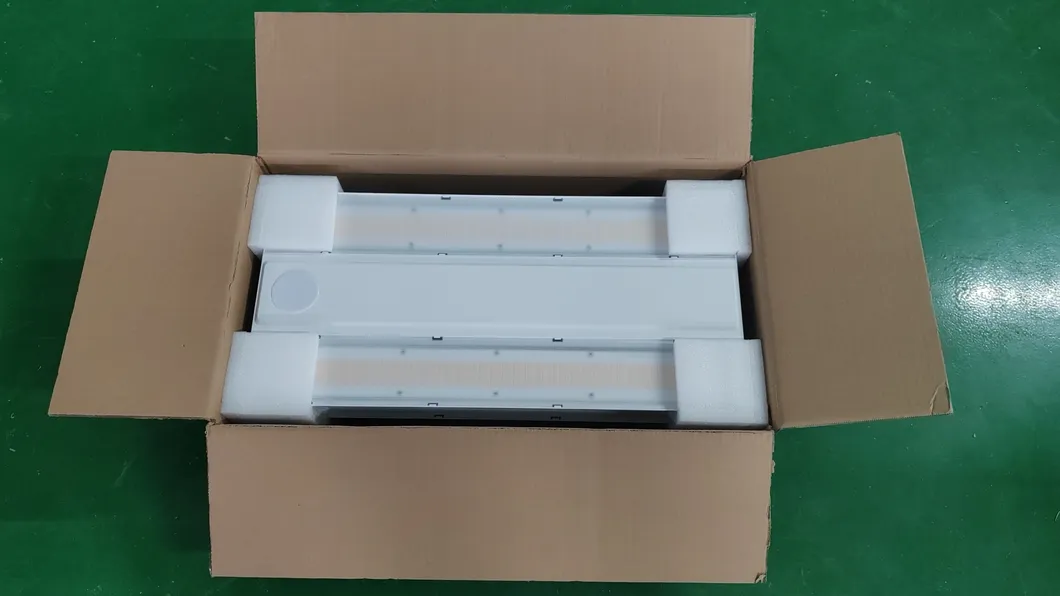

Dimensions & Packing
Installation Options

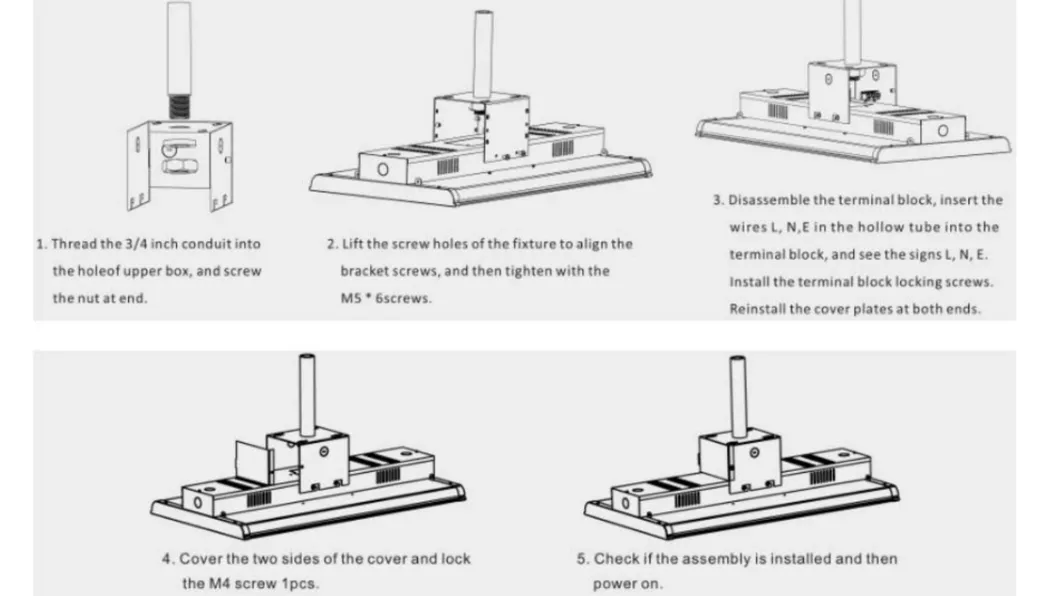

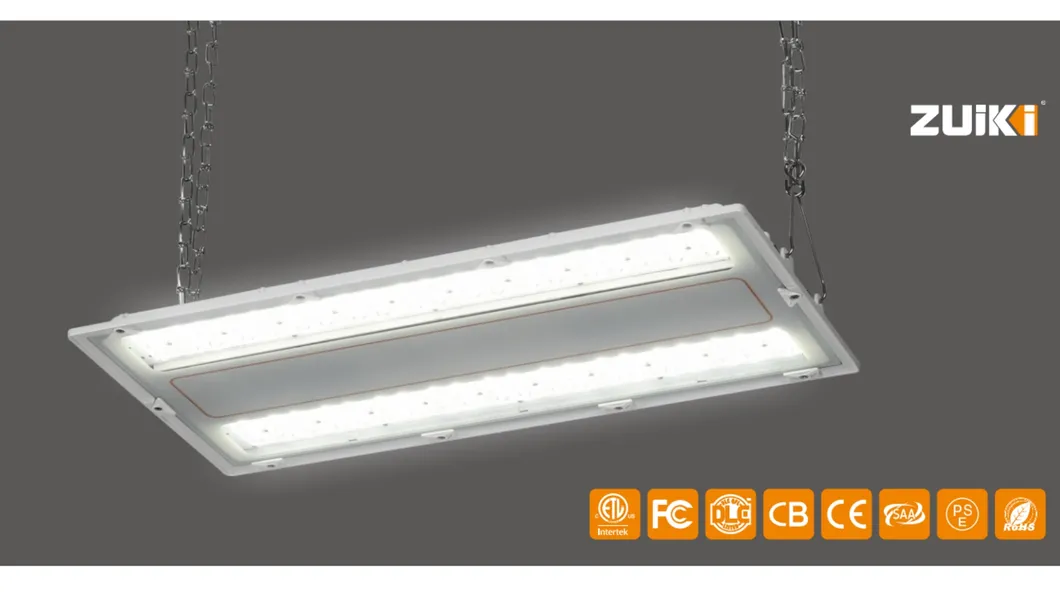

Option 1: Pendant Mount

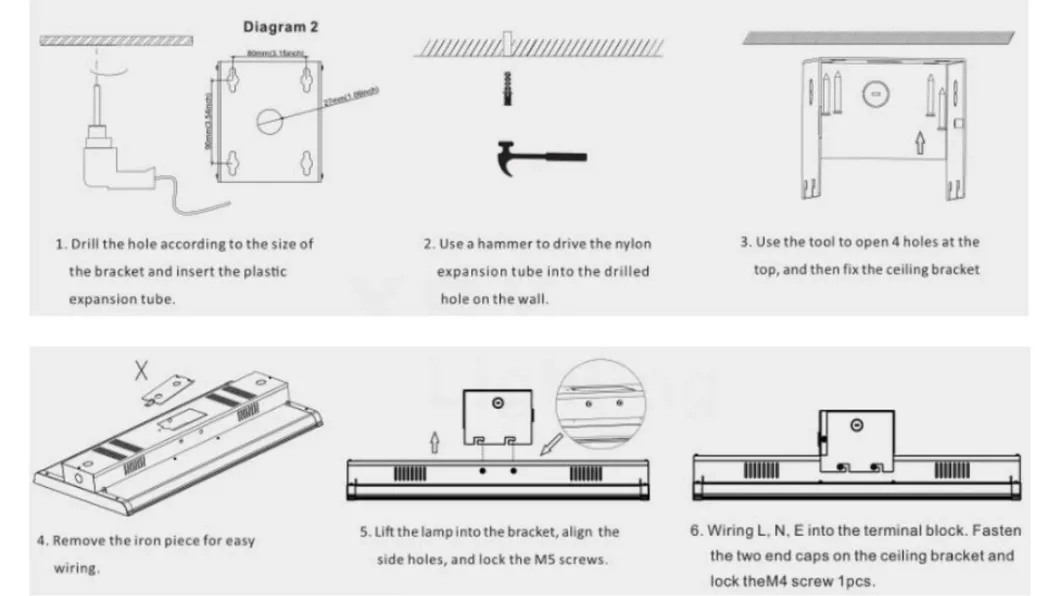

Option 2: Surface Mount
Important Safety Information:
Maintenance and installation must be performed by a qualified electrician.
Ensure usage within the specified input power range.
Refrain from utilizing this product in outdoor environments.
Disconnect power prior to installation.

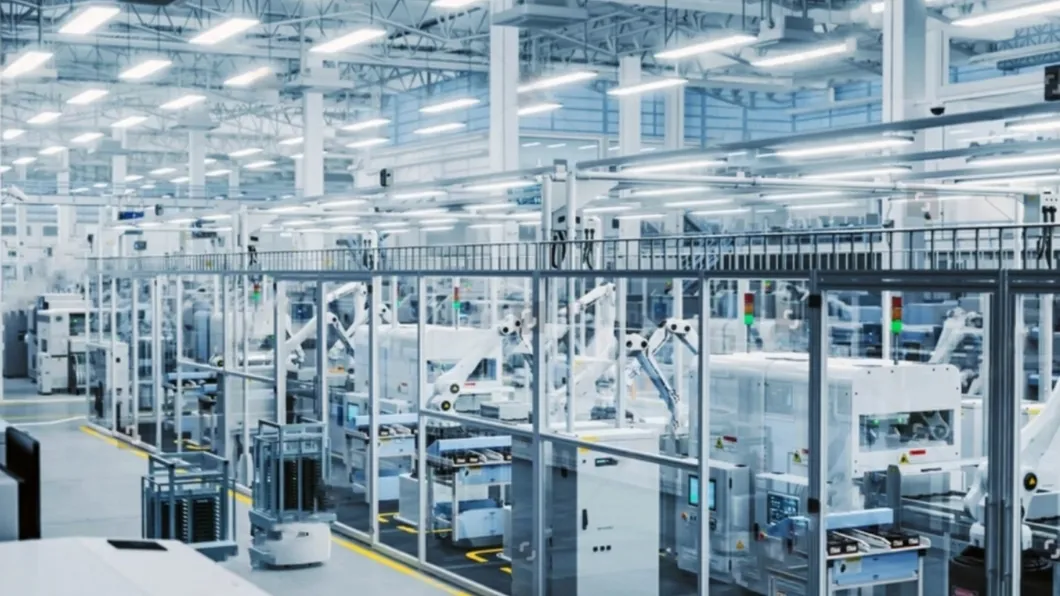

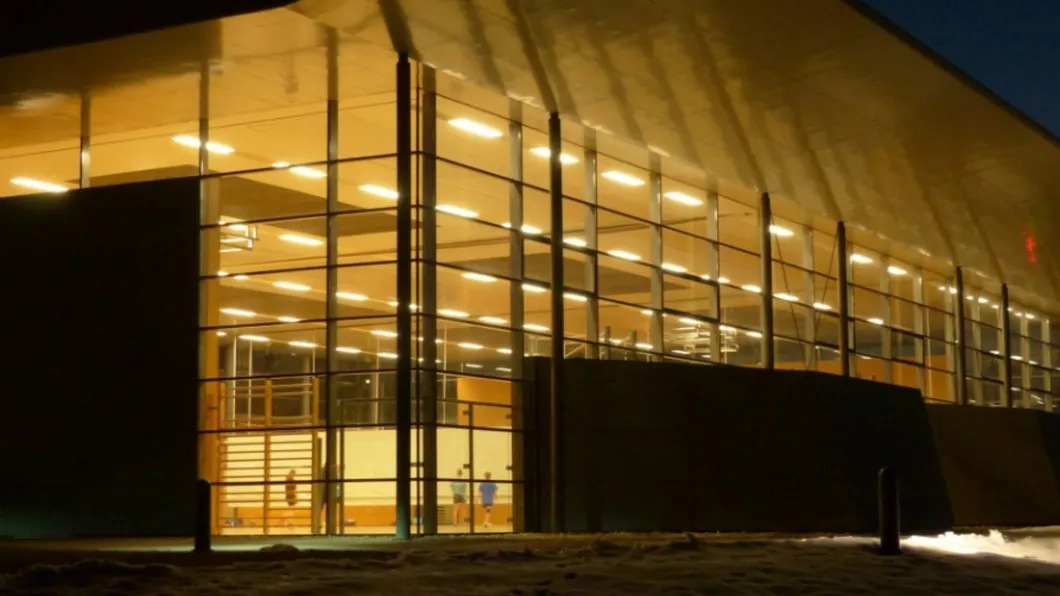

Applications at a Glance

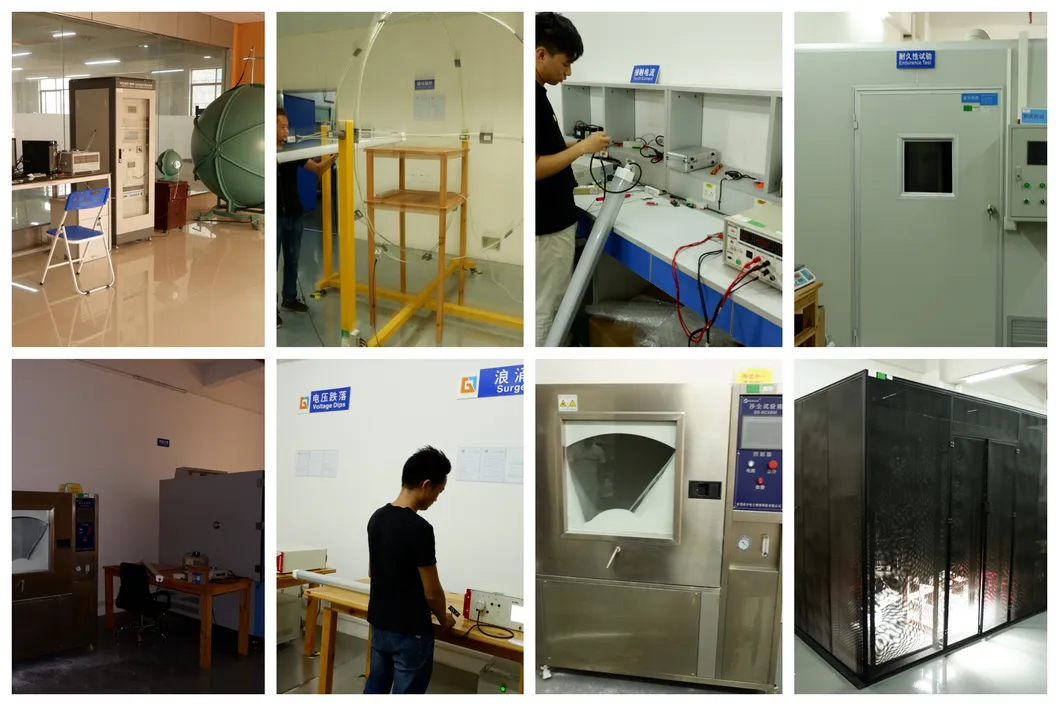

OEM & ODM Service & Testing
We provide complete customization options for LED high bay products, grow lights, and tunnel lights. This flexibility covers engineering and manufacturing, including power sources, optical lenses, and thermal management solutions.
Frequently Asked Questions
Q1: Can I have a sample order for LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
Quick delivery time of 3-5 working days for sample orders, and 12-20 working days for bulk orders.
Q3: Do you have any MOQ limit for LED light orders?
Low MOQ, 1pc for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
We usually ship by sea, but DHL, UPS, and FedEx are also optional. It usually takes 3-10 days to arrive by air/express.
Q5: Is it OK to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design based on our sample.
Q6: Do you offer a guarantee for the products?
Yes, we offer a 3-5 years warranty for our products.
