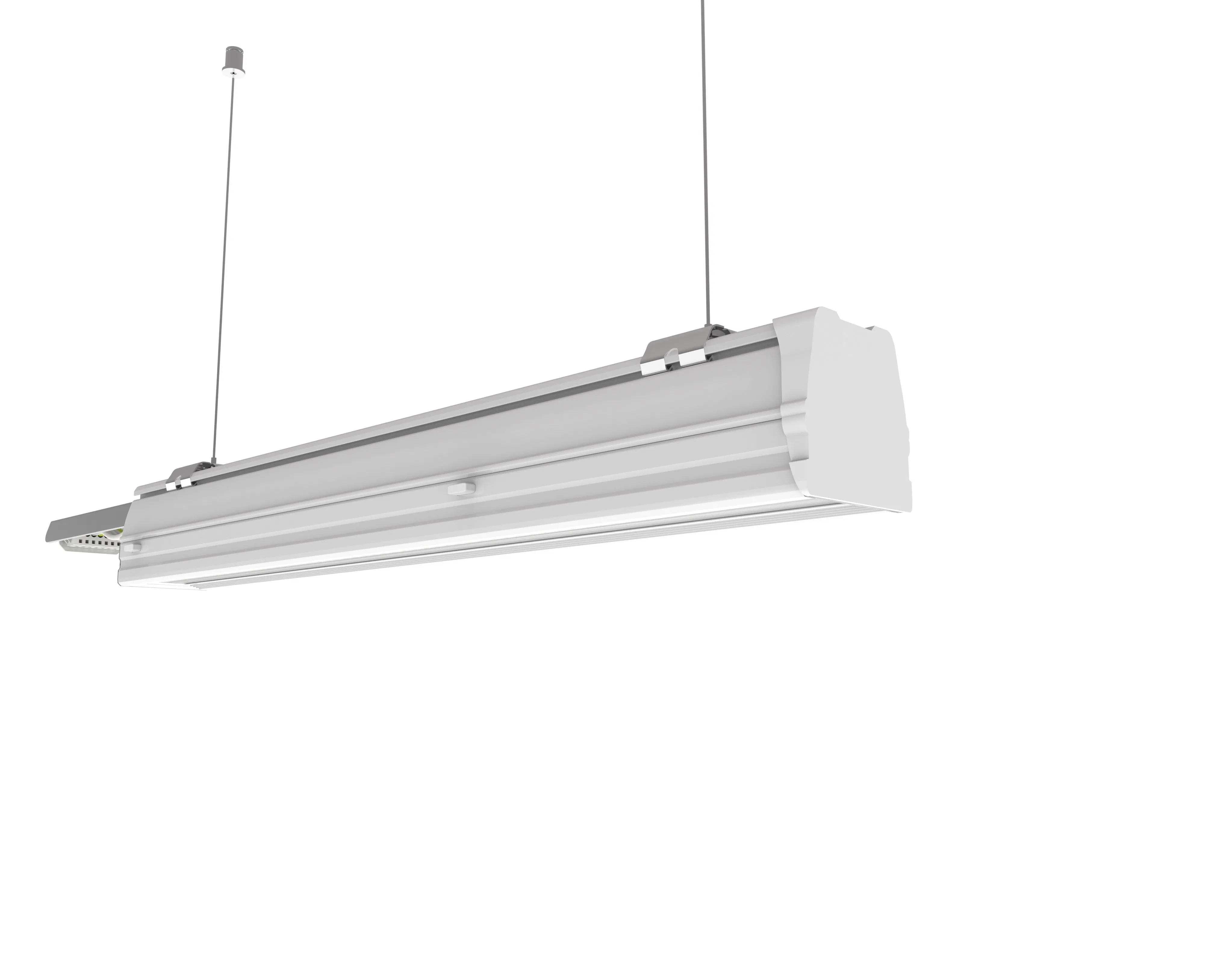

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
1 / 5
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
YB01Z Series
IP Rating
IP20
Material
Aluminum
Certification
CE, EMC, Energy Star, FCC, GS, RoHS, Saso, UL
LED Chips
CREE
Color Temp
3000K-6000K
Voltage
100V-277V
CRI
80
Luminous
130lm/150lm/180lm
Specification
32W-225W

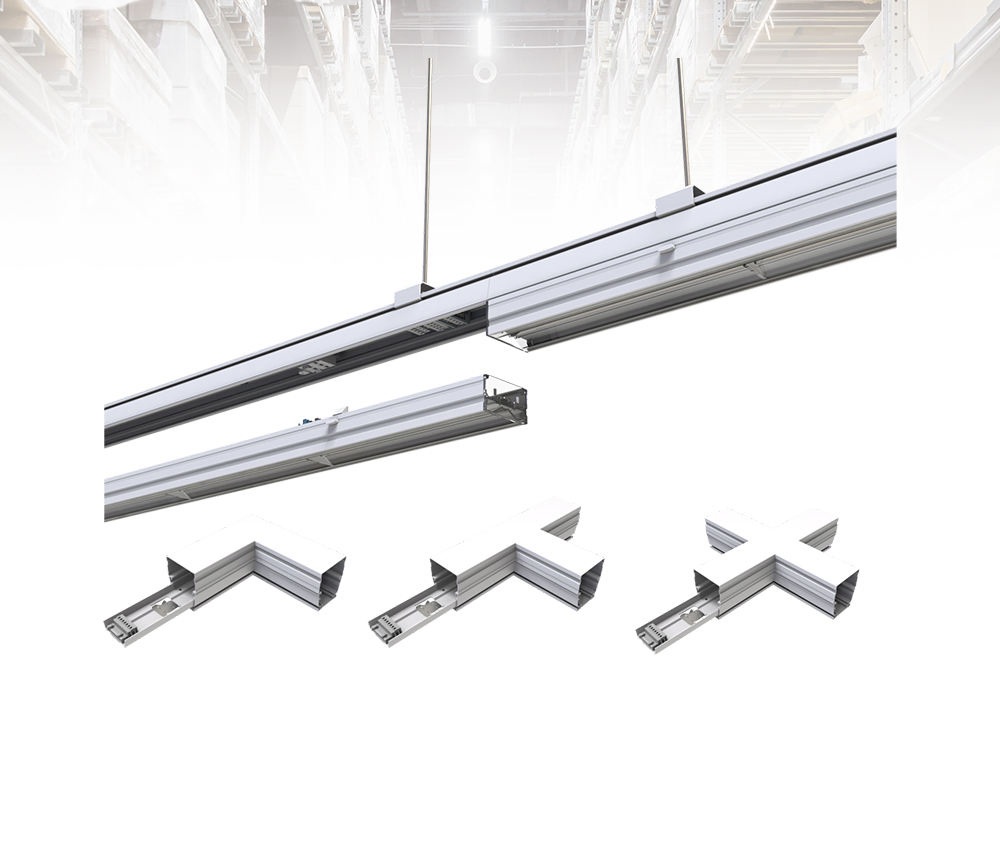

Product Overview

A continuous-row LED lighting system created by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched for high-performance array dimmable linkable LED linear lighting.

  • Power: 28W-150W
  • Rated Voltage: 100-277V
  • Rendering Index: Ra > 80 (CRI 95 optional)
  • Dimming: NON / 1-10V / DALI / 3CCT
  • Beam Angle: 30°/60°/90°/Single/Double Asymmetric
Technical Data
Item No. Length Power Lumen
YB01Z0632 577mm 28W 4160Lm
YB01Z1575 1432mm 75W 9750Lm
YB01Z30150 2861mm 150W 19500Lm
YB01Z45225 4297mm 225W 29250Lm

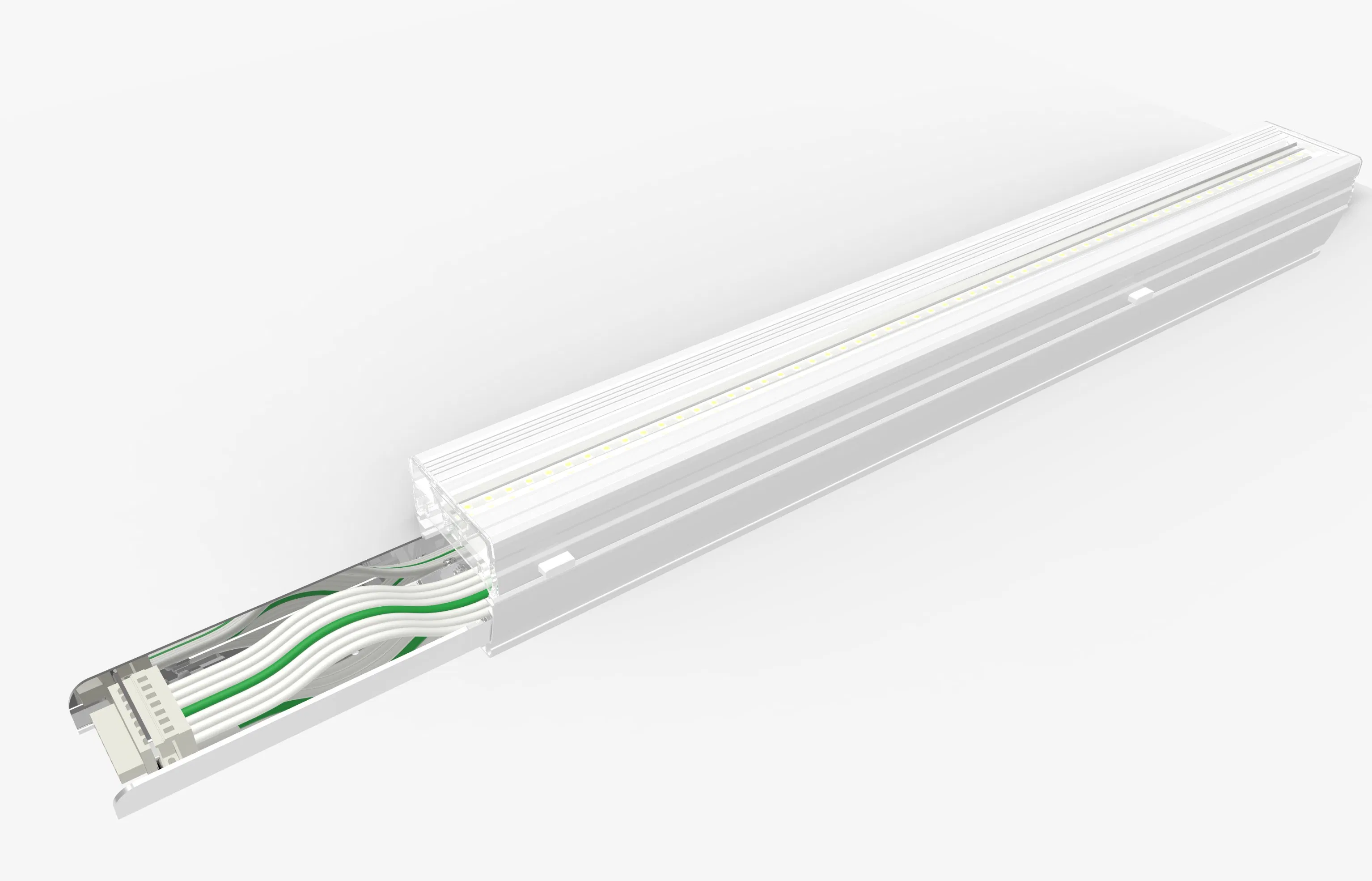

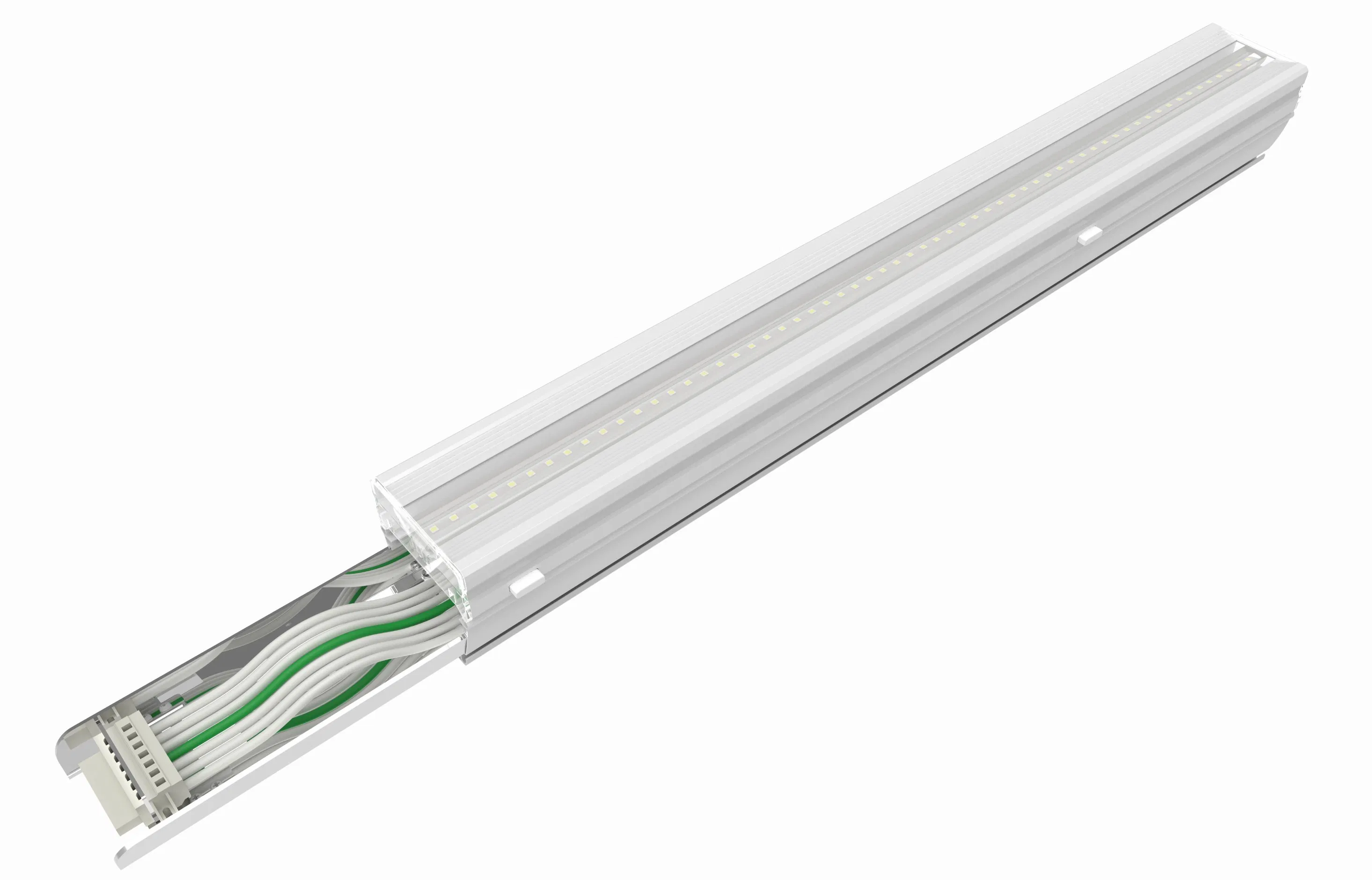

LED Linear Lighting System

The LED linear lighting system is an energy-efficient, low maintenance alternative to traditional linear fluorescent in industrial and commercial applications. Tool-less installation saves time and costs.

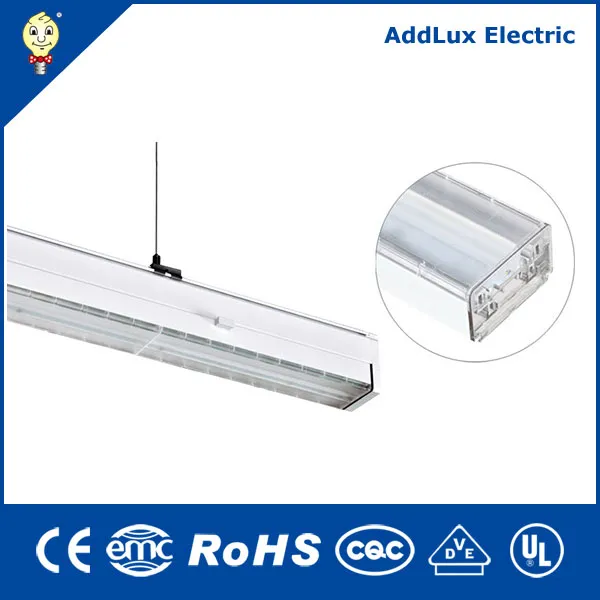

Linear Light 1

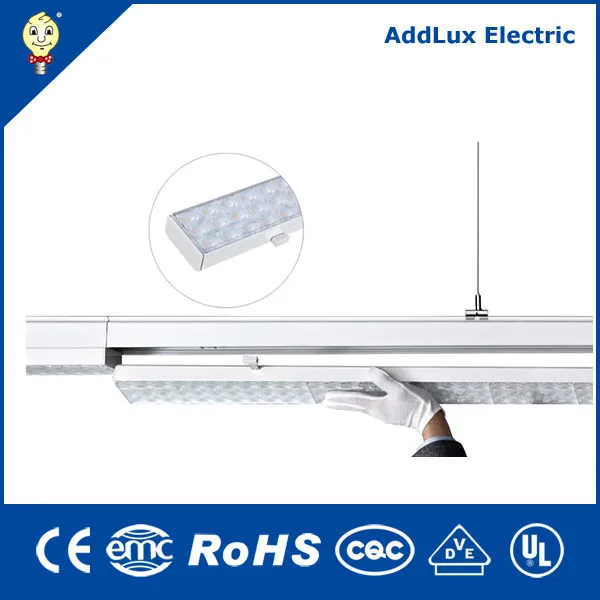

Linear Light 2

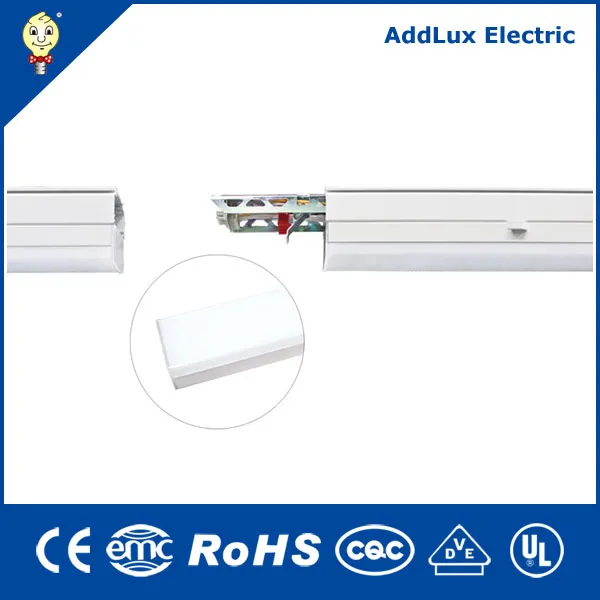

Linear Light 3
Trunking System
Application 1
Application 2
Application 3

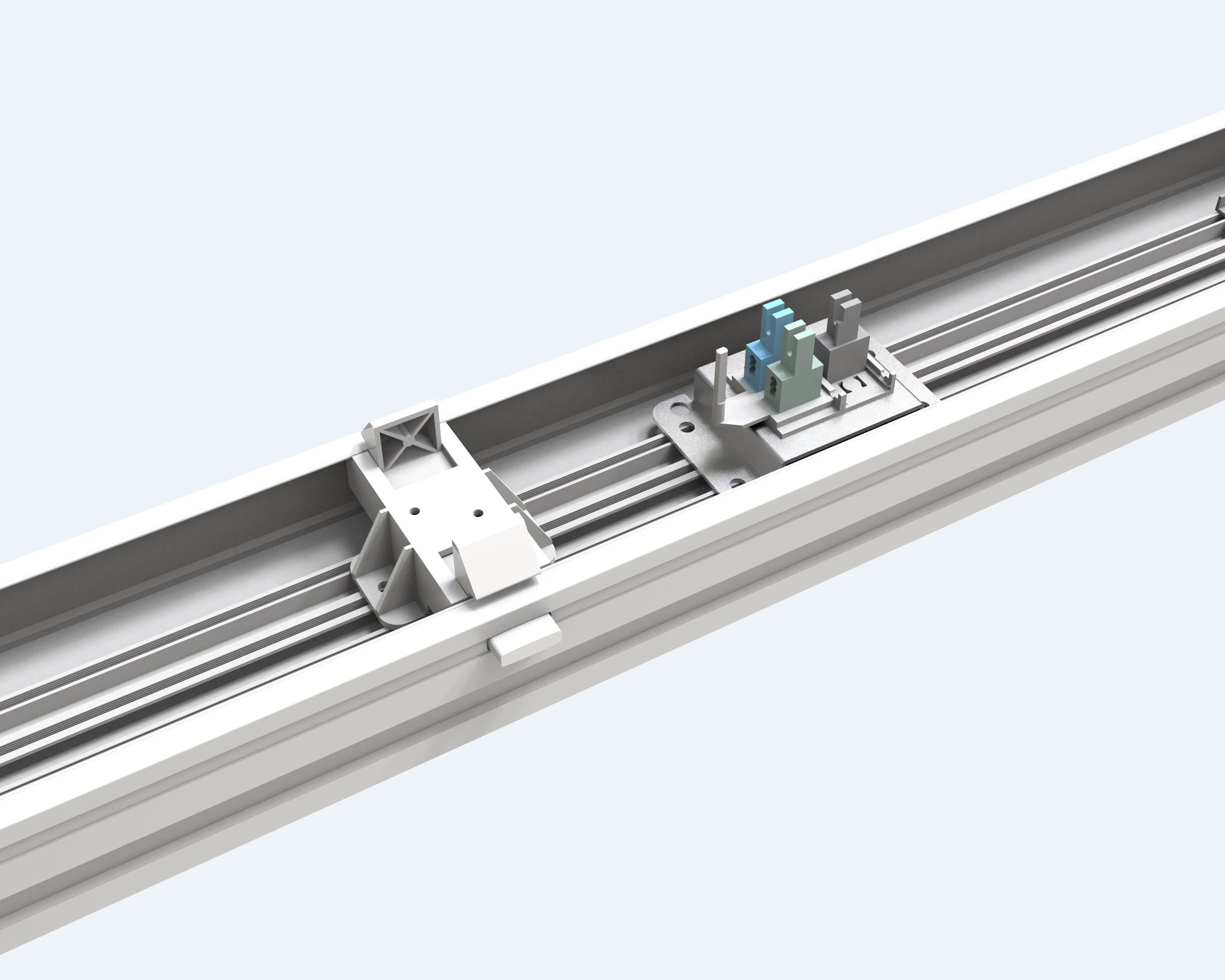

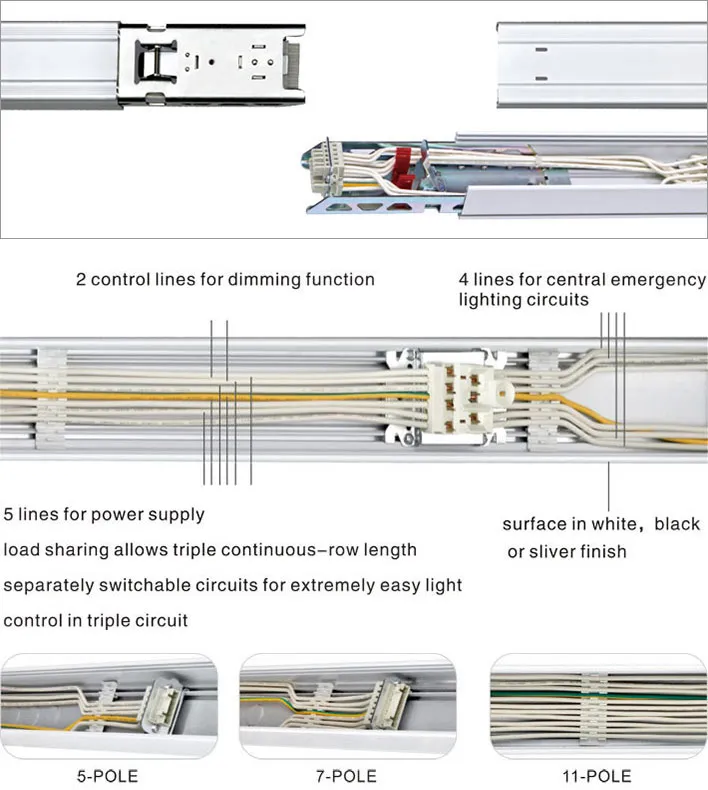

Trunking Rail & Node Connector

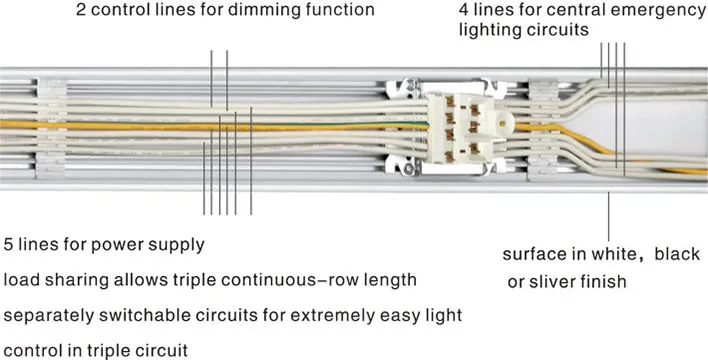

The flexible 11-pole trunking system integrates power supply, lighting control, and emergency lighting. L, T, and X connectors expand the system range without tools.

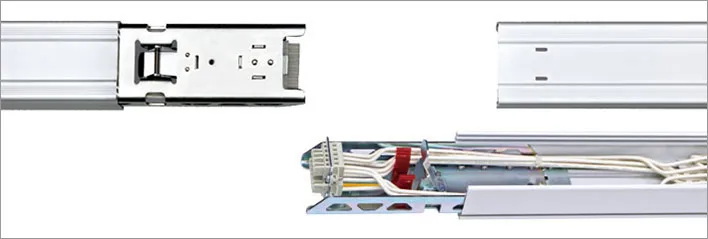

Rail Details

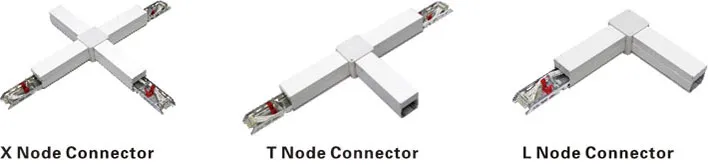

Connectors

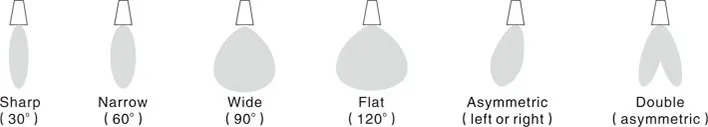

Beam Angle & Optics

A wide range of optics from sharp to wide distribution:

  • Sharp: 30° / Narrow: 60° / Wide: 90°
  • Flat: 120° / Asymmetric (Left/Right/Double)
Optics Distribution
Installation Methods

Maximum suspension span of 3m ensures quick setup. Options include:

  • Ceiling, Wall, and Pendant mounting
  • Surface mounted, Chain, and Wire suspension
Installation Guide
Frequently Asked Questions
Q1: What is the main advantage of the LED trunking system?
The system allows for a tool-free, continuous-row lighting setup that integrates power and control, significantly reducing installation time and maintenance costs.
Q2: What dimming options are supported?
We offer three main types of dimming: DALI dimming, 1-10V dimming, and DIM switch functionality to suit various building management systems.
Q3: Are these lights suitable for high-accuracy color environments?
Yes, while standard models have Ra>80, we highly recommend our CRI 95 series for museums, jewelry stores, and printing factories where color accuracy is critical.
Q4: Can the system handle emergency lighting?
Absolutely. The system supports central battery systems and self-contained Ni-MH batteries that provide 1.5 to 3 hours of emergency light at 6W or 12W.
Q5: What are the primary applications for this linear lighting?
It is ideal for large indoor spaces like warehouses, supermarkets, underground parking garages, railway stations, and production workshops.
Q6: Is the trunking system expandable?
Yes, using L, T, and X node connectors, the system can be expanded and connected in different directions to fit complex architectural layouts.
