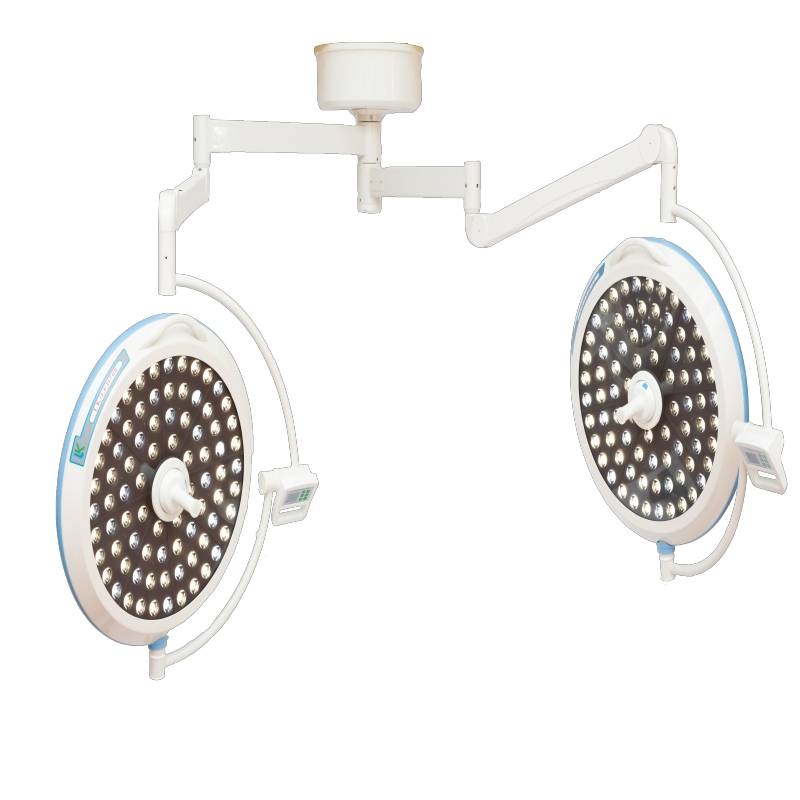

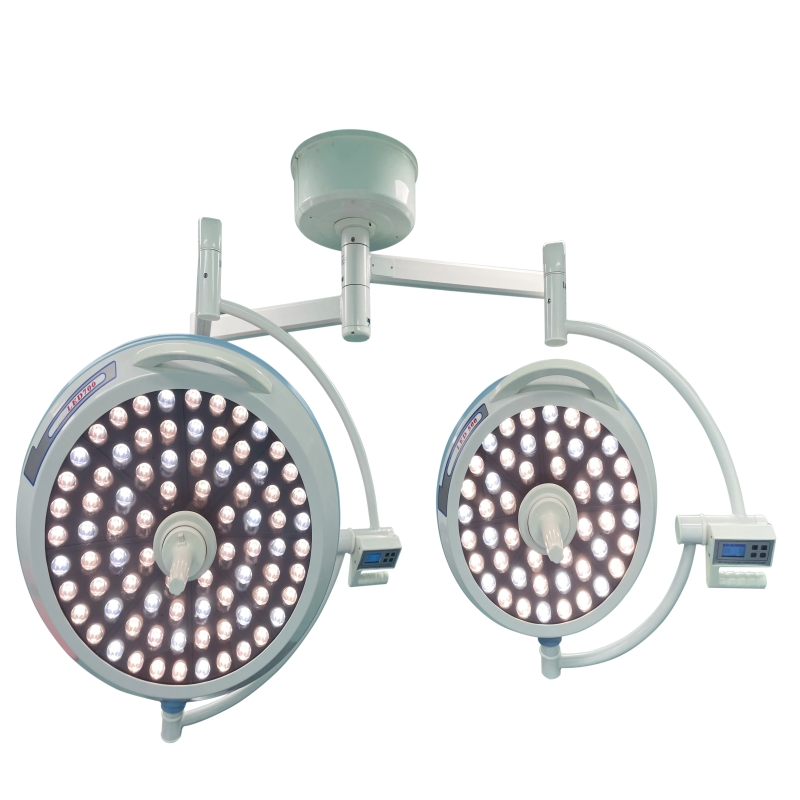

700/500 Medical Shadowless Operating Lamp Double Dome Ceiling Mounted Surgery Room Lamp Surgical Light

1 / 5

700/500 Medical Shadowless Operating Lamp Double Dome Ceiling Mounted Surgery Room Lamp Surgical Light

Customization:	Available
Type:	Operating Light
Kind:	Dental

Send Inquiry

Product Description

Basic Information

Model NO.:LKLED700/500(Classic)

Certification:CE, ISO13485, ISO9001

Group:Adult

LCD Display:With LCD Display

Illuminance:40,000-160,000 Lux

Color Temp:3000-6500 K

Spot Diameter:150-350 mm

Capacity:20,000 PCS/Year

Medical Shadowless Operating Lamp Banner

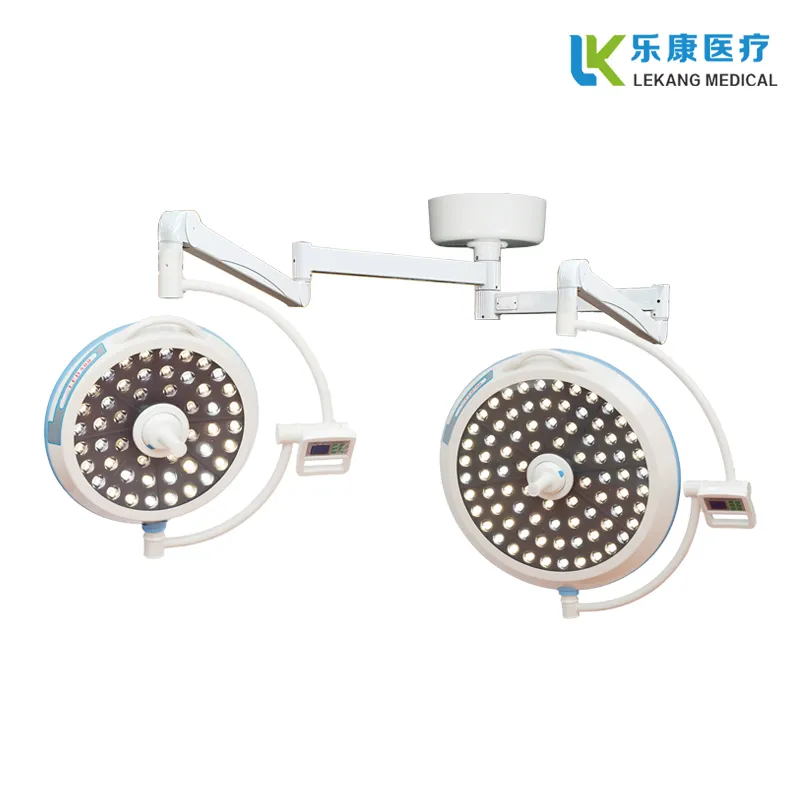

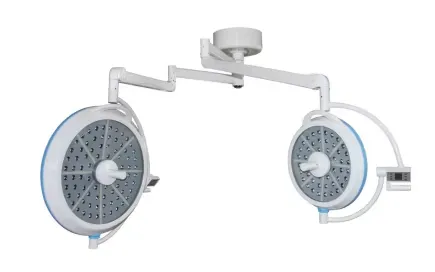

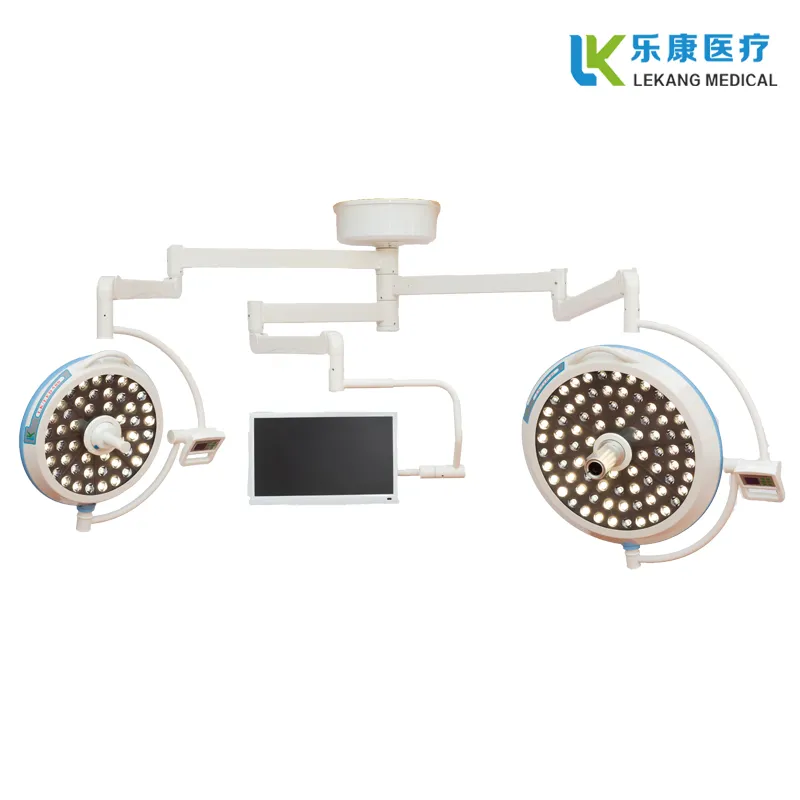

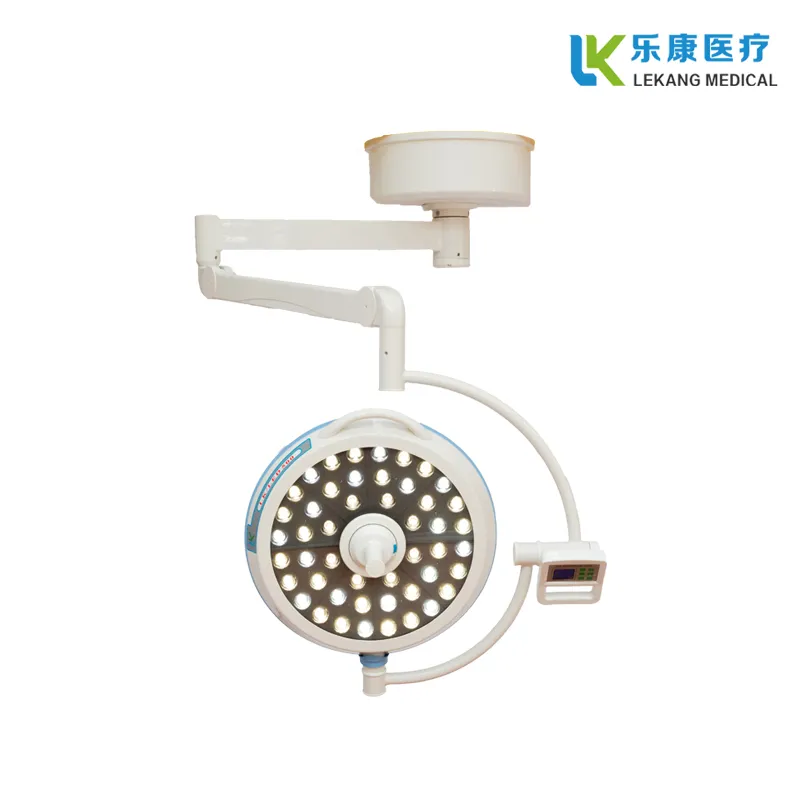

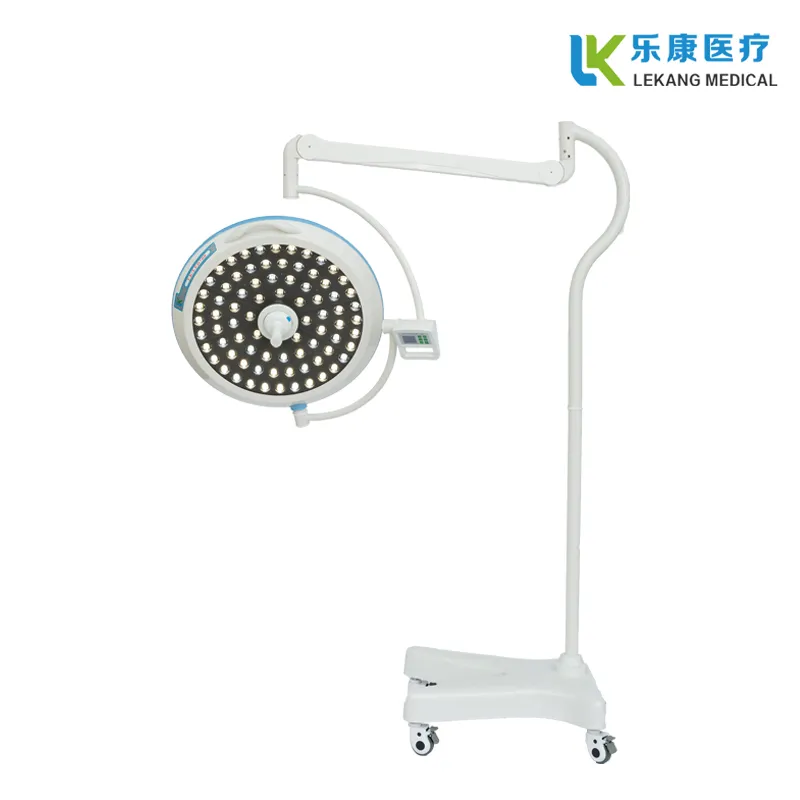

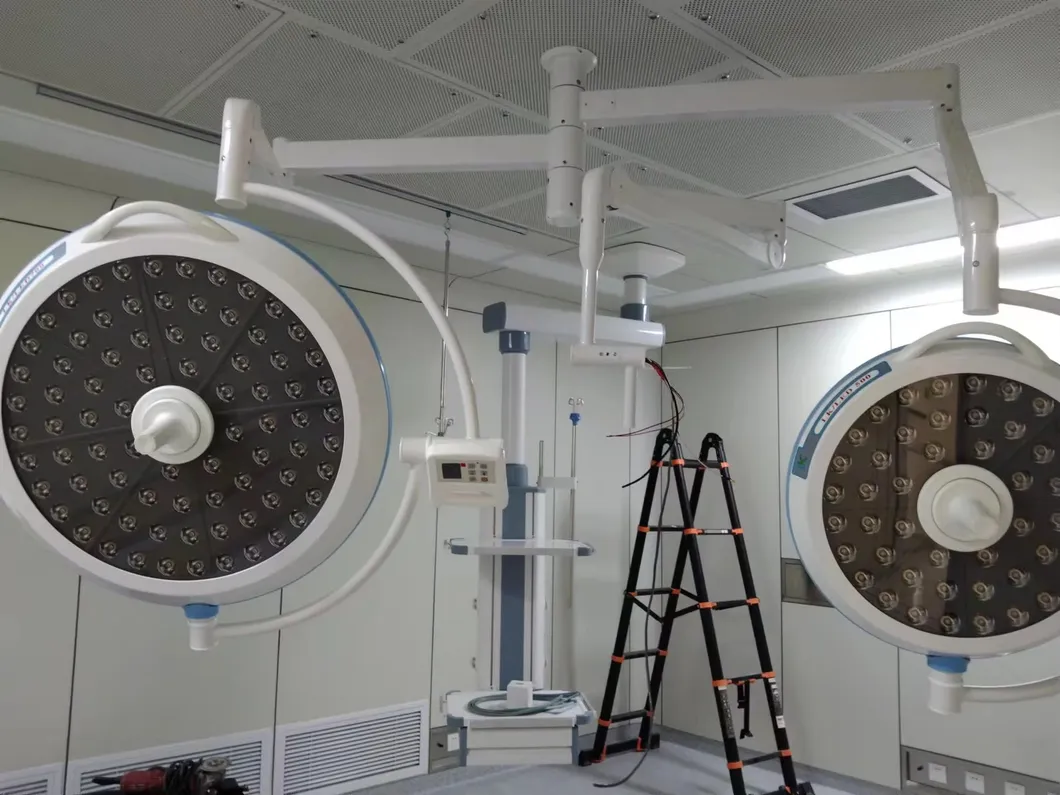

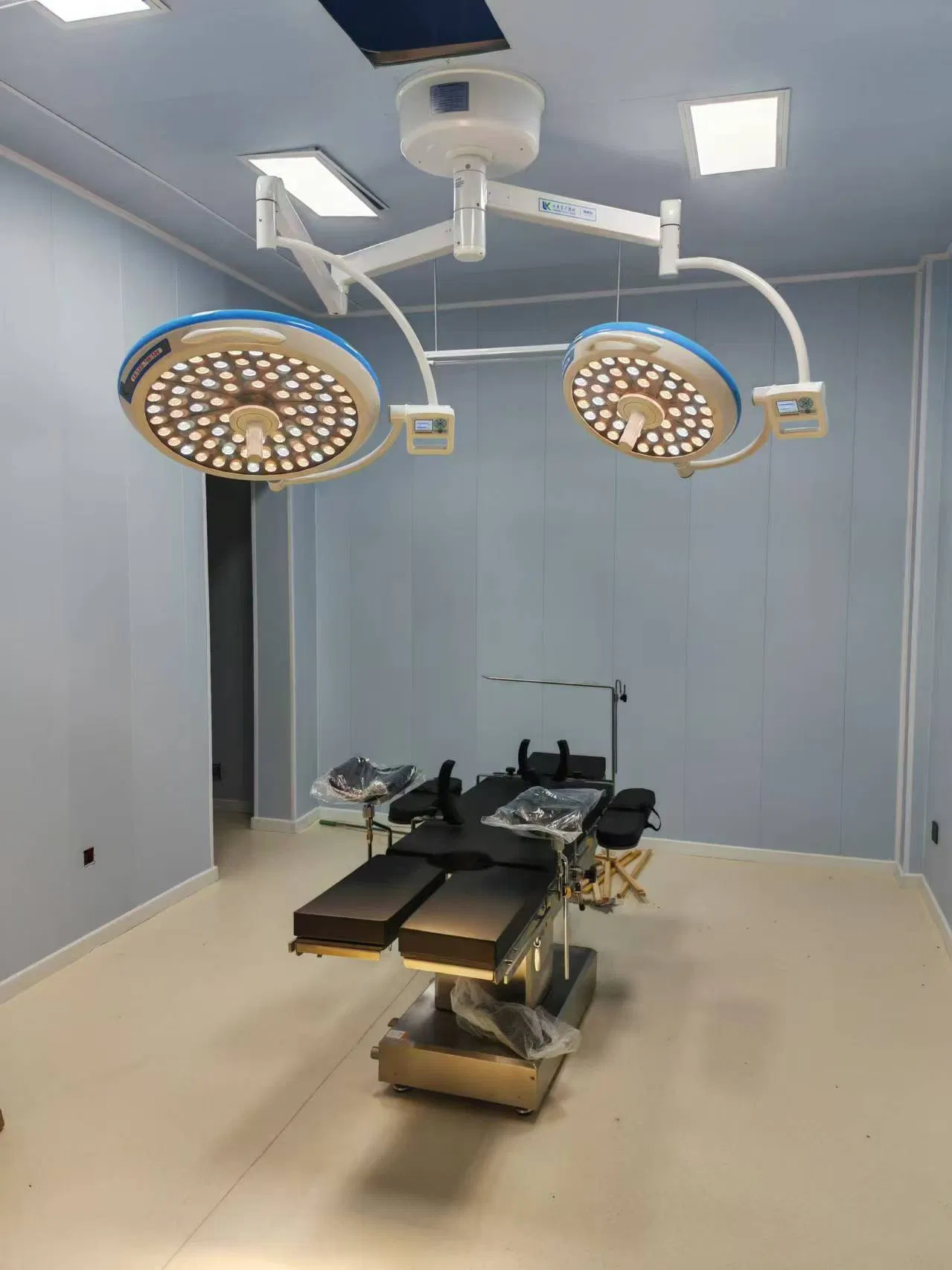

Detailed Product Photos

Technical Parameters

Specification Item	CHGLED700/500 Values
No. of LED beads	80 / 48
Illuminance (Lux)	40,000 - 160,000
Color temperature (K)	3000 - 6500 Adjustable
Diameter of light spot (mm)	150 - 350
Color rendering index (CRI)	≥96
Lighting depth (mm)	500 - 1800
Dimming system	Continuous dimming system
Temp rise at operator's head	≤ 1°C
Mains voltage	220V / 50Hz
Input power (VA)	400
Installation height (Optimum)	3.2 m

Key Characteristics

Real Cold Light Source: Uses a novel LED source that is energy-saving and eco-friendly. Service life up to 60,000 hours with minimal heat emission (<1ºC at physician's head).

Superior Shadow-free Effect: Lamp panel turning radius ≥182cm. The head can be adjusted nearly vertical to the ground for multi-angle illumination.

Excellent Deep Lighting: Modular design focused by multiple LED beams enables depth illumination above 1200mm, reflecting true tissue colors.

Advanced Control System: Integrated LCD button control for power, illuminance, and color temperature adjustments.

Universal Suspension System: Octagonal rotating arm made of new alloy materials. Precise positioning with a wide adjustment range.

Quality Certifications

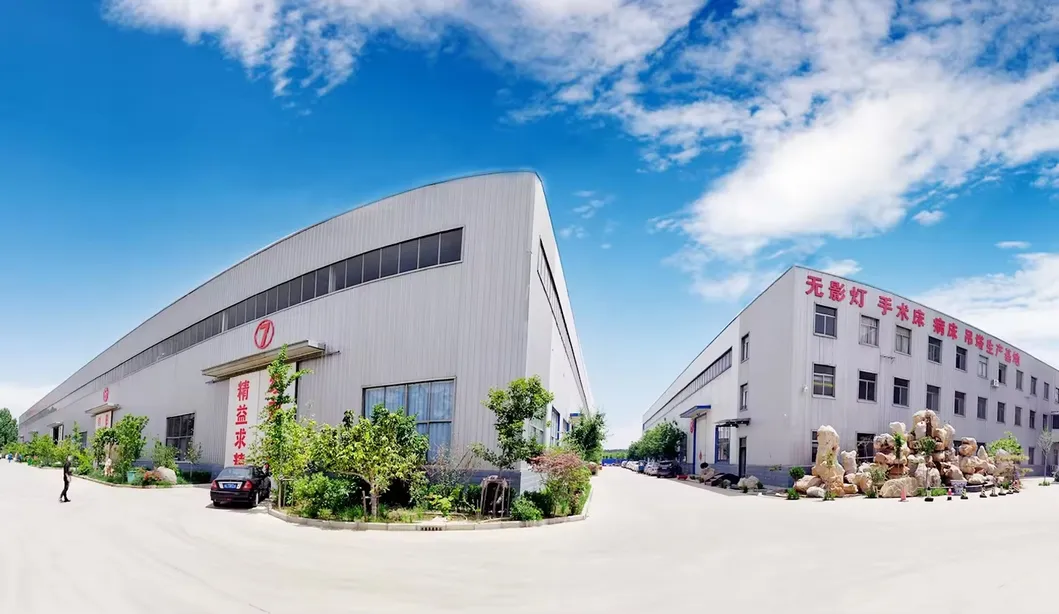

Professional Manufacturing

We are a professional medical equipment manufacturer holding international certificates such as CE, ISO9001, and ISO13485. With more than 20 years of experience, we specialize in producing high-quality operating lamps, operating tables, obstetric tables, medical pendants, and medical trolley series.

Our dedicated R&D center focuses on launching innovative products annually to meet the evolving needs of modern hospitals. Our medical solutions are exported globally to markets in the United States, Europe, Southeast Asia, the Middle East, and South America.

Frequently Asked Questions

1. What is the lifespan of the LED light source?

The LED source is designed for high durability and energy efficiency, offering a service life of up to 60,000 hours.

2. Can the color temperature be adjusted for different surgeries?

Yes, the color temperature is adjustable between 3000K and 6500K to meet the specific visual requirements of various surgical procedures.

3. How effective is the shadowless lighting?

The system uses a computer-aided modular design with multiple LED beams to provide deep illumination (above 1200mm) and a superior shadow-free effect.

4. Does the lamp generate significant heat?

No, it uses a real cold light source. The temperature rise at the surgeon's head level is kept below 1°C, ensuring a comfortable working environment.

5. What certifications do these medical lamps have?

Our products are fully certified with CE, ISO9001, and ISO13485, complying with international medical equipment standards.

6. Is the suspension system easy to position?

Yes, it features a universal suspension system with an octagonal alloy rotating arm and high-precision spring components for easy control and stable positioning.
