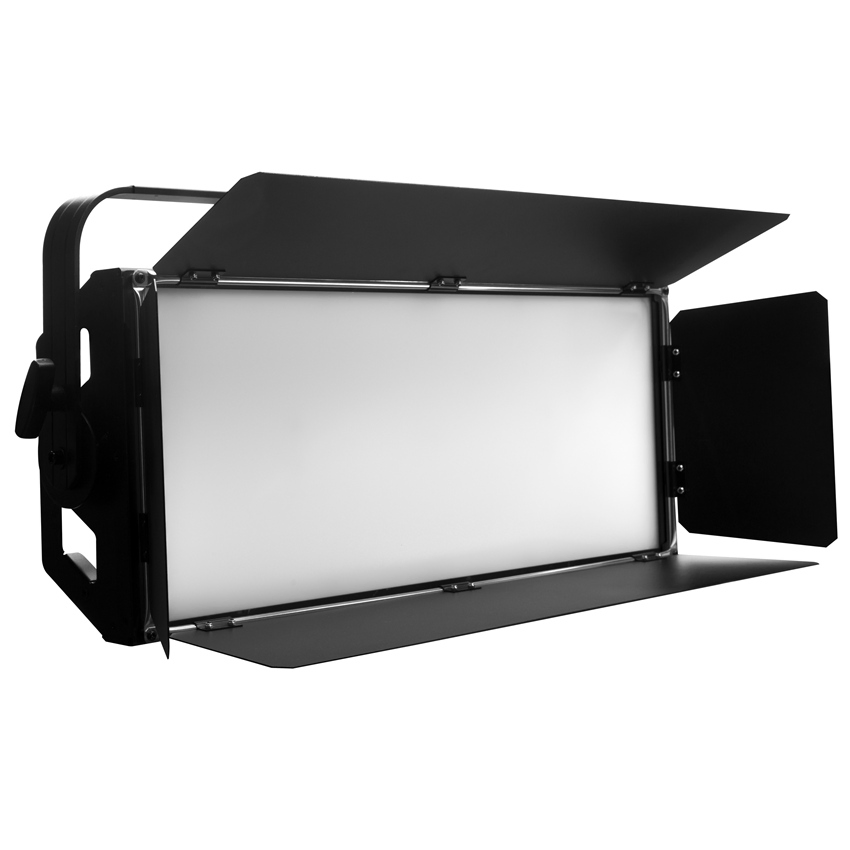

Stage Theater Studio 400W Rgbalc 6in1 Full Color LED Surface Panel Soft Light

1 / 5

Stage Theater Studio 400W Rgbalc 6in1 Full Color LED Surface Panel Soft Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

GL-4488

Application

Stage, Film and Television

IP Rating

IP20

Certification

CE, RoHS

LED Source

3360X0.2 W RGBALC 6in1 SMD LEDs

Body Material

Aluminium Alloy

CCT

1800K-10000K Adjustable

CRI

Capacity

3000PCS/Month

400W RGBALC 6in1 Full Color LED Soft Light

Parameter	Details
Input Voltage	100-240 V AC, 50/60 Hz
Power Consumption	Maximum 400W
Color Generation	RGBALC Full Color mixed, CCT 1800K-10000K Adjustable
LED Beam Angle	170°

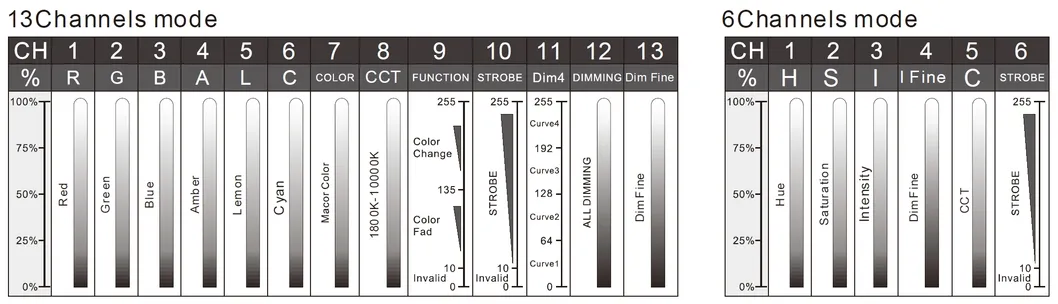

Control Protocol	USITT DMX-512 (13 Channels)
Cooling System	Natural Convection (No Fan, Silent)
Dimming	High resolution (4,096 steps), 4 selectable curves

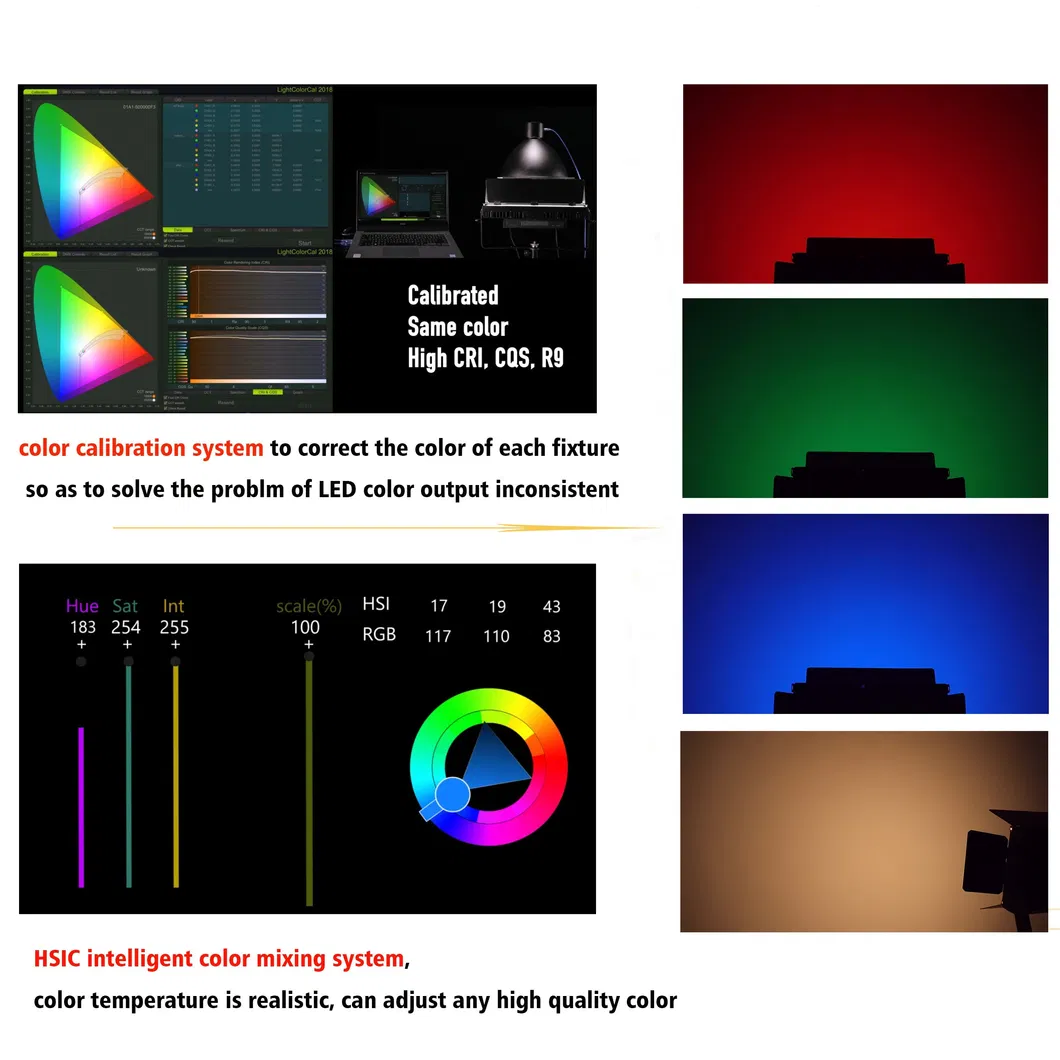

Color Calibration	CCS (Color Calibration System) for consistent output
Housing	Integrated barn doors and milky diffuser for soft light
Dimensions	622 x 266 x 115 mm
Weight	11.2kg (Net) / 15.0kg (Gross)

Why Choose Professional Lighting

Superior QualityAdvanced production for lighting technology with strict quality control (CE, RoHS, UL).

Flexible ServiceCustomized ODM/OEM and design services available.

Flicker-FreeOptimized for broadcast and film with smooth, homogeneous light output.

High CRICRI >95 ensures accurate color rendering for professional environments.

Frequently Asked Questions

What is the main advantage of the RGBALC 6in1 LED source?

The RGBALC (Red, Green, Blue, Amber, Lime, Cyan) system provides a much broader color spectrum and superior color mixing capabilities compared to standard RGB, allowing for a precise CCT range from 1800K to 10000K with high color fidelity.

Is this light suitable for quiet studio environments?

Yes, the unit is designed with a natural convection cooling system (no fans), ensuring completely silent operation, which is critical for TV studios and theatrical performances.

Does the product support professional dimming requirements?

Absolutely. It features high-resolution dimming with 4,096 steps and 4 selectable dimming curves to ensure smooth transitions without stepping or flickering.

What certifications do these lighting products hold?

Our professional lighting fixtures are fully certified with CE, RoHS, and SGS standards to meet international safety and quality requirements.

Can multiple units be linked together for power?

Yes, the PowerCon compatible in/out connectors allow for feed-through output, supporting the daisy-chaining of up to 30 devices depending on the local power supply.

What applications is this surface panel best suited for?

It is specifically designed for professional indoor use in TV studios, theaters, film sets, photography studios, and high-end event lighting where soft, homogeneous light is required.
