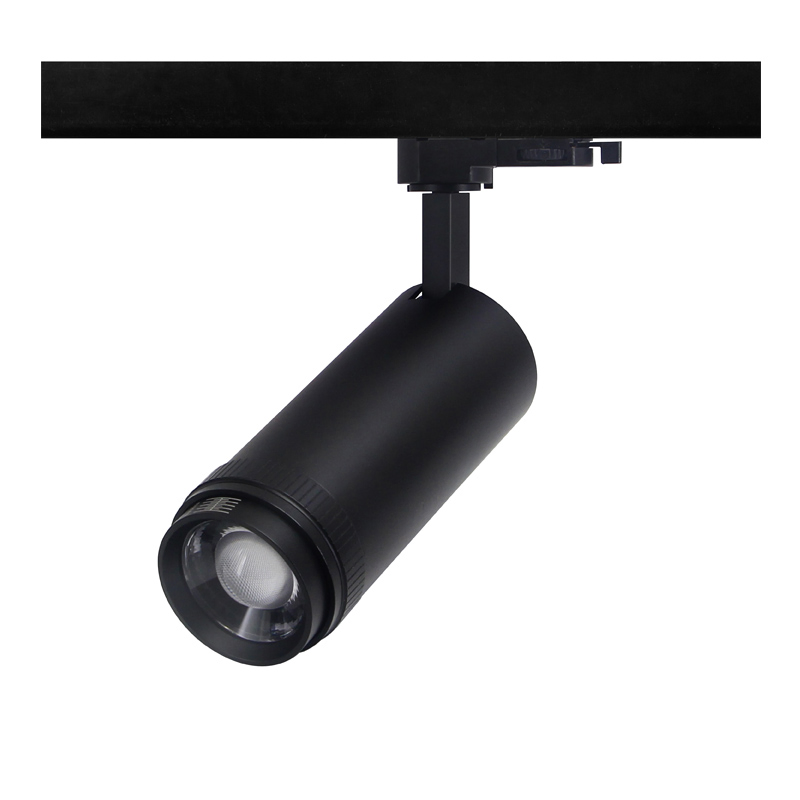

Ceiling Adjustable Spot Zoomable Narrow Beam 15 to 60 Degree Dimmable 35W 30W COB LED Track Light

1 / 5

Ceiling Adjustable Spot Zoomable Narrow Beam 15 to 60 Degree Dimmable 35W 30W COB LED Track Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TL-30W-ZM

Power

16-20W / 35W

Emitting Color

Warm White / Neutral / Cool White

Base Type

1/2/3 Phase Universal Adapter

Wire

3-wire

IP Rating

IP33

Certification

EMC, FCC, LVD, RoHS, SAA

Input Voltage

AC200-240V / 100-130V

LED Chips

Citizen COB (Japan)

Material

6063 Brushed Aluminum Alloy

Origin

China

HS Code

94051000

Product Description

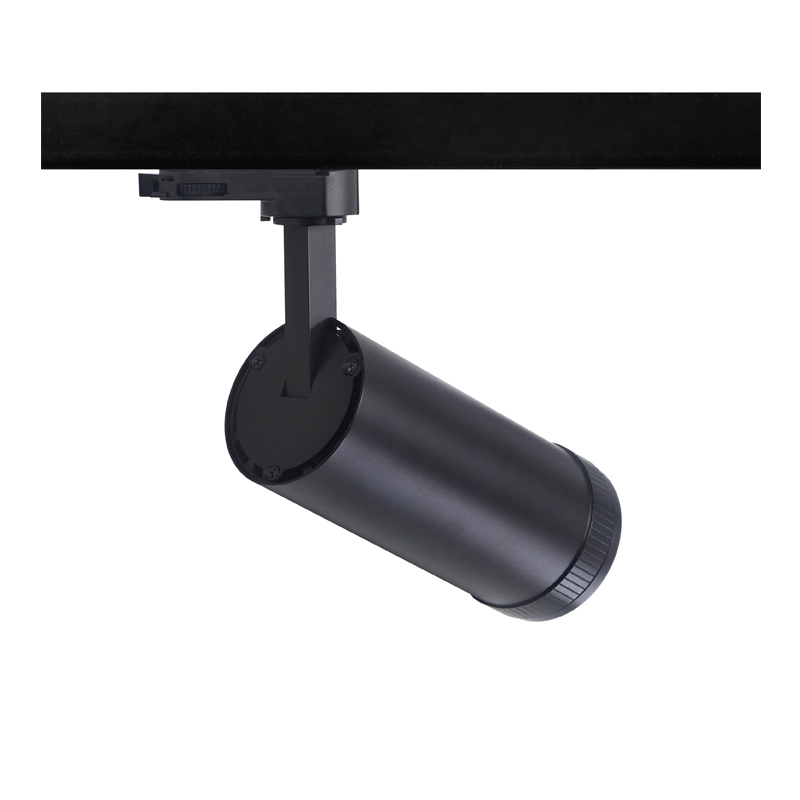

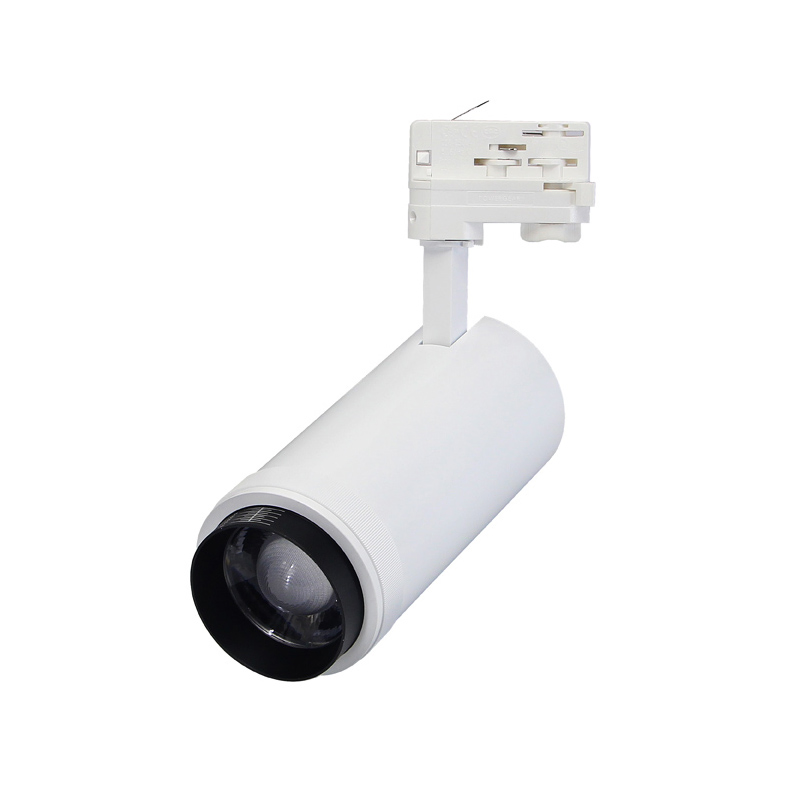

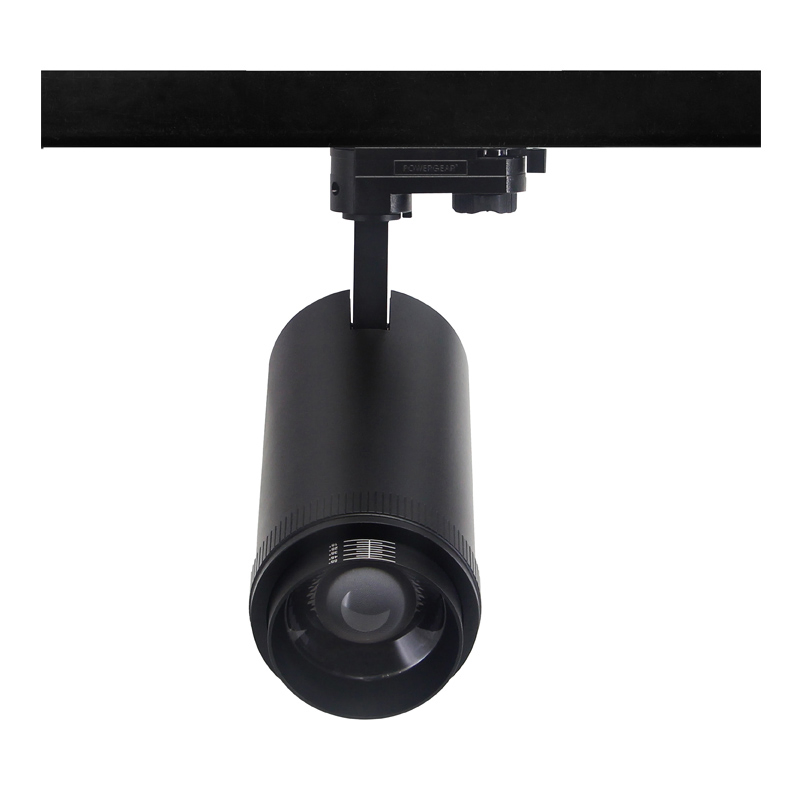

Zoomable LED Track Light (35W)

The directional integrated track lights allow you to focus illumination exactly where it is needed. Utilizing universal 1/3-phase track rails, this system provides functional and adaptive lighting ideal for accent lighting. The spots are easily mounted, tilted, and adjusted.

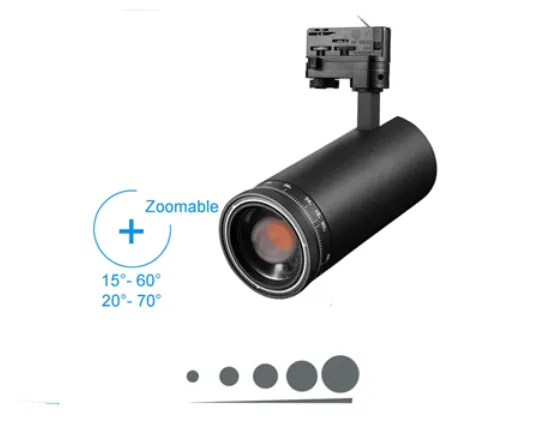

Beam Angle: 15-55 degree adjustable zoom
CRI Options: >97, 90, 80 (Available for 2700K, 3000K, 4000K)
Lifespan: Up to 50,000 hours
Efficiency: 70-100 lm/Watt @ CRI80

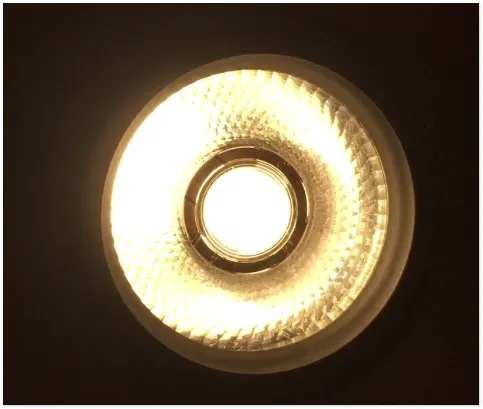

Driver: PF>0.95 Flicker-free driver

Technical Parameters

Feature	Specification
Housing Materials	6063 Brushed Aluminum Alloy

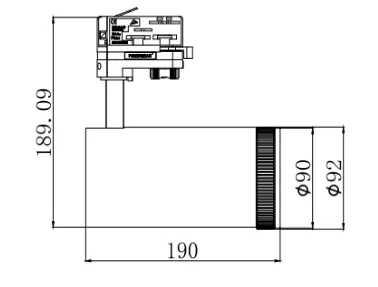

Size	Φ92xL190mm
Housing Color	Black, White, Silver

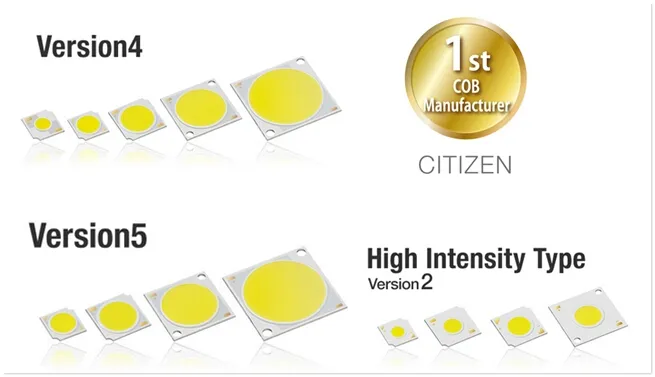

Light Source	Citizen COB LED
Kelvin	2700K / 3000K / 4000K / 5000K
CRI	80+, 90+, 97+
Luminous Efficiency	>100lm/W @CRI80
Adjustable Range	Continuous 350° Rotation and 90° Pivot

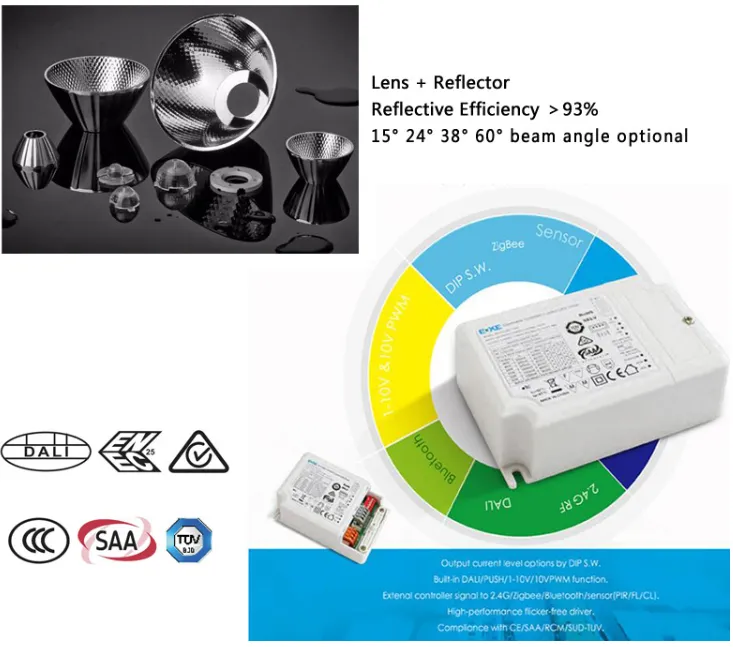

Dimming Options	DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
Warranty	3-5 Years

Lumen Performance Data

Model No.	CCT	CRI	LED Power	System Power	LED Output
TP-TL-15W-F1	2700K	CRI97	14W	15W	1450LM
TP-TL-20W-F1	3000K	CRI97	19W	20W	1850LM
TP-TL-25W-F1	4000K	CRI97	24W	25W	2250LM
TP-TL-30W-F	3000K	CRI80	29W	30W	2700LM
TP-TL-35W-F	4000K	CRI80	34W	35W	3200LM

Product Showcase

Applications

Ideal for various professional environments requiring precision lighting:

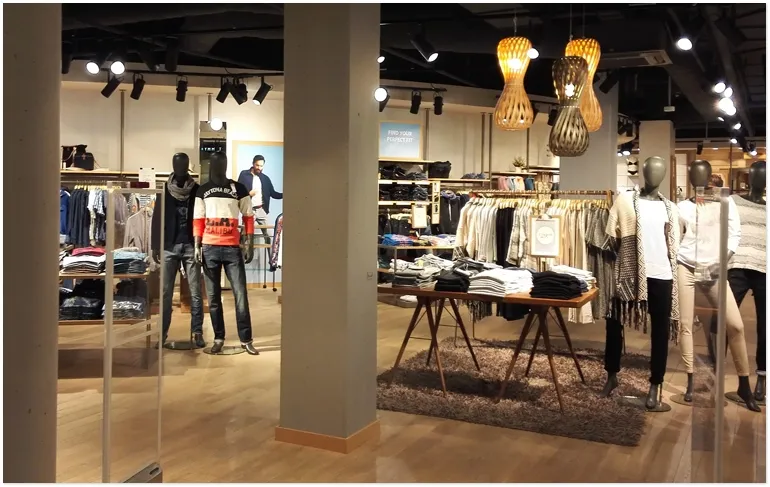

Commercial and Retail Lighting (Shops, Garment Stores)
Museums and Art Gallery Lighting

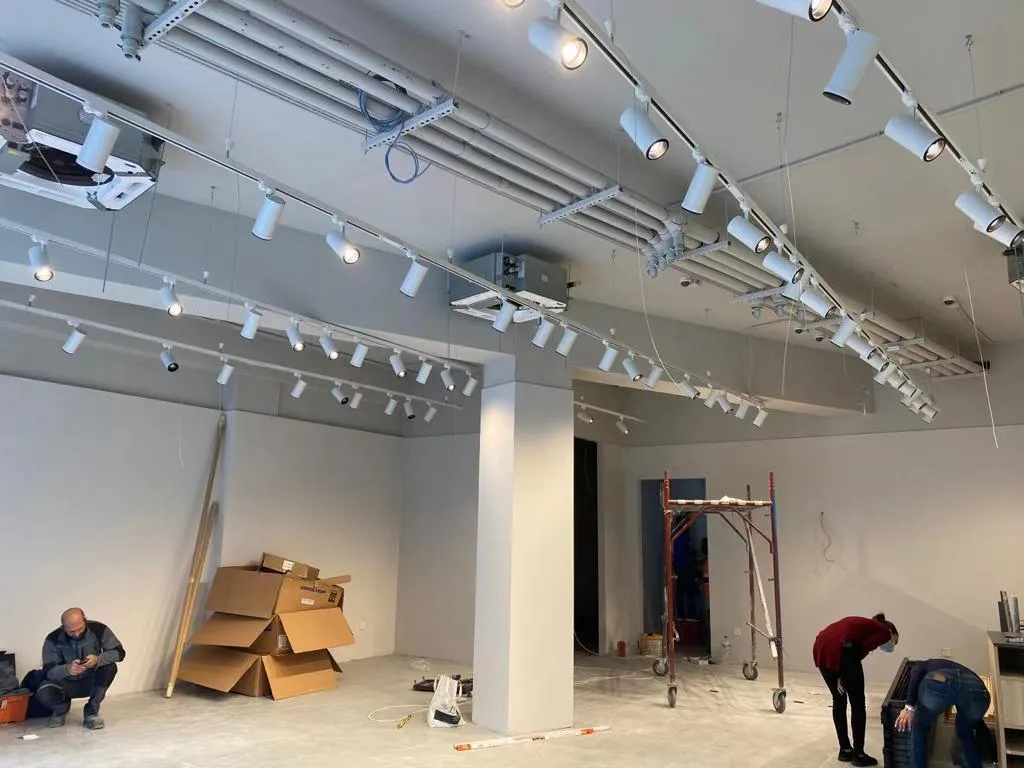

Showrooms and Exhibition Halls
Replacement for CDM, Metal Halide, and Halogen Spotlights

Frequently Asked Questions

What is a zoomable LED track light?

It features an adjustable lens that allows you to change the beam angle (in this case from 15° to 55°) to fit different display sizes or distances.

Why is a flicker-free driver important?

Flicker-free drivers provide stable light output which reduces eye strain and ensures high-quality results for photography and video recording in commercial spaces.

What does CRI>97 mean?

CRI stands for Color Rendering Index. A rating over 97 means the light reveals the true colors of objects very accurately, similar to natural sunlight.

Is this light compatible with existing track rails?

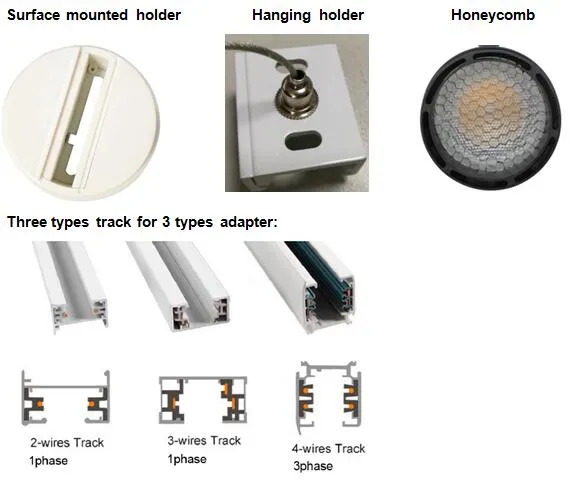

Yes, it comes with a 1/2/3 phase universal adapter that is compatible with most standard track systems like Global and Norlux.

What are the primary materials used in construction?

The housing is made of high-grade 6063 brushed aluminum alloy, which provides excellent heat dissipation and a premium aesthetic finish.

What is the warranty period for this product?

We provide a comprehensive 3 to 5-year warranty depending on the specific configuration chosen.
