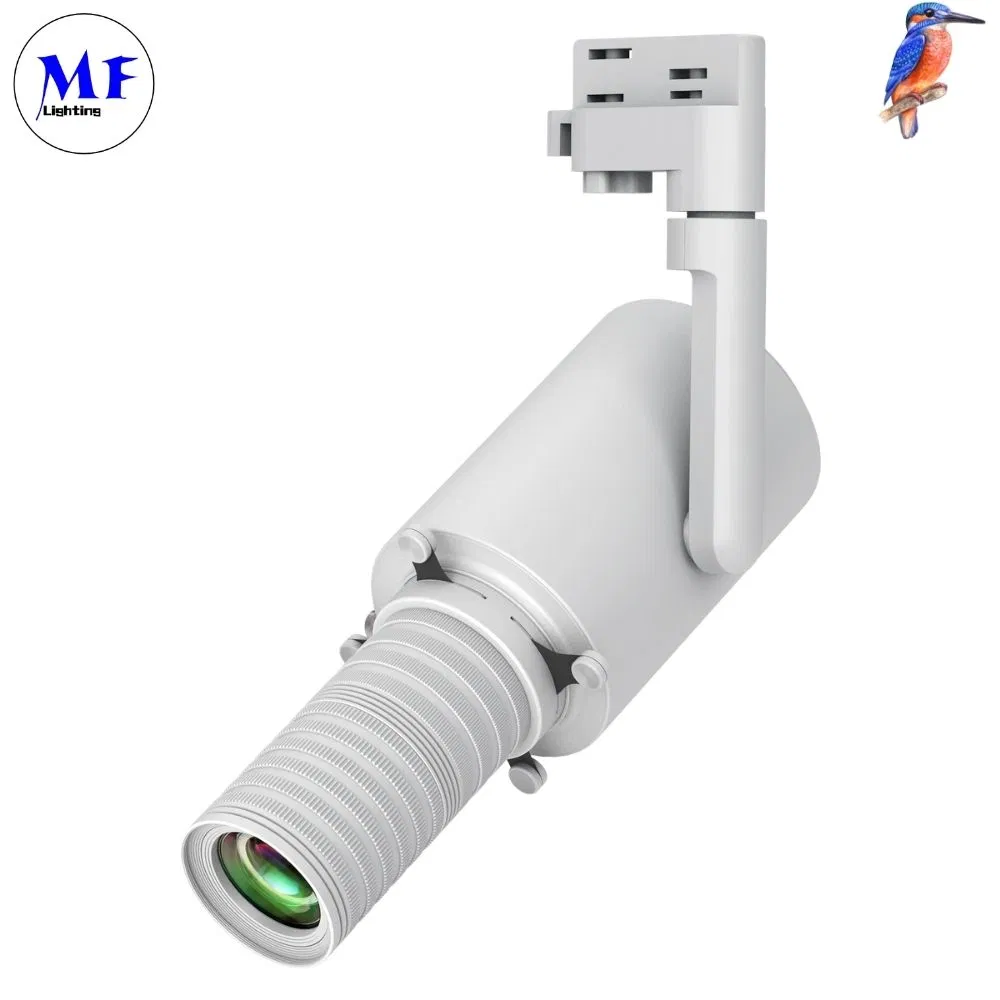

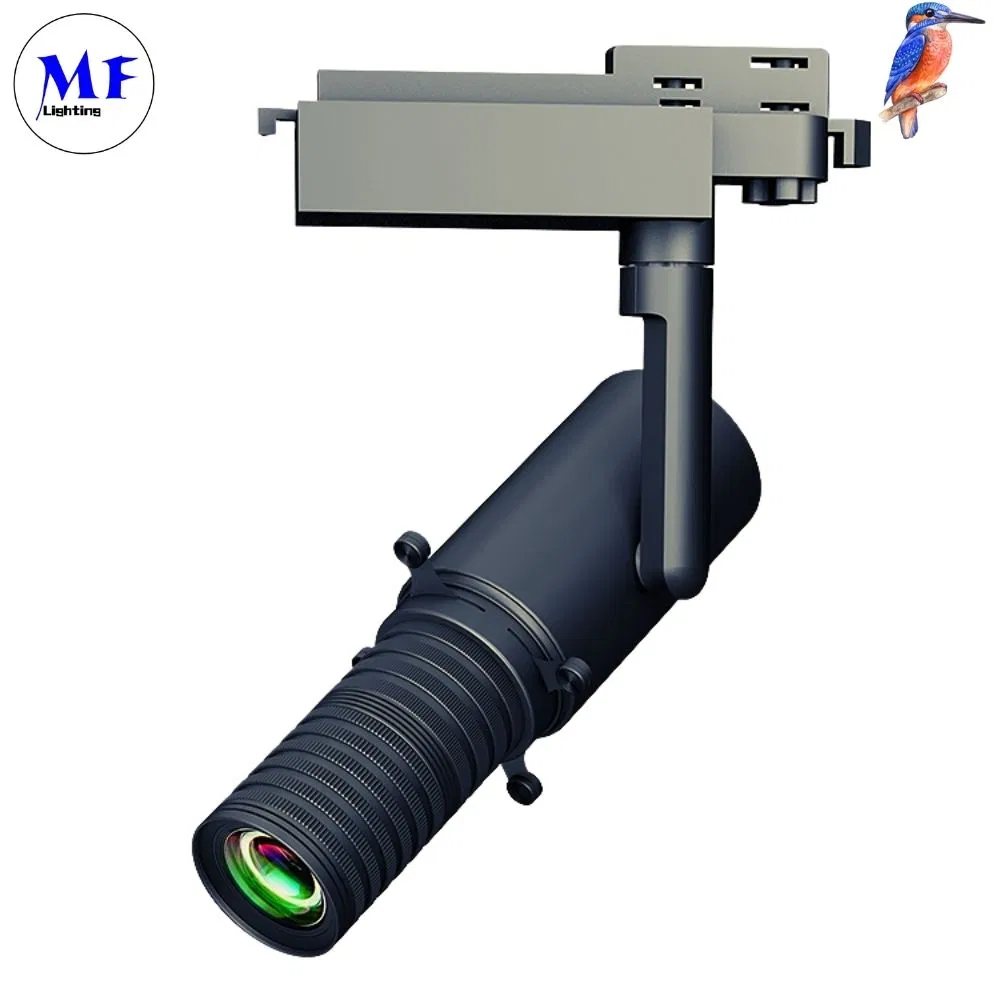

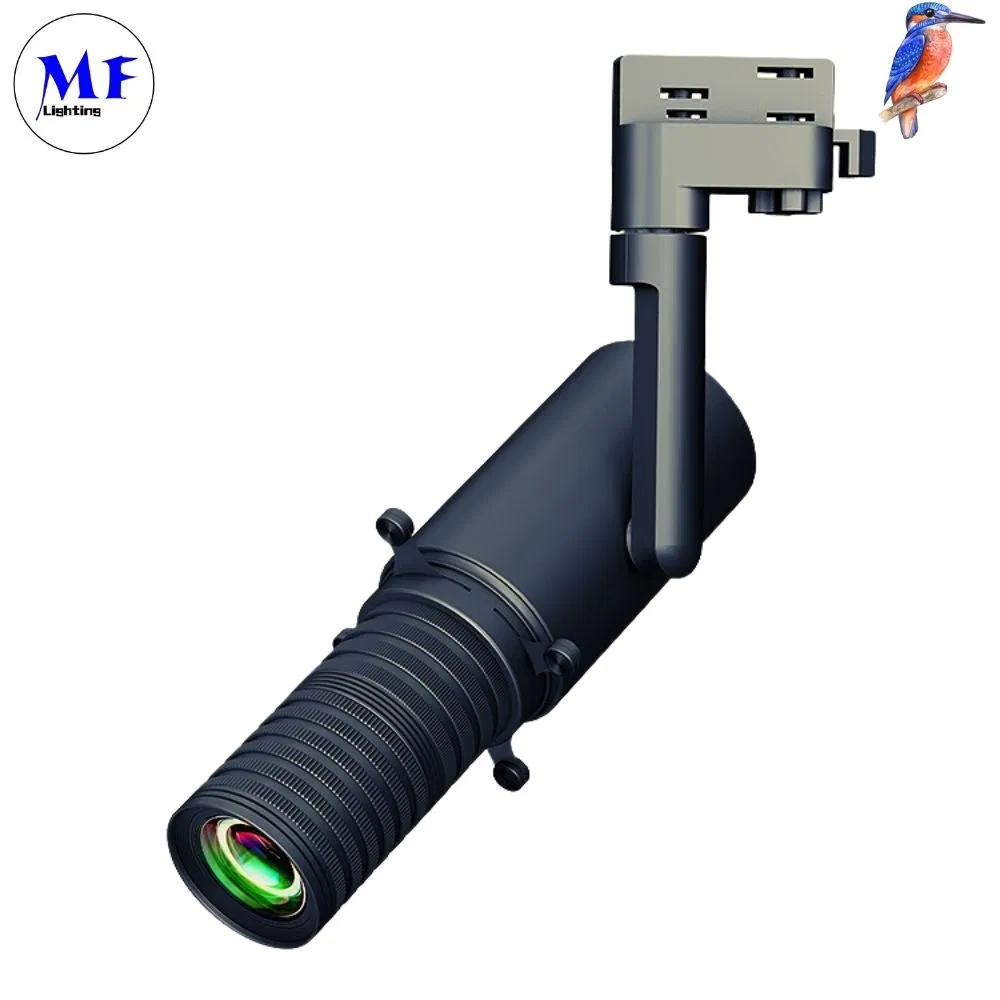

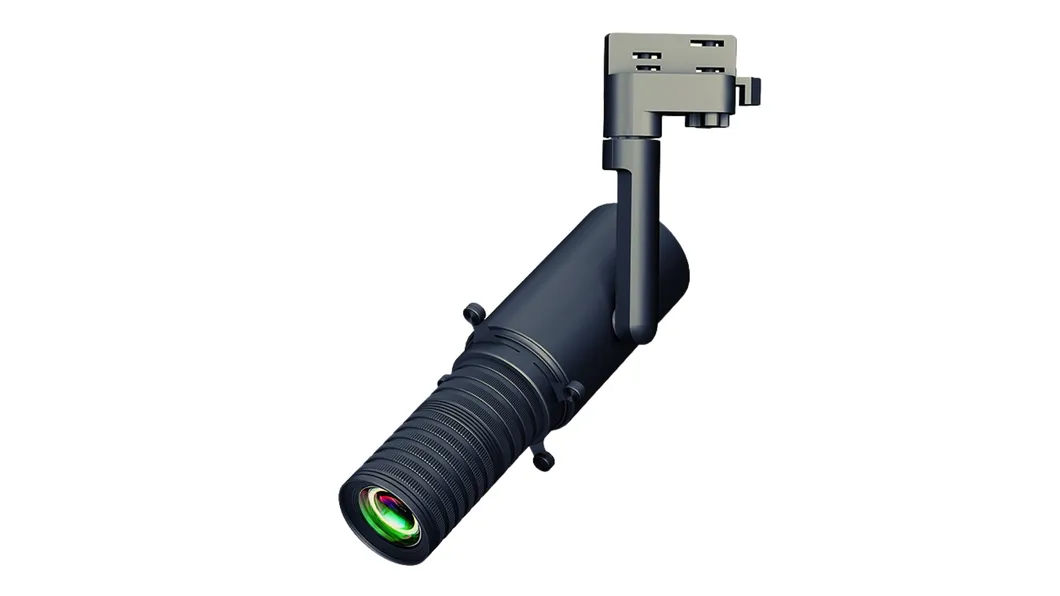

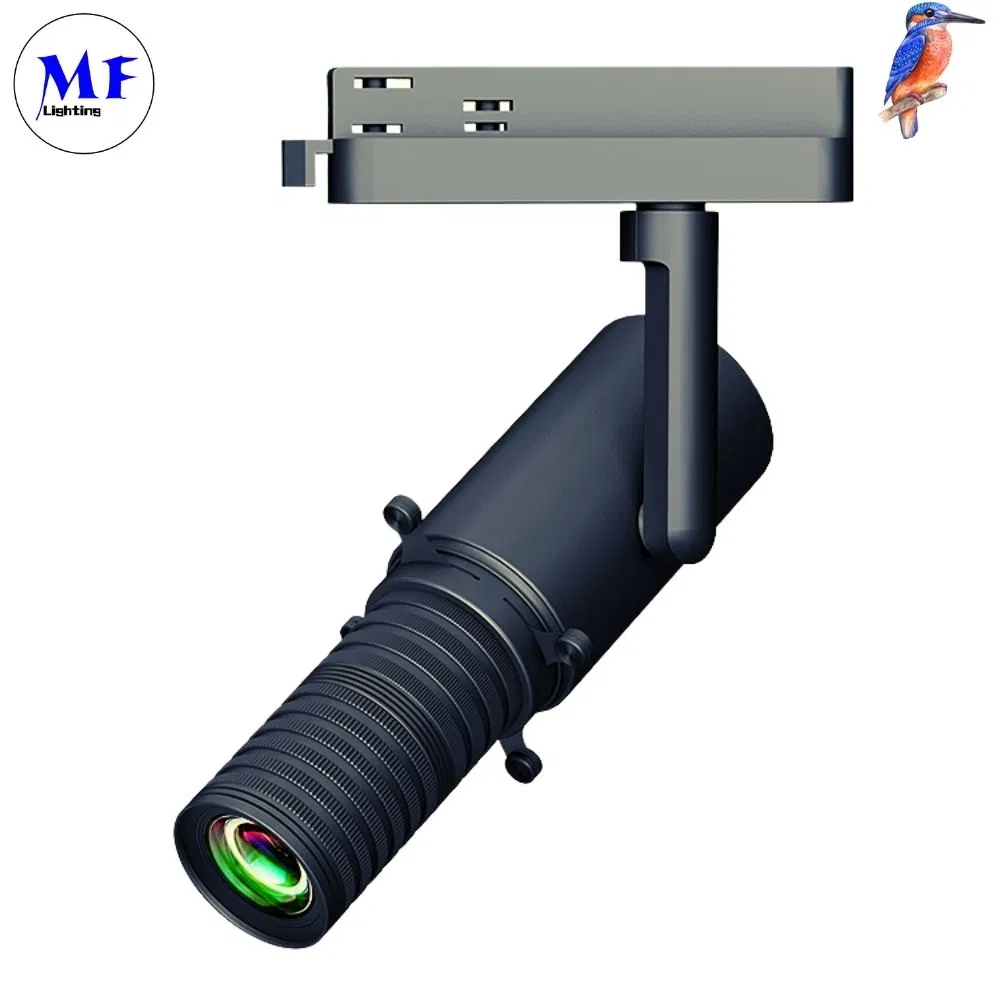

Factory Price 10W 1-10V Dimming Shapeable 360° Rotation High Brightness 2700K-6000K LED Spot Track Light for Art Gallery

Basic Specifications

Model NO.

T1005AL

Power

8W/10W/20W/28W/37W

Emitting Color

Changeable

IP Rating

IP54

Certification

CCC, CE, CQC, RoHS

Input Voltage

220-240V

LED Chips

OS-RAM

CRI

>97

Warranty

5 Years

Housing Color

Black / White

Product Description

Fully independent intellectual property rights, global patents, global certification!

This professional-grade LED spot track light features dry stepless linear zooming and spot shaping with a frame size ratio of 1:0.8. Designed for art galleries and precision lighting, it allows for limitless expression in lighting design, catering to the unique spirit and cultural background of any space.

Luminous Flux	900-950LM
Item Type	Shapeable Track Light / LED Spot Light
Support Filters	58
Installation	Track-Mounted, Wall-Mounted
Working Life	50,000 hours

Advanced Optical Filtering

1

Industrial Grade Optical Filters: Supports customizable narrowband and ultra-narrowband filters. Functions like HD UV, color, and soft filters can be superimposed.

2

ND & UV Filters: Electronic dimming allows reduction to less than 75LUX for authentic lighting. UV filters protect sensitive cultural relics and silk products.

3

CPL & GND Filters: CPL eliminates surface reflections; GND filters alter light ratios for even illumination on oblique surfaces.

Precision Design

360° Manual Rotation: Achieve perfect projection alignment by loosening the manual screw and rotating the lens device.

Multi-layer Dry Damping: A specialized focusing device requiring no lubricating oil. It provides a silky feel, high-temperature resistance, and long-term reliability without wear.

Color Temperature & Smart Control

Adjustable from 2700K to 6000K via DIP switch or knob dimming. Supports mainstream control protocols including 1-10V, DMX, DALI, and Zigbee.

Compatible with AI systems: Huawei, Tuya, Xiaomi, Amazon Alexa, and Google Assistant.

Instruction Manual

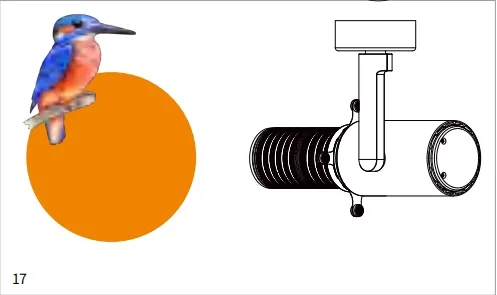

Adjust aperture size and sharpness relative to the center of the target object.

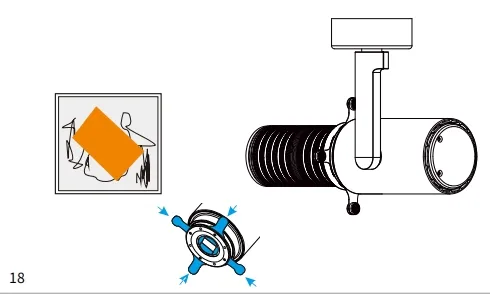

Pull four diaphragm sheets out, then push inward to cut the spot to match the object's square shape.

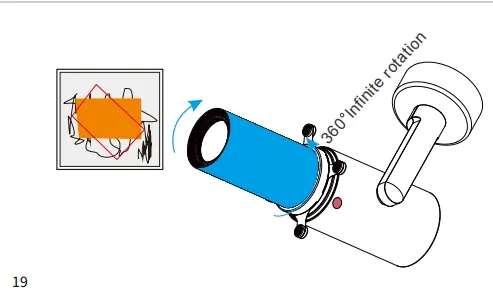

Rotate the lens unit to align spot edges parallel to the object edges.

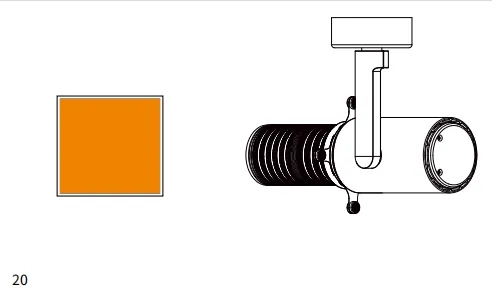

Fine-tune the diaphragm sheets until the spot size is perfectly consistent with the object.

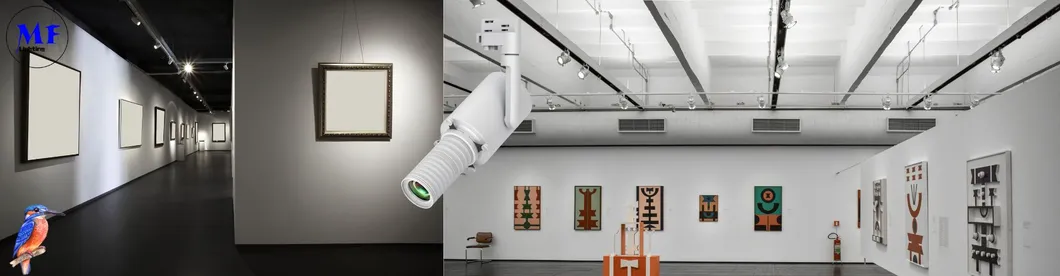

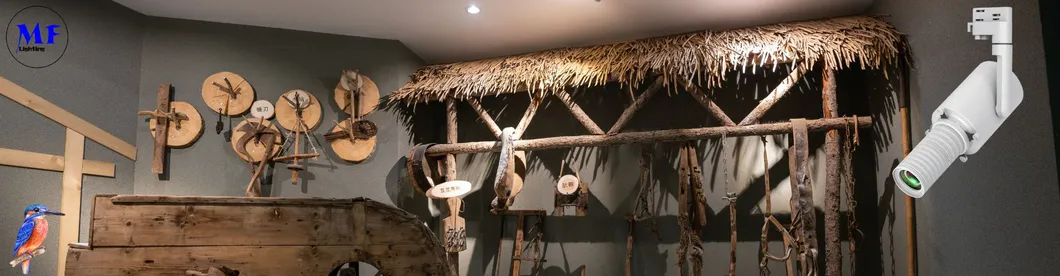

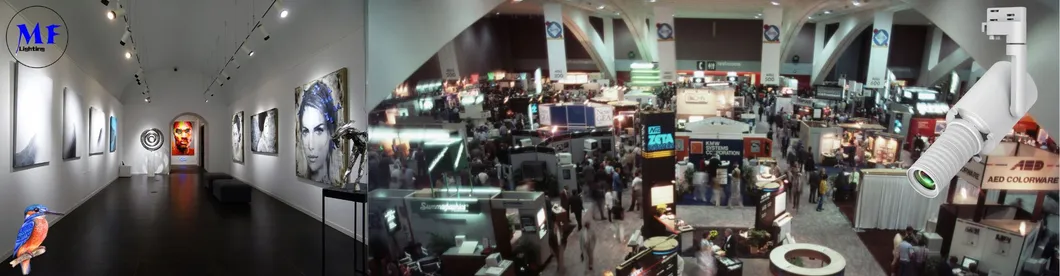

Applications

Packaging & Shipping

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, operating based on ISO quality management since 2009.

Can I order a sample of the LED Light?

Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

What is the lead time for orders?

For sample orders, the lead time is 3-7 days. For mass production, it is 15-25 days depending on quantities.

How do you ship the products?

We offer shipping via Sea, Air, or Express (DHL, UPS, FedEx, TNT, etc.) based on your preference.

Can I print my logo on the light?

Yes, we provide OEM services. We can customize labels and color boxes according to your specific requirements.

What is the warranty policy?

We offer a 5-year warranty for this product. If defects occur during this period, we will provide replacement lights upon receiving photographic or video evidence.
